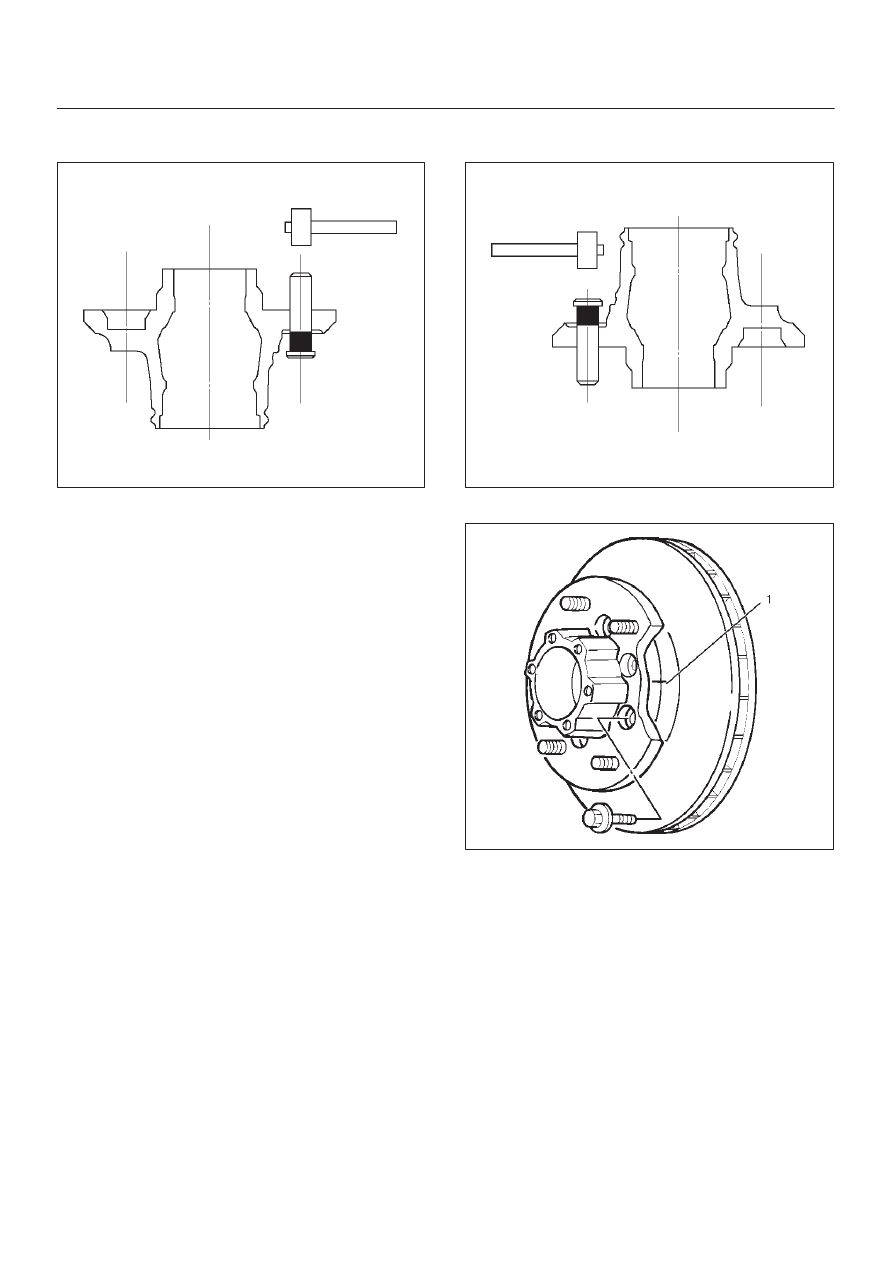

4C–6

DRIVE SHAFT SYSTEM

D

Place hub on a suitable work surface and remove
wheel studs, as required, using a hammer.

411RS004

Inspection and Repair

Check the following parts for wear, damage or other
abnormal conditions.

D

Hub

D

Hub bearing

D

Bearing outer race

D

Disc

D

Oil seal

Reassembly

1. Install wheel pin.

D

Place hub on a wood workbench or a block of wood
approx.  6” by 6” to protect the wheel stud ends and
threads.

D

Install wheel stud, using a hammer.

NOTE: Be sure wheel stud is started squarely and seats
completely.

411RS005

2. Align index marks(1) and install hub to disc.

411RS003

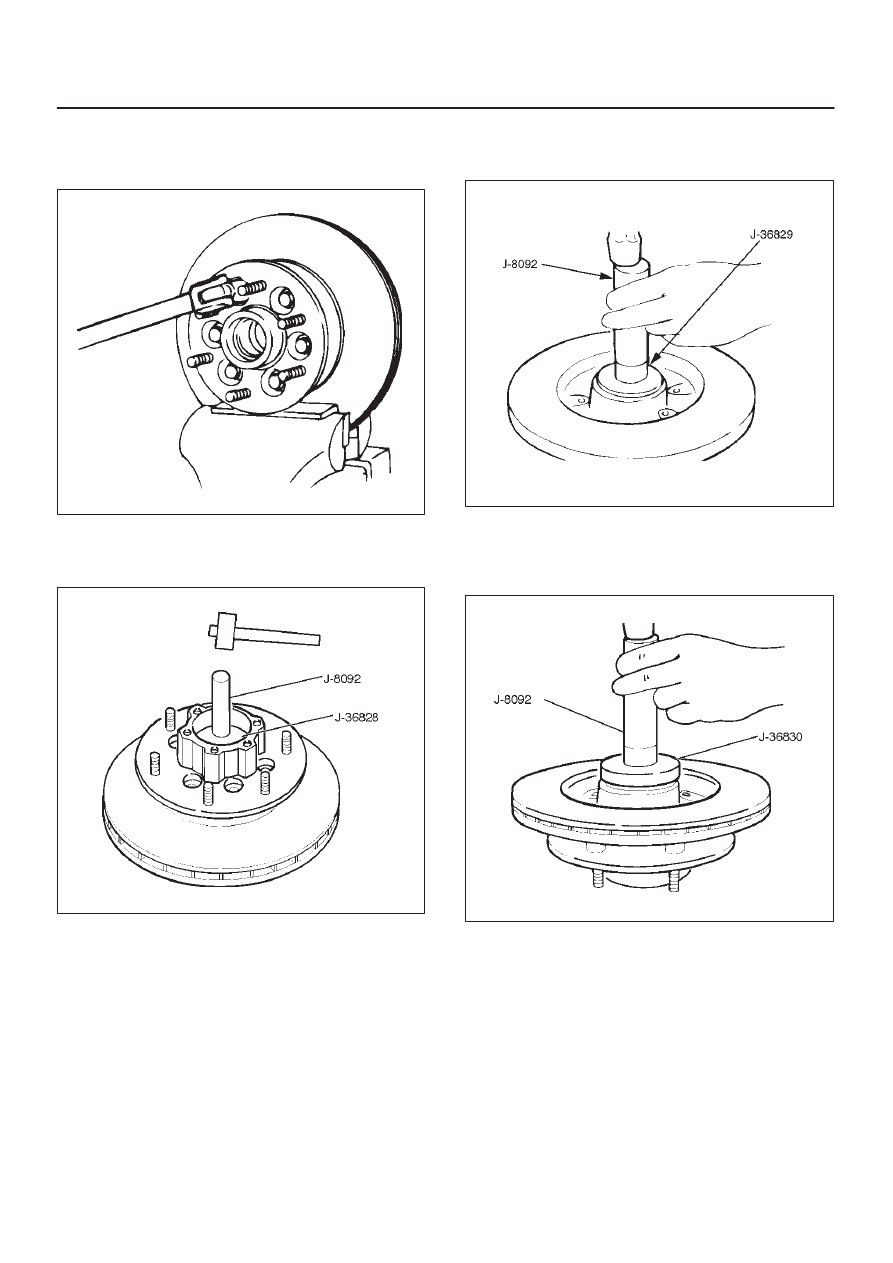

4C–7

DRIVE SHAFT SYSTEM

3. Install bolt.

Tighten the bolts to the specified torque.

Torque: 103 N·m (76 lb ft)

411RS021

4. Install outer bearing.

Install the outer race by driving it into the hub by using
installer J–36828 and grip J-8092.

901RW056

5. Install inner bearing.

Install the outer race by driving it into the hub by using
installer J–36829 and grip J–8092.

411RS023

6. Install oil seal by using installer J–36830 and grip

J–8092.
Apply Multipurpose grease NLGI No. 2 or equivalent
to the lip portion.

901RW057

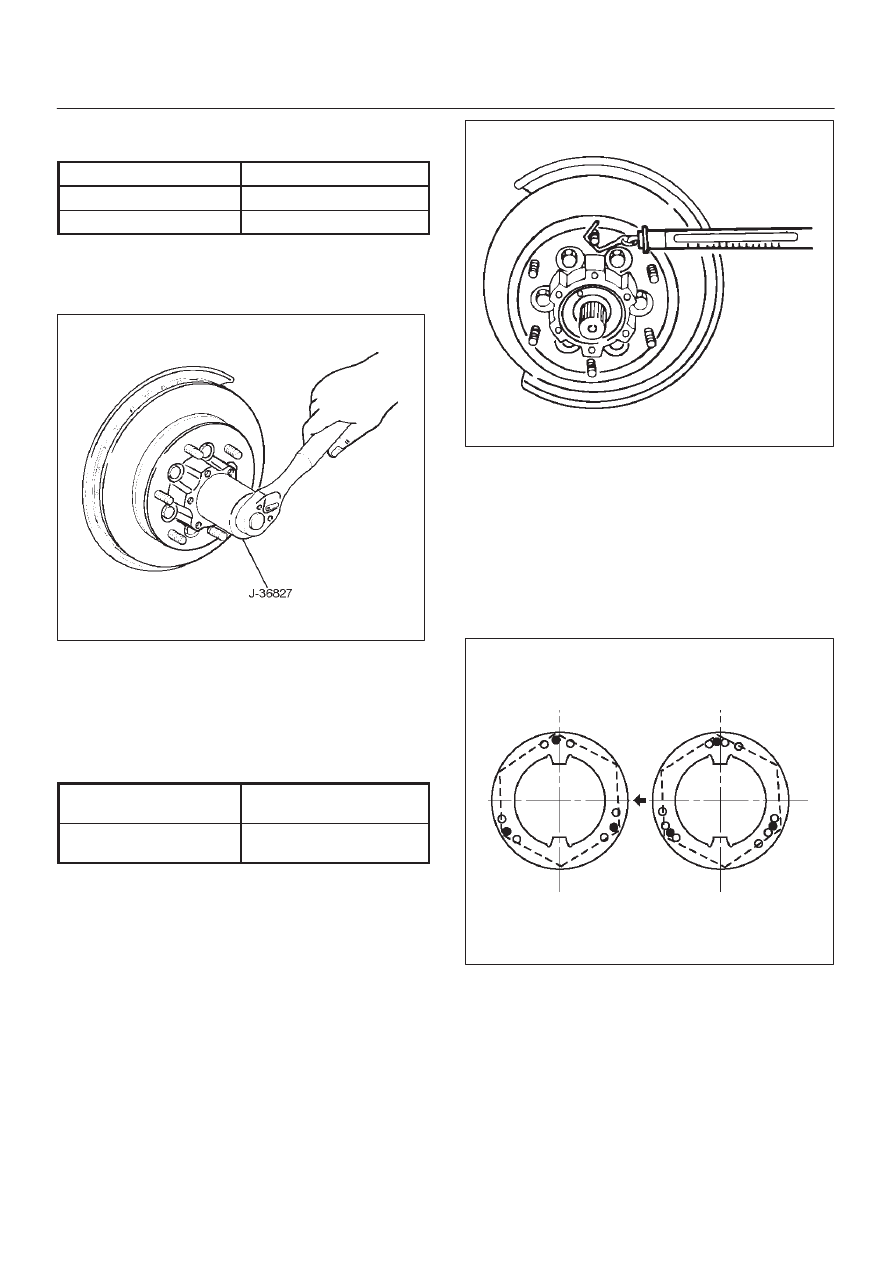

4C–8

DRIVE SHAFT SYSTEM

7. Apply Multipurpose grease NLGI No.2 in the hub and

bearing.

Hub

35 g (1.23 oz)

Outer bearing

10 g (0.35 oz)

Inner bearing

15 g (0.53 oz)

8. Install hub nut by using wrench J–36827.

Turn the place where there is a chamfer in the tapped
hole to the outer side, and attach the nut.

901RW054

Preload Adjustment

1. Tighten the hub nut to 29.4 N·m (21.7 lb ft), then

loosen the nut to the full.

2. Tighten the hub nut to the value given below,

using a spring scale on the wheel pin.

Bearing Preload

New bearing and New
oil seal

19.6 – 24.5 N

(4.4 – 5.5 lb)

Used bearing and New
oil seal

11.8 – 17.7 N

(2.6 – 4.0 lb)

If the measured bearing preload is outside the
specifications, adjust it by loosening or tightening
the bearing nut.

411RS011

9. Install lock washer.

D

Turn the side with larger diameter of the tapered
bore to the vehicle outer side, then attach the
washer.
If the bolt holes in the lock plate are not aligned with
the corresponding holes in the nut, reverse the lock
plate.  If the bolt holes are still out of alignment, turn
in the nut just enough to obtain alignment.  Screw is
to be fastened tightly so its head may come lower
than the surface of the washer.

411RS012

10. Install the paking.

11. Install cover and tighten the cover bolt.

12. Install brake caliper and tighten fixing bolt.

4C–9

DRIVE SHAFT SYSTEM

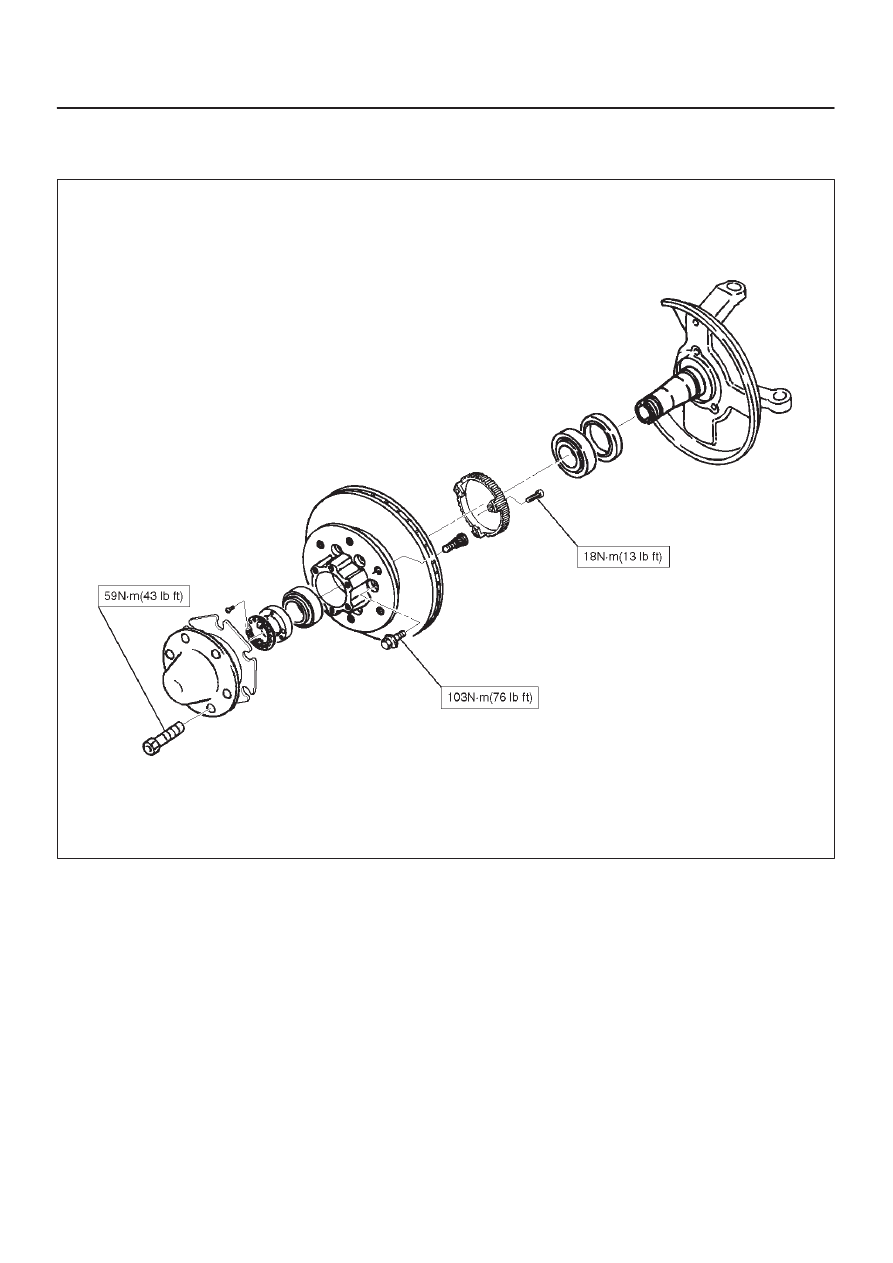

Main Data and Specifications

Torque Specifications

E04RW00001
