9A–4

SEAT BELT SYSTEM

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

CAUTION: When replacing the front seat belt,
always replace the seat belt with the same parts/part
number.

1. Tighten the adjustable shoulder anchor assembly

fixing bolts to the specified torque.

Torque: 39 N·m (29 lb ft)

2. Tighten the seat belt anchor bolts (Upper & Lower)

and the retractor fixing bolts to the specified torque.

Torque: 39 N·m (29 lb ft)

SEAT BELT SYSTEM

9A–5

Rear Seat Belt

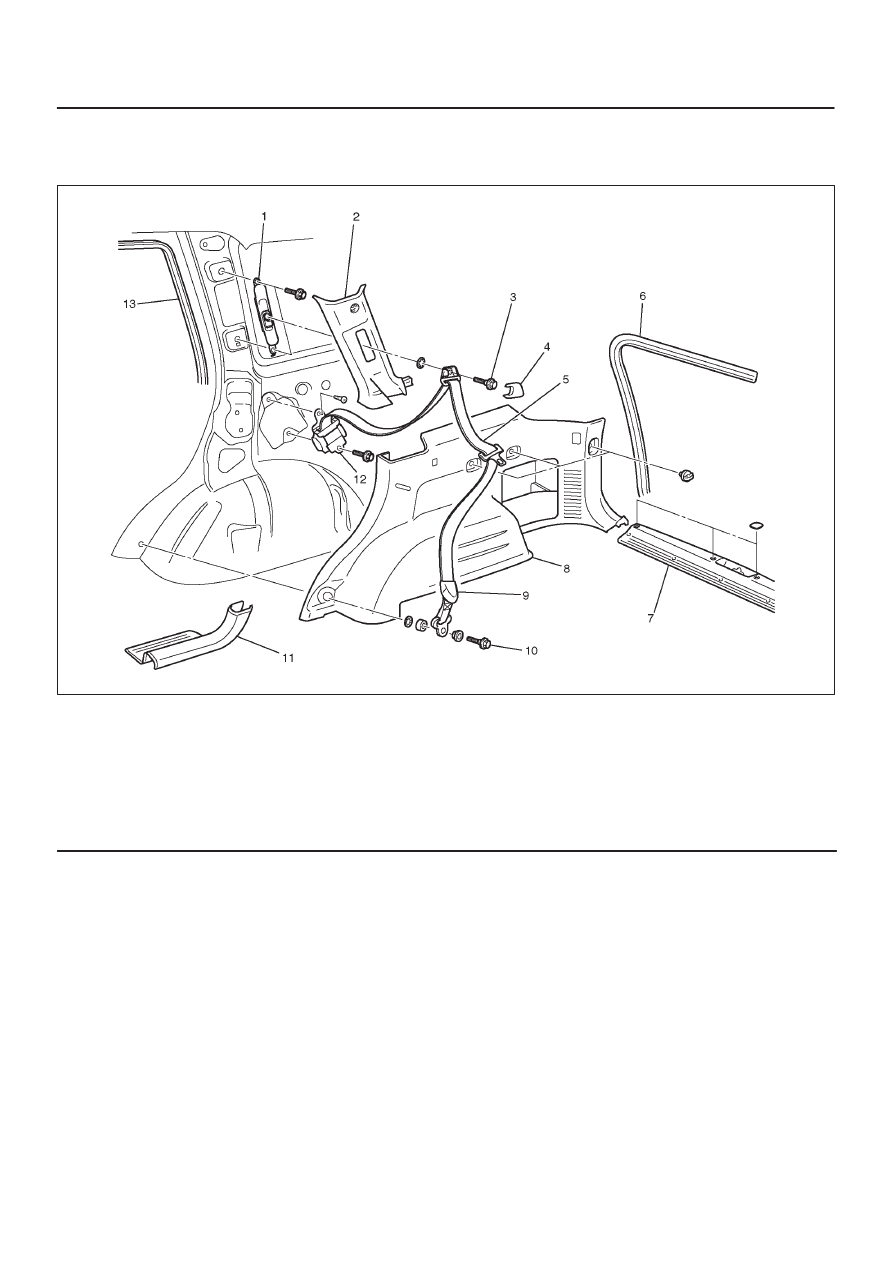

Rear Seat Belt and Associated Parts

760R200017

Legend

(1) Adjustable Shoulder Anchor Assembly
(2) Upper Quarter Pillar Trim Cover
(3) Seat Belt Upper Anchor Bolt
(4) Shoulder Anchor Cap
(5) Rear Seat Belt Assembly
(6) Tailgate Weather Strip

(7) Rear End Floor Trim Cover
(8) Lower Quarter Trim Cover
(9) Anchor Cover

(10) Seat Belt Lower Anchor Bolt

(11) Rear Sill Plate

(12) Retractor
(13) Rear Door Seal Finisher

Removal

1. Disconnect the battery ground cable.
2. Remove the tailgate weather strip.
3. Remove the rear end floor trim cover.
4. Remove the rear sill plate.
5. Remove the anchor cover and the lower anchor bolt.
6. Remove the lower quarter trim cover.

D

Refer to Interior Trim Panel in Exterior/Interior Trim
section.

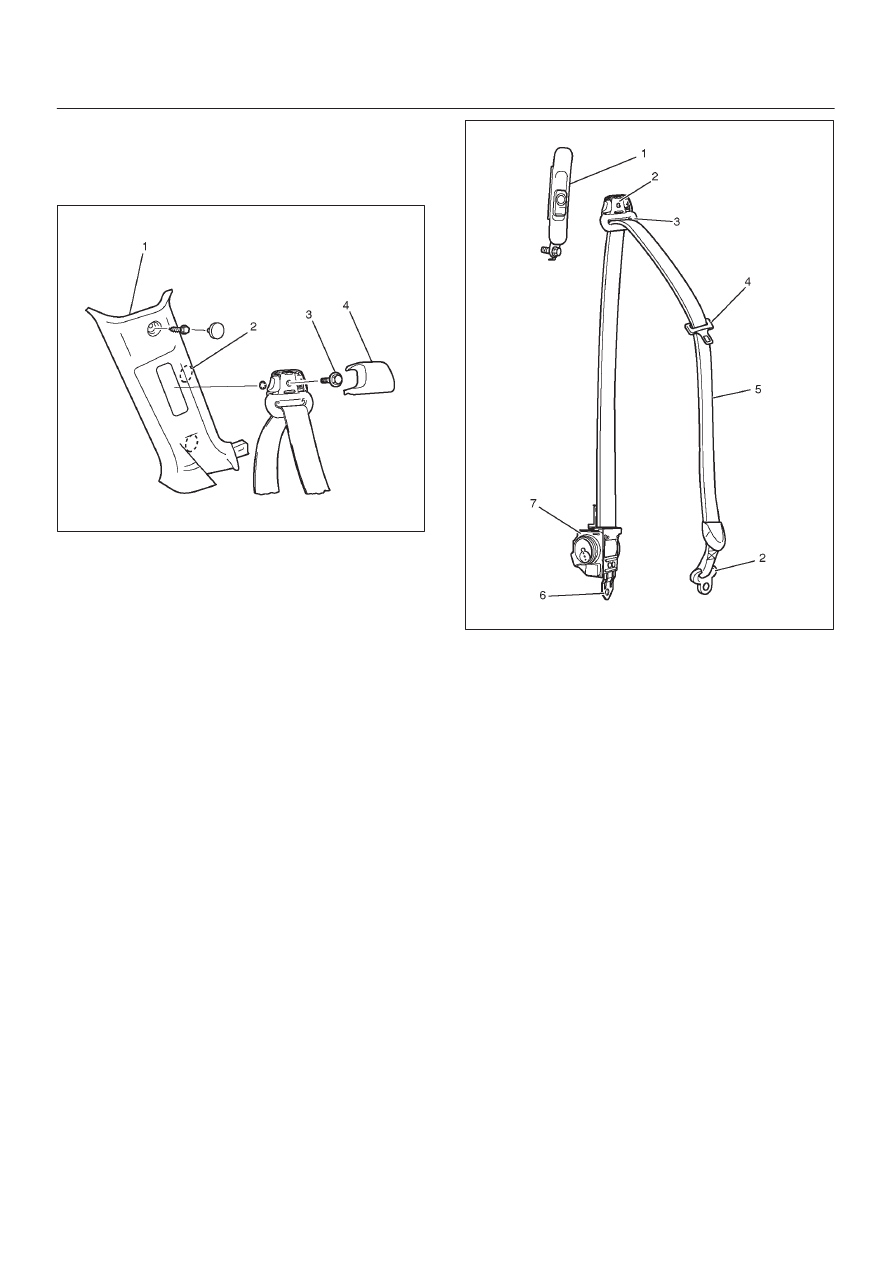

7. Remove the seat belt upper anchor bolt (3).

D

Remove the shoulder anchor cap (4).

9A–6

SEAT BELT SYSTEM

8. Remove the upper quarter pillar trim cover (1).

D

Remove the screw cover and screw.

D

Pry the trim cover with the clip positions (2) from the
body panel.

760R200011

9. Remove the retractor.

D

Remove the screw and bolt.

10. Remove the rear seat belt assembly.

11. Remove the adjustable shoulder anchor assembly.

D

Remove the two fixing bolts.

Inspection

If any of the following abnormalities is found, replace on
an assembly basis.

D

Deformed and malfunctioning adjustable shoulder
anchor (1).

D

Uneven movement of upper/lower anchors (2) in the
circumferential direction.

D

Damaged and/or deformed through ring (3).

D

Damaged and/or deformed tongue (4).

D

Damaged and/or frayed webbing (5).

D

Deformed retractor bracket (6).

D

Seat belt does not retract (7).

D

Resistance or abnormal sound when seat belt is
pulled out or retracted (7).

D

Retractor (7) abnormality.

760R200019

Inspection of retractor

1. ELR (Emergency Locking Retractor) lock inclining

angle check.

D

The seat belt should not lock when pulled gently at a
15 degree angle. Also, the seat belt should lock
when pulled at a 45 degree angle or higher.

2. ELR lock check.

D

The seat belt should not lock when pulled slowly,
however, the seat belt should lock when pulled
quickly.

3. ALR (Automatic Locking Retractor)/ELR check

(Except for driver’s seat).

D

Make sure the seat belt is locked when pulled out
fully.

D

Make sure the seat belt can be pulled out and
retracts after when rewound fully.

CAUTION: Do not disassemble the retractor.

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the adjustable shoulder anchor assembly

fixing bolts to the specified torque.

Torque: 39 N·m (29 lb ft)

2. Tighten the seat belt anchor bolts (Upper & Lower)

and the retractor fixing bolts to the specified torque.

Torque: 39 N·m (29 lb ft)

SEAT BELT SYSTEM

9A–7

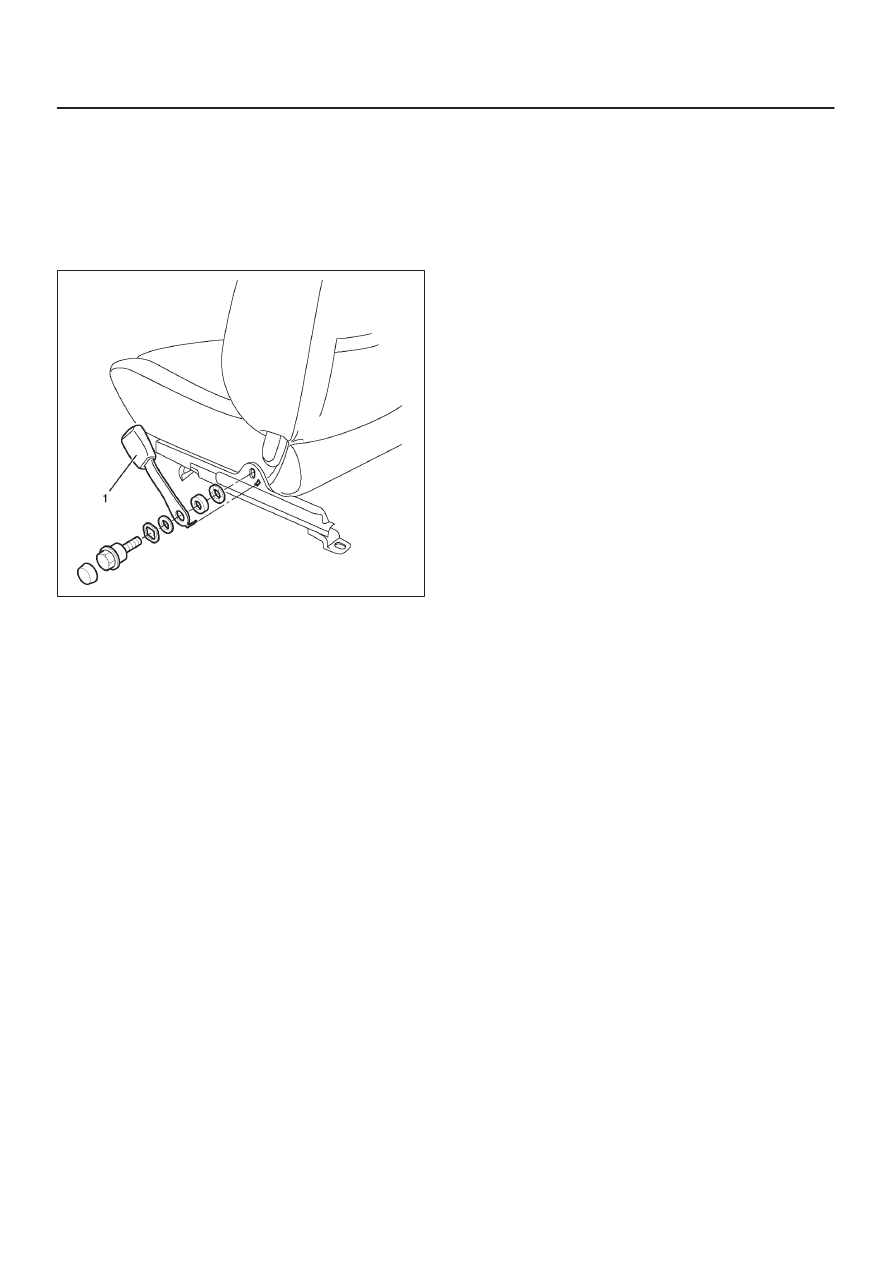

Front Seat Buckle Assembly

Removal

1. Disconnect the battery ground cable.
2. Disconnect the seat belt warning connector (driver’s

side) and remove a clip.

3. Remove the front seat buckle assembly (1).

760R200009

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the buckle anchor bolt to the specified torque.

Torque: 29 N·m (22 lb ft)
