EXTERIOR/INTERIOR TRIM

8J–23

Main Data and Specifications

Torque Specifications

Application

N·m

lb ft

lb in

Front & Rear Seat Belt Anchor Bolts

39

29

—

SEAT BELT SYSTEM

9A–1

AXIOM

RESTRAINTS

SEAT BELT SYSTEM

CONTENTS

Service Precaution

9A–1

. . . . . . . . . . . . . . . . . . . . . .

Front Seat Belt

9A–2

. . . . . . . . . . . . . . . . . . . . . . . . . .

Front Seat Belt and Associated Parts

9A–2

. . . .

Removal

9A–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection

9A–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

9A–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Seat Belt

9A–5

. . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Seat Belt and Associated Parts

9A–5

. . . . .

Removal

9A–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection

9A–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

9A–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Front Seat Buckle Assembly

9A–7

. . . . . . . . . . . . . .

Removal

9A–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

9A–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Center Seat Belt / Buckle Assembly

9A–8

. . .

Rear Center Seat Belt / Buckle Assembly
 and Associated Parts

9A–8

. . . . . . . . . . . . . . . . . .

Removal

9A–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

9A–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Child Seat Tether Anchorage Bracket
 (Child Restraint)

9A–9

. . . . . . . . . . . . . . . . . . . . . . . .

Child Seat Tether Anchorage Bracket and
 Associated Parts

9A–9

. . . . . . . . . . . . . . . . . . . . . .

Removal

9A–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

9A–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Child Seat Lower Anchorage Striker

9A–10

. . . . . . .

Child Seat Lower Anchorage Striker and
 Associated Parts

9A–10

. . . . . . . . . . . . . . . . . . . . . .

Removal

9A–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

9A–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

9A–12

. . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT  AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE  SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR  BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after  removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE  SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners  or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force,  and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications.  Following these
instructions can help you avoid damage to parts and
systems.

SECTION

9A–2

SEAT BELT SYSTEM

Front Seat Belt

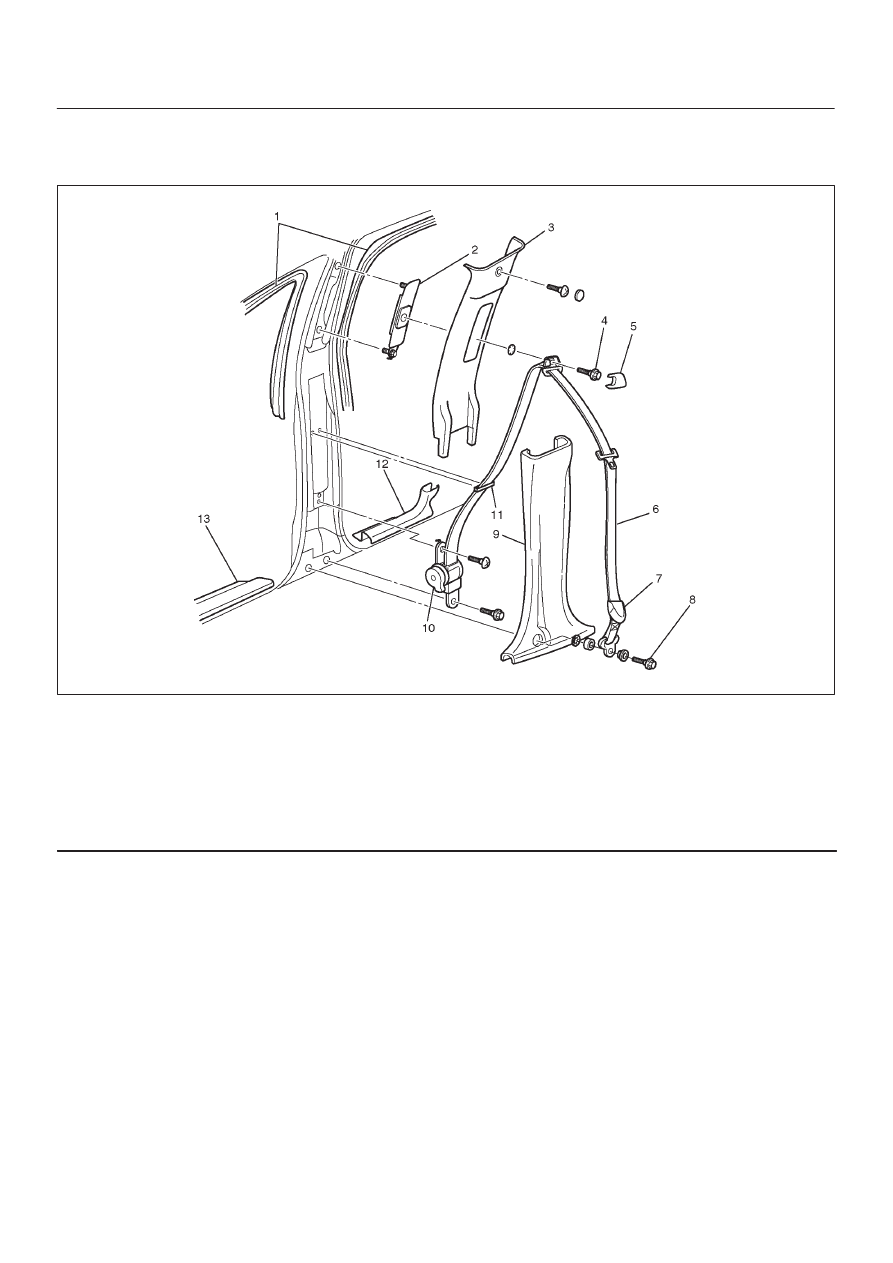

Front Seat Belt and Associated Parts

760R200015

Legend

(1) Door Seal Finisher (Front & Rear)
(2) Adjustable Shoulder Anchor Assembly
(3) Upper Center Pillar Trim Cover
(4) Seat Belt Upper Anchor Bolt
(5) Shoulder Anchor Cap
(6) Front Seat Belt Assembly

(7) Anchor Cover
(8) Seat Belt Lower Anchor Bolt
(9) Lower Center Pillar Trim Cover

(10) Retractor

(11) Webbing Guide

(12) Rear Sill Plate
(13) Front Sill Plate

Removal

1. Disconnect the battery ground cable.
2. Remove the sill plate (Front & Rear).
3. Remove the anchor cover and seat belt lower anchor

bolt.

4. Remove the lower center pillar trim cover.
5. Remove the door seal finisher (Front & Rear).

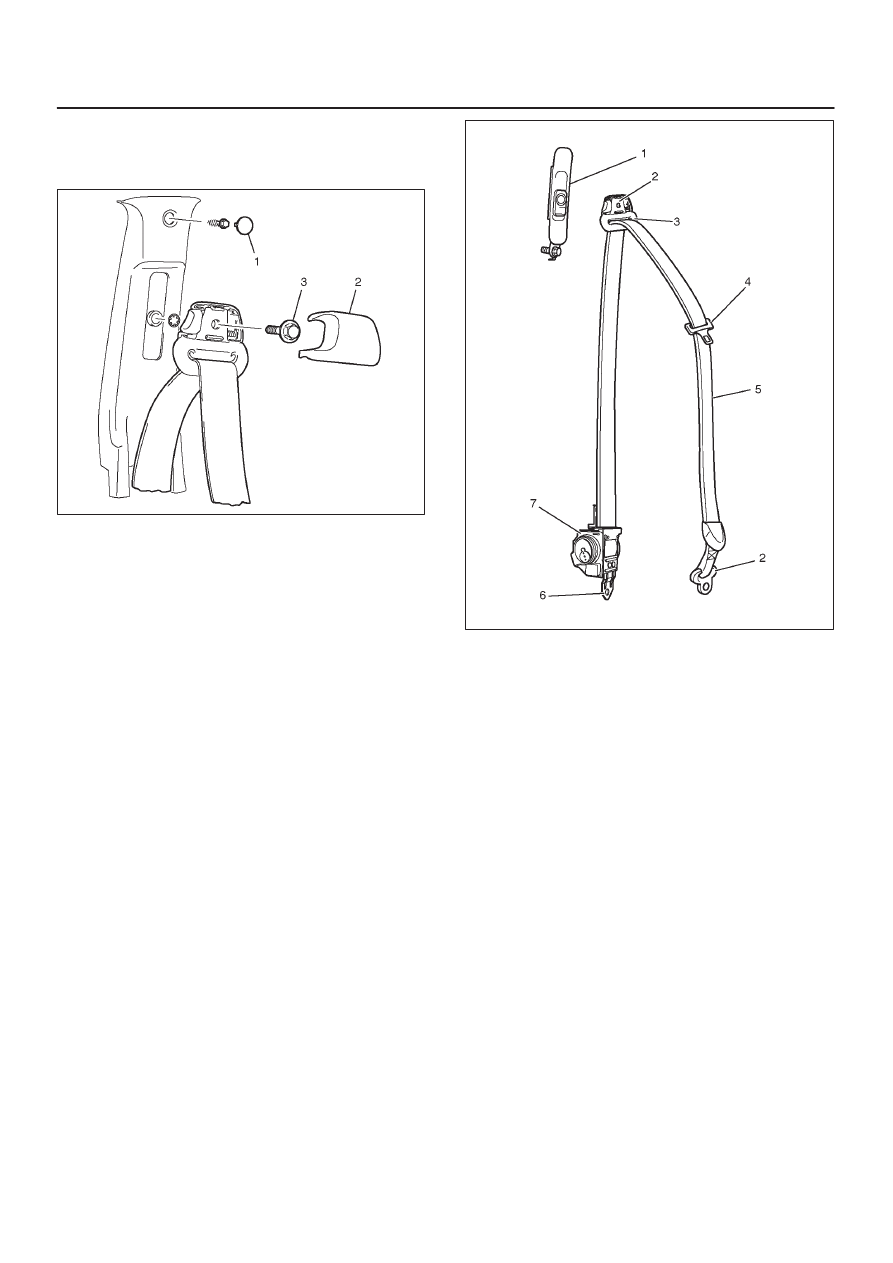

6. Remove the seat belt upper anchor bolt (3).

D

Remove the shoulder anchor cap (2).

SEAT BELT SYSTEM

9A–3

7. Remove the upper center pillar trim cover.

D

Remove screw cover (1) and screw.

D

Pry the trim cover with the clip from the body panel.

760R200006

8. Remove the retractor fixing bolt and screw.
9. Remove the seat belt assembly.

D

Pull out the webbing guide.

10. Remove the adjustable shoulder anchor assembly.

D

Remove the two fixing bolts.

Inspection

If any of the following abnormalities is found, replace on
an assembly basis.

D

Deformed and malfunctioning adjustable shoulder
anchor (1).

D

Uneven movement of upper/lower anchors (2) in the
circumferential direction.

D

Damaged and/or deformed through ring (3).

D

Damaged and/or deformed tongue (4).

D

Damaged and/or frayed webbing (5).

D

Deformed retractor bracket (6).

D

Seat belt does not retract (7).

D

Resistance or abnormal sound when seat belt is
pulled out or retracted (7).

D

Retractor (7) abnormality.

760R200019

Inspection of retractor

1. ELR (Emergency Locking Retractor) lock inclining

angle check.

D

The seat belt should not lock when pulled gently at a
15 degree angle. Also, the seat belt should lock
when pulled at a 45 degree angle or higher.

2. ELR lock check.

D

The seat belt should not lock when pulled slowly,
however, the seat belt should lock when pulled
quickly.

3. ALR (Automatic Locking Retractor)/ELR check

(Except for driver’s seat).

D

Make sure the seat belt is locked when pulled out
fully.

D

Make sure the seat belt can be pulled out and
retracts after when rewound fully.

CAUTION: Do not disassemble the retractor.
