7. Remove the inner waist seal.
8. Remove the tweeter.
9. Remove the courtesy light.

10. Remove the pull box bracket.

11. Remove the inside lock bracket.

D

Disconnect the cable.

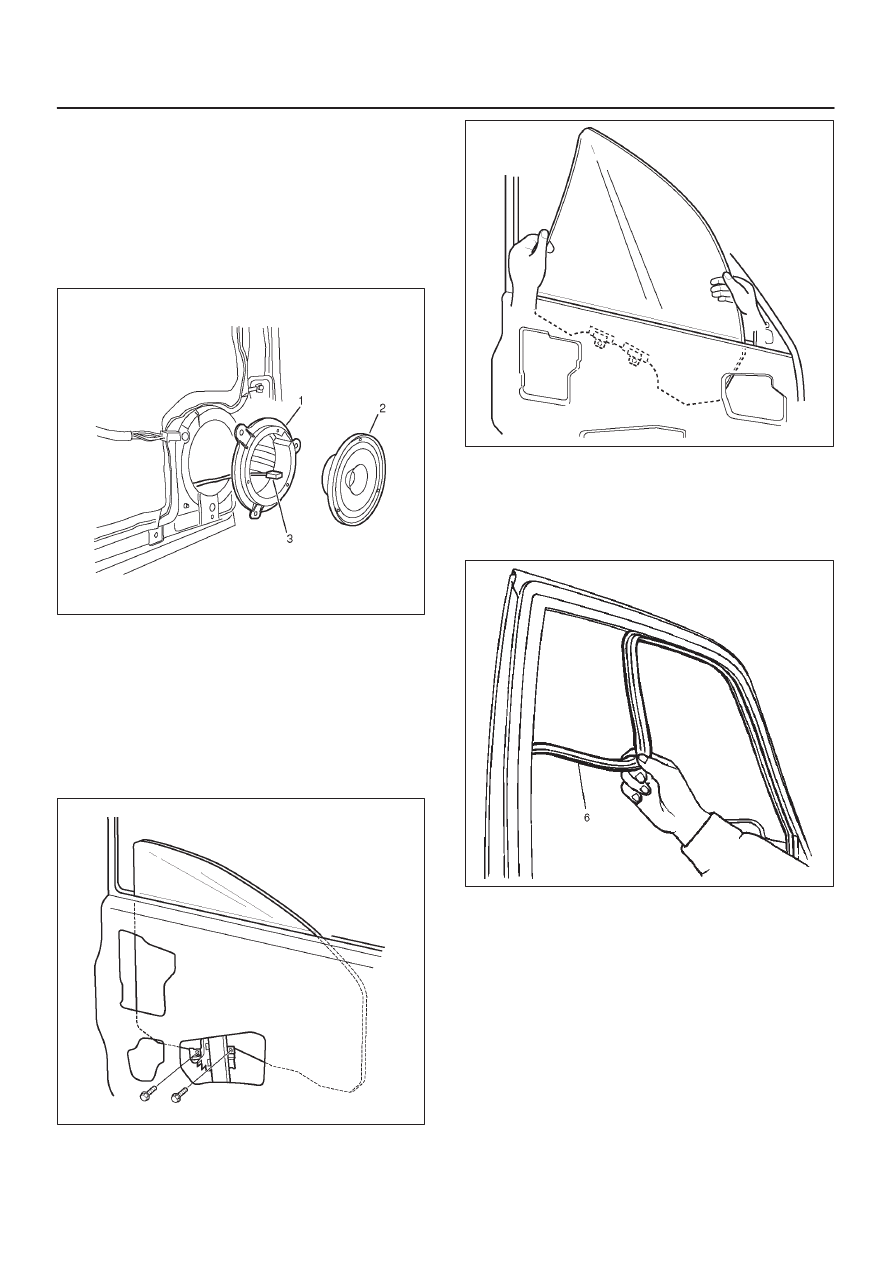

12. Remove the speaker (2) and speaker spacer (1).

D

Disconnect the speaker connector (3).

890R200028

13. Remove the waterproof sheet.
14. Remove the outer waist seal.

D

Remove the rear side screw and pull the outer waist
seal upward.

15. Remove the window glass.

D

Operate the requlator (power window switch) to
adjust the glass height and expose the access hole.
Remove the 2 bolts fixing the bottom channel and
the requlator. Remove the glass.

631R200001

631R200002

16. Remove the window regulator.

D

Remove the 7 fixing bolts and disconnect the
window regulator motor harness connector.

17. Remove the glass run.

D

Pull the glass run (6) from the door frame.

631RS007

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Check to see that the window regulator operates

smoothly and the glass opens and closes properly.

2. Install the waterproof sheet tightly against the door

panel.

3. Tighten the window regulator assembly fixing bolts to

the specified torque.

Torque : 6 N·m (52 lb in)

8F–42

BODY STRUCTURE

Rear Window Regulator, Glass and Glass Run

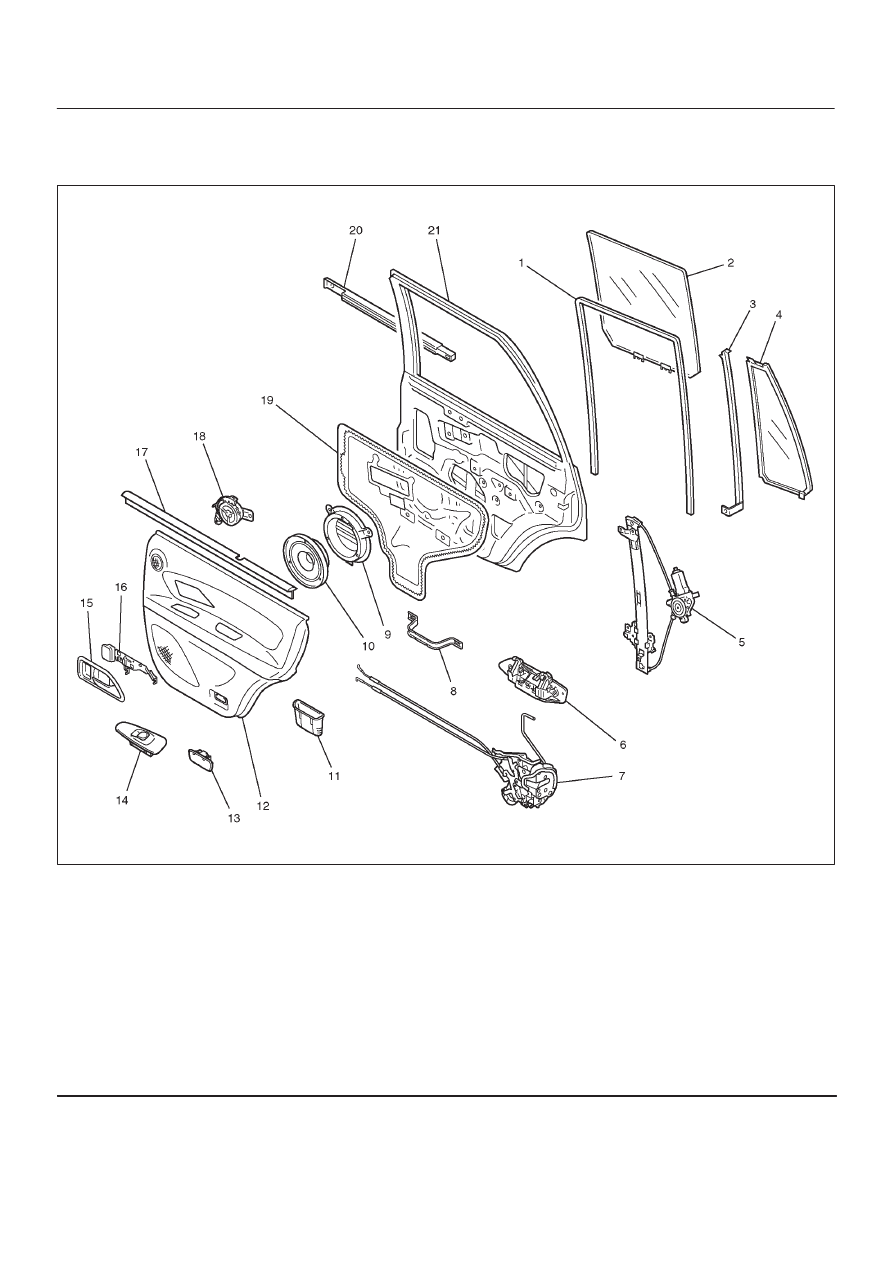

Parts Location

655R200009

Legend

(1) Glass Run
(2) Glass
(3) Division Bar
(4) Fixed Glass
(5) Window Regulator
(6) Outside Handle
(7) Door Lock Assembly
(8) Pull Box Bracket
(9) Speaker Spacer

(10) Speaker

(11) Pull Box

(12) Door Trim Panel
(13) Courtesy Light
(14) Power Window Switch
(15) Inside Handle
(16) Inside Lock Bracket
(17) Inner Waist Seal
(18) Tweeter
(19) Waterproof Sheet
(20) Outer Waist Seal
(21) Rear Door Panel

8F–43

BODY STRUCTURE

Removal

1. Disconnect the battery ground cable.
2. Remove the pull box.

D

Remove the fixing screw.

655R200003

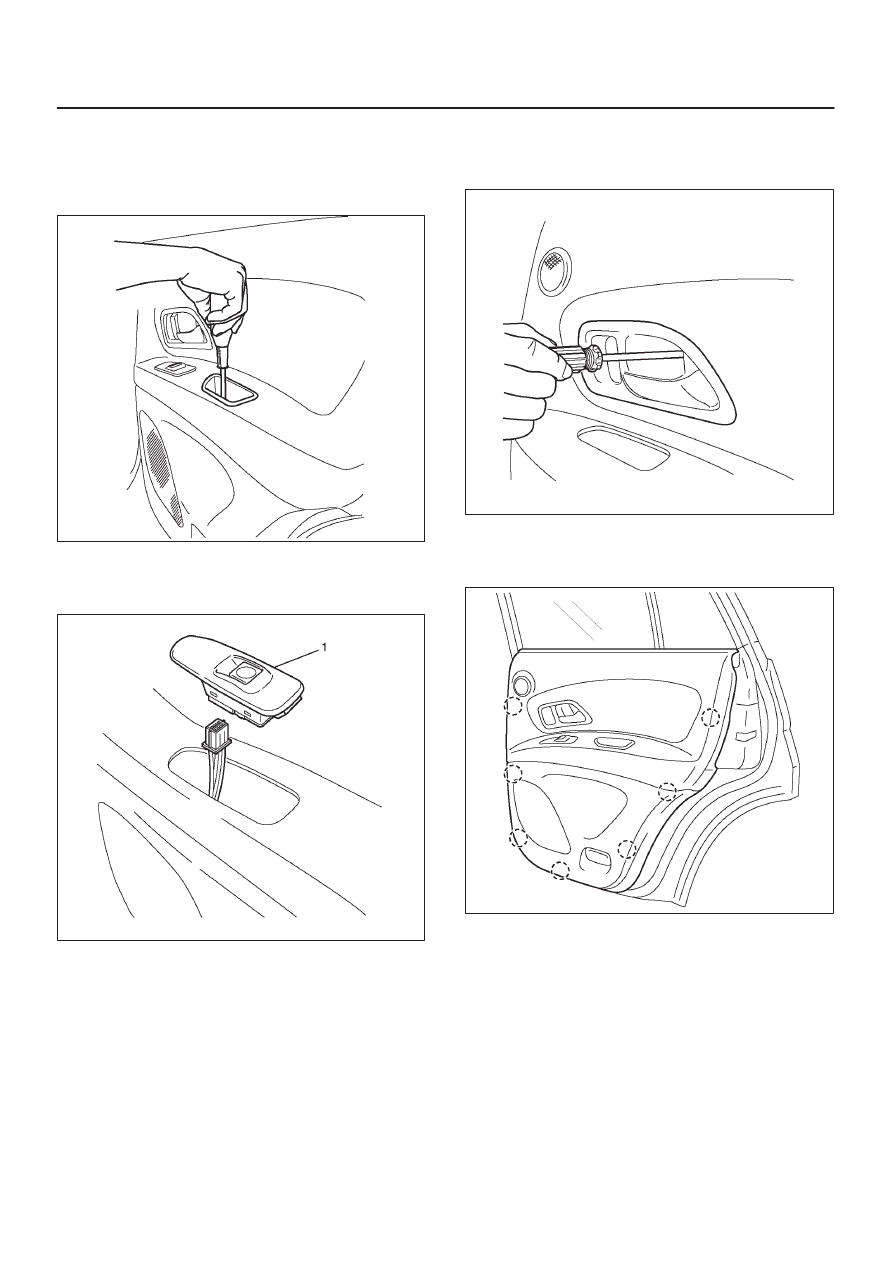

3. Remove the power window switch (1).

D

Pull the power window switch and remove the
connector.

655R200004

4. Remove the inside handle.

D

Open the screw cover and remove the screw.

D

Disconnect the cable.

655R200008

5. Pull the trim panel at the 7 clip positions.

D

Disconnect the tweeter and courtesy light
connectors.

655R200005

6. Remove the inner waist seal.
7. Remove the tweeter and the courtesy light.
8. Remove the pull box bracket.
9. Remove the speaker and the speaker spacer.

D

Disconnect the speaker harness connector.

10. Remove the inside lock bracket.

D

Disconnect the cable.

8F–44

BODY STRUCTURE

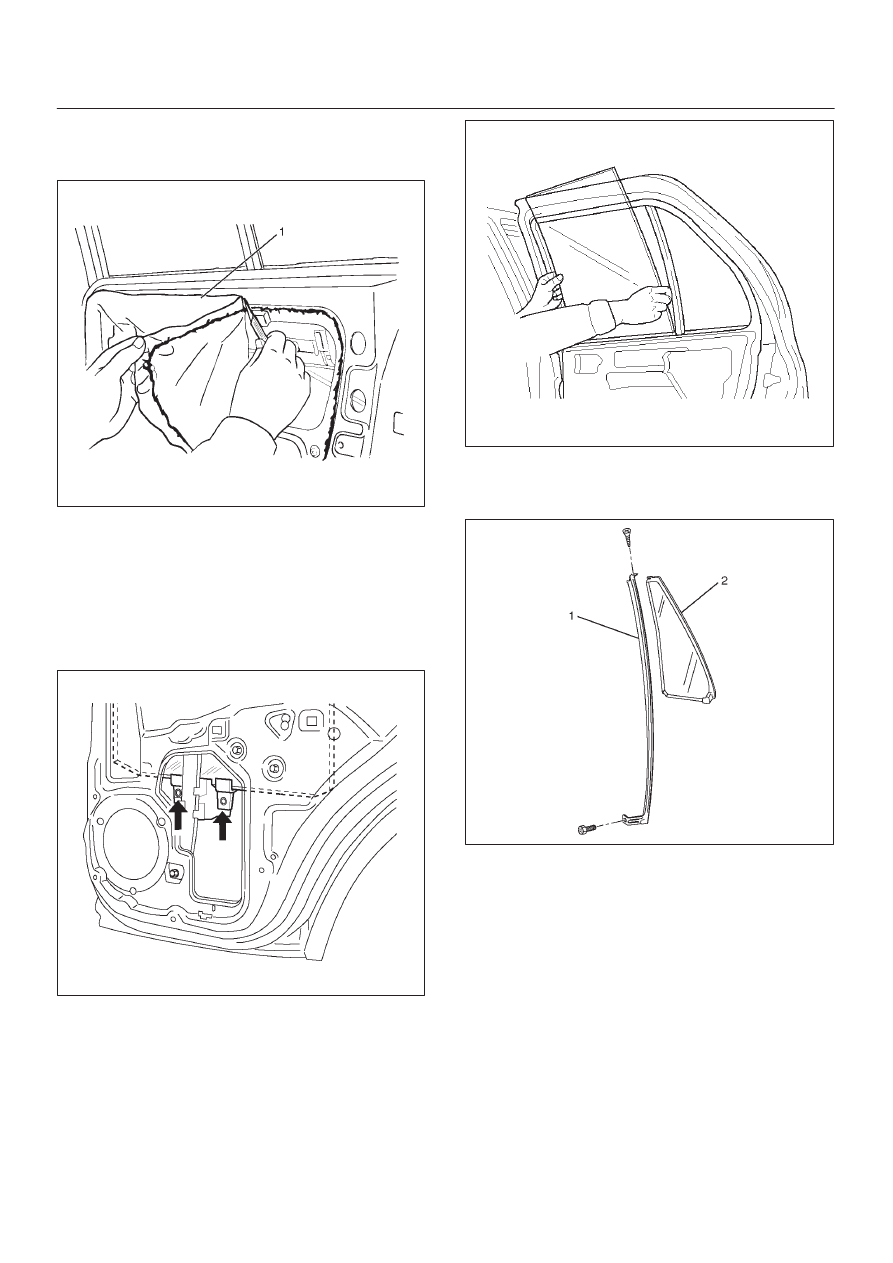

11. Remove the waterproof sheet (1).

D

Taking notice of the door harness, peel the
waterproof sheet off the door panel carefully.

651R200004

12. Remove the outer waist seal.

D

Remove the front side screw and pull the waist seal
upward.

13. Remove the window glass.

D

Operate the requlator (powe window switch) to
adjust the glass hight and expose the access hole.
Remove the 2 bolts fixing the bottom channel and
the requlator. Remove the galss.

651R200001

651RW007

D

Remove the fixed window glass (2) by removing the
screw from the top of the division bar (1) and the bolt
from the bottom of the division bar.

651R200002
