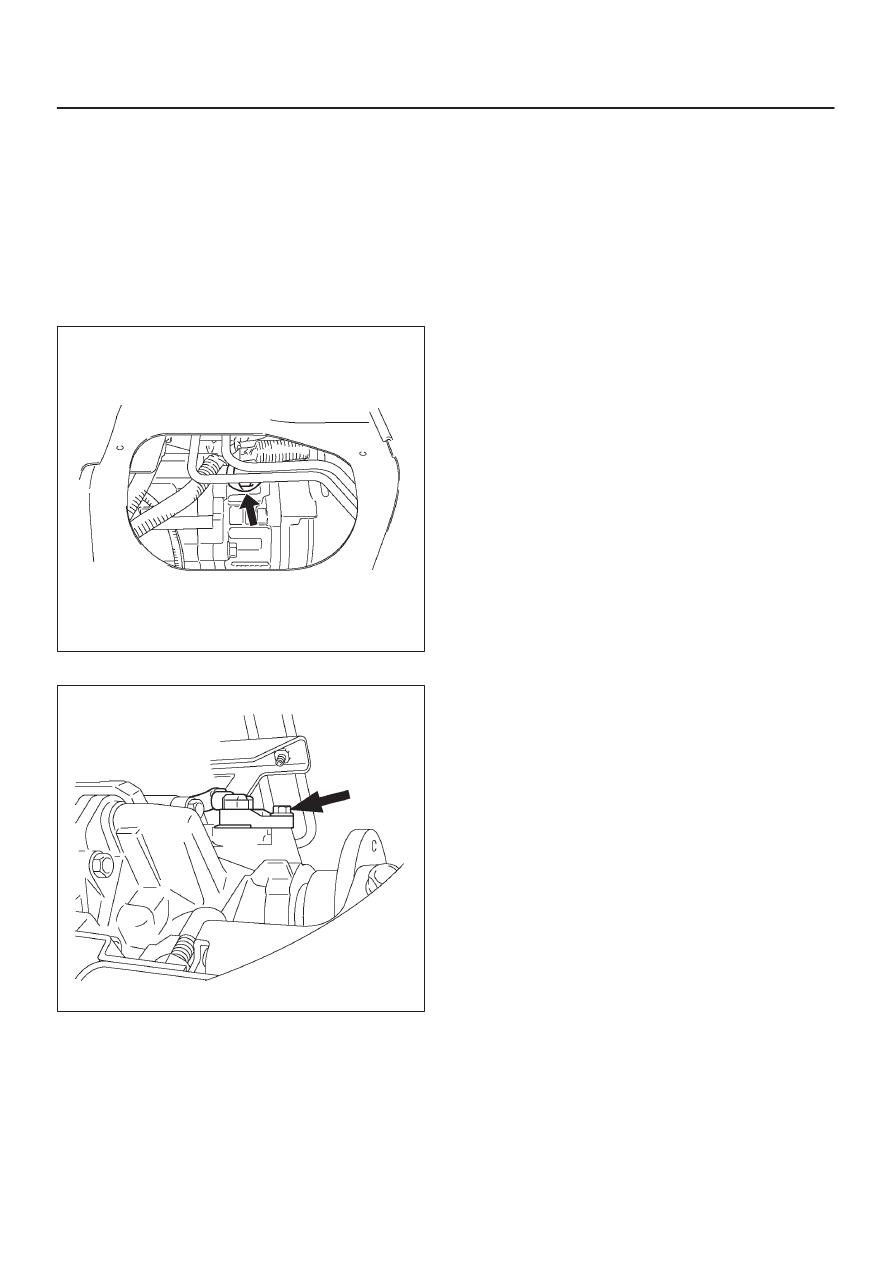

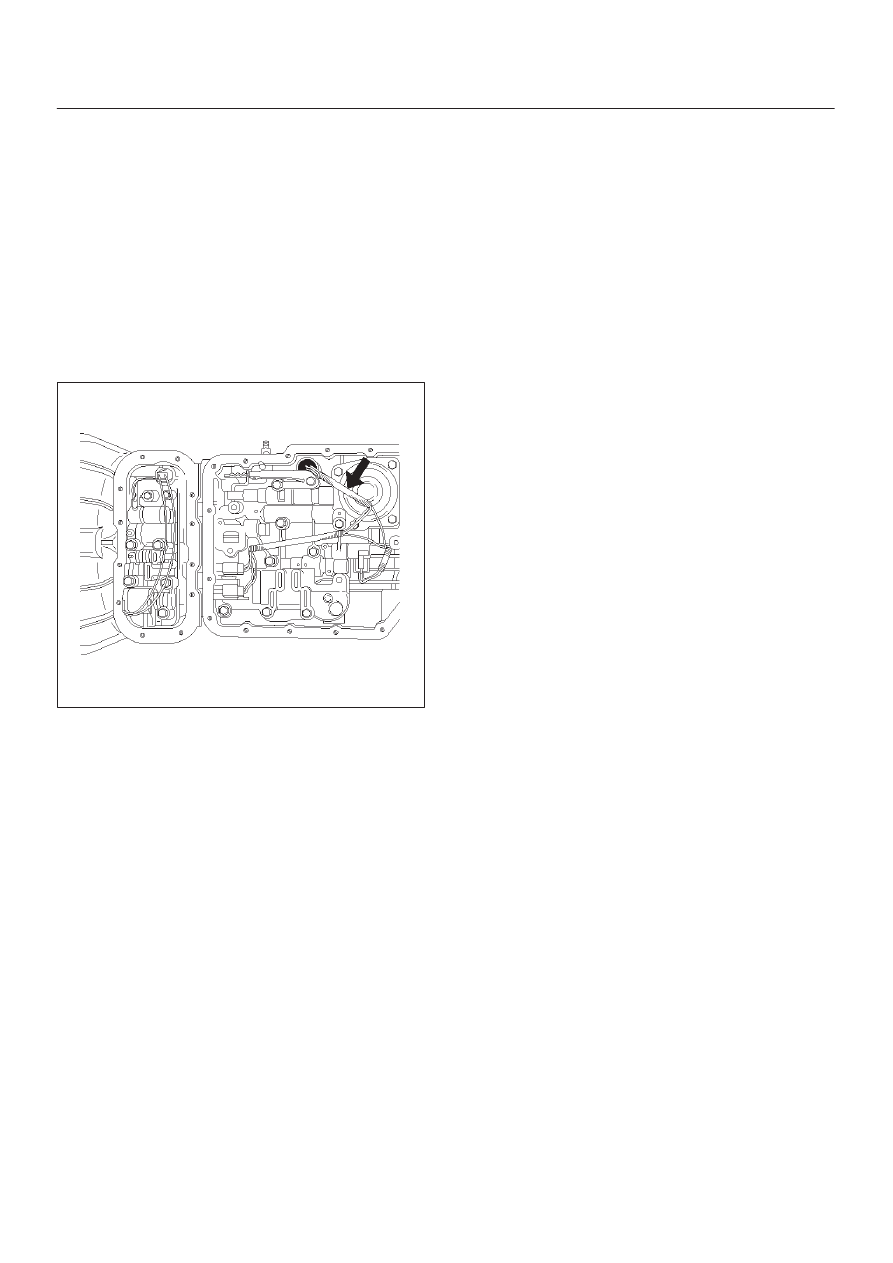

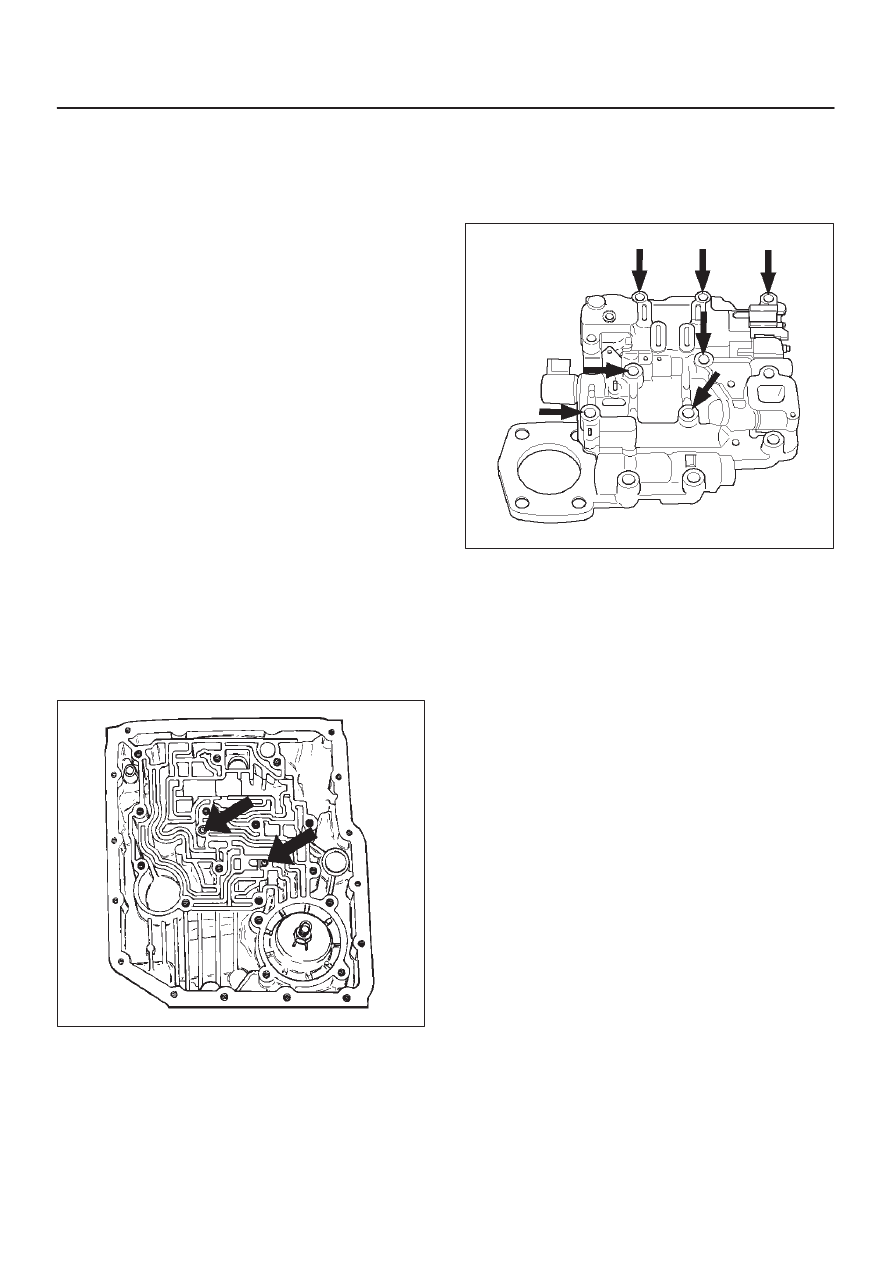

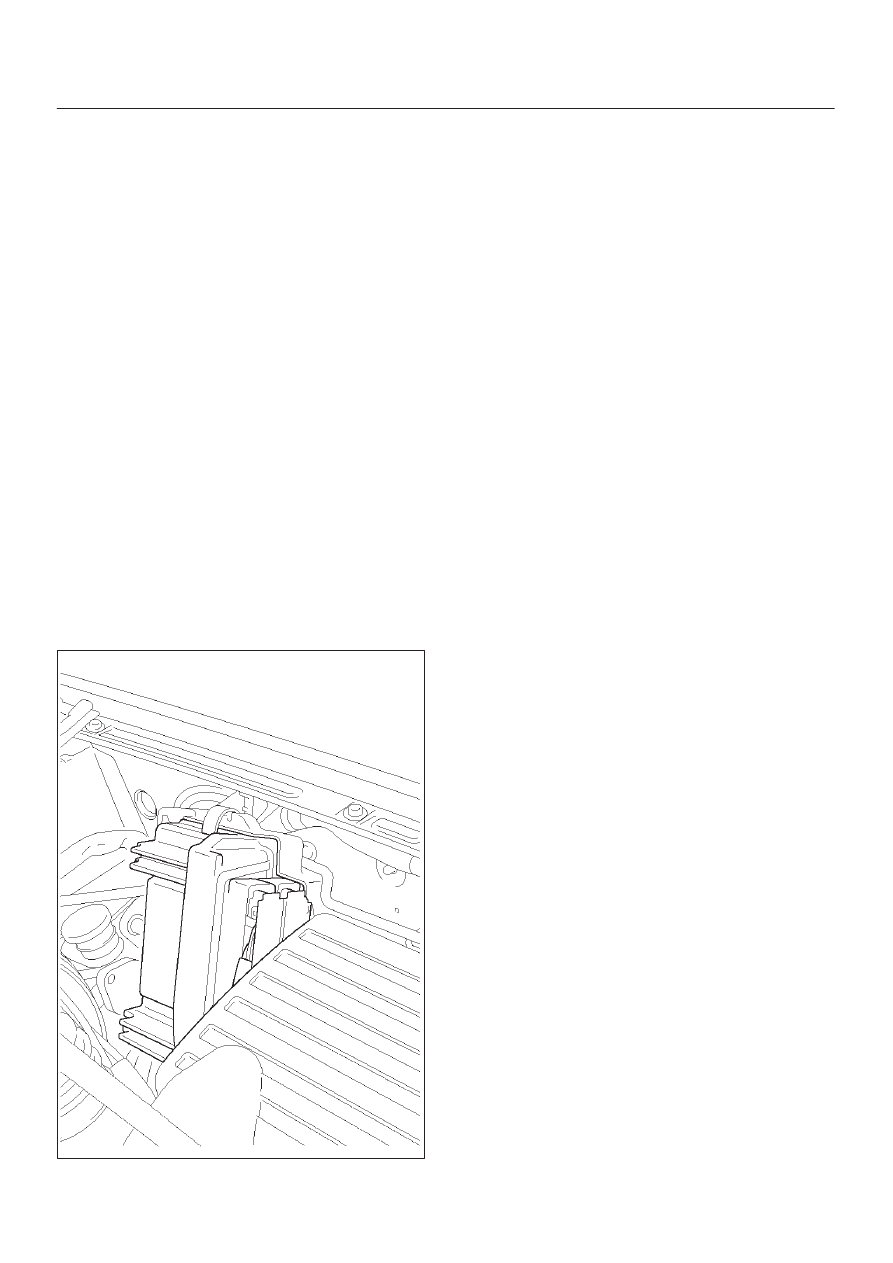

7A–49 AUTOMATIC TRANSMISSION (4L30–E) Valve Body Assembly (Main Case) Removal 1. Raise the vehicle and support it on jack stands. × 4). 4. Drain fluid. crossmember. 6. Remove sixteen 10 mm screws, main case oil pan, magnet and gasket. 7. Remove three 13 mm oil filter fixing screws, then remove oil filter. 8. Remove two 13 mm manual detent fixing screws, then remove roller and spring assembly. 9. Disconnect wiring harness from band control solenoid and shift solenoids. Pull only on connectors, 10. Remove four 13 mm servo cover fixing screws, then remove servo cover and gasket. 11. Remove seven 13 mm valve body fixing screws. 12. Remove main case valve body with manual valve link and transfer plate. Note the position of the link (long 13. Remove transfer plate gasket from main case. Installation 1. Install two check balls to main case. 244RW002 2. Inspect electrical 7 way connector and seal of main case. Replace if necessary. 3. Use two J–25025–B guide pin to install main case. D Install valve body assembly and manual valve link. NOTE: Valve must be extended as the short end of 4. Install seven 13 mm screws, and tighten them to the specified torque. Torque: 20 N • m (15 lb ft) 243RS008 5. Remove two guide pins from main case. screws. Tighten the screws to the specified torque. Torque: 25 N • m (18 lb ft) 7. Connect wiring harness to band control and shift solenoids. 8. Install roller and spring assembly to manual detent. D Install two 13 mm screws, and tighten them to the Torque: 20 N • m (15 lb ft) 9. Install oil filter and three 13 mm screws. Tighten the screws to the specified torque. Torque : 20 N • m (15 lb ft) 10. Install oil pan gasket, magnet, oil pan and sixteen 10 mm screws. Tighten the screws to the specified Torque: 11 N • m (96 lb in) 11. Install third crossmember and rear mount. Tighten the bolts and nuts to the specified torque. Torque Third crossmember bolt: 116 N • m (85 lb ft) Rear mount nut: 50 N • m (37 lb ft) 12. Install transfer protector. Tighten the bolts to the specified torque (4 × 4). Torque: 37 N • m (27 lb ft) 13. Fill transmission through overfill screw hole of oil pan, using ATF DEXRON –III. Refer to Changing Transmission Fluid in this section. 14. Connect battery ground cable. |
