LIGHTING SYSTEM

8A–11

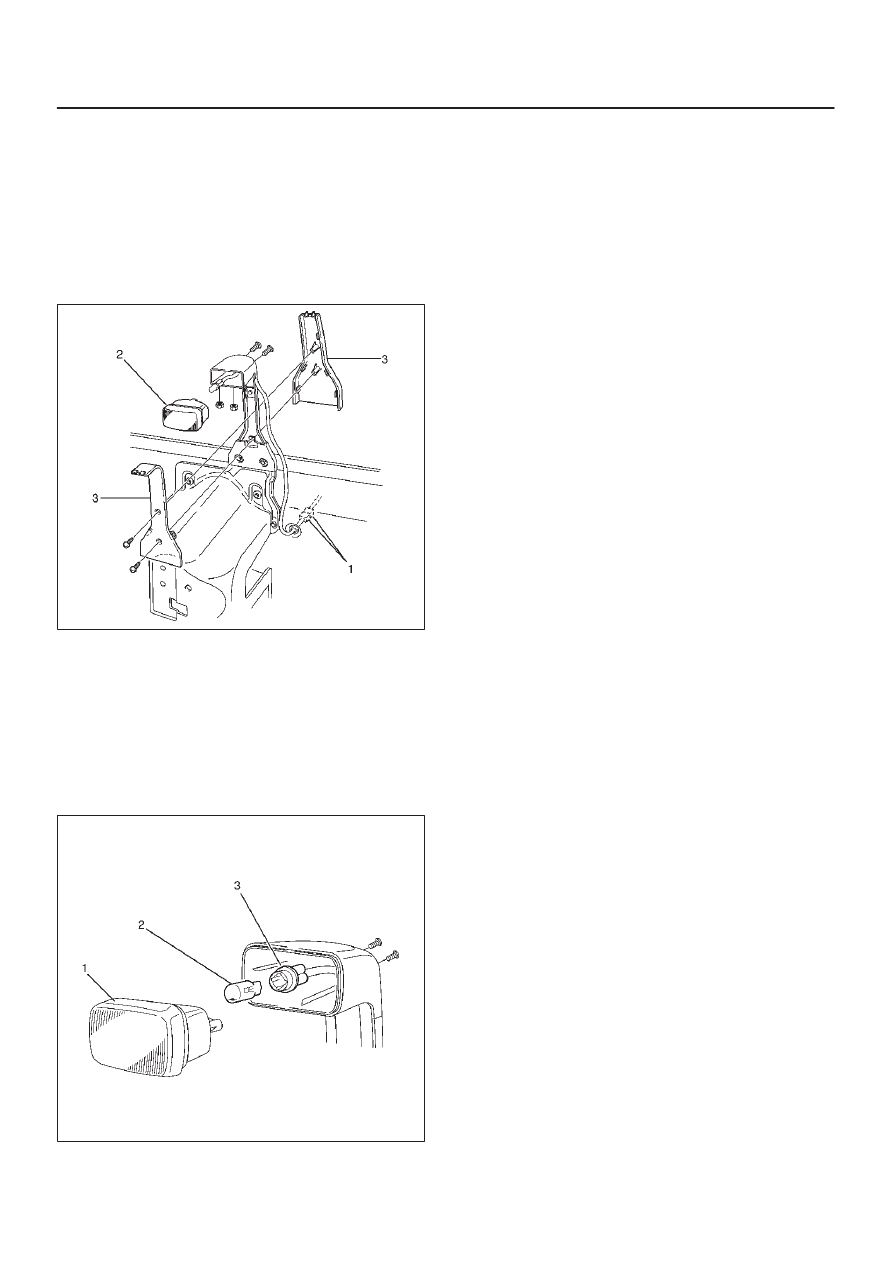

High Mounted Stoplight Assembly (Soft Top Model)

Removal

1. Disconnect the battery ground cable.
2. Remove the high mounted stoplight assembly (2).

D

Remove the cover (3).

D

Disconnect the connector (1).

D

Remove two screws.

803RW001–1

Installation

To install, follow the removal steps in the reverse order.

High Mounted Stoplight Bulb (Soft Top Model)

Removal

1. Disconnect the battery ground cable.
2. Remove the cover (1).
3. Remove the bulb (2).

D

Pull out the bulb from the socket (3).

803RW002–1

Installation

To install, follow the removal steps in the reverse order.

8A–12

LIGHTING SYSTEM

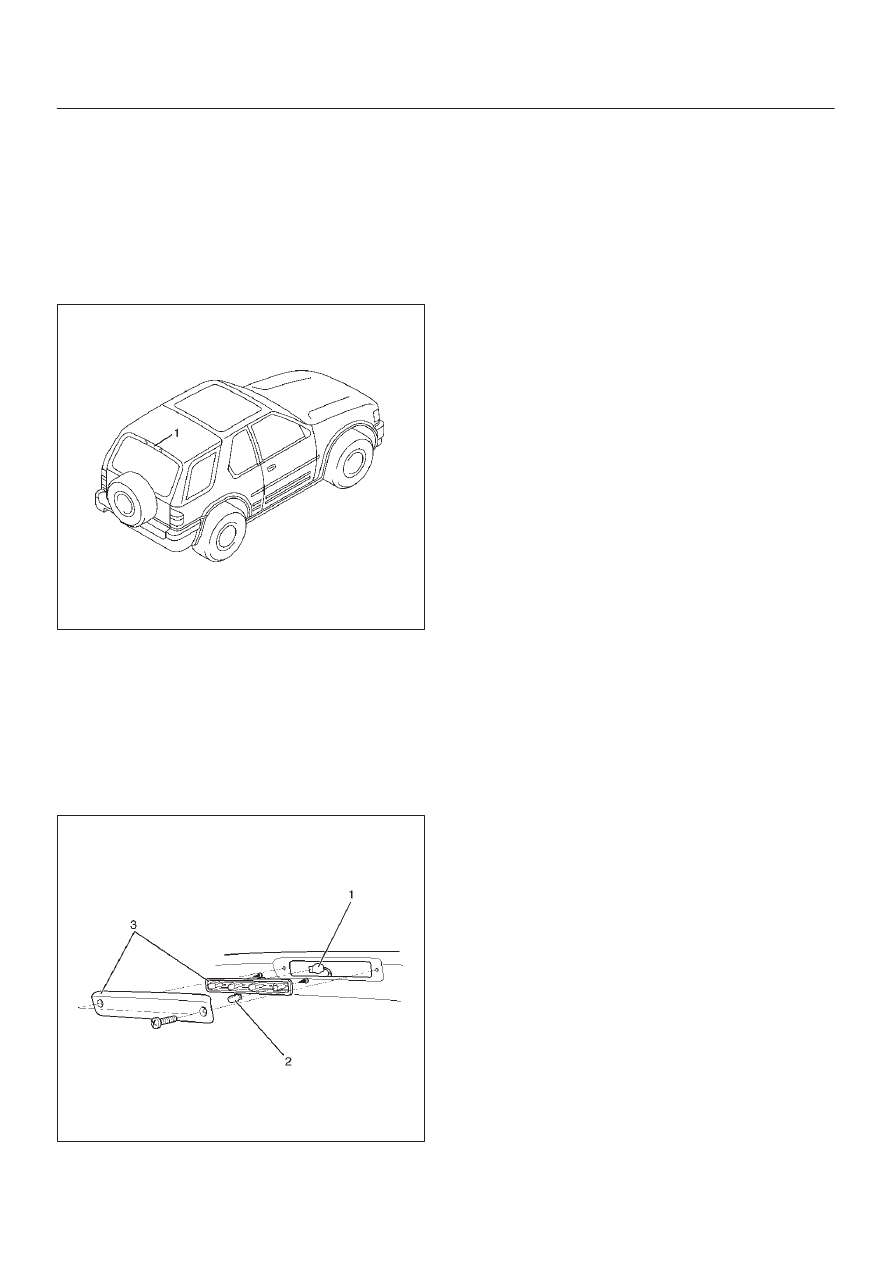

High Mounted Stoplight Assembly (Resin Top Model)

Removal

1. Disconnect the battery ground cable.
2. Remove the high mounted stoplight assembly (1).

D

Remove the two screws.

D

Pull out the high mounted stoplight assembly (1).

D

Disconnect the connector.

803RW012

Installation

To install, follow the removal steps in the reverse order.

High Mounted Stoplight Bulb (Resin Top Model)

Removal

1. Disconnect the battery ground cable.
2. Remove the cover (3).
3. Disconnect the connector (1).
4. Remove the bulb (2).

803RX002

Installation

To install, follow the removal steps in the reverse order.

LIGHTING SYSTEM

8A–13

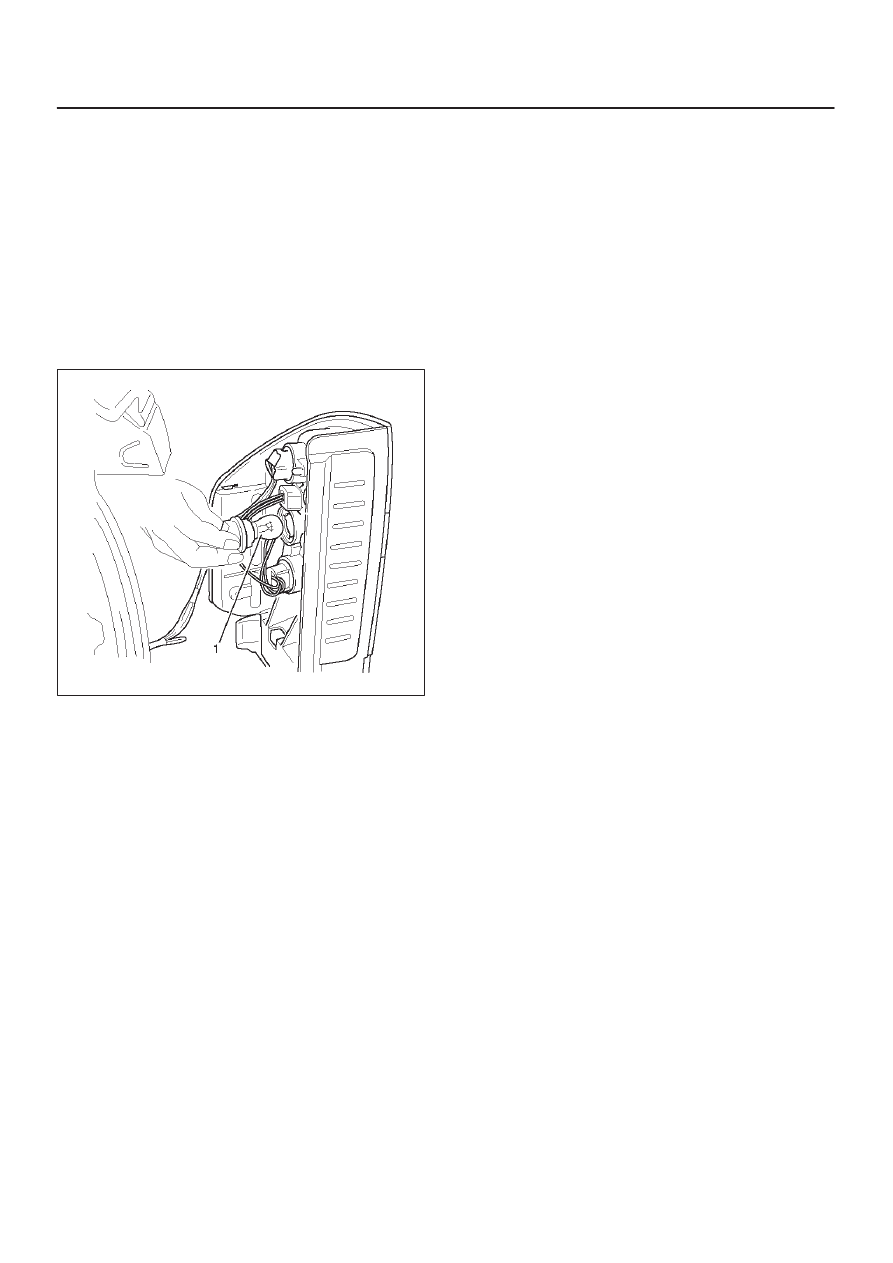

Backup Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the rear combination light assembly.

D

Refer to the Taillight Bulb removal step 2 in this
section.

3. Remove the bulb (1).

D

Remove the backup light socket by turning it
counterclockwise.

D

Remove the bulb by turning it counterclockwise
while pushing it at the same time.

825RW073

Installation

To install, follow the removal steps in the reverse order.

Front Turn Signal Light Bulb

Removal and Installation

Refer to Side Marker Light Bulb in this section.

8A–14

LIGHTING SYSTEM

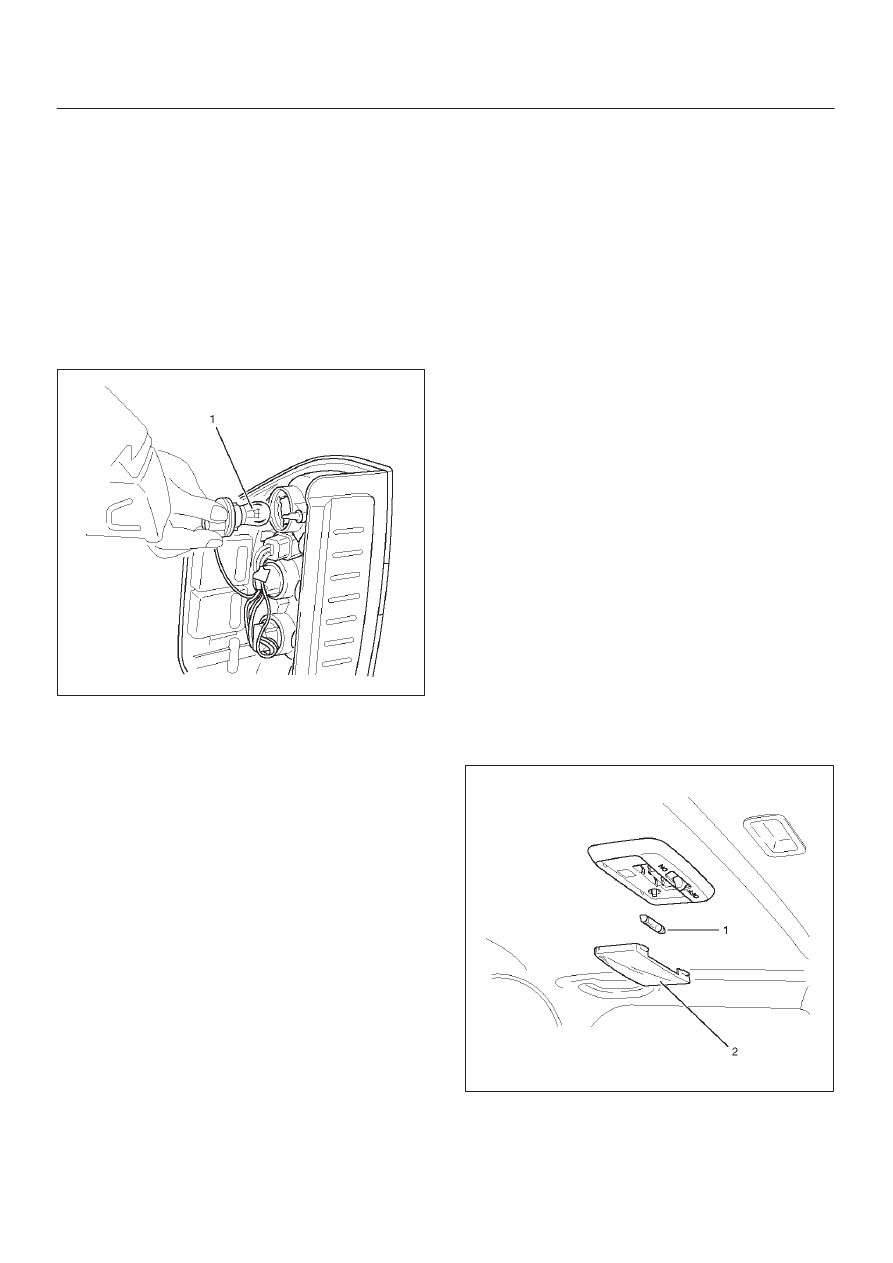

Rear Turn Signal Light Bulb

Removal

1. Disconnect the battery ground cable.
2. Remove the rear combination light assembly.

D

Refer to the Taillight Bulb removal step in this
section.

3. Remove the bulb (1).

D

Remove the rear turn signal light socket by turning it
counterclockwise.

D

Remove the bulb by turning it counterclockwise
while pushing it at the same time.

825RW074

Installation

To install, follow the removal steps in the reverse order.

Dome Light Bulb (LWB)

Removal

1. Disconnect the battery ground cable.
2. Remove the lens (2).
3. Remove the bulb (1).

D

Pull out the bulb.

825RW075

Installation

To install, follow the removal steps in the reverse order.
