6D3–12

STARTING AND CHARGING SYSTEM (6VD1 3.2L)

Brush Spring

Use spring balancer to measure the spring setting force
when remove the spring from the brush.

Standard: 17.65–23.54 N (38.9–51.9 lb)

Limit: 11.77 N (25.9 lb)

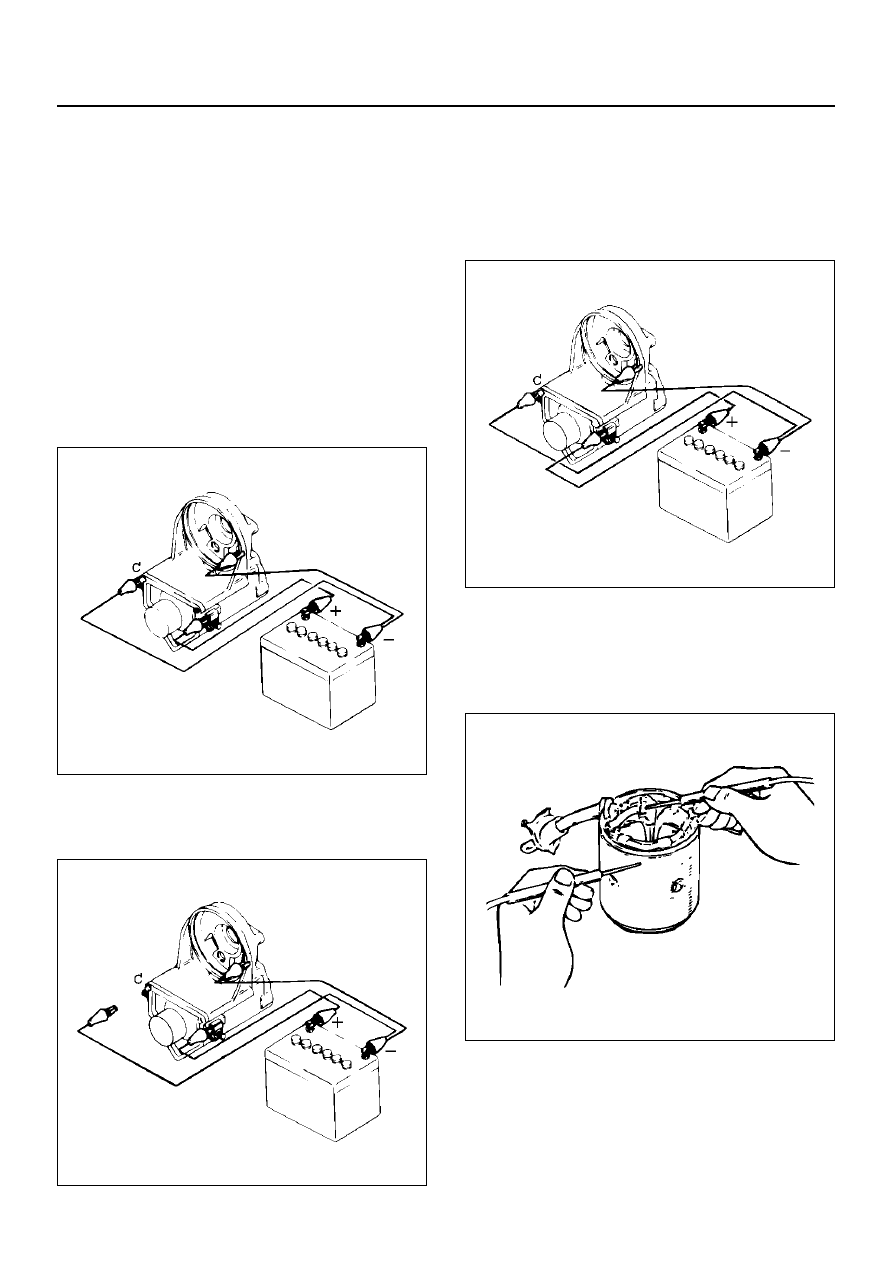

Magnetic Switch

Temporarilly connect the magnetic switch between the
overrunning clutch and housing.
Perform the steps described below in 3 to 5 seconds.

1. Pull in test

Connect the ground (-) to terminal C and magnetic
switch body.
Verify that the pinion pulls out when the battery (+)
pole is connected to terminal 50.

065R100017

2. Hold in test

Observe that the pinion stays when the lead wire is
disconnected from terminal C.

065R100018

3. Return test

Connect the ground (-) to terminal 50 and magnetic
switch body.
Verify that the pinion pulls out when the battery (+)
pole is connected to terminal C and the pinion   pulls
away when the lead wire is disconnected from
terminal 50.

065R100019

Field Coil

1. Check for continuity between the end of the field coil

and yoke body.
Replace the field coil, if there is continuity.

065RY00065

STARTING AND CHARGING SYSTEM (6VD1 3.2L)

6D3–13

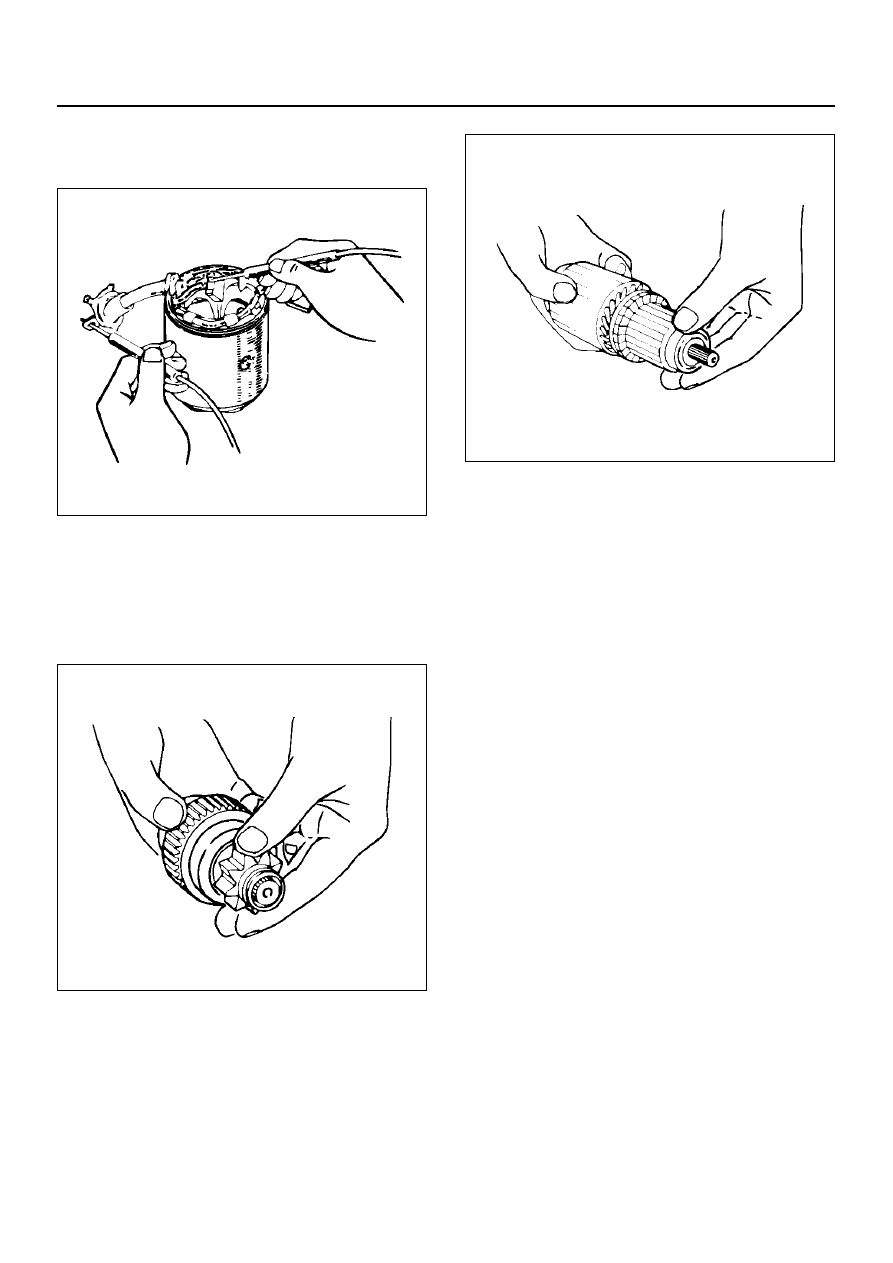

2. Check continuity between the lead wire of terminal

C and brush.
Replace the yoke assembly, if there is no continuity.

065RY00066

Overrunning Clutch

1. Visual check for excessive wear or damage.

2. Test the pinion rotation, it must rotate smoothly

when rotated clockwise and it shouldn't rotate when
turned counterclockwise.

065RY00067

Bearing

1. Inspect excessive wear or damage.

Replace the bearing if an abnormal noise is heard
under normal operating condition.

065RY00068

Reassembly

To install, follow the removal steps in the reverse order,
noting the following points:
Grease application places

• Bearing in rear cover

• Gears in reduction gear

• Sliding portion of pinion

6D3–14

STARTING AND CHARGING SYSTEM (6VD1 3.2L)

Main Data and Specifications

General Specifications

Model

Specification

Rating

Voltage

12 V

Output

1.4 Kw

Time

30 sec

Number of teeth of pinion

9

Rotating direction(as viewed from pinion)

Clockwise

Weight(approx.)

37 N

No–load characteristics

Condition: Voltage

11.5V

Current

90A or less

Speed

3000rpm or more

Load characteristics

Condition: Voltage/Torque

8.5V/13.2 N·m (113 lb in)

Current

Maximum 350A

Speed

1000rpm or more

Locking characteristics

Condition: Voltage

2.4V

Current

Maximum 500A

Torque

11.8N·m or more

STARTING AND CHARGING SYSTEM (6VD1 3.2L)

6D3–15

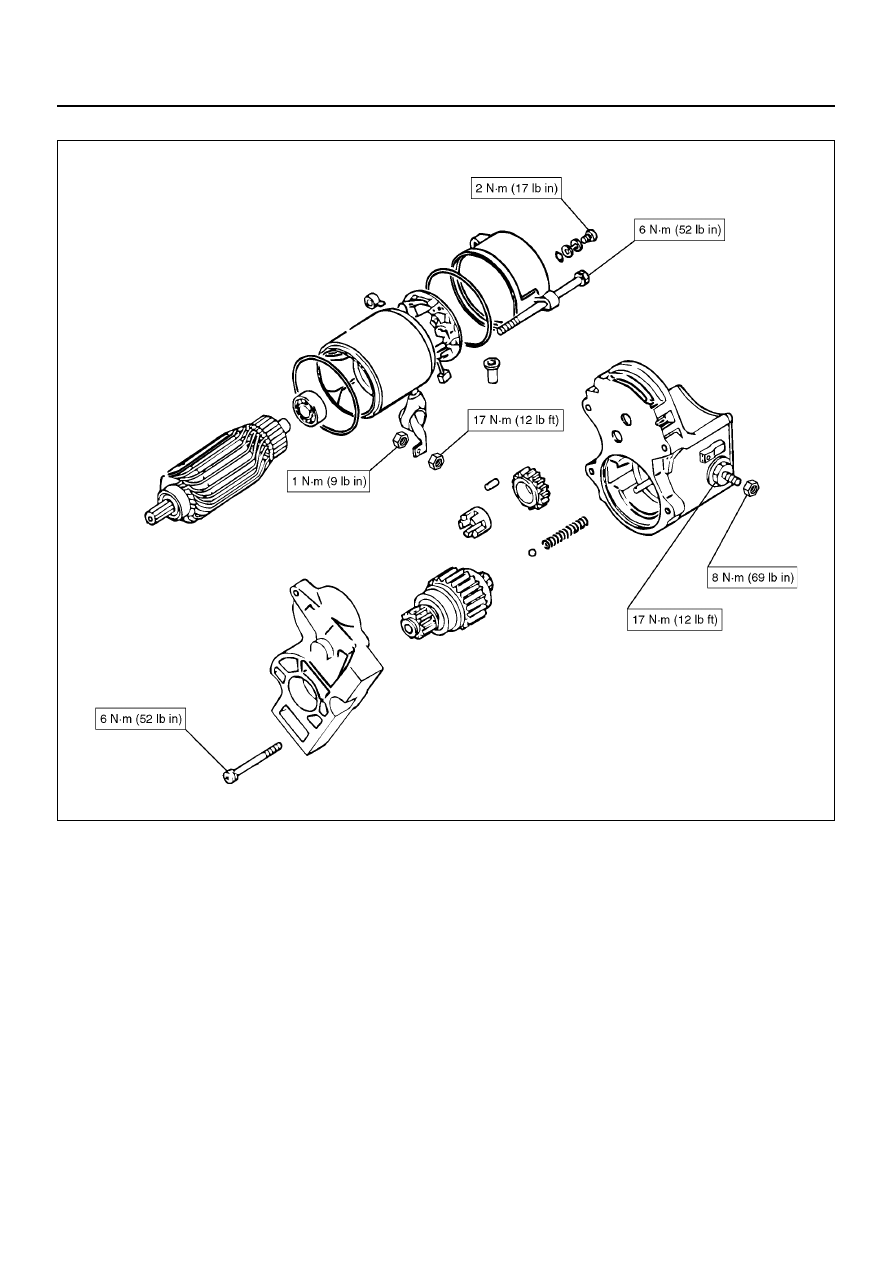

Torque Specifications

065R200002
