6E1–312

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

DTC P0562 System Voltage Low



Step

Action

Value(s)

Yes

No

1

Was the ”On–Board Diagnostic (OBD) System Check”
performed?

—

Go to Step 2

Go to OBD

System

Check

2

Using a Digital Voltmeter (DVM), measure the battery
voltage at the battery.

Is the battery voltage greater than the specified value?

11.5 V

Go to Step 3

Charge

battery, then

go to Step 3

3

1. Install the Tech 2.
2. Select ”Ignition Volts” on the Tech 2.
3. Start the engine and raise the engine speed to 2000

RPM.

4. Load the electrical system by turning on the

headlights, high blower, etc.

Is the ignition voltage approximately equal to the
specified value?

13.2 V

Go to Step 4

Go to

Starting/Char

ging

4

1. Ignition OFF.
2. Disconnect the PCM connector at the PCM.
3. Ignition ON, Engine OFF
4. Using a DVM, measure the voltage at the PCM Main

Relay’s two power inputs to the PCM.

Is it approximately equal to battery voltage?

—

Check for

excessive

current draw

with ignition

OFF, engine

OFF.

Go to Step 5

5

1. Check for faulty connections at the PCM harness

terminals.

2. Repair as necessary.

Was a repair necessary?

—

Verify repair

Go to Step 6

6

Check for an open battery feed circuit to the PCM.

Is the action complete?

—

Verify repair

Go to Step 7

7

Replace the PCM.

IMPORTANT: The replacement PCM must be
programmed. Refer to On–Vehicle Service in
Powertrain Control Module and Sensors for
procedures.

And also refer to latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.

Is the action complete?

—

Verify repair

—

6E1–313

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

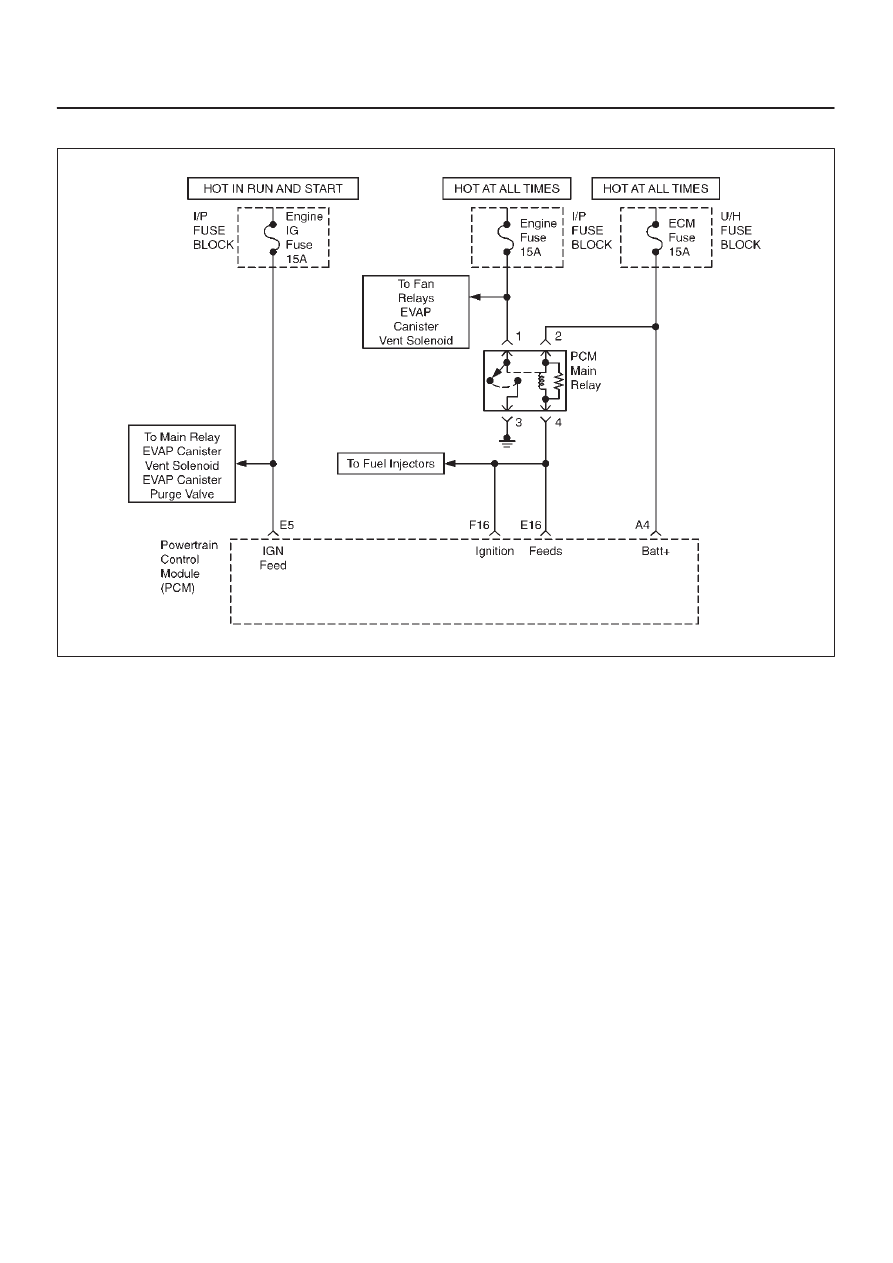

DIAGNOSTIC TROUBLE CODE (DTC) P0563 SYSTEM VOLTAGE HIGH

060R100045

Circuit Description

The powertrain control module (PCM) monitors the
system voltage on the ignition feed terminals to the PCM.
A system voltage Diagnostic Trouble Code will set
whenever the voltage is above a calibrated value.  DTC
P0563 is a type A code.

Conditions for Setting the DTC

D

Ignition ON.

D

System voltage is above 16V.

The above conditions are met for 900 test failures at 15
min.

Action Taken When the DTC Sets

D

The PCM will not illuminate the malfunction indicator
lamp (MIL) for the first time the malfunction is detected.

D

The PCM will store as Failure Records conditions
which were present when the Diagnostic Trouble Code
was set. This information will not be stored as Freeze
Frame data.

Conditions for Clearing the MIL/DTC

D

A history Diagnostic Trouble Code P0563 will clear
after 40 consecutive warm–up cycles have occurred
without a fault.

D

Diagnostic Trouble Code P0563 can be cleared by
using the Scan Tool’s ”Clear Info” function.

Diagnostic Aids

Check for a faulty charging system components.

6E1–314

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

DTC P0563 System Voltage High



Step

Action

Value(s)

Yes

No

1

Was the ”On–Board Diagnostic (OBD) System Check”
performed?

—

Go to Step 2

Go to OBD

System

Check

2

1. Ignition OFF, engine OFF.
2. Using a Digital Voltmeter (DVM), measure the

battery voltage at the battery.

Is the battery voltage greater than the specified value?

16 V

Go to Step 3

Go to Step 4

3

1. Charge the battery and clean the battery terminals.
2. Clean the battery ground cable connection if

corrosion is indicated.

Is the battery voltage greater than the specified value?

16 V

Replace

battery

Go to Step 4

4

1. Turn OFF all the accessories.
2. Install the Tech 2.
3. Select the ignition voltage parameter on the data

list.

4. Start  the engine and raise the engine speed to 2000

RPM.

Is the voltage above the specified value?

16 V

Go to Step 5

Go to Step 6

5

Replace or repair the generator (see Charging
System).

Is a malfunction present?

—

Verify repair

—

6

Replace the PCM.

IMPORTANT: The replacement PCM must be
programmed. Refer to On–Vehicle Service in
Powertrain Control Module and Sensors for
procedures.

And also refer to latest Service Bulletin.
Check to see if the Latest software is released or not.
And then Down Load the LATEST PROGRAMMED
SOFTWARE to the replacement PCM.

Is the action complete?

—

Verify repair

—

6E1–315

RODEO Y22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

DIAGNOSTIC TROUBLE CODE (DTC)

P0601 INTERNAL CONTROL MODULE MEMORY CHECK SUM ERROR

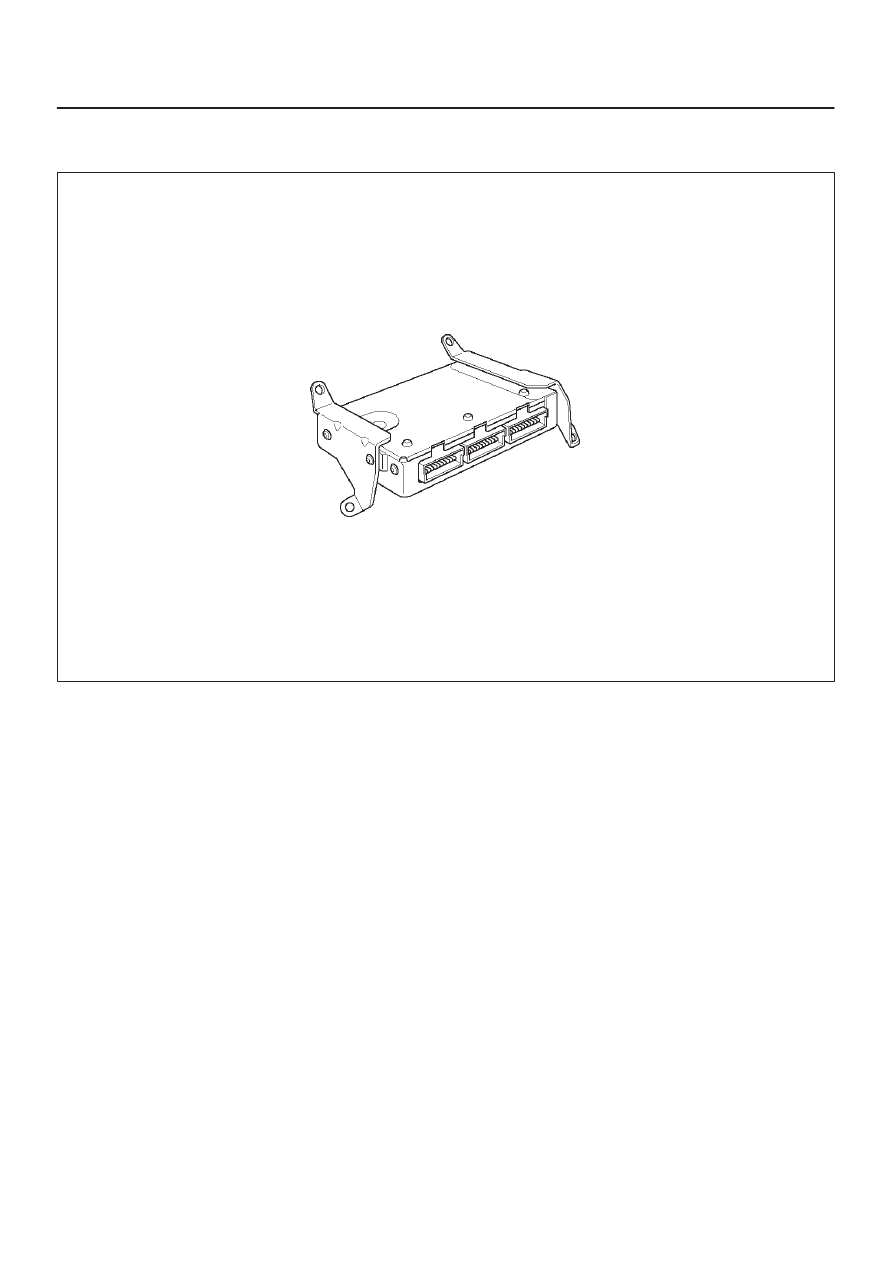

014RX002

Circuit Description

The powertrain control module (PCM) used in this vehicle
utilizes an electrically erasable programmable read–only
memory (EEPROM). The EEPROM contains program
information and the calibrations required for engine,
transmission, and powertrain diagnostics operation.
Unlike the PROM used in past applications, the EEPROM
is not replaceable. When the PCM is replaced or a
calibration update is required, the PCM must be
programmed using a Tech 2. For the EEPROM
programming procedure, Refer to On–Vehicle Service in
Powertrain Control Module and Sensors for procedures.
If the PCM detects a check sum error then DTC P0601 will
set.  DTC P0601 is a type A code.

Conditions for Setting the DTC

D

Ignition on.

D

Check sum of soft ware and calibration not equal
expected check sum.

Action Taken When the DTC Sets

D

The PCM will illuminate the malfunction indicator lamp
(MIL) the first time the malfunction is detected.

D

The PCM will store conditions which were present
when the Diagnostic Trouble Code was set in the
Failure Records data only.

Conditions for Clearing the MIL/DTC

D

The PCM will turn the MIL OFF on the third consecutive
trip cycle during which the diagnostic has been run and
the fault condition is no longer present.

D

A history Diagnostic Trouble Code P0601 will clear
after 40 consecutive warm–up cycles have occurred
without a fault.

D

Diagnostic Trouble Code P0601 can be cleared by
using the Scan Tool’s ”Clear Info” function.

Diagnostic Aids

D

Diagnostic Trouble Code P0601 indicates that the
contents of the EEPROM have changed since the
PCM was programmed. The only possible repair is
PCM reprogramming or replacement. Check service
bulletins to program the replacement PCM with the
correct software and calibration for the vehicle.
