4A1–10

DIFFERENTIAL (FRONT)

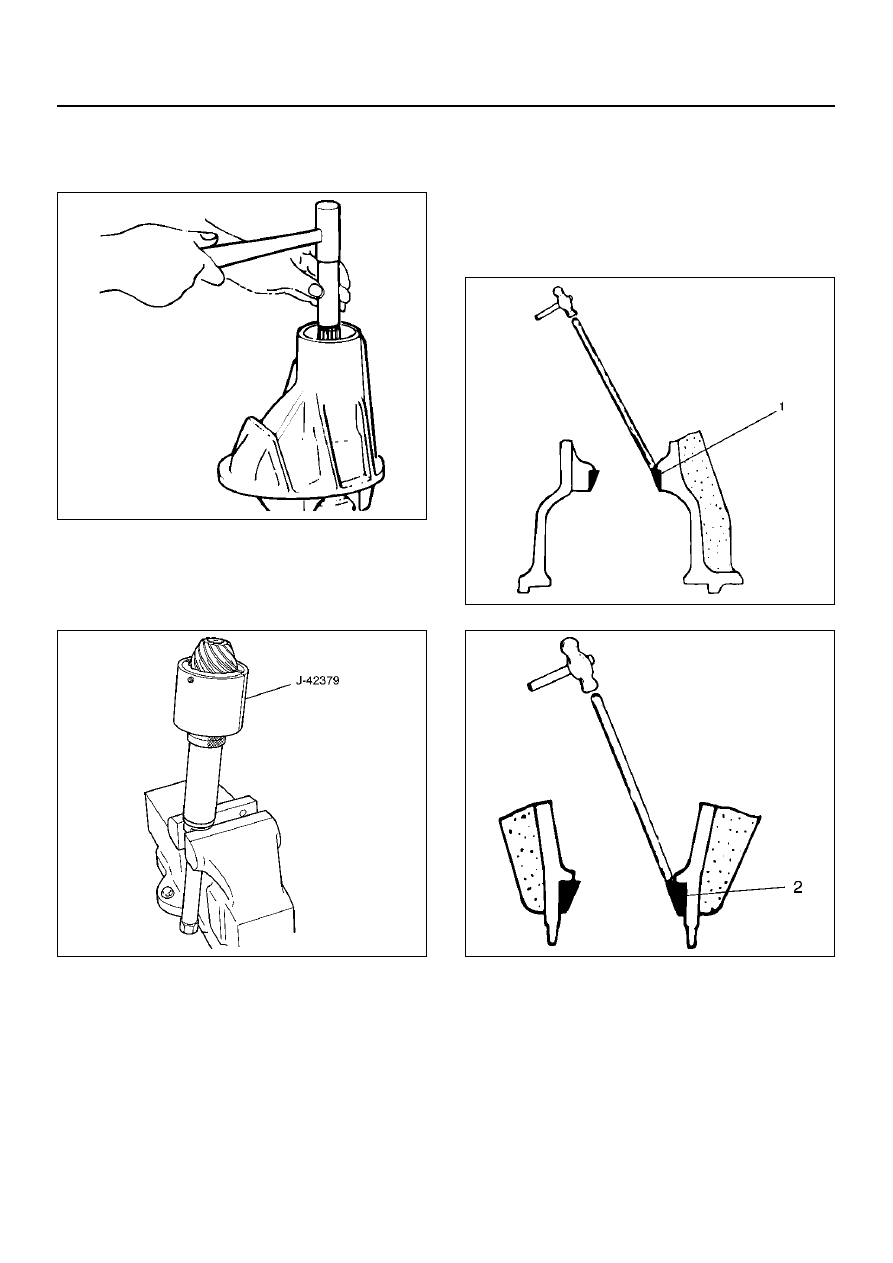

11. Remove flange using a universal puller.

12. Remove the drive pinion assembly using a soft

metal rod and a hammer.

425RS012

13. Remove collapsible spacer.

14. Remove the inner bearing using remover J–42379.

• Select insert; 303173 and collet halves; 44801 in

remover kit J–42379.

415RW004

15. Remove adjust shim.

16. Remove oil seal.

17. Remove oil seal slinger.

18. Remove outer bearing.

19. Remove the inner bearing outer race (1) and the

outer bearing outer race (2) by using a brass bar
and a hammer.

425RS014

425RS015

DIFFERENTIAL (FRONT)

4A1–11

Reassembly

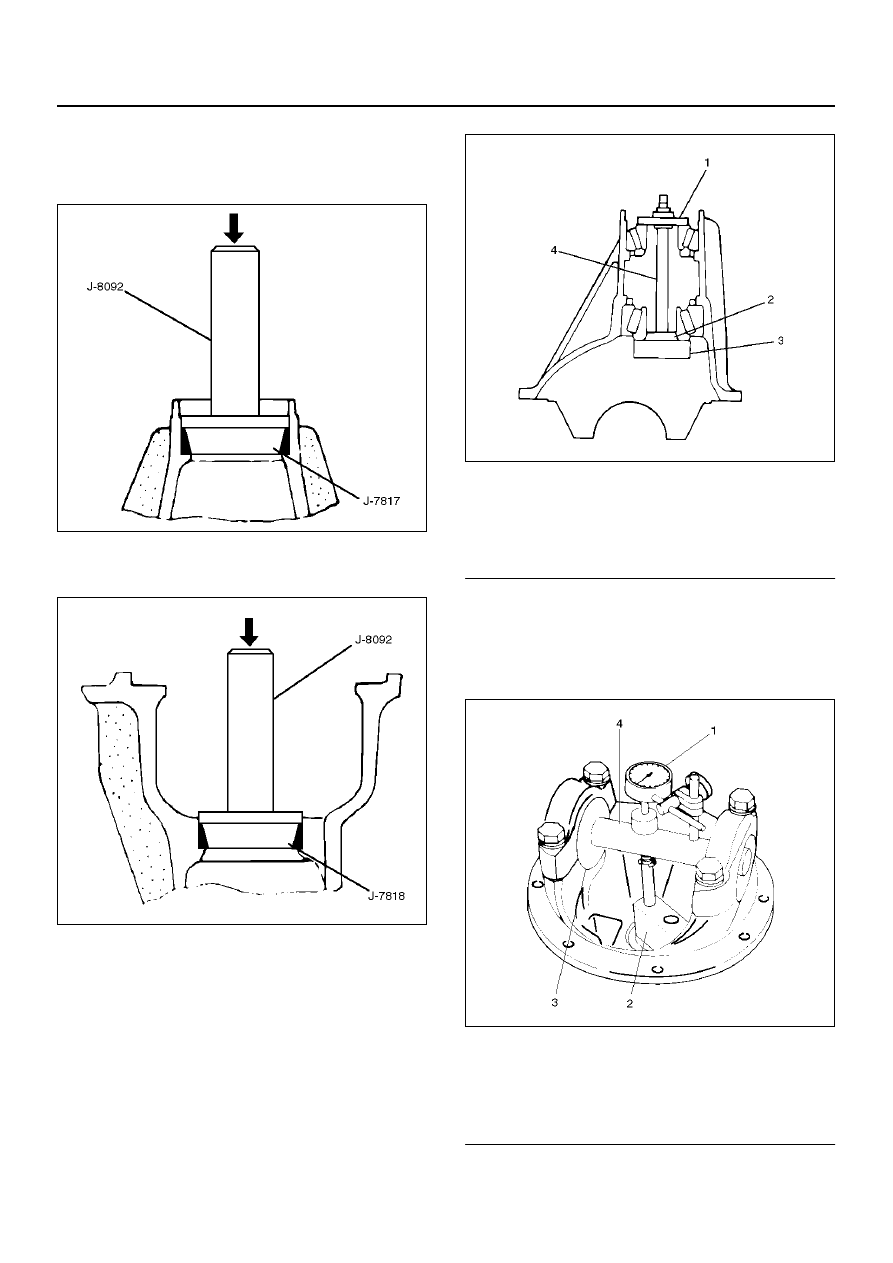

1. Using installer J–7817 and grip J–8092, install outer

bearing outer race.

415RW013

2. Using installer J–7818 and grip J–8092, install Inner

bearing outer race.

415RW014

3. Install adjust shim and adjust drive pinion mounting

distance:

1. Apply gear oil to the inner and outer drive pinion

bearing.
Clean the pinion setting gauge set.
Then install the gauge set together with the
inner and outer bearings.

2. Tighten the nut to the specified torque.

Torque:2.3N·m  (20 lb in)

425RW030

EndOFCallout

3. Clean the side bearing bores. Install the dial

indicator with the discs and arbor. Install and
tighten the bearing caps to the specified torque.

Torque: 97 N·m (72lb ft)

425RW031

EndOFCallout

Legend

(1) Pilot : J–21777–42
(2) Pilot : J–42479–2
(3) Gauge Plate : J–42479–1
(4) Nut and Stud : J–21777–43

Legend

(1) Dial Indicator: J–8001
(2) Gauge Plate: J–42479–1
(3) Disc (2 pcs.): J–23597–8
(4) Arbor: J–23597–1

4A1–12

DIFFERENTIAL (FRONT)

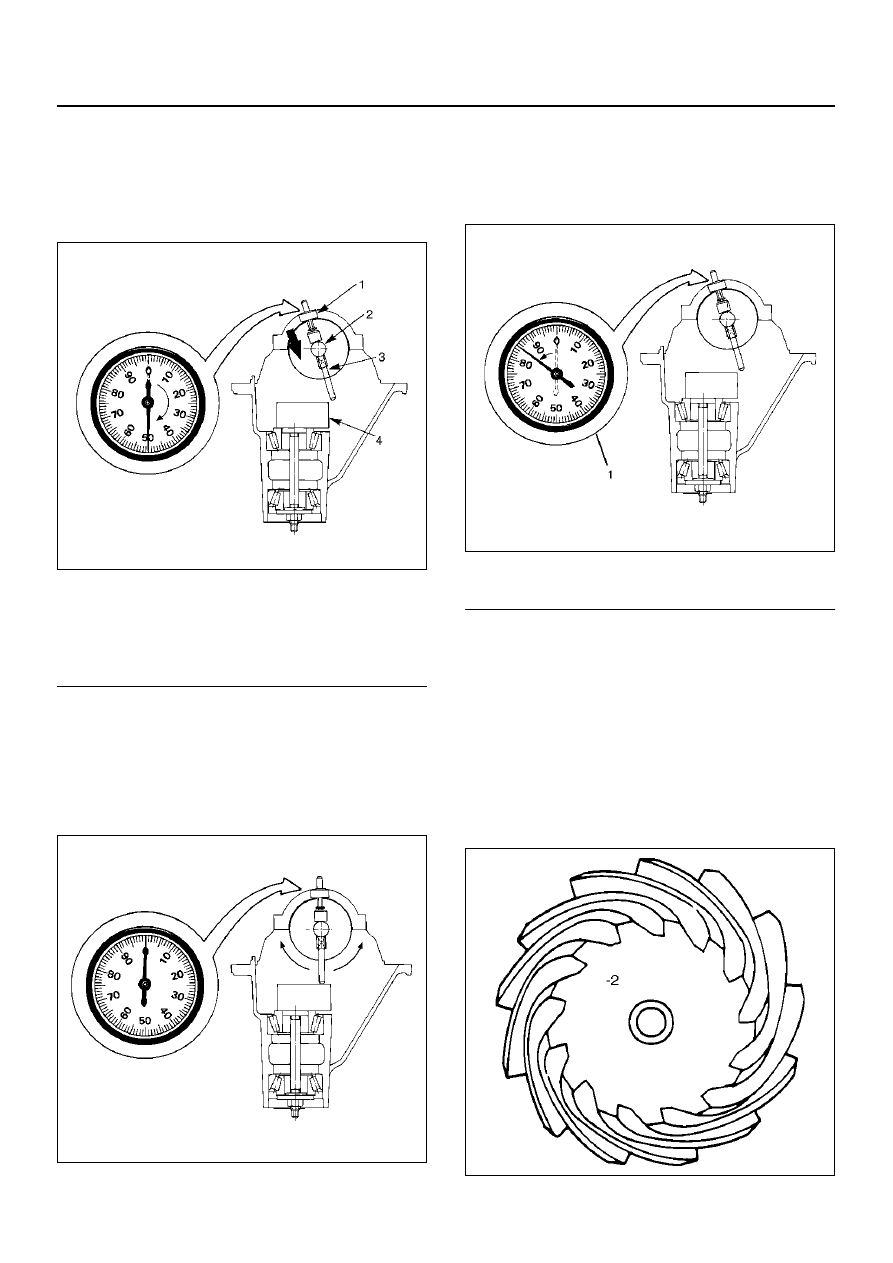

4. Set the dial indicator to “0". Place it on the

mounting post of the gauging arbor with the
contact button touching the indicator pad. Force
the dial indicator downward until the needle has
made a half turn clockwise. Tighten down the
dial indicator in this position.

425RS020

EndOFCallout

5. Position the plunger on the gauge plate. Move

the gauging arbor slowly back and forth and
locate the position at which the dial indicator
shows the greatest defection. At this point, once
again set the dial indicator to “0".
Repeat the procedure to verify the “0" setting.

425RS021

6. After the ZERO setting is obtained, rotate the

gauging arbor until the dial indicator rod does
not touch the gauging plate.
Record the number the dial indicator needle
points to.

425RS022

EndOFCallout

7. Record the pinion depth code on the head of the

drive pinion.
The number indicates a necessary change in
the pinion mounting distance. A plus number
indicates the need  for a greater mounting
distance (which can be achieved by decreasing
the shim thickness). A minus number indicates
the need for a smaller mounting distance (which
can be achieved by increasing the shim
thickness). If examination reveals pinion depth
code “0", the pinion is “nominal".

425RS023

Legend

(1) Dial Indicator
(2) Ganging Arbor
(3) Plunger
(4) Gauge Plate

Legend

(1) Example=Dial indicator reading of 0.085

DIFFERENTIAL (FRONT)

4A1–13

8. Select the shim using chart;

Pinion

marking

+7

+6

+5

+4

+3

+2

+1

0

–1

–2

–3

–4

–5

–6

–7

Dial
indicator
reading
(Inches)

0.023

0.030

0.024

0.030 0.030

0.025

0.030 0.030 0.032

0.026

0.030 0.030 0.032 0.032

0.027

0.030 0.030 0.032 0.032 0.034

0.028

0.030 0.030 0.032 0.032 0.034 0.034

0.029

0.030 0.030 0.032 0.032 0.034 0.034 0.036

0.030

0.030 0.030 0.032 0.032 0.034 0.034 0.036 0.036

0.031

0.030 0.030 0.032 0.032 0.034 0.034 0.036 0.036 0.038

0.032

0.030 0.030 0.032 0.032 0.034 0.034 0.036 0.036 0.038 0.038

0.033

0.030 0.030 0.032 0.032 0.034 0.034 0.036 0.036 0.038 0.038 0.040

0.034

0.030 0.030 0.032 0.032 0.034 0.034 0.036 0.036 0.038 0.038 0.040 0.040

0.035

0.030 0.030 0.032 0.032 0.034 0.034 0.036 0.036 0.038 0.038 0.040 0.040 0.042

0.036

0.030 0.030 0.032 0.032 0.034 0.034 0.036 0.036 0.038 0.038 0.040 0.040 0.042 0.042

0.037

0.030 0.030 0.032 0.032 0.034 0.034 0.036 0.036 0.038 0.038 0.040 0.040 0.042 0.042 0.044

0.038

0.030 0.032 0.032 0.034 0.034 0.036 0.036 0.038 0.038 0.040 0.040 0.042 0.042 0.044 0.044

0.039

0.032 0.032 0.034 0.034 0.036 0.036 0.038 0.038 0.040 0.040 0.042 0.042 0.044 0.044 0.046

0.040

0.032 0.034 0.034 0.036 0.036 0.038 0.038 0.040 0.040 0.042 0.042 0.044 0.044 0.046 0.046

0.041

0.034 0.034 0.036 0.036 0.038 0.038 0.040 0.040 0.042 0.042 0.044 0.044 0.046 0.046 0.048

0.042

0.034 0.036 0.036 0.038 0.038 0.040 0.040 0.042 0.042 0.044 0.044 0.046 0.046 0.048 0.048

0.043

0.036 0.036 0.038 0.038 0.040 0.040 0.042 0.042 0.044 0.044 0.046 0.046 0.048 0.048 0.050

0.044

0.036 0.038 0.038 0.040 0.040 0.042 0.042 0.044 0.044 0.046 0.046 0.048 0.048 0.050 0.050

0.045

0.038 0.038 0.040 0.040 0.042 0.042 0.044 0.044 0.046 0.046 0.048 0.048 0.050 0.050 0.052

0.046

0.038 0.040 0.040 0.042 0.042 0.044 0.044 0.046 0.046 0.048 0.048 0.050 0.050 0.052 0.052

0.047

0.040 0.040 0.042 0.042 0.044 0.044 0.046 0.046 0.048 0.048 0.050 0.050 0.052 0.052

0.048

0.040 0.042 0.042 0.044 0.044 0.046 0.046 0.048 0.048 0.050 0.050 0.052 0.052

0.049

0.042 0.042 0.044 0.044 0.046 0.046 0.048 0.048 0.050 0.050 0.052 0.052

0.050

0.042 0.044 0.044 0.046 0.046 0.048 0.048 0.050 0.050 0.052 0.052

0.051

0.044 0.044 0.046 0.046 0.048 0.048 0.050 0.050 0.052 0.052

0.052

0.044 0.046 0.046 0.048 0.048 0.050 0.050 0.052 0.052

0.053

0.046 0.046 0.048 0.048 0.050 0.050 0.052 0.052

0.054

0.046 0.048 0.048 0.050 0.050 0.052 0.052

0.055

0.048 0.048 0.050 0.050 0.052 0.052

0.056

0.048 0.050 0.050 0.052 0.052

0.057

0.050 0.050 0.052 0.052

0.058

0.050 0.052 0.052

0.059

0.052 0.052

0.060

0.052
