SEAT BELT SYSTEM

9A–1

TROOPER

RESTRAINTS

CONTENTS

Seat Belt System

9A–1

. . . . . . . . . . . . . . . . . . . . . . . .

Supplemental Restraint System (RSR)

9J–1

. . . . .

Restraint Control System

9J1–1

. . . . . . . . . . . . . . . . .

SEAT BELT SYSTEM

CONTENTS

Service Precaution

9A–1

. . . . . . . . . . . . . . . . . . . . . .

Seat Belt

9A–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Front Seat Belt and Associated Parts

9A–2

. . . .

Removal

9A–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection

9A–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

9A–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Seat Belt and Associated Parts

9A–3

. . . . .

Removal

9A–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection

9A–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

9A–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Front Seat Buckle Assembly

9A–4

. . . . . . . . . . . . . .

Removal

9A–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

9A–4

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Center Seat Belt / Buckle Assembly

9A–5

. . .

Rear Center Seat Belt / Buckle Assembly
 and Associated Parts

9A–5

. . . . . . . . . . . . . . . . . .

Removal

9A–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

9A–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Seat Lock Assembly

9A–6

. . . . . . . . . . . . . . . .

Removal

9A–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

9A–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Seat Lock Assembly (Bench Type)

9A–6

. . .

Removal

9A–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

9A–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rear Seat Strikers

9A–7

. . . . . . . . . . . . . . . . . . . . . . .

Removal

9A–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

9A–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Child Seat Tether Anchor Bracket
 (Child Restraint)

9A–7

. . . . . . . . . . . . . . . . . . . . . . . .

General Description

9A–7

. . . . . . . . . . . . . . . . . . . . .

Child Seat Tether Anchor Bracket and
 Associated Parts

9A–7

. . . . . . . . . . . . . . . . . . . . . .

Installation

9A–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

9A–8

. . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS). REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

SECTION

9A–2

SEAT BELT SYSTEM

Seat Belt

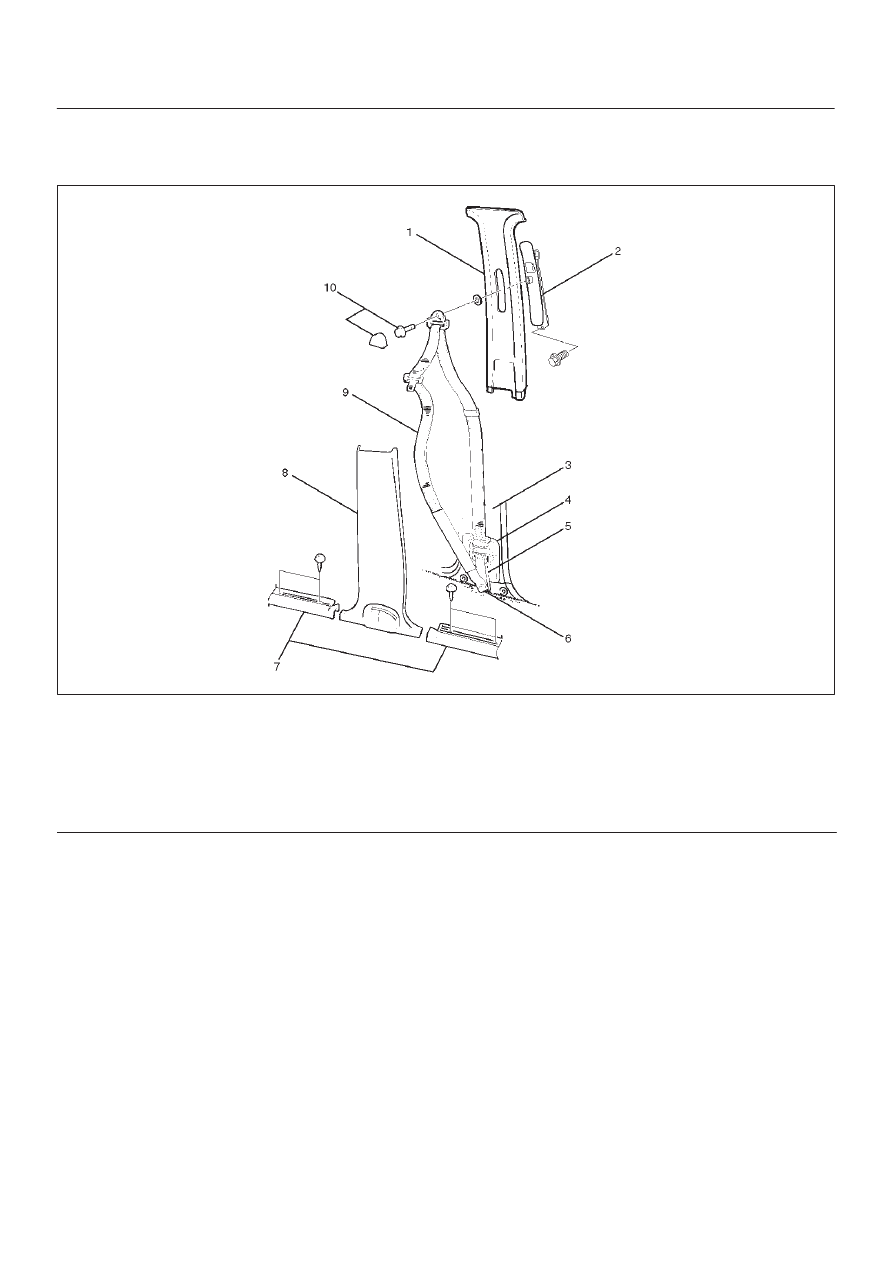

Front Seat Belt and Associated Parts

760RW014

Legend

(1) Center Pillar Upper Trim Cover
(2) Adjustable Shoulder Anchor Assembly
(3) Center Pillar
(4) Dust Cover
(5) Retractor

(6) Anchor Bolt (Lower)
(7) Door Sill Plate (Front & Rear)
(8) Center Pillar Lower Trim Cover
(9) Front Seat Belt Assembly

(10) Front Seat Belt Anchor Bolt Cover and Anchor

Bolt

Removal

1. Disconnect the battery ground cable.
2. Remove the door sill plate (Front & Rear).
3. Remove the center pillar lower trim cover.
4. Remove the front seat belt anchor bolt cover and

anchor bolt (Upper Side).

D

Refer to Center Pillar and Roof Side Trim Cover in
Exterior/Interior Trim section.

5. Remove the seat belt lower anchor bolt and screw,

and then remove the front seat belt.

Inspection

If any of the following abnormalities is found, replace on
an assembly basis:

D

Deform and malfunction of adjustable shoulder
anchor.

D

No smooth move of upper/lower anchors in the
circumferential direction.

D

Damaged and/or deformed through ring.

D

Damaged and/or deformed tongue.

D

Damaged and/or frayed of webbing.

D

Deformed retractor bracket.

D

Seat belt not rewound up.

D

Resistance or abnormal sound when seat belt is
wound out and rewound.

D

Retractor abnormality.

SEAT BELT SYSTEM

9A–3

Inspection of retractor

1. ELR (Emergency Locking Retractor) lock inclining

angle check.

D

When the retractor is moved gently from its
installing position, make sure it is not locked within
15

°

 in any directions, and it remains locked at 45

°

 or

larger.

2. ELR lock check.

D

When the seat belt is drawn slowly with the retractor
installed, make sure it is not locked. And when it is
drawn quickly, make sure it is locked.

3. ALR (Automatic Locking Retractor)/ELR check

(Except for driver’s seat).

D

When rewound after winding out the seat belt,
make sure the seat belt cannot be taken out. After
rewinding, make sure it has returned to its normal
operation.

CAUTION: Do not disassemble the retractor.

Installation

To install, follow the removal steps in the reverse order,
noting the following points;

CAUTION: The front seat belt for ’99model is
differently specified from that for ’98model.
When replacing, be sure to replace with the one for
’99model after making sure of part No..

1. Pass the seat belt through the lower trim cover hole,

and tighten the seat belt anchor bolts to the specified
torque.

Torque: 39 N·m (29 lb ft)

2. After installing the trim cover to the body panel

securely, close the lower trim cover.

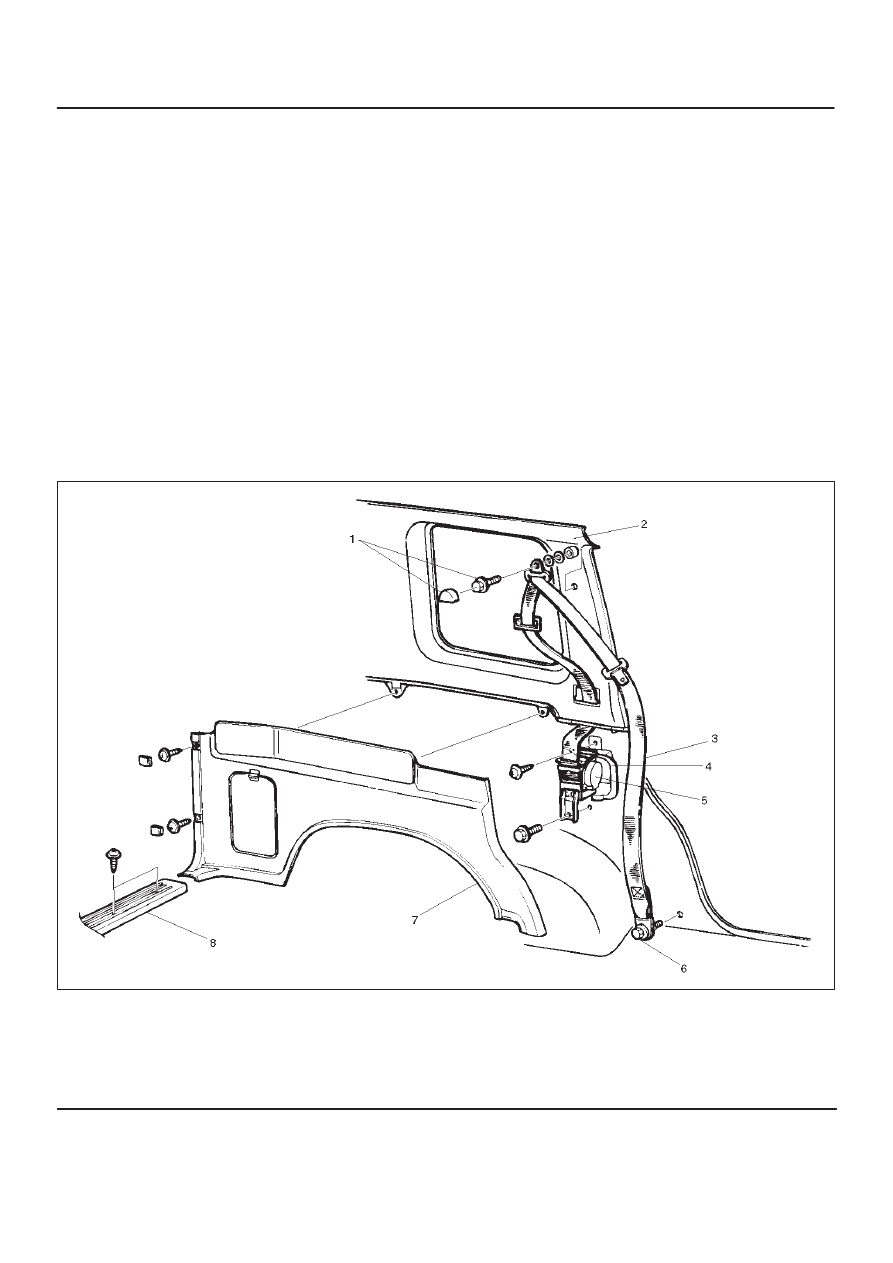

Rear Seat Belt and Associated Parts

760RS006

Legend

(1) Rear Seat Belt Anchor Bolt Cover and Anchor

Bolt (Upper Side)

(2) Quarter Upper Trim Cover
(3) Rear Seat Belt Assembly

(4) Dust Cover
(5) Retractor
(6) Anchor Bolt (Lower Side)
(7) Luggage Side Trim Cover
(8) Rear End Floor Trim Cover

9A–4

SEAT BELT SYSTEM

Removal

1. Disconnect the battery ground cable.
2. Remove the rear end floor trim cover.
3. Remove the luggage side trim cover.

D

Refer to Luggage Side and Quarter Upper Trim
Cover in Exterior/Interior Trim section.

4. Remove the rear seat belt anchor bolt cover and

anchor bolt (Upper Side).

5. Remove the seat belt lower anchor bolt and remove

the retractor from dust cover slit to remove the rear
seat belt.

Inspection

If any of the following abnormalities is found, replace on
an assembly basis:

D

No smooth move of upper/lower anchors in the
circumferential direction.

D

Damaged and/or deformed through ring.

D

Damaged and/or deformed tongue.

D

Damaged and/or frayed of webbing.

D

Deformed retractor bracket.

D

Seat belt not rewound up.

D

Resistance or abnormal sound when seat belt is
wound out and rewound.

D

Retractor abnormality.

Inspection of retractor

1. ELR (Emergency Locking Retractor) lock inclining

angle check.

D

When the retractor is moved gently from its
installing position, make sure it is not locked within
15

°

 in any directions, and it remains locked at 45

°

 or

larger.

2. ELR lock check.

D

When the seat belt is drawn slowly with the retractor
installed, make sure it is not locked. And when it is
drawn quickly, make sure it is locked.

3. ALR (Automatic Locking Retractor)/ELR check

(Except for driver’s seat).

D

When rewound after winding out the seat belt,
make sure the seat belt cannot be taken out. After
rewinding, make sure it has returned to its normal
operation.

CAUTION: Do not disassemble the retractor.

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the seat belt anchor bolts to the specified

torque.

Torque: 39 N·m (29 lb ft)

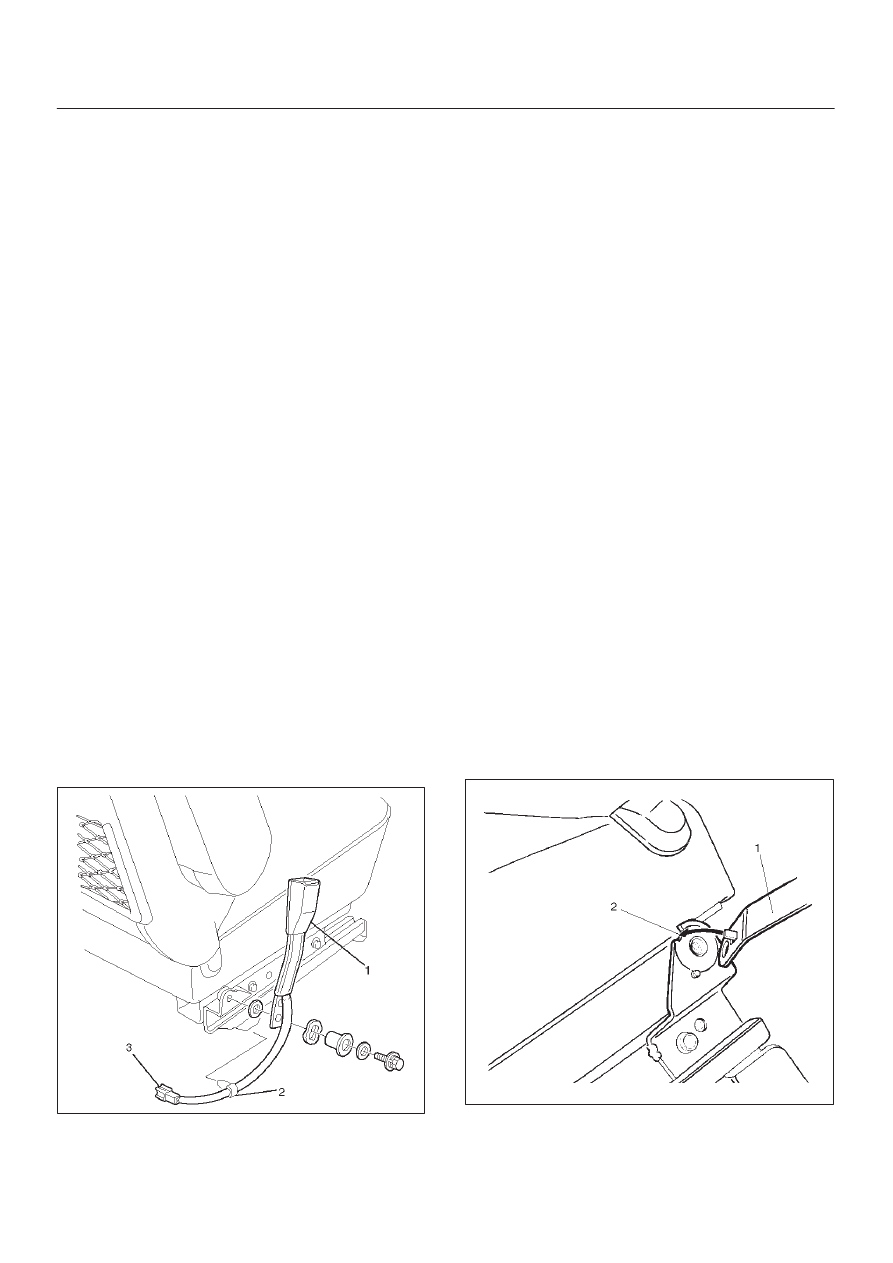

Front Seat Buckle Assembly

Removal

1. Disconnect the battery ground cable.
2. Disconnect the seat belt warning connector (driver’s

side) (3) and remove a clip(2).

3. Remove the front seat buckle assembly(1).

760RT003

Installation

To install, follow the removal steps in the reverse order,
noting the following points.

1. Fix the buckle to the rotation-stop position(2) securely

to install the front seat buckle assembly(1).

760RS005

2. Tighten the buckle anchor bolt to the specified torque.

Torque: 39 N·m (29 lb ft)
