SEAT BELT SYSTEM

9A–5

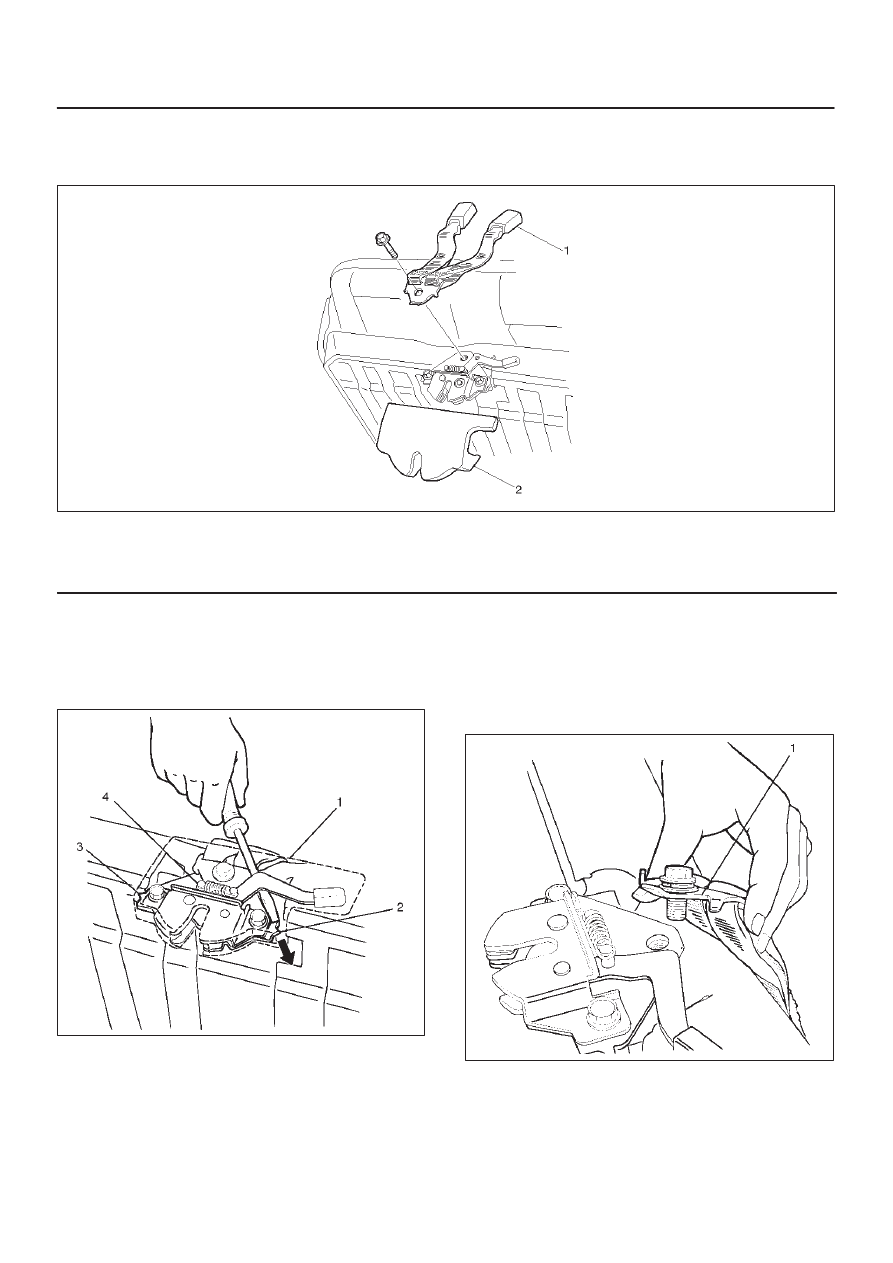

Rear Center Seat Belt / Buckle Assembly

Rear Center Seat Belt / Buckle Assembly and Associated Parts

760RW007

Legend

(1) Rear Seat Belt Buckle Assembly
(2) Seat Lock Cover

Removal

1. Remove the catch portions(2) & (3) of the seat lock

assembly(4) from the cover, and then remove the
seat lock cover(1).

760RW016

2. Remove the rear seat buckle assembly.

Installation

1. Fix the rear seat buckle assembly(1) to the rotation

stopper and tighten the anchor bolt to the specified
torque.

Torque: 39 N·m (29 lb ft)

760RS013

2. Install the seat lock cover.

9A–6

SEAT BELT SYSTEM

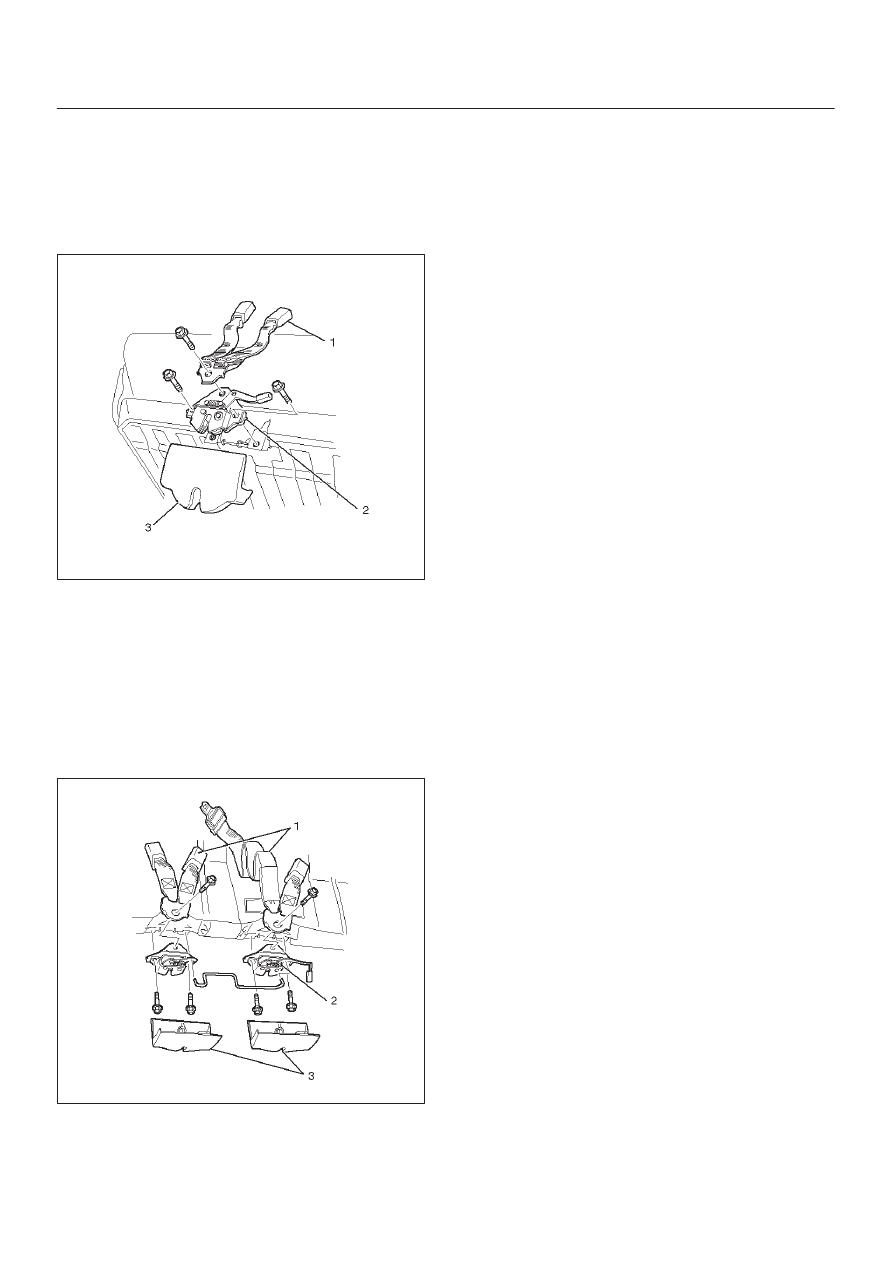

Rear Seat Lock Assembly

Removal

1. Remove the seat lock cover(3).
2. Remove the rear seat belt buckle assembly(1).
3. Remove the rear seat lock assembly(2).

760RW002

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the seat lock fixing bolts to the specified

torque.

Torque:42 N·m (31 lb ft )

Rear Seat Lock Assembly (Bench Type)

Removal

1. Remove the seat lock cover(3).
2. Remove the rear seat belt/buckle assembly(1).
3. Disconnect the link connecting the lock assemblies

on the both sides, and then remove the rear seat lock
assembly(2).

760RW003

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the seat lock fixing bolts to the specified

torque.

Torque: 42 N·m (31 lb ft)

SEAT BELT SYSTEM

9A–7

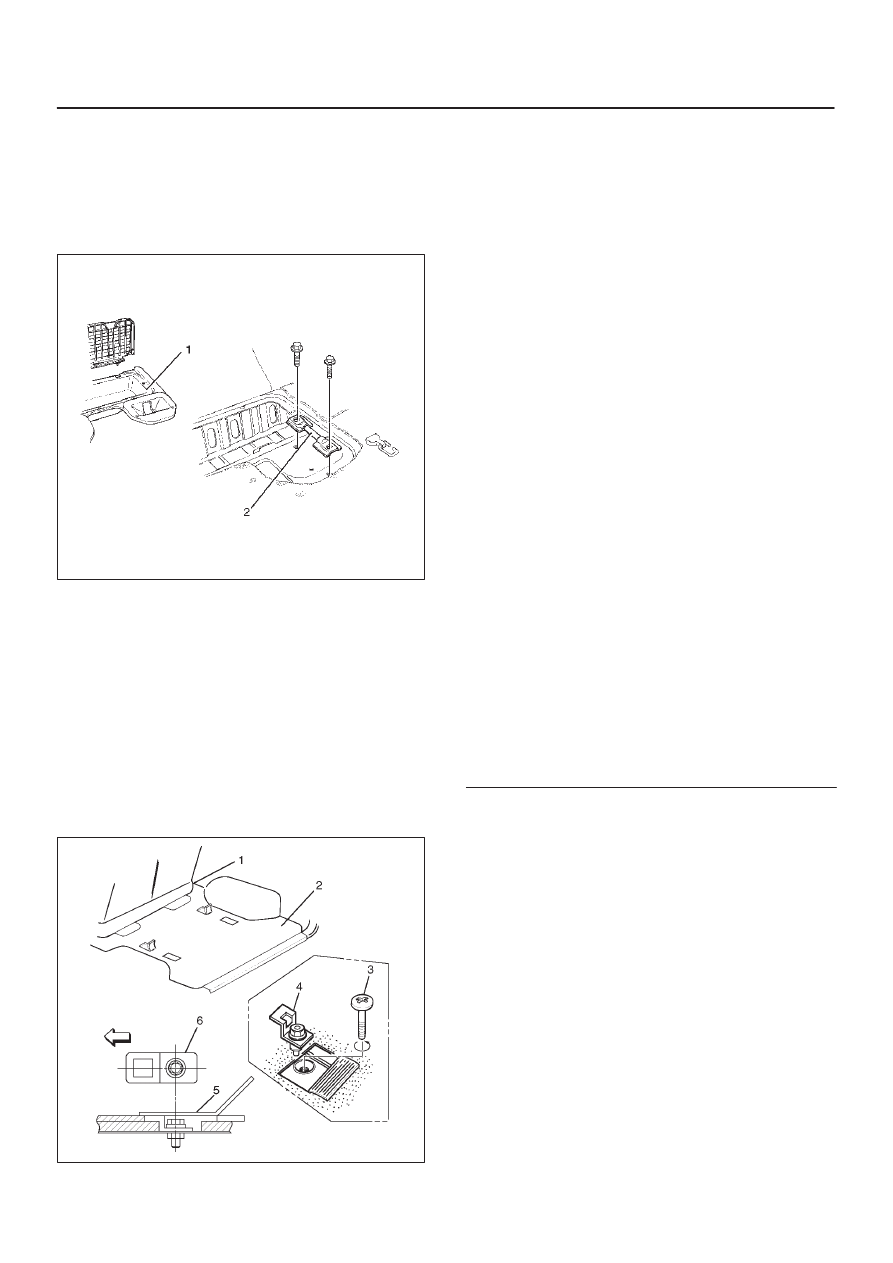

Rear Seat Strikers

Removal

1. Fold the rear seat assembly to the front direction.
2. Remove the luggage floor box(1).
3. Remove the rear seat striker(2).

755RW015

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Tighten the striker fixing bolts to the specified torque.

Torque: 40 N·m (30 lb ft)

Child Seat Tether Anchor Bracket (Child Restraint)

General Description

Plastic plug is provided at three places on the luggage
floor panel.  Remove the center plug from the floor panel.
Install the bracket to the hole where the plug is removed.
Alternatively, the bracket may be installed in the
right-hand or left-hand plug hole.

Child Seat Tether Anchor Bracket
and Associated Parts

760R200027

Legend

(1) Rear Seat
(2) Luggage Floor
(3) Plug
(4) Child Seat Tether Anchor Bracket
(5) Floor Carpet
(6) Child Seat Tether Anchor Bracket

Installation

1. Turn the plug counterclockwise to remove it.
2. Install the bracket such that its tether belt hook hole is

facing toward the front of the vehicle.

3. Tighten the fixing bolt to the specified torque.

Torque: 20 N·m (14 lb ft)

9A–8

SEAT BELT SYSTEM

Main Data and Specifications

Torque Specifications

Application

N·m

Lb Ft

Lb In

Front Seat Belt Anchor Bolts

39

29

—

Rear Seat Belt Anchor Bolts

39

29

—

Front Seat Buckle Anchor Bolt

39

29

—

Rear Seat Buckle Anchor Bolt

39

29

—

Rear Seat Lock Fixing Bolts

42

31

—

Rear Seat Striker Fixing Bolts

40

30

—

Child Seat Tether Anchor Bolt

20

14

—
