Isuzu Amigo / Axiom / Trooper / Rodeo / VehiCross. Manual - part 1036





EXTERIOR/INTERIOR TRIM

8J–29

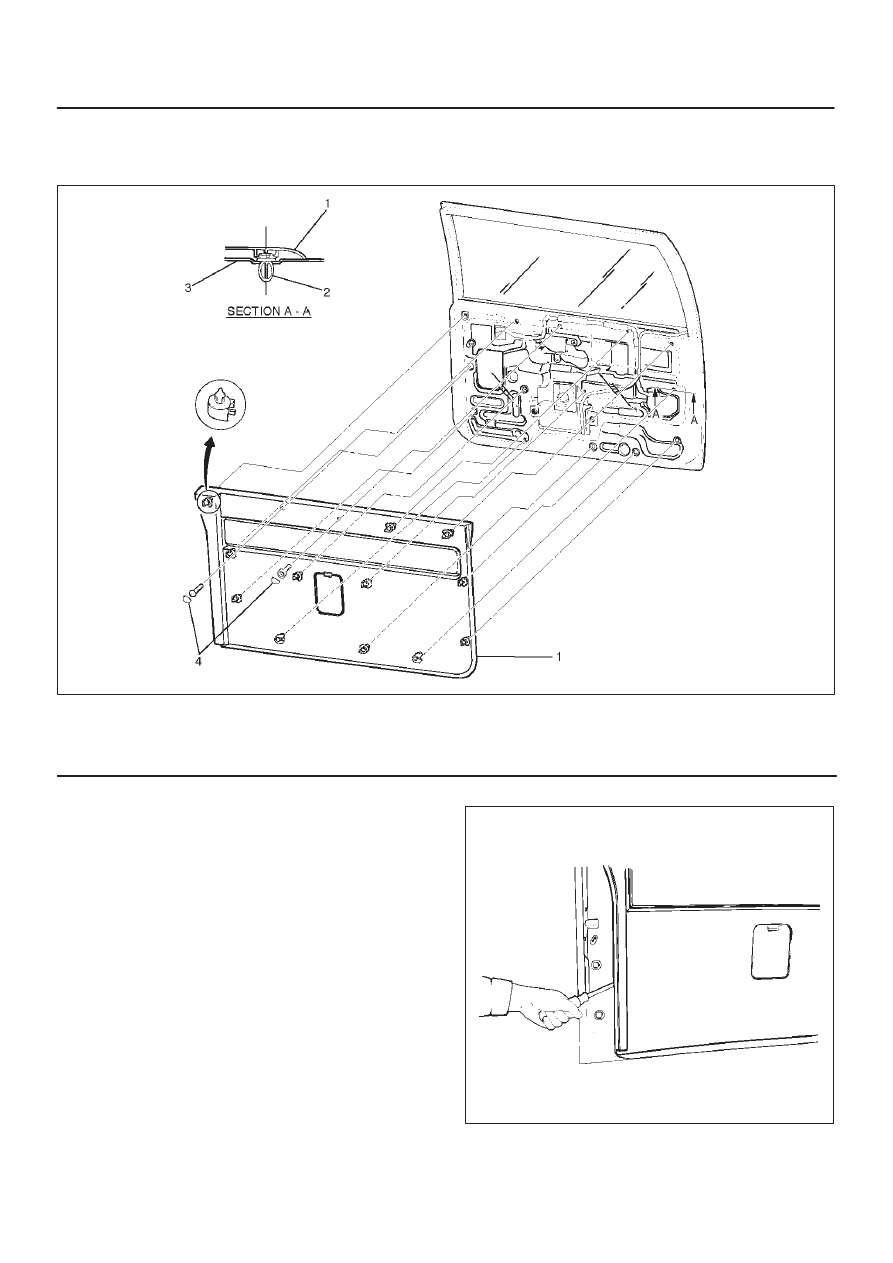

Tailgate Trim Panel (LH)

Tailgate Trim Panel (LH) and Associated Parts

683RS002

Legend

(1) Tailgate Trim Panel (LH)
(2) Clip

(3) Tailgate Panel
(4) Cap and Screw

Removal

1. Disconnect the battery ground cable.
2. Remove the cap and screw.
3. Remove the tailgate trim panel (LH).

D

Pry the trim panel retainers free from the tailgate
panel.

684RS001

Installation

To install, follow the removal steps in the reverse order.

8J–30

EXTERIOR/INTERIOR TRIM

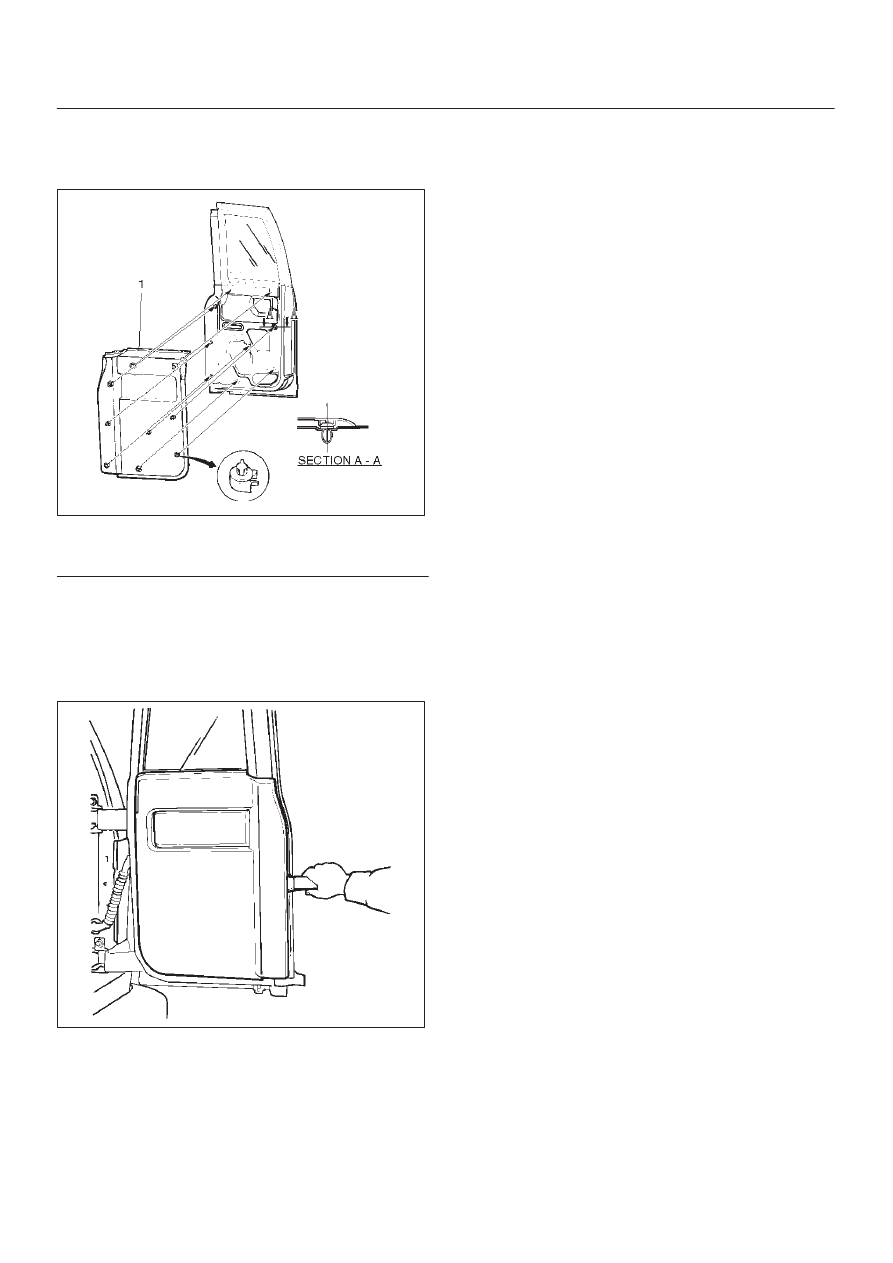

Tailgate Trim Panel (RH)

Parts Location

684RS002

Legend

(1) Tailgate Trim Panel

Removal

1. Disconnect the battery ground cable.
2. Remove the tailgate trim panel (RH).

D

Pry trim panel retainer free from the tailgate panel.

684RS003

Installation

1. Install the trim panel (RH).

D

Insert the retainer of the trim panel into the tailgate
panel and fix it securely.

EXTERIOR/INTERIOR TRIM

8J–31

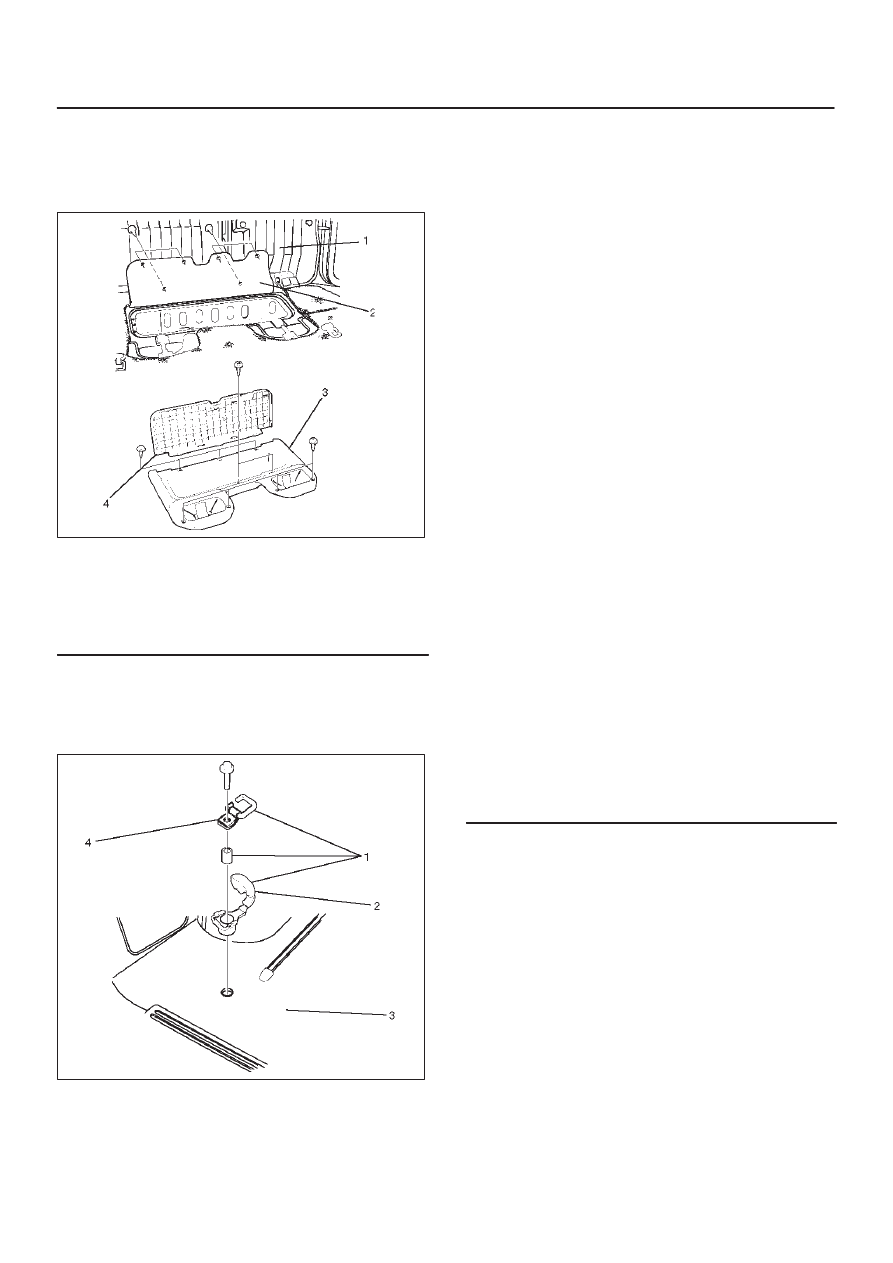

Luggage Floor Box

Luggage Floor Box and Associated
Parts

643RS006

Legend

(1) Rear Seat
(2) Floor Carpet
(3) Luggage Floor Box
(4) Luggage Floor Box Cover

Remove

1. Fold the rear seat assembly to the front direction.
2. Remove the luggage floor box cover.

D

Remove the clips which connect the floor carpet
and the luggage floor box cover.

3. Remove the luggage floor box.

Installation

To install, follow the removal steps in the reverse order.

Rope Hook Set

Rope Hook Set and Associated Parts

676RS003

Legend

(1) Rope Hook Set
(2) Cover
(3) Luggage Floor Carpet
(4) Hook

Removal

1. Remove the rope hook set.

D

Open the hook cover and hook fixing bolt.

Installation

1. Install the rope hook set.

D

Tighten the hook fixing bolt to the specified torque.

Torque: 13 N·m (113 lb in)

8J–32

EXTERIOR/INTERIOR TRIM

Power Door Mirror System

General Description

The circuit consists of the starter switch, door mirror
control switch, folding switch, defogger switch and door
mirrors on both sides.
The door mirror switch consists of the control switch,
folding switch and defogger switch.
When the control switch is operated with the starter
switch at either “ACC” or “ON” position, the motors
incorporated in the door mirrors on both sides rotates to
allow the horizontal and vertical adjustment of mirror
angles.
The folding switch can be used to fold the mirror and
return it to its original position.
When turning on the door mirror defogger switch with the
starter switch at “ON” position, built-in heater in the mirror
is activated to perform the defogger function.

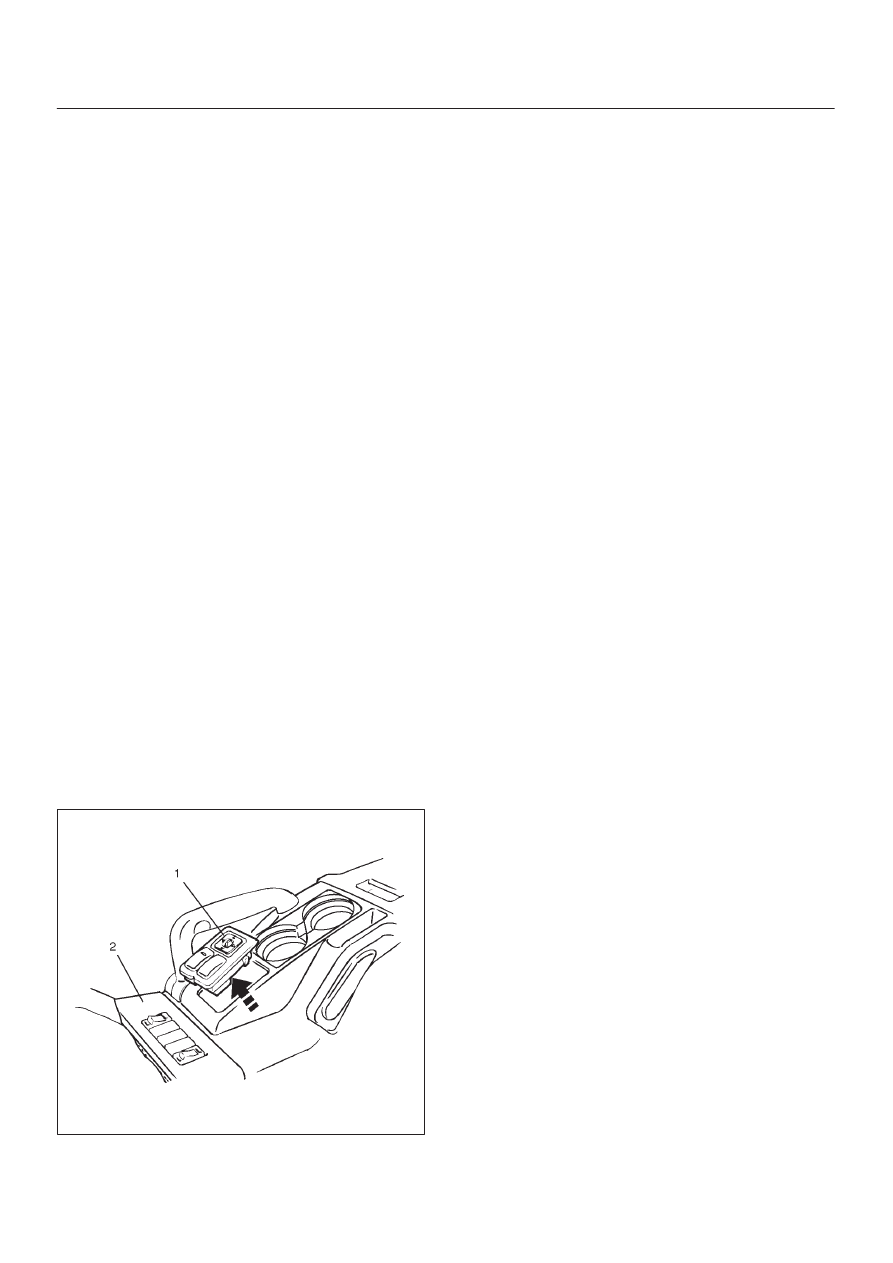

Door Mirror Switch Assembly
(Control Switch, Folding Switch and
Defogger Switch) Removal

1. Disconnect the battery ground cable.
2. Remove the front console assembly(2).

D

Remove four screws.

D

Remove the transmission shift lever knob.

D

Remove the transfer shift lever knob.

D

Disconnect the seat heater switch connectors (if so
equipped).

D

Disconnect the door mirror switch connectors.

D

Disconnect the power & winter switch connectors.
(A/T only)

3. Remove the door mirror switch assembly(1).

D

Push the lock from the back side of the front
console.

825R200089

Installation

To install, follow the removal steps in the reverse order,
noting the following point.

1. Depress the switch with your fingers until it locks

securely.
