HEATING, VENTILATION AND AIR CONDITIONING (HVAC) 1A–63

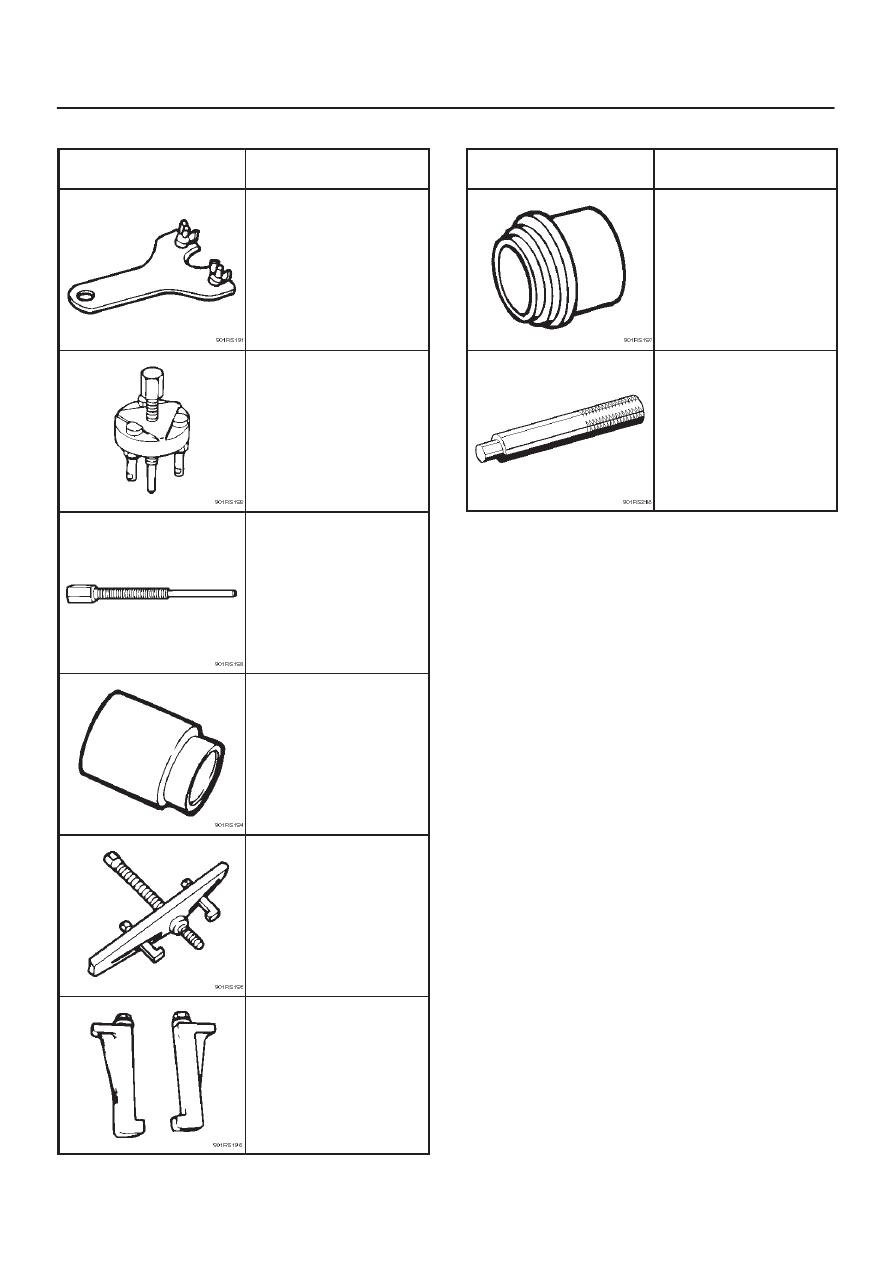

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

J-33939

Drive plate holder

J-33944-A

Drive plate puller

J-33944-4

Forcing screw

J-38424

Pulley puller pilot

J-8433

Pulley puller

J-24092-2

Pulley puller leg

ILLUSTRATION

TOOL NO.

TOOL NAME

J-33940-A

Pulley installer

J-8092

Drive handle

1A–64 HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

Automatic Air Conditioning System

General Description

Using a variety of sensors, this automatic air conditioner
accurately senses outside air temperature, solar
radiation quantity, evaporator’s blowing temperature, and
interior temperature, then enters these data to the
automatic air conditioner control unit (equipped with the
built-in micro-computer).  The data provided to the control
unit enables to automatically control blow temperature

and blow air quantity, turn on or off the compressor and
switch the blow port as well as switching between the
fresh air intake and interior air circulation.
Resetting the automatic function allows you to switch to
the manual control mode.
The self-diagnoisis function of the automatic air
conditioner control unit (with the built-in micro-computer)
allows the unit to access and diagnose a failed part easier
and quicker.

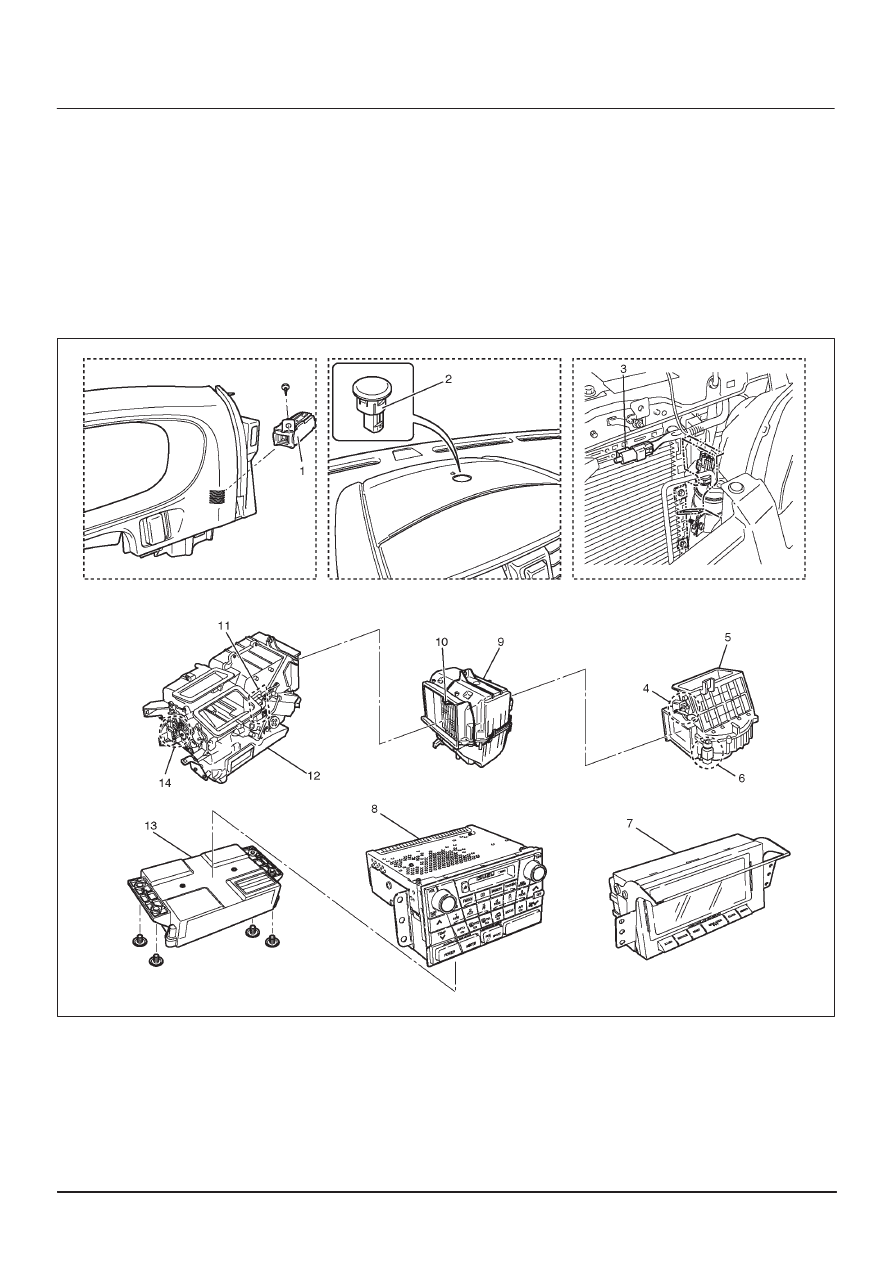

Automatic Air Conditioner Parts Configuration

865R200050

Legend

(1) In Car Sensor
(2) Sun Sensor
(3) Ambient Sensor
(4) Intake Actuator
(5) Blower Unit
(6) Max – High Relay
(7) Display

(8) Audio & Switch Assembly
(9) Evaporator Assembly

(10) Duct Sensor

(11) Mix Actuator

(12) Heater Unit
(13) Automatic Air Conditioner Control Unit
(14) Mode Actuator

HEATING, VENTILATION AND AIR CONDITIONING (HVAC) 1A–65

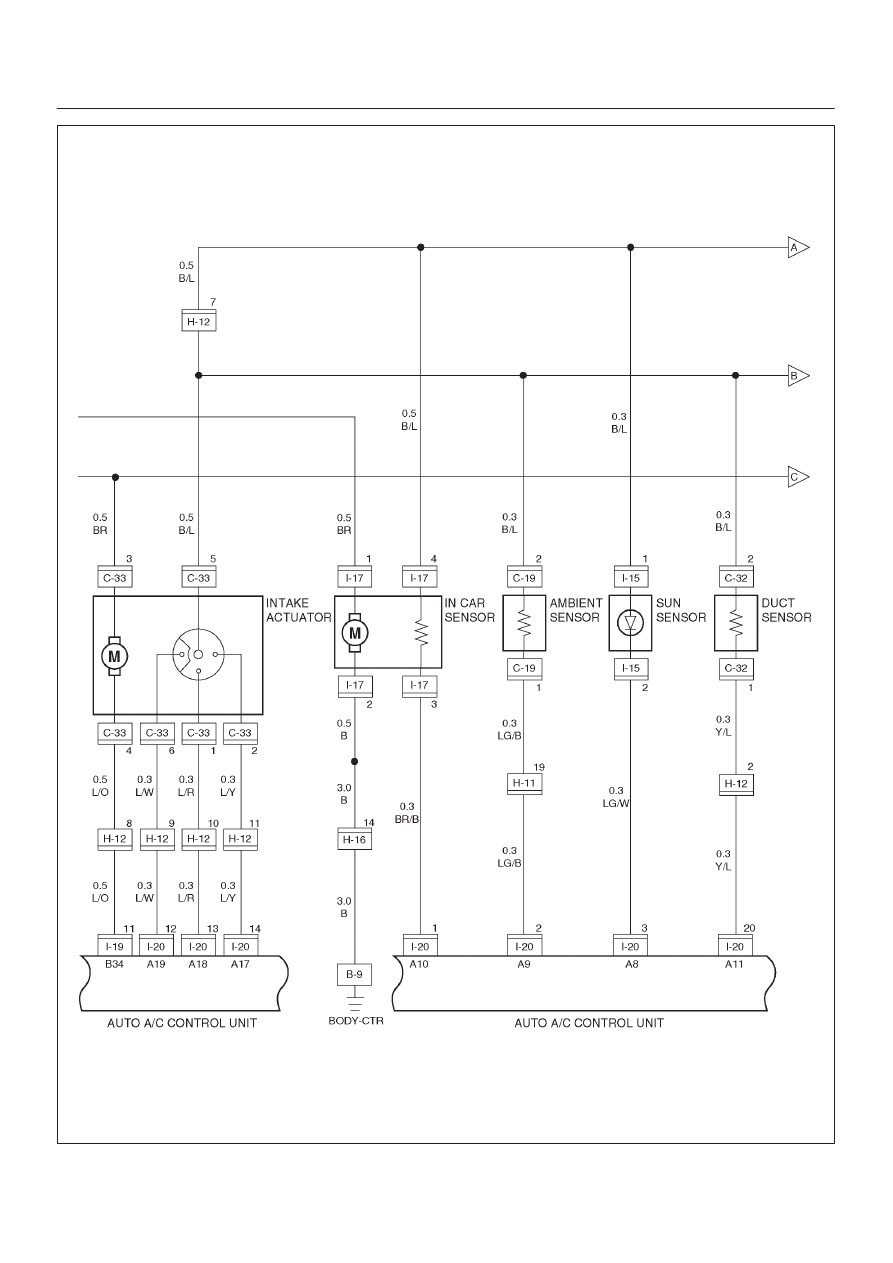

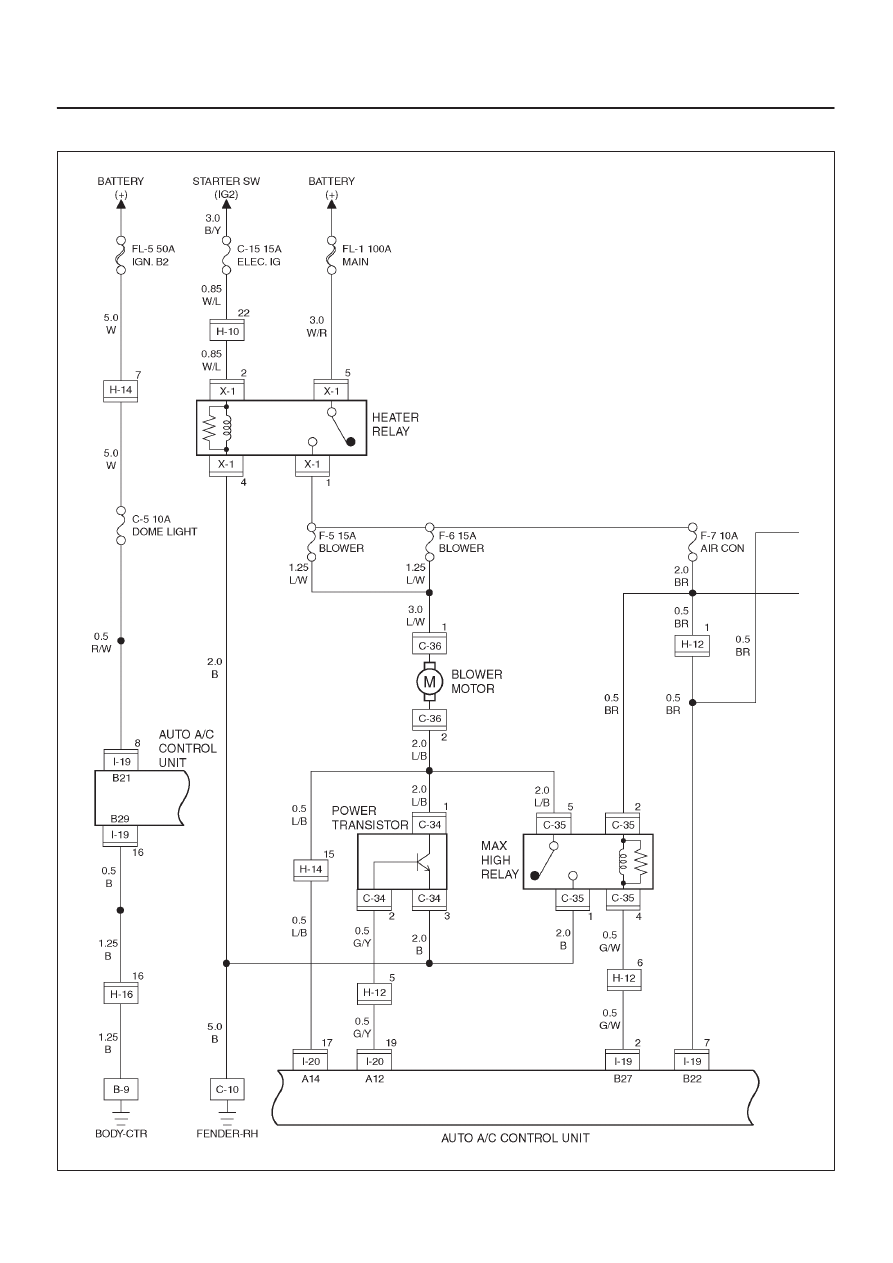

Circuit Diagram

D01R200010

1A–66 HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

D01R200011
