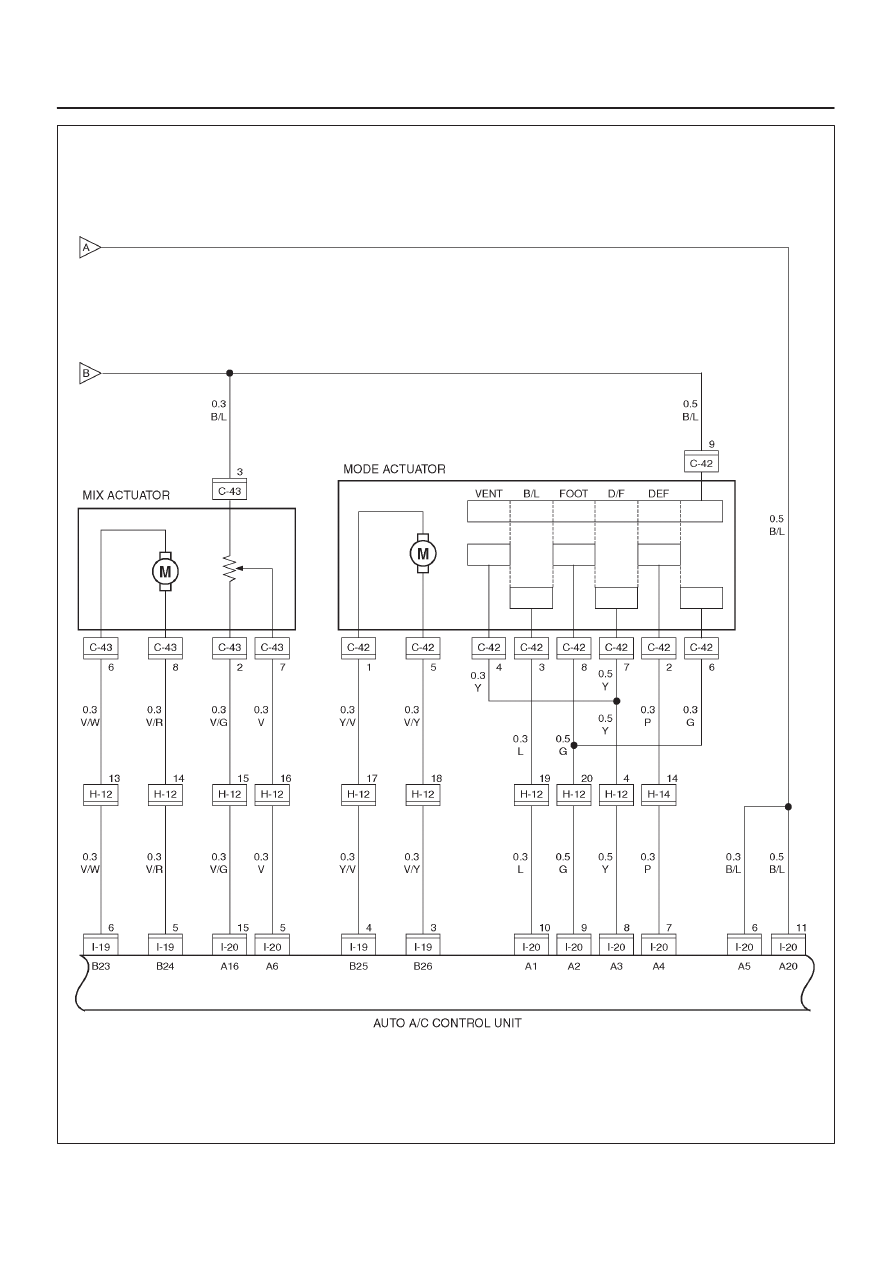

HEATING, VENTILATION AND AIR CONDITIONING (HVAC) 1A–67

D01R200003

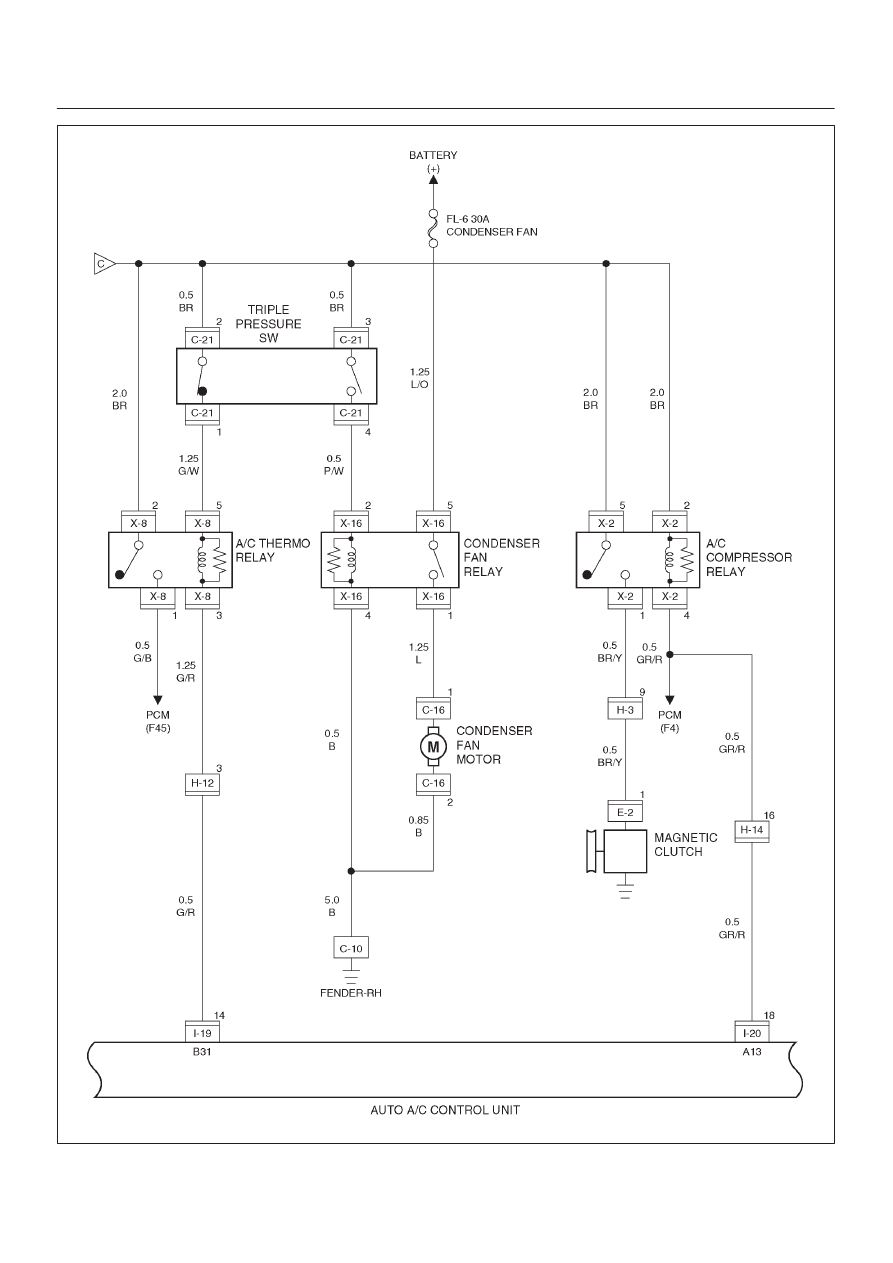

1A–68 HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

D01R200004

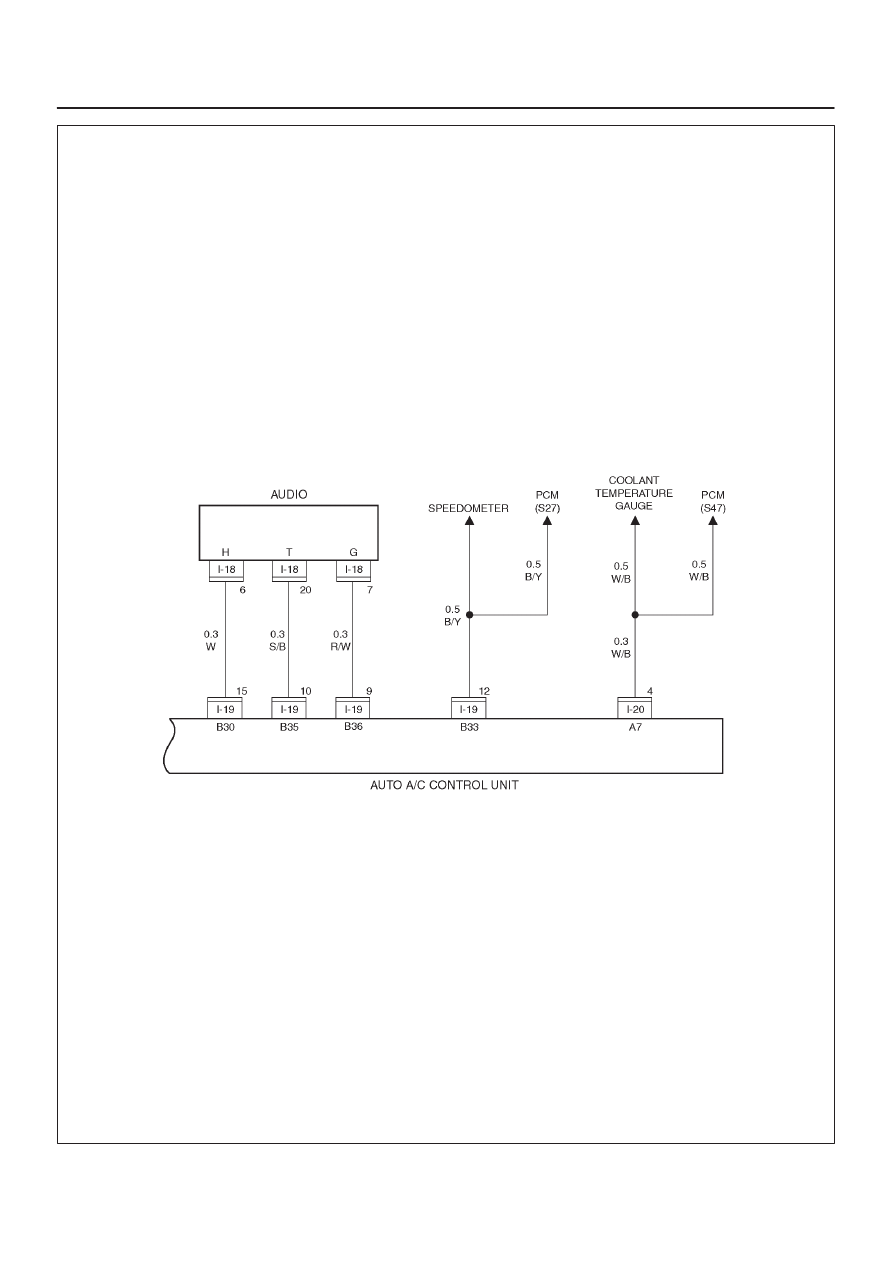

HEATING, VENTILATION AND AIR CONDITIONING (HVAC) 1A–69

D01R200009

1A–70 HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

Functions and Features

Automatic air conditioning control unit
The control unit features a prominent control and display
panel that clearly shows air conditioner operational
settings (delivered air volume, air outlet location,
inside/outside air circulation, and set temperature).
Desired temperature can be set in –17

°

C (1

°

F)

increments. The current setting appears on the digital
display.

Automatic temperature control
Vehicle interior temperature is maintained at the set level.
It is unaffected by changes in vehicle speed, outside air
temperature, and number of passengers.

Maximum cooling and heating
Moving the switch to the 18

°

C (65

°

F) position provides

maximum cooling. Moving the switch to the 32

°

C (90

°

F)

position provides maximum heating.

Automatic air flow control
Air flow is automatically and precisely regulated in
response to set temperature change and/or changes in
heater unit mixing door aperture.

Automatic air outlet selection
Appropriate air outlets (VENT, BE-LEVEL, FOOT, or
DEF) are selected in response to changes in outlet
temperatures. The mode switch permits manual selection
of the desired air outlet.

Air source (Fresh air intake from outside the
vehicle or recirculation of the air inside the vehicle)
selection
Automatic switching between outside air (FRESH),
recirculated inside air (RECIRC), or a combination of the
two (MIX) occurs in response to changes in outlet
temperatures.The intake switch permits manual
selection of the air source (FRESH or RECIRC). Mixing
of the two sources is not possible during manual
operation. When the defrost mode switch (DEF) is
pressed, the system automatically switches to outside air
intake.

Cooler start-up control
When the vehicle is parked in a hot area for an extended
period of time, the evaporator becomes hot. When the
cooler is turned on, hot air is blown into the vehicle until
the evaporator cools down. The cooler start-up control
prevents blower operation until the evaporator is able to
provide cool air.

Heater start-up control
When the vehicle is parked in a cold area for an extended
period of time, the heater core becomes cold. When the
heater is turned on, cold air is blown into the vehicle until
the heater core heats up. The heater start-up control
prevents blower operation to the air outlets until the
heater core is able to provide warm air. Air is delivered
through the defrost outlets.

Solar radiation offset
The sun sensor uses a photodiode to precisely determine
the amount of solar radiation affecting the vehicle. The
cooler operates in response to this radiation to quickly
correct the vehicle interior temperature.

Switch position memory
Current switch positions are stored in memory when the
ignition switch is turned off. When the ignition switch is
turned on again, the switches automatically return to the
position they were in when the ignition switch was turned
off. This simplifies the restarting procedure.

Self-diagnosis function
The self-diagnosis switches on the control panel permit
easy system troubleshooting. Refer to “Self-Diagnosis”
later in this Section.
