EXHAUST SYSTEM   6F – 7



GENERAL DESCRIPTION

This system controls the formation of NOx emission by recirculating the exhaust gas into the combustion chamber
through the intake manifold.

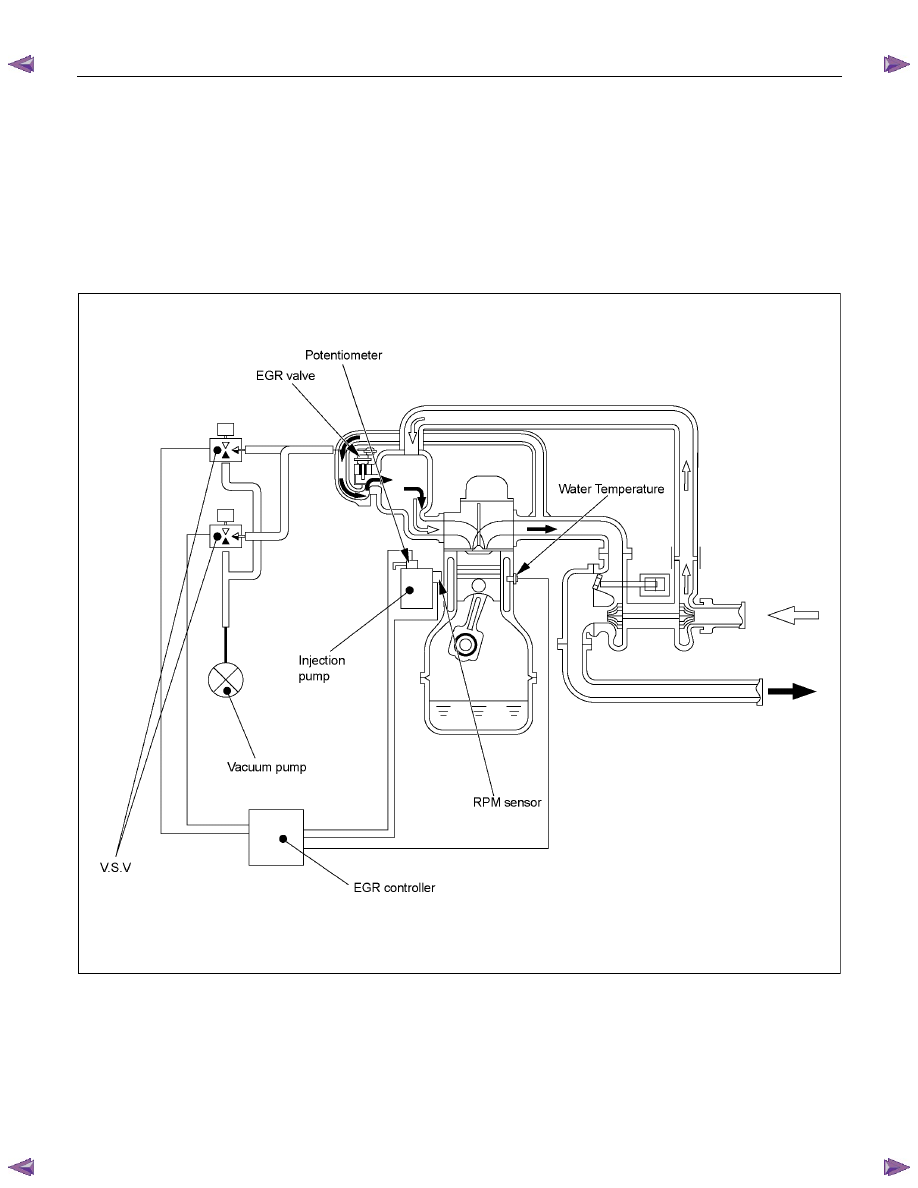

4JA1T(L):
The two EGR valves are controlled by two Vacuum Switching Valve (VSV) controlled by EGR controller according to
signals from various sensors.
The amount of EGR depends on the number of engine rotations and the opening of the accelerator.











RTW46ELF001201

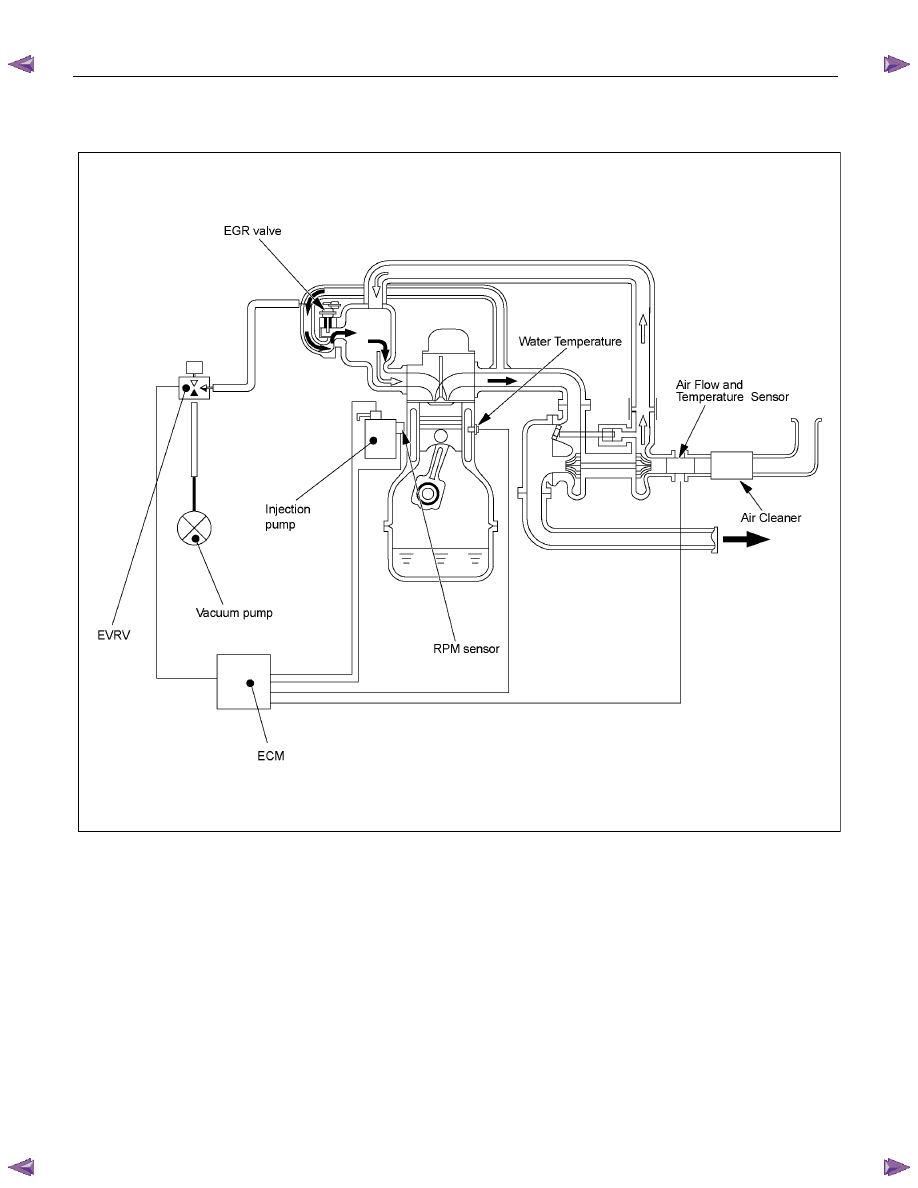

6F – 8   EXHAUST SYSTEM

4JA1TC/4JH1TC
The EGR system engine is controlled by ECM. Refer to “Engine driveability and emissions” section for detail.













RTW46ELF001101





EXHAUST SYSTEM   6F – 9

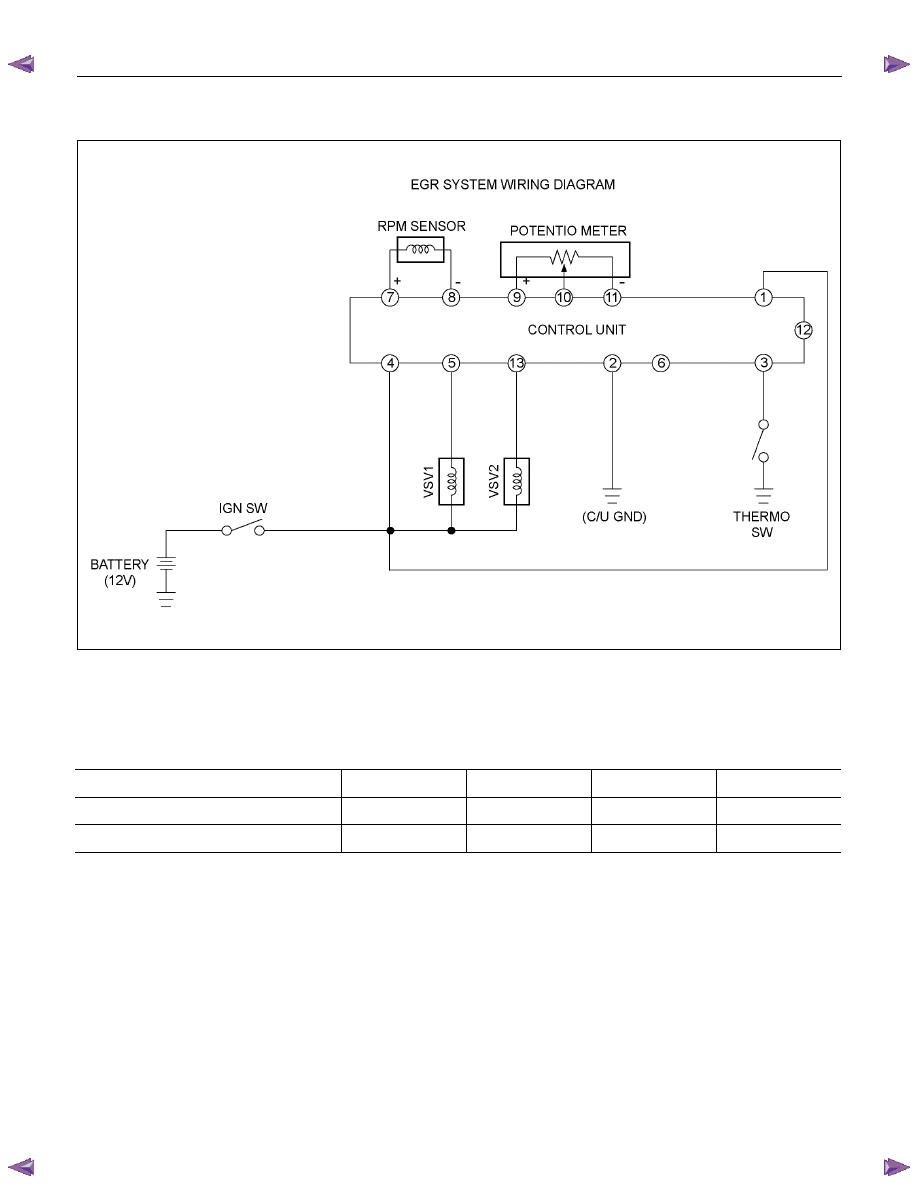

EGR SYSTEM DIAGRAM 4JA1T (L)









RTW46AMF000301



EGR System Operation

Inspect EGR valve motion visually while changing engine RPM under no load condition after warming-up.
•  Inspection point (Engine RPM)


RPM Idling

900

∼ 960

2000 3250

Engine Front Side VSV-1

ON

ON

ON

OFF

Engine Rear Side VSV-2

ON

OFF

ON

OFF





ON means VSV should receive signal to move EGR valve.



OFF means VSV shouldn’t receive signal to move EGR valve.

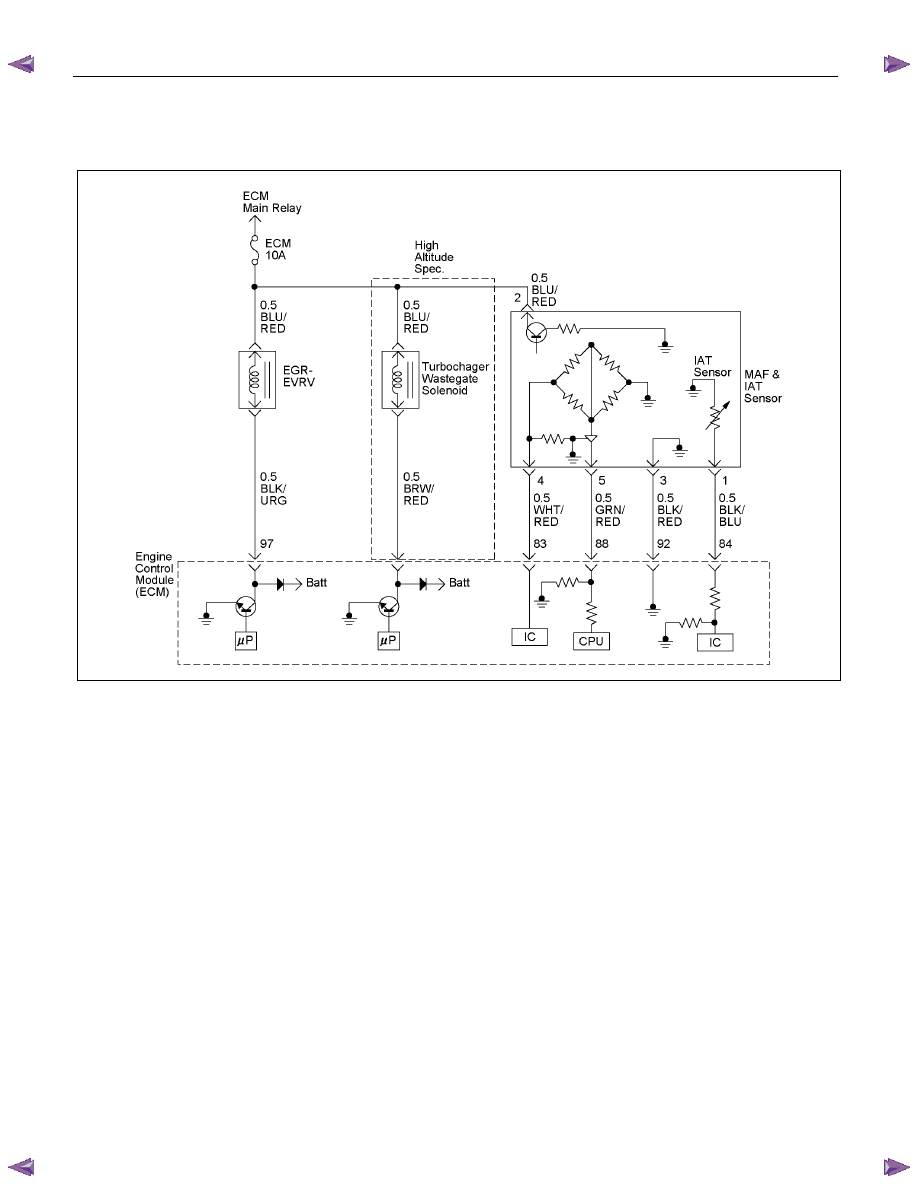

6F – 10   EXHAUST SYSTEM

4JA1TC/4JH1TC

The EGR system engine is controlled by ECM. Refer to “Engine driveability and

emissions” section for detail.







RTW46EMF000701
