EXHAUST SYSTEM   6F – 3

GENERAL DESCRIPTION

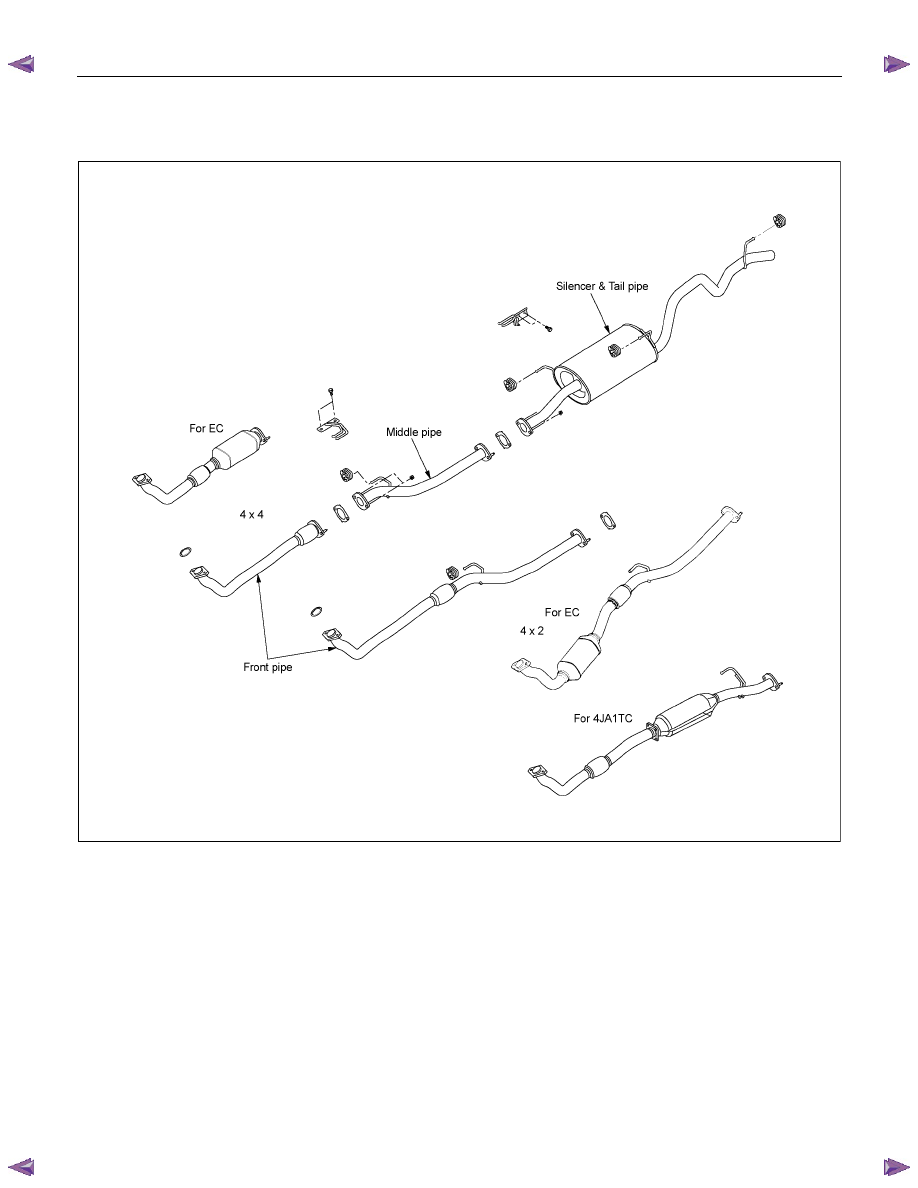

RTW46FLF000201


The exhaust pipe layout is described in the above illustration.
The catalytic coverter is installed between the turbocharger and the front pipe.





6F – 4   EXHAUST SYSTEM



 REMOVAL AND INSTALLATION

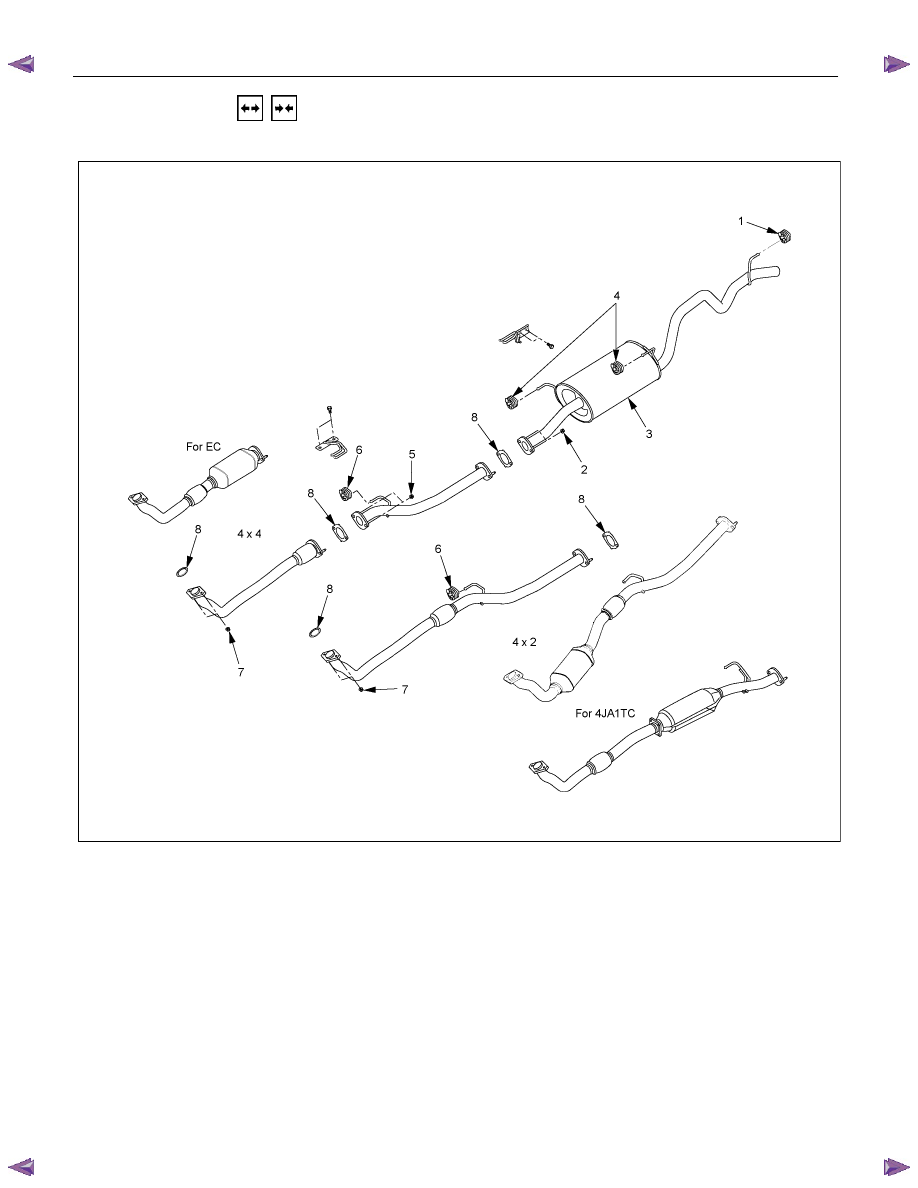

RTW46FLF000101



Removal Steps



1. Rear hanger rubber



2. Silencer front nut



3. Exhaust silencer



4. Silencer hanger rubber



5. Middle pipe nut









6. Front hanger rubber



7. Front pipe nut



8. Exhaust pipe gasket











EXHAUST SYSTEM   6F – 5









































Important Operations – Installation

Follow the removal procedure in the reverse order to
perform the installation procedure. Pay careful attention to
the important points during the installation procedure.



1.  Front Pipe Nut

Connect the exhaust pipe to the catalytic converter.

Torque N

⋅m (kg⋅m/lb⋅ft)

67 (6.8/49)



2.  Middle pipe Nut (4

××××4 only)

Connect the middle pipe to the front pipe.

Torque N

⋅m (kg⋅m/lb⋅ft)

43 (4.4/32)



3.  Silencer Front Nut

Connect the silencer to the front or middle pipe.

Torque N

⋅m (kg⋅m/lb⋅ft)

43 (4.4/32)





6F – 6   EXHAUST SYSTEM



  INSPECTION AND REPAIR

Make the necessary adjustments, repairs, and part replacements if excessive wear or damage is discovered during
inspection.













Front Exhaust Pipe

Exhaust Silencer

Check the pipes for corrosion, cracking, damage or
misalignment and repair as required.

Check the rubber rings for deterioration or damage and repair
as required.

Catalytic Converter

1. Inspect outside the catalytic converter for any hitting mark.

2. Visual check inside the catalytic converter for crack or break

converter element.

3. If find any problem during the inspection, replace the

catalytic converter assembly.
