9A1-66  RESTRAINT CONTROL SYSTEM



DTC B0055 (Flash Code 55) Vehicle Variant Missing








RTW79ALF000301

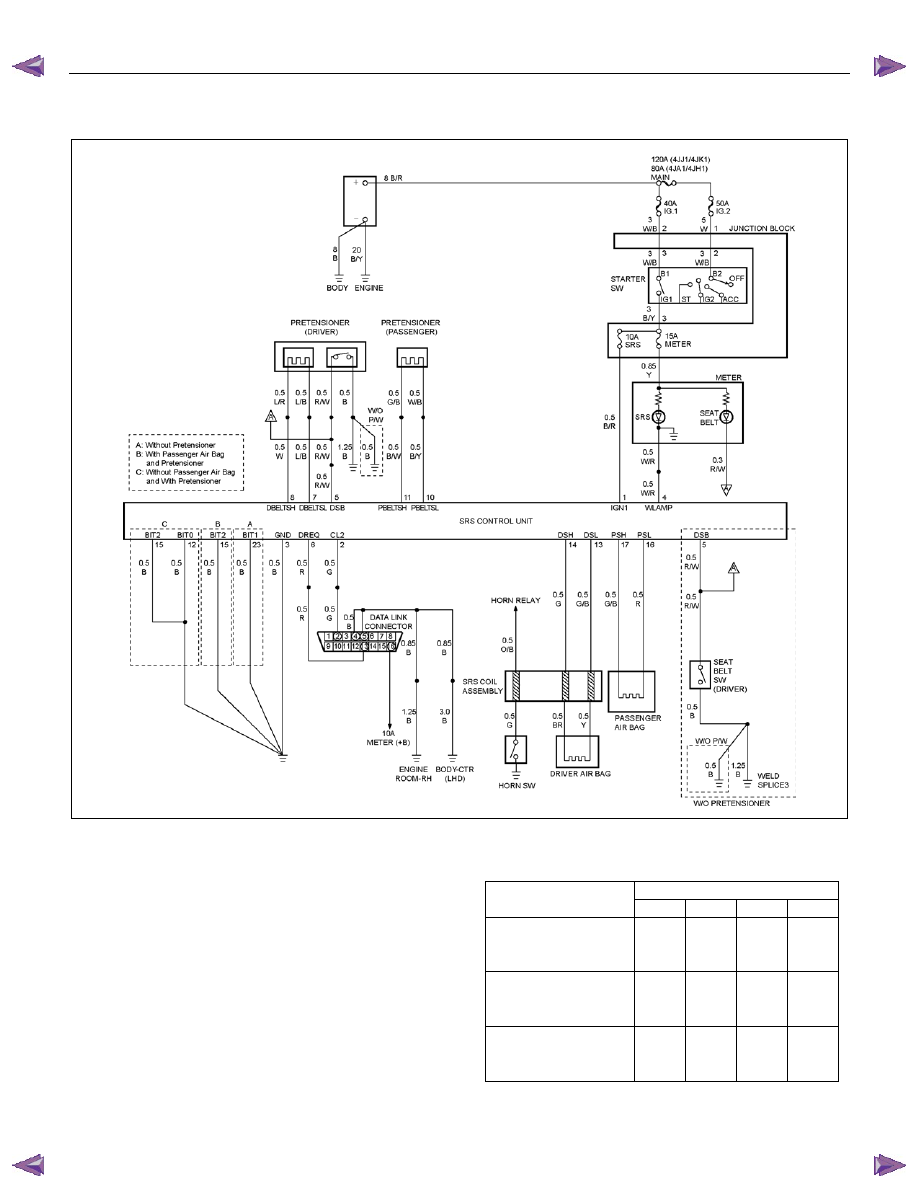

Circuit Description

DTC B0055 will be set, if either the SRS control unit or
the SRS control unit harness is not genuine parts.
The correct conditions of terminals on the SRS control
unit and the SRS harness are as follows.






Terminal No.



12 15 23 26

Without
Pretensioner

- -

used

-

With Pretensioner

-

used

-

-

With Pretensioner
and Without
Passenger Air Bg

used used  -

-



RESTRAINT CONTROL SYSTEM  9A1-67







Step Action

Yes

No

1

Was the “SRS Diagnostic System Check” performed?

Go to Step 2

Go to the “SRS

Diagnostic System

Check”

2

 1. Ignition switch is at “LOCK”.

 2. Disconnect the SRS control unit.



3.

Inspect the SRS control unit harness for the following
condition.

  Without the pretensioner:

-  The wiring harness is not connected on terminal "23"

-  The wiring harness is connected on terminals "12", "15"

and "26"

  With the pretensioner:

-  The wiring harness is not connected on terminal "15"

-  The wiring harness is connected on terminals "12", "23"

and "26"

  Without the pretensioner and without the passenger air

bag:

-  The wiring harness is not connected on terminals "12"

and "15"

-  The wiring harness is connected on terminals "23" and

"26"

Was a problem found?

Replace the SRS

control unit

harness.

Go to Step 3

Replace the SRS

control unit.

Go to Step 3

3

 1. Reconnect all components and ensure all components are

properly mounted.

 2. Clear the diagnostic trouble codes.
Is this step finished?

Go to the “SRS

Diagnostic System

Check”

―





DTC Will Set When

  Without the pretensioner:

Terminals "12", "15" and "26" are shorted to
ground.
Terminal "23" is open (harness is not connected).

  With the pretensioner:



Terminals "12", "23" and "26" are shorted to
ground.
Terminal "15" is open (harness is not connected).

  With the pretensioner and without the passenger

air bag:



Terminals "23" and "26" are shorted to ground.
Terminals "12" and "15" are open (harness is not
connected).

It is DTC set, if non genuine SRS control unit is installed
with the SRS harness genuine part, or incase of
terminal "12", "15", "23" and "26" are abnormal
condition with the SRS control unit genuine part.





Action Taken

The SRS control unit turns “ON" the “SRS" warning
lamp and sets a DTC B0055.
But if there is abnormal condition with the SRS control
unit and/or SRS harness, the DTC is not set.


DTC Will Clear When

DTC B0055 can be cleared only by using the scan tool.


Diagnostic Aids

Ensure that terminal "12" is shorted to ground on the
SRS harness. Terminal "15", "23" and "26" are open
circuit.

DTC B0055 (Flash Code 55) Vehicle Variant Missing

9A1-68  RESTRAINT CONTROL SYSTEM



DTC B0061 (Flash Code 61) Warning Lamp Circuit Failure








RTW79ALF000301

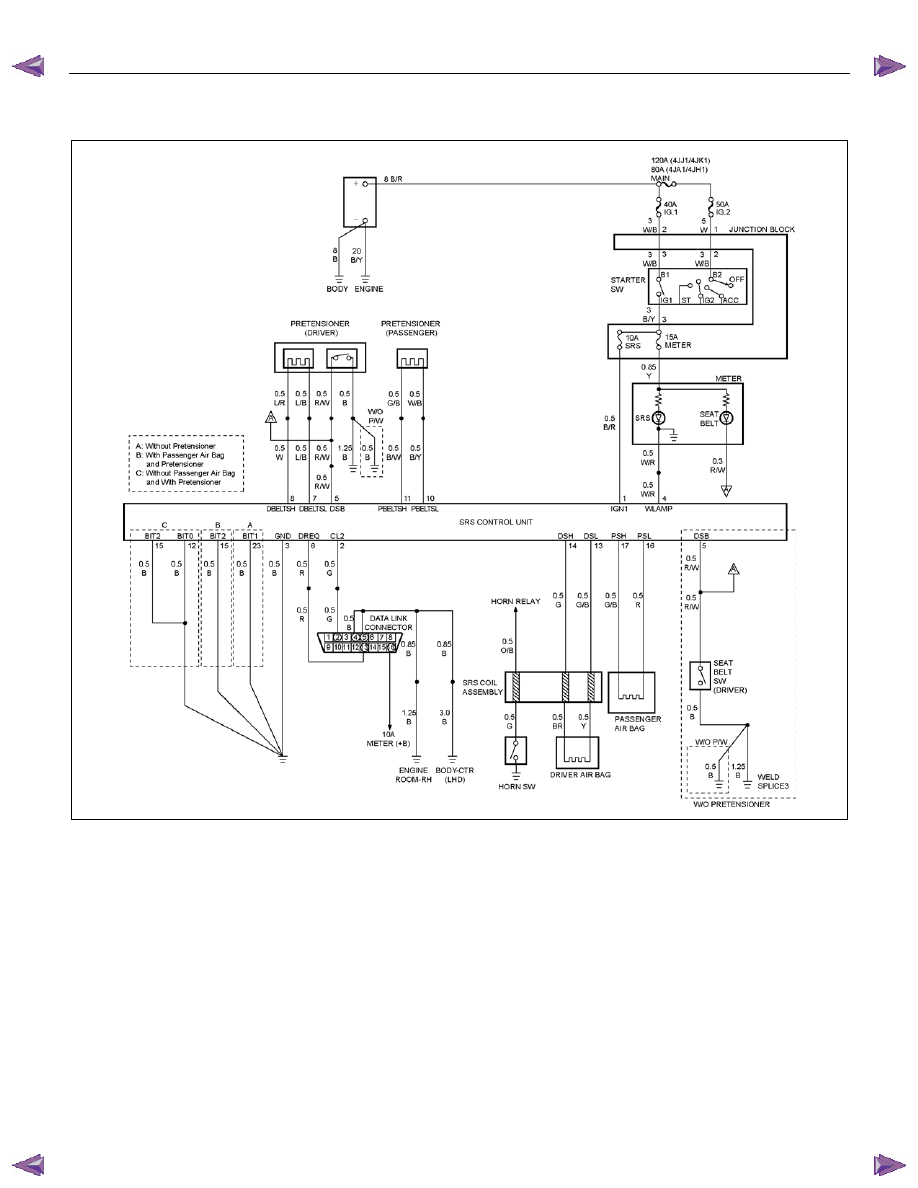

Circuit Description

When the ignition switch is first turned “ON”, “Ignition 1”
voltage is applied from the “METER” fuse to the “SRS”
warning lamp which is connected to “SRS" warning
lamp, terminal “4”.  The “SRS” fuse applies system
voltage to the “Ignition 1” inputs, terminal “1”.  The SRS
control unit responds by flashing the “SRS” warning
lamp 7 times. The SRS control unit monitors the “SRS
Warning Lamp" terminal "4" for conditions that are
incorrect for the commanded state of the "SRS" warning
lamp.
For example, a failure condition exists if the SRS
control unit detects low voltage when the "SRS" warning
lamp is commanded OFF, or high voltage when the
"SRS" warning lamp is commanded ON. If the SRS
control unit detects an improper voltage on the “SRS
Warning Lamp" terminal "4", DTC B0061 will set.



DTC Will Set When

The SRS control unit try to turn "ON" the "SRS" warning
lamp but the battery voltage is not supplied to terminal
"4".
The SRS control unit try to turn "OFF" the "SRS"
warning lamp but the battery voltage is supplied to
terminal "4".


Action Taken

If circuits of the “SRS" warning lamp power supply and
ground are normal condition, the SRS control unit turns
“ON” the “SRS” warning lamp and sets a diagnostic
trouble code.


RESTRAINT CONTROL SYSTEM  9A1-69



DTC Will Clear When

The malfunction is no longer occurring and the ignition
is turned to “LOCK”.

DTC Chart Test Description

Number(s) below refer to step number(s) on the
diagnostic chart:
4.  This test determines whether the SRS control unit is

malfunctioning

5.  This test determines whether the malfunction is in

the “SRS Warning Lamp” circuit.

7.  This test determines whether the SRS control unit is

malfunctioning





8.  This test determines whether the malfunction is in

the “SRS Warning Lamp” circuit.

9.  This test determines whether the malfunction is in

the power supply circuit of the "SRS" warning lamp.



Diagnostic Aids

The warning lamp turns “ON" without relation SRS
control unit, and turn the warning lamp “OFF" due to
electric current to SRS control unit.





DTC B0061 (Flash Code 61) Warning Lamp Circuit Failure



Step Action

Yes

No

1

Was the “SRS Diagnostic System Check” performed?

Go to Step 2

Go to the “SRS

Diagnostic System

Check”

2

 1. Ignition switch is at “ON”.

 2. Note the “SRS” warning lamp.
Does the “SRS” warning lamp flash seven 7 times?

Repeat the “SRS

Diagnostic System

Check”

Go to Step 3

3

Did the “SRS” warning lamp come “ON” steady at Step 2?

Go to Step 4

Go to Step 6

4

 1. Ignition switch is at “LOCK”.

 2. Disconnect the SRS control unit.

 3. Ignition switch is at “ON”.

 4. Note the “SRS” warning lamp.
Does the “SRS” warning lamp go “OFF”?

Ignition switch is at

“LOCK”.

Replace the SRS

control unit .

Go to Step 10

Go to Step 5

5

Measure the resistance on the SRS control unit harness
connector as follow.

  From terminals "4" to "3" and "23" (ground) (without the

pretensioner)

  From terminals "4" to "3" and "15" (ground) (with the

pretensioner and the passenger air bag)

  From terminals "4" to "3", "12" and "15" (ground) (with

the pretensioner and without the passenger air bag)

Does 5-8840-0366-0 display “OL” (infinite)?

Service instrument

meter cluster.

Install instrument

meter cluster.

Go to Step 10

Replace the SRS

harness.

Go to Step 10

6

 1. Ignition switch is at “LOCK”.

 2. Remove and inspect “METER” fuse to the “SRS” warning

lamp.

Is the fuse good?

Go to Step 7

Replace the

"METER" fuse.

Go to Step 10

7

 1. Disconnect the SRS control unit.

 2. Ignition switch is at “ON”.



3.

Measure the voltage on the SRS control unit harness
connector from terminal “4” to terminal “3” (ground).

Is system voltage present on terminal “4”?

Ignition switch is at

“LOCK”.

Replace the SRS

control unit.

Go to Step 10



Go to Step 8
