8A-190  ELECTRICAL-BODY AND CHASSIS

REAR FOG LIGHT

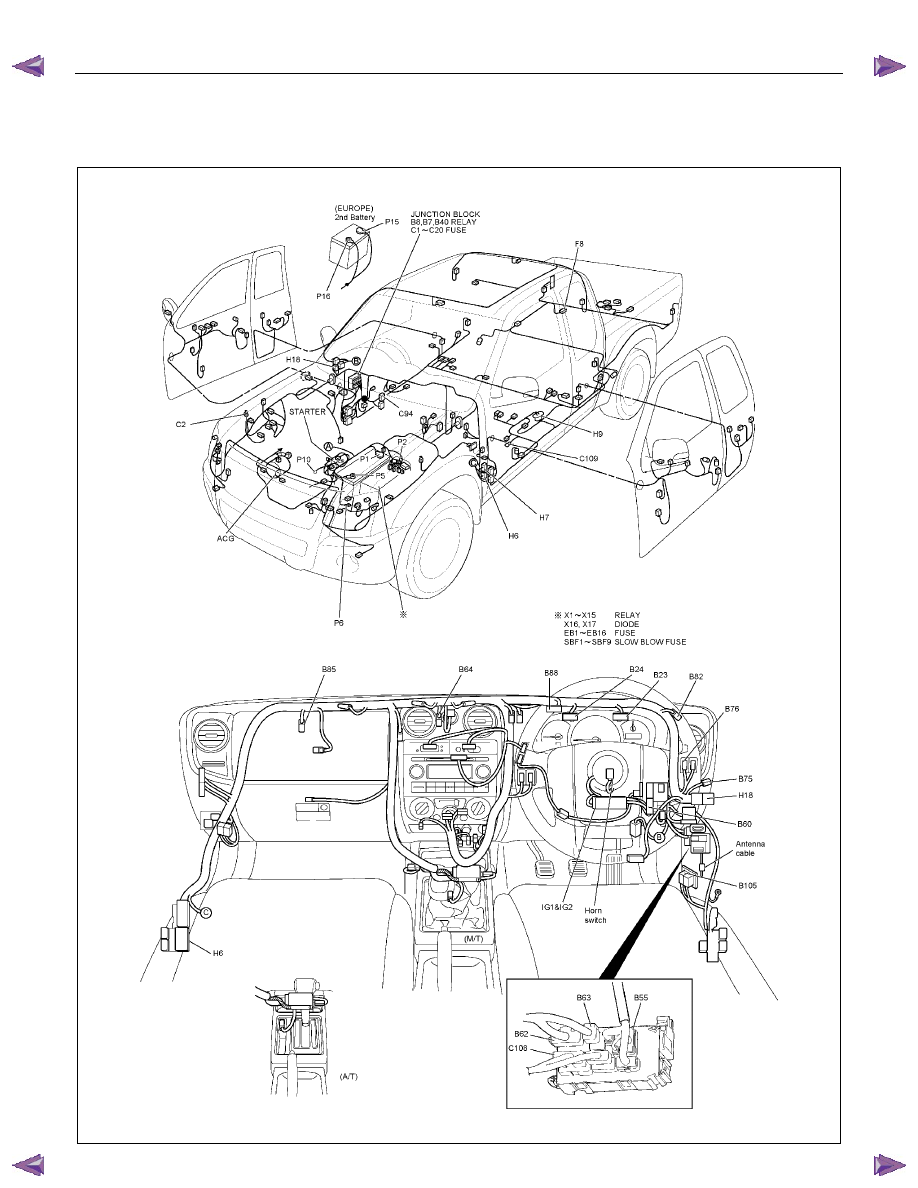

PARTS LOCATION (RHD)















RTW78AXF037101 & RTW78AXF043301

ELECTRICAL-BODY AND CHASSIS  8A-191

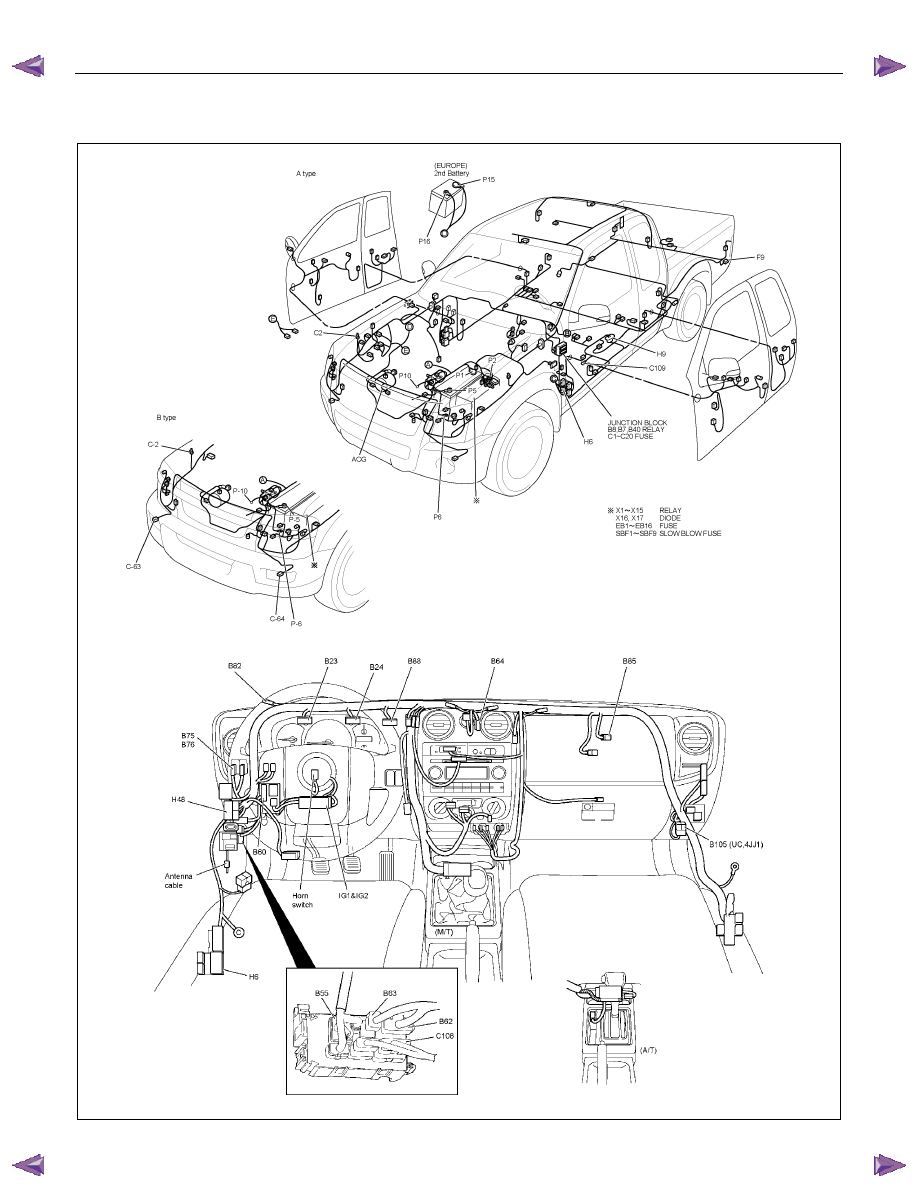

PARTS LOCATION (LHD)













RTW78AXF037201 & RTW78AXF043401

8A-192  ELECTRICAL-BODY AND CHASSIS

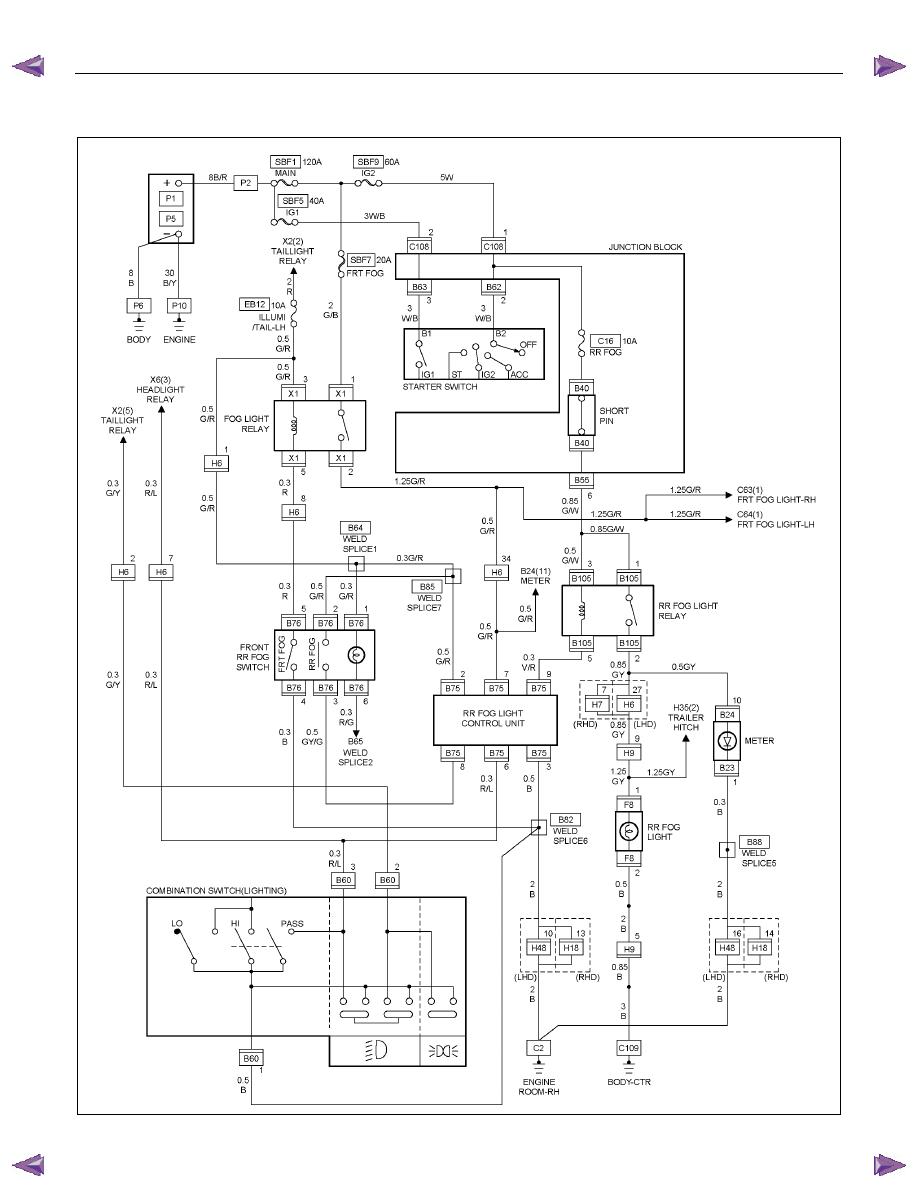

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (LHD) G.EXP









RTW78AXF023101



ELECTRICAL-BODY AND CHASSIS  8A-193





RTW48ASH000701

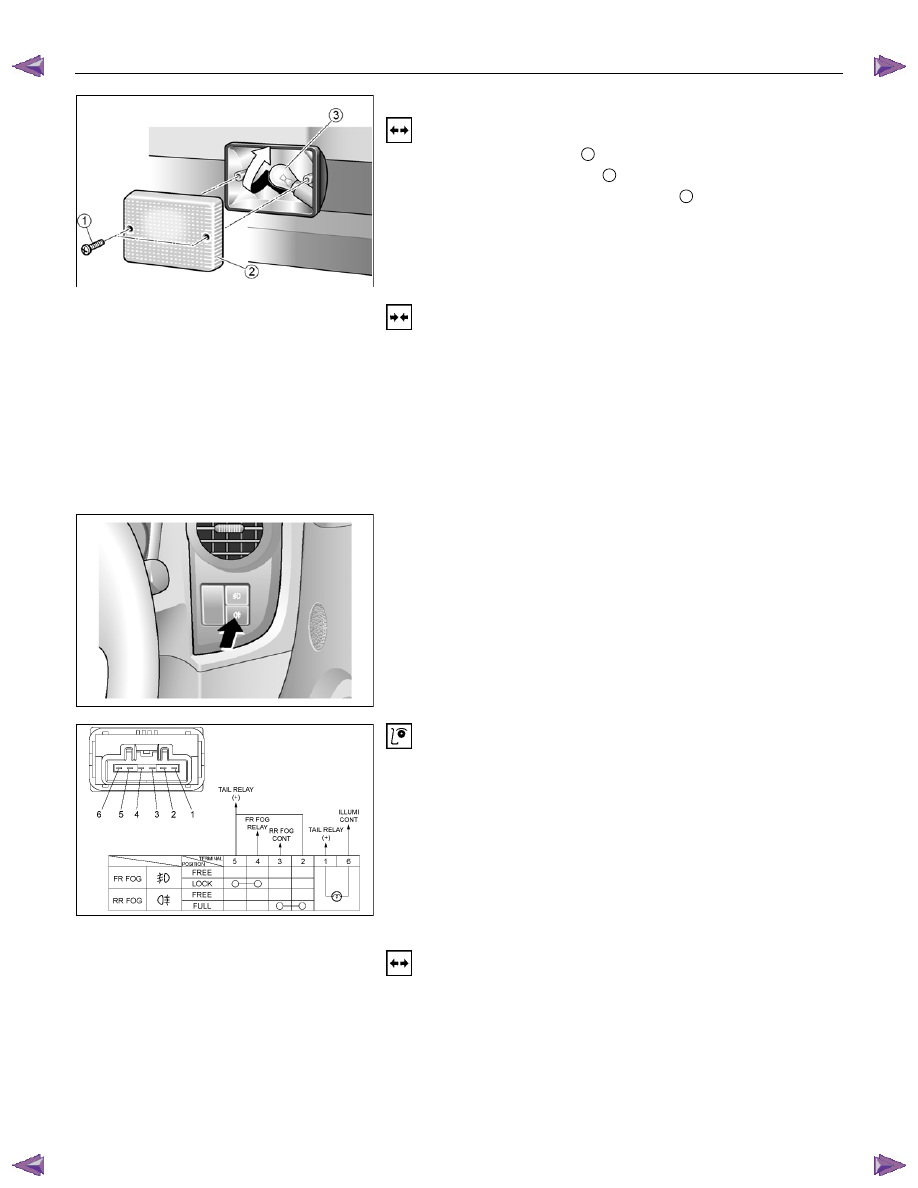

REAR FOG LIGHT

Removal

1.  Remove the screws

1

.

2.  Remove the lens cover

2

.

3. Rear fog push turn the bulb

3

 counterclockwise  to

disconnect it from the light housing.






Installation

Follow the removal procedure in the reverse order to install the
rear fog light.
Pay close attention to the important points mentioned in the
following paragraphs.







Bulb

Be absolutely sure that the license plate light bulb is correctly
installed.
This will prevent a poor contact and open circuit.








RTW78ASH000401



FRONT FOG & RR FOG SWITCH









RTW48ASH000401



Inspection

Check to see if there is any continuity between the terminals of
the leveling switch.
Replace the switch when the result of inspection is found
abnormal.




Removal

Preparation:
Disconnect the battery ground cable.
1. Ventilation grille

2. Harness connector

3.  Front fog light & Rear fog light switch

To remove the switch, push the lock from the back side of

the cluster assembly.

4.  Remove the bulb.
