8A-186  ELECTRICAL-BODY AND CHASSIS

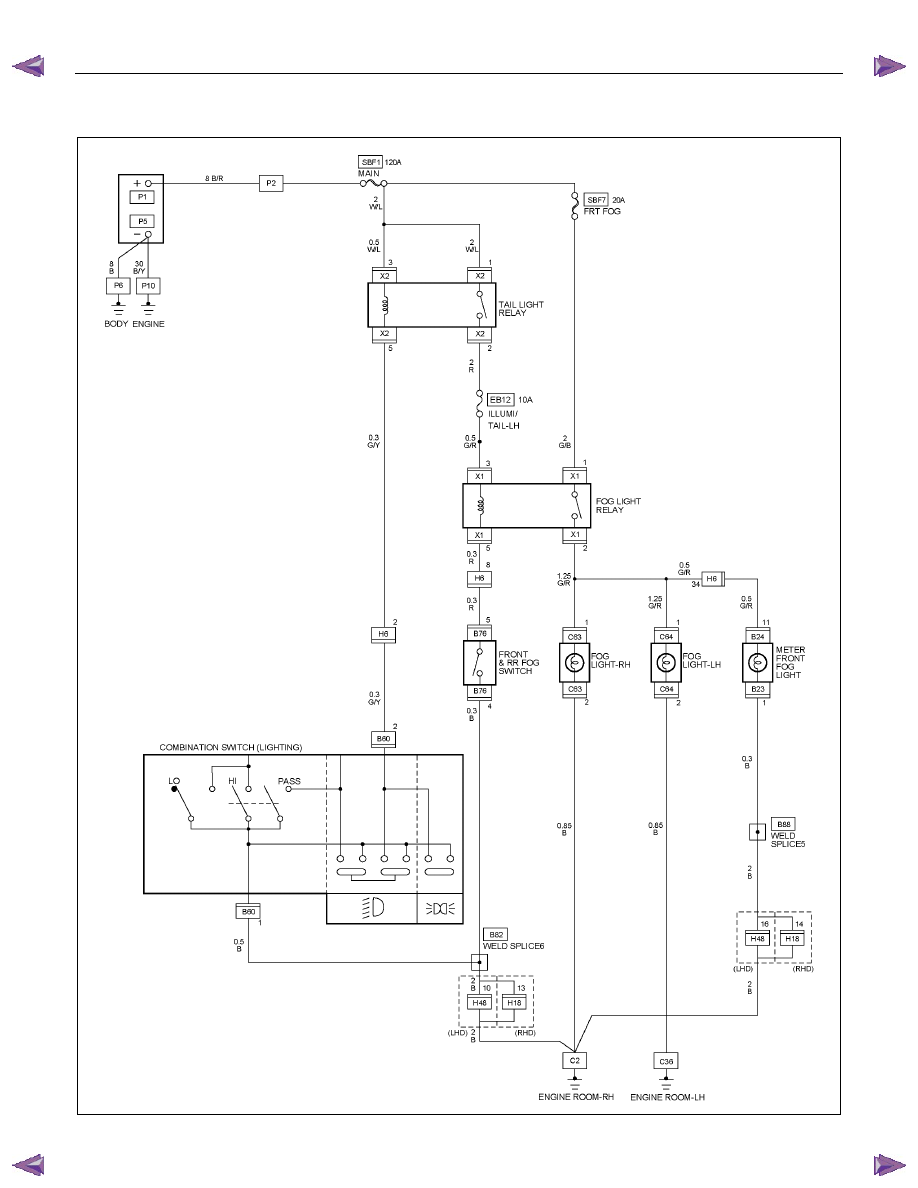

CIRCUIT DIAGRAM 4JJ1-TC/4JK1-TC (LHD) G.EXP









RTW78AXF022901



ELECTRICAL-BODY AND CHASSIS  8A-187







RTW780SH000601



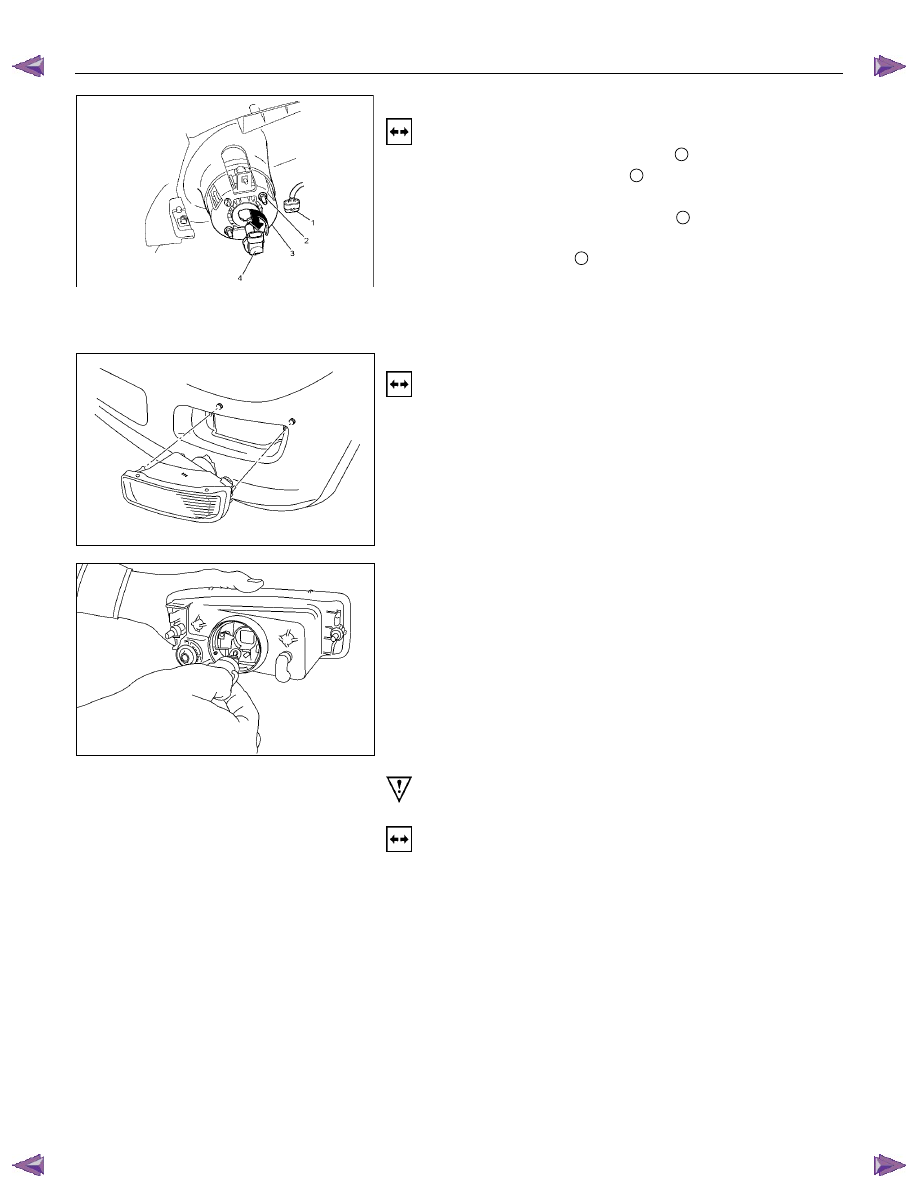

FOG LIGHT (A type)

Removal

1.  Disconnect the fog light connector

1

.

2.  Remove two attaching nuts

2

.

3. Pull the fog light assembly toward the vehicle front to

remove it from the holding bracket

3

.

4.  Remove the bulb with socket.

•  Turn the socket

4

 counterclockwise to remove it.

5.  Remove the bulb.

•  Release the lock spring.
•  Pull out the bulb.






FOG LIGHT (B type)

Removal

1.  Remove the radiator grille.

2.  Remove the front bumper

3.  Disconnect the fog light connector.

4.  Remove the fog light.






5.  Remove the bulb from the socket.

•  Remove the cover by turning it counterclockwise out

side the lock spring.

•  Remove the bulb.







Hold the bulb by the flange when replacing it.
Do not touch the bulb with your hands.


Installation

To install the fog light, follow the removal procedure in reverse
order.
Pay close attention to the important points mentioned in the
following paragraphs.









Bulb

Be absolutely sure that the fog light bulb is correctly installed.
This will prevent a poor contact and open circuit.


8A-188  ELECTRICAL-BODY AND CHASSIS







RTW780SH000801

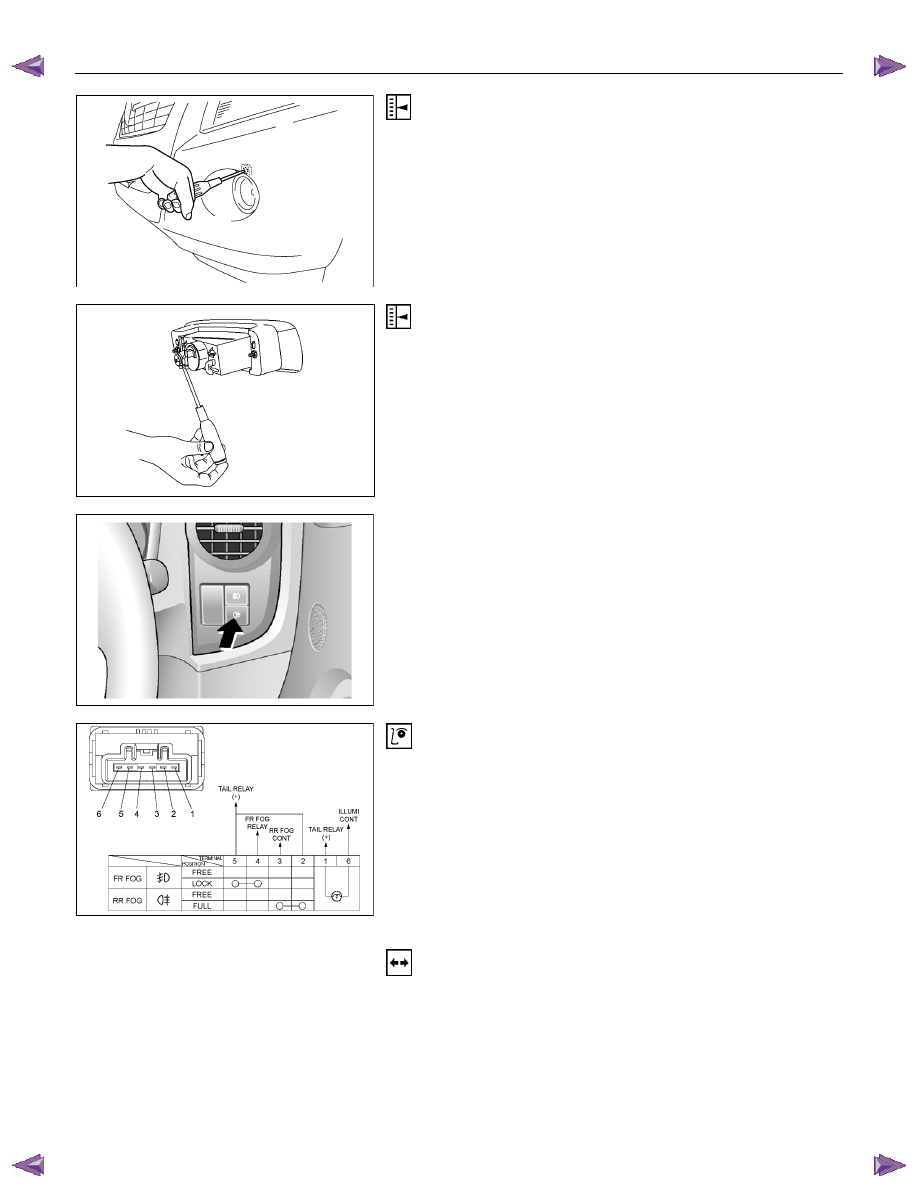

FOG LIGHT ADJUSTMENT (A type)

Vertical Adjustment

Turn the adjusting screw with a screwdriver to adjust the aim of
the fog light vertically.



FOG LIGHT ADJUSTMENT (B type)

Vertical Adjustment

Turn the adjusting screw with a screwdriver to adjust the aim of
the fog light vertically.







RTW78ASH000401



FRONT FOG & REAR FOG SWITCH









RTW48ASH000401



Inspection

Check to see if there is any continuity between the terminals of
the front fog light switch.
Replace the switch when the result of inspection is found
abnormal.




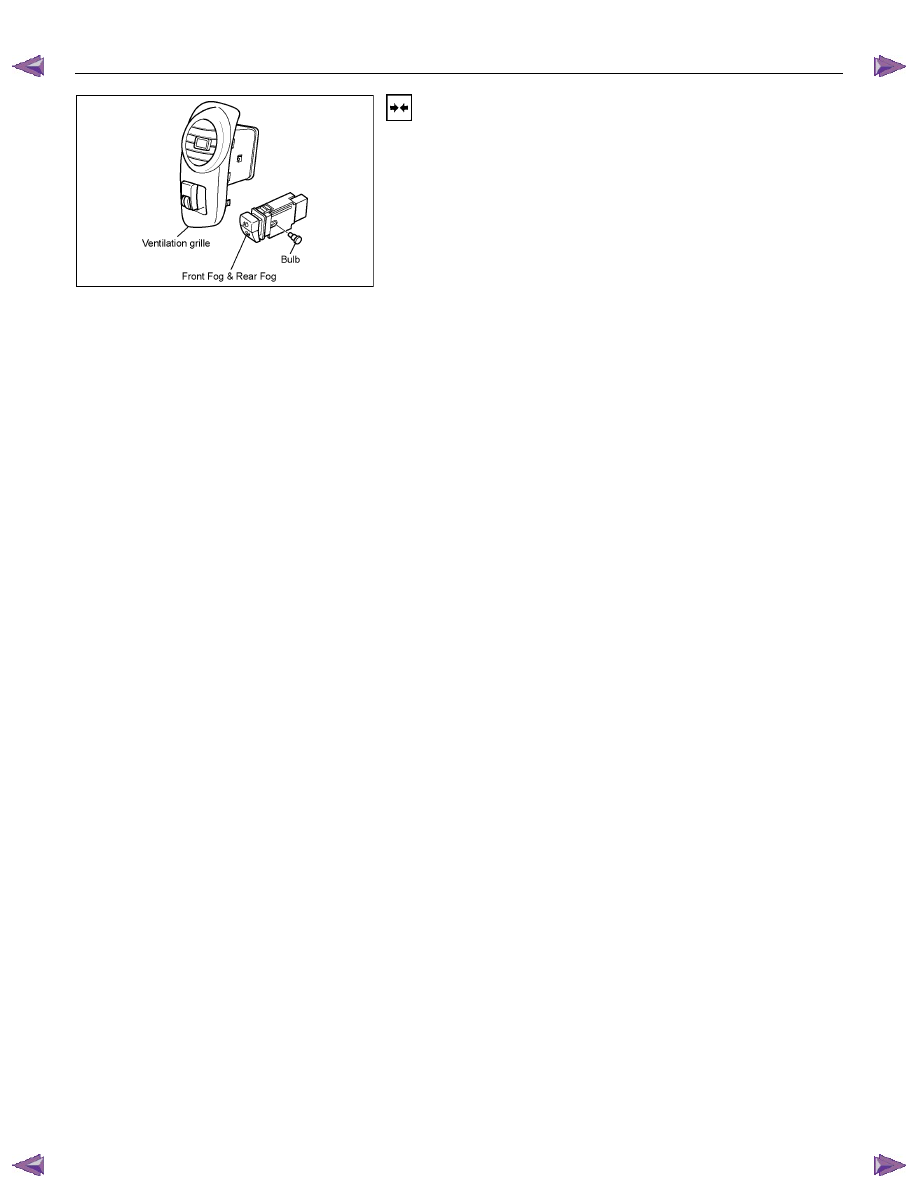

Removal

Preparation:
Disconnect the battery ground cable.
1. Ventilation grille

2. Harness connector

3.  Front fog light & Rear fog light switch

To remove the switch, push the lock from the back side of

the cluster assembly.

4.  Remove the bulb.


ELECTRICAL-BODY AND CHASSIS  8A-189







RTW78ASH000501

Installation

To install, follow the removal steps in the reverse noting the
following point.
1.  Push in the switch with your fingers until it locks securely.
