POWER-ASSISTED STEERING SYSTEM 3B-55

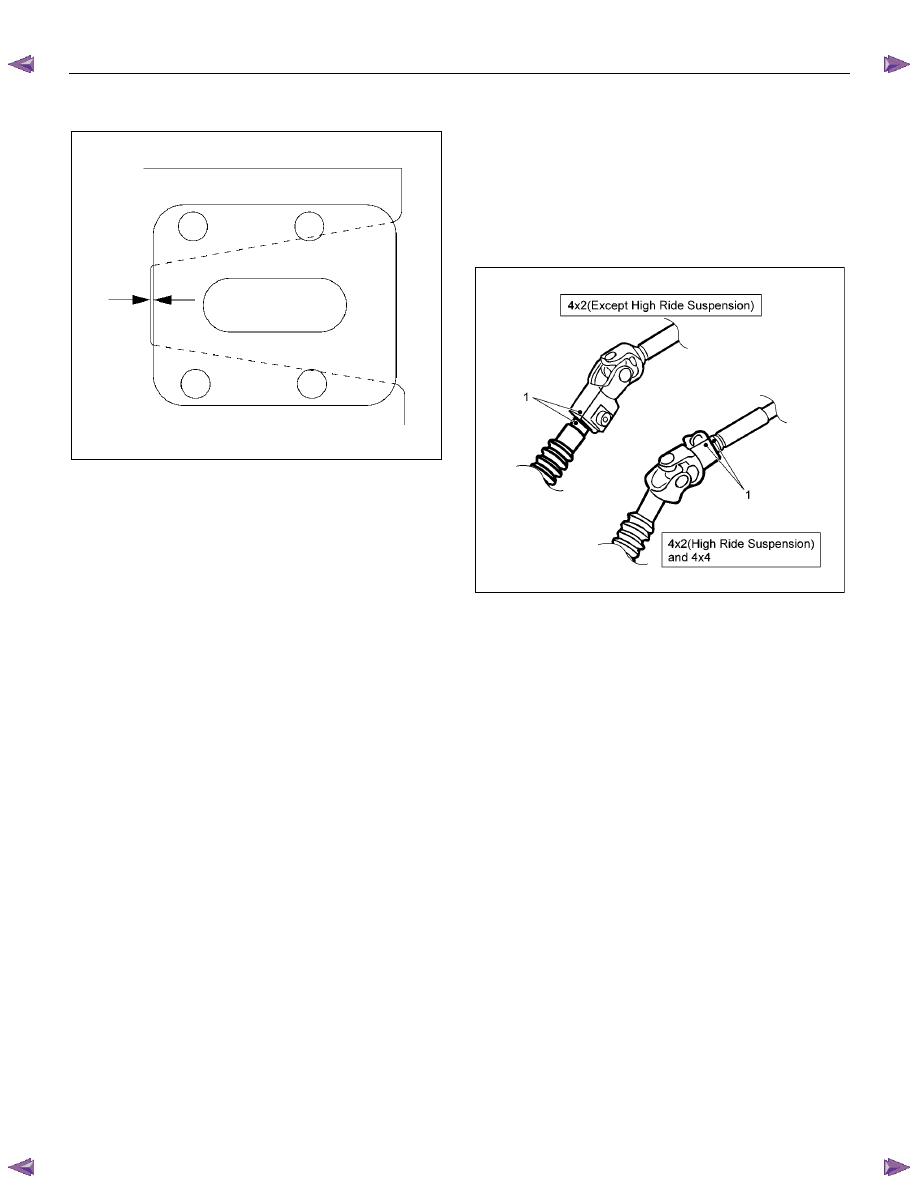

Check clearance between capsule and bracket. It must
be less than 1 mm (0.039 in).

431RW031



Column Universal Joint (between the
power steering unit and the steering shaft)

If resistance is felt when checked by rotating the joint,
replace the lower second steering shaft.


Shaft Universal Joint (between the lower
second steering shaft and the second
steering shaft)

If resistance is felt when checked by rotating the joint,
replace the second steering shaft assembly.


Tilt Mechanism

The tilt mechanism should move smoothly.
While locking the tilt mechanism, be sure the steering
column is latched securely by pushing the steering
wheel upward and downward.




Installation

1. Align the setting mark (1) on the second steering

shaft and the steering column assembly (applied at

disassembly).

2.  Connect the steering column assembly to the second

steering shaft. Tighten the bolts to the specified

torque.



Torque: 31 N

⋅⋅⋅⋅m (3.2 kgf⋅⋅⋅⋅m/23 lb⋅⋅⋅⋅ft)










RTW53BSH00301

3. Thread the steering column assembly through the

hole in the dashpanel. Temporarily tighten the

steering column and the second steering shaft fixing

bolts.

4.  Align the setting marks (applied at disassembly) and

connect the lower second steering shaft and the

second steering shaft. Tighten the universal joint

bolts to the specified torque.



Torque: 31 N

⋅⋅⋅⋅m (3.2 kgf⋅⋅⋅⋅m/23 lb⋅⋅⋅⋅ft)

5.  Tighten the steering column fixing bolt (pedal bracket

side) to the specified torque (This bolt was

temporarily tightened in Step 3).



Torque: 20 N

⋅⋅⋅⋅m (2.0 kgf⋅⋅⋅⋅m/14 lb⋅⋅⋅⋅ft)

6.  Tighten the second steering shaft fixing bolt to the

specified torque (This bolt was temporarily tightened

in Step 3)



Torque: 20 N

⋅⋅⋅⋅m (2.0 kgf⋅⋅⋅⋅m/14 lb⋅⋅⋅⋅ft)

7. Tighten the steering column fixing bolt (dashpanel

side) to the specified torque (This bolt was

temporarily tightened in Step 3).



Torque: 20 N

⋅⋅⋅⋅m (2.0 kgf⋅⋅⋅⋅m/14 lb⋅⋅⋅⋅ft)

8. Install combination switch and SRS coil assembly.

After installation of combination switch assembly,

connect the combination switch wiring harness

connector and the SRS 2-way connector located

under the steering column.

3B-56 POWER-ASSISTED STEERING SYSTEM

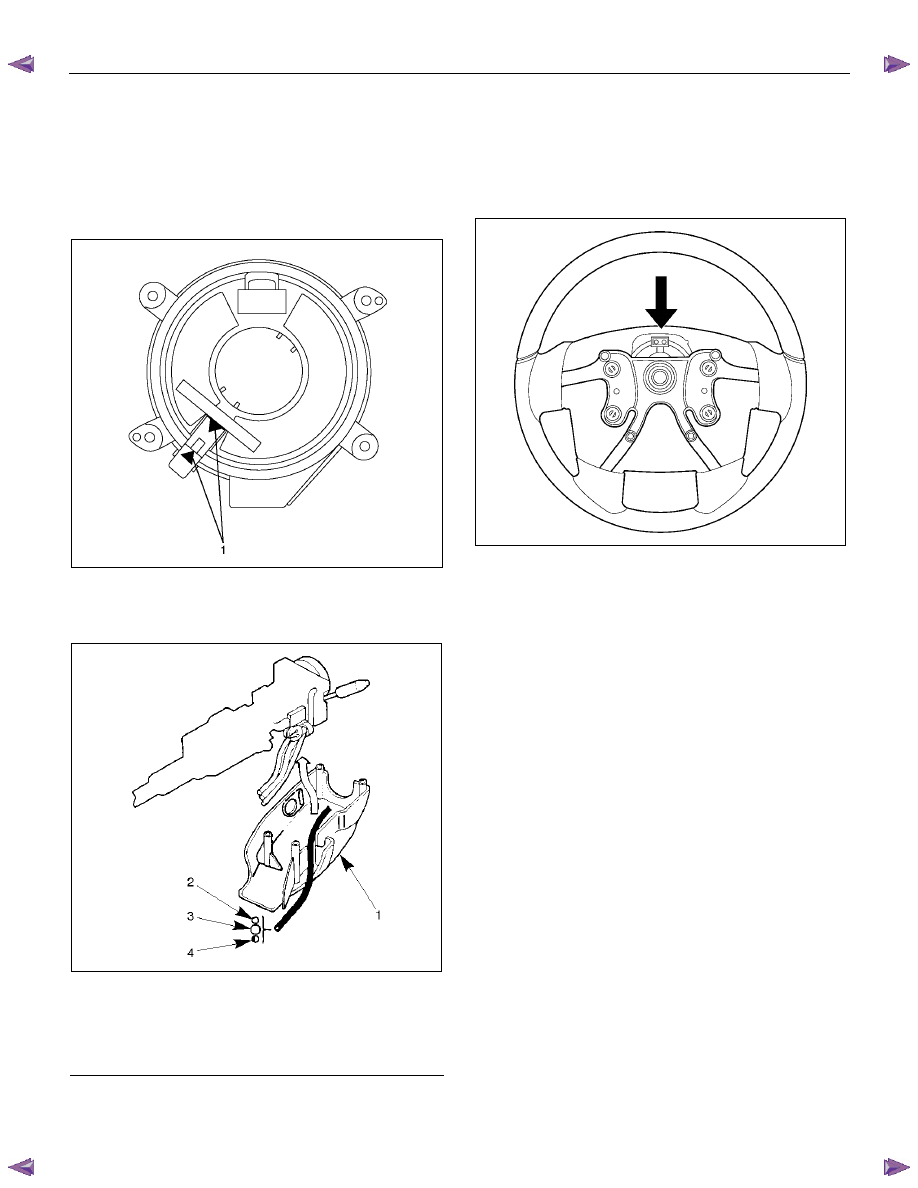

9. Turn the SRS coil fully counterclockwise, return

about 3 turns and align the neutral mark (1). (with

SRS air bag)

CAUTION: When turning the SRS coil fully
counterclockwise, stop turning if resistance is felt.
Further forced turning may damage to the cable in
the SRS coil.

826RW014

10. When installing the steering column cover, be sure to

route each wiring harness as illustrated so that the

harnesses do not catch any moving parts.

825RW017

Legend
(1)  Steering Column Cover
(2)  Starter Switch Harness
(3)  Combination Switch Harness
(4)  Inflator Module Harness




11.

Install steering wheel and align the setting marks

made when removing.

Refer to the adjustment method in case a mark has

not been applied in this section.

NOTE: Confirm SRS and horn harness connector is
fixed by the steering wheel.



RTW73BSH000701



CAUTION: Never apply force to the steering wheel in
the direction of the shaft by using a hammer or
other impact tools in an attempt to remove the
steering wheel. The steering shaft is designed as an
energy absorbing unit.

12. Tighten the steering wheel fixing nut to the specified

torque.



Torque: 35 N

⋅⋅⋅⋅m (3.6 kgf⋅⋅⋅⋅m/26 lb⋅⋅⋅⋅ft)

13.

Support the module and carefully connect the

module connector and horn lead, then install inflator

module.

NOTE: Pass the lead wire through the tabs on the
plastic cover (wire protector) of inflator to prevent lead
wire from being pinched.
14. Tighten bolts to specified torque.



Torque: 3 N

⋅⋅⋅⋅m (0.3 kgf⋅⋅⋅⋅m/26 lb⋅⋅⋅⋅in)

15. Install driver knee bolster (reinforcement).

16. Install instrument panel lower cover.

17. Install the engine hood opening lever.

18. Connect the yellow 2-way SRS connector and horn

lead located under the steering column.

19. Connect the battery "-" terminal cable (with SRS air

bag).



POWER-ASSISTED STEERING SYSTEM 3B-57

System Inspection (with SRS air bag)

Turn the ignition switch to "ON" while watching warning
light.
The light should flash 7 times and then go off. If lamp
does not operate correctly, refer to Restraints section.









3B-58 POWER-ASSISTED STEERING SYSTEM

Supplemental Restraint System Steering Wheel & Column and

Associated Parts

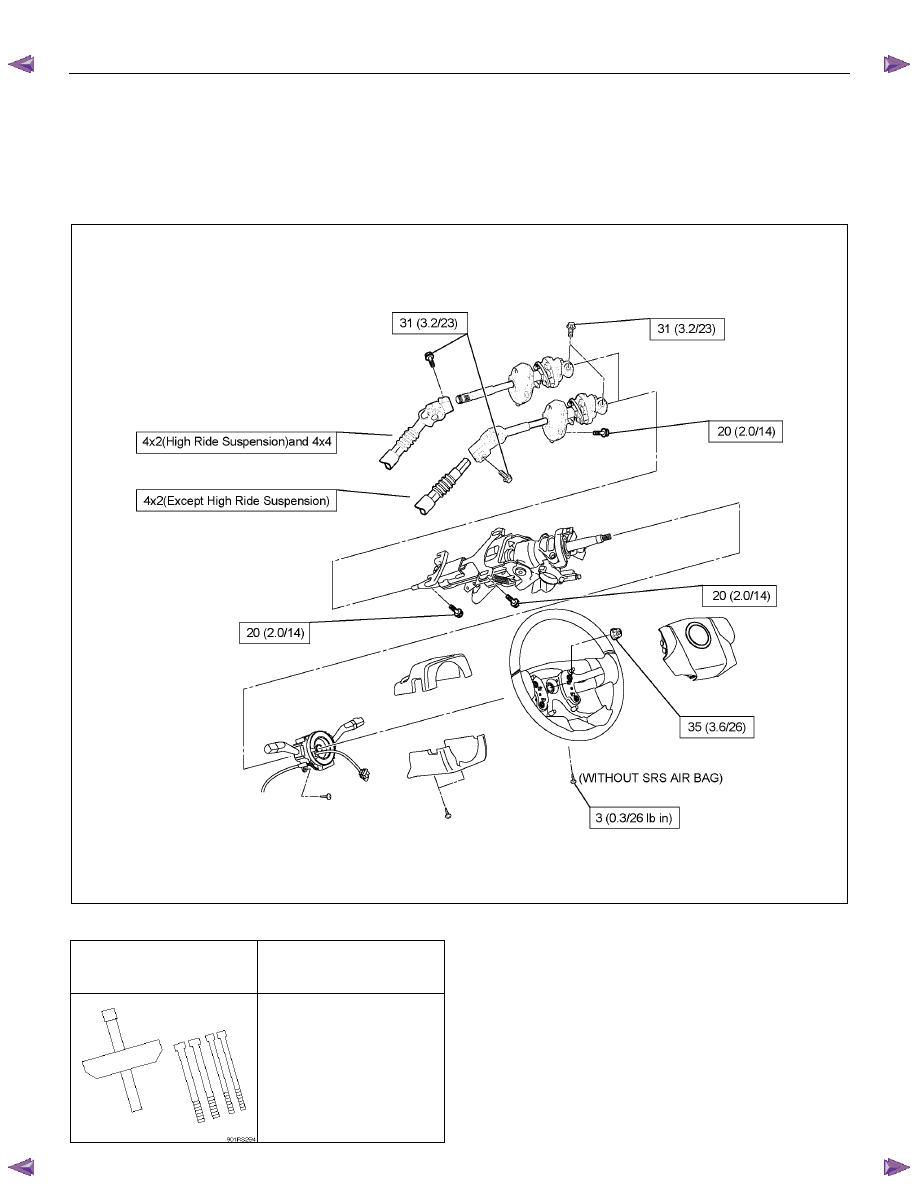

Main Data and Specifications

Torque Specifications

N

⋅m (kgf⋅m/lb⋅ft)















RTW73BLF000501

Special Tools



ILLUSTRATION



TOOL NO.

TOOL NAME











5-8521-0016-0

(J-29752)

Steering wheel remover
