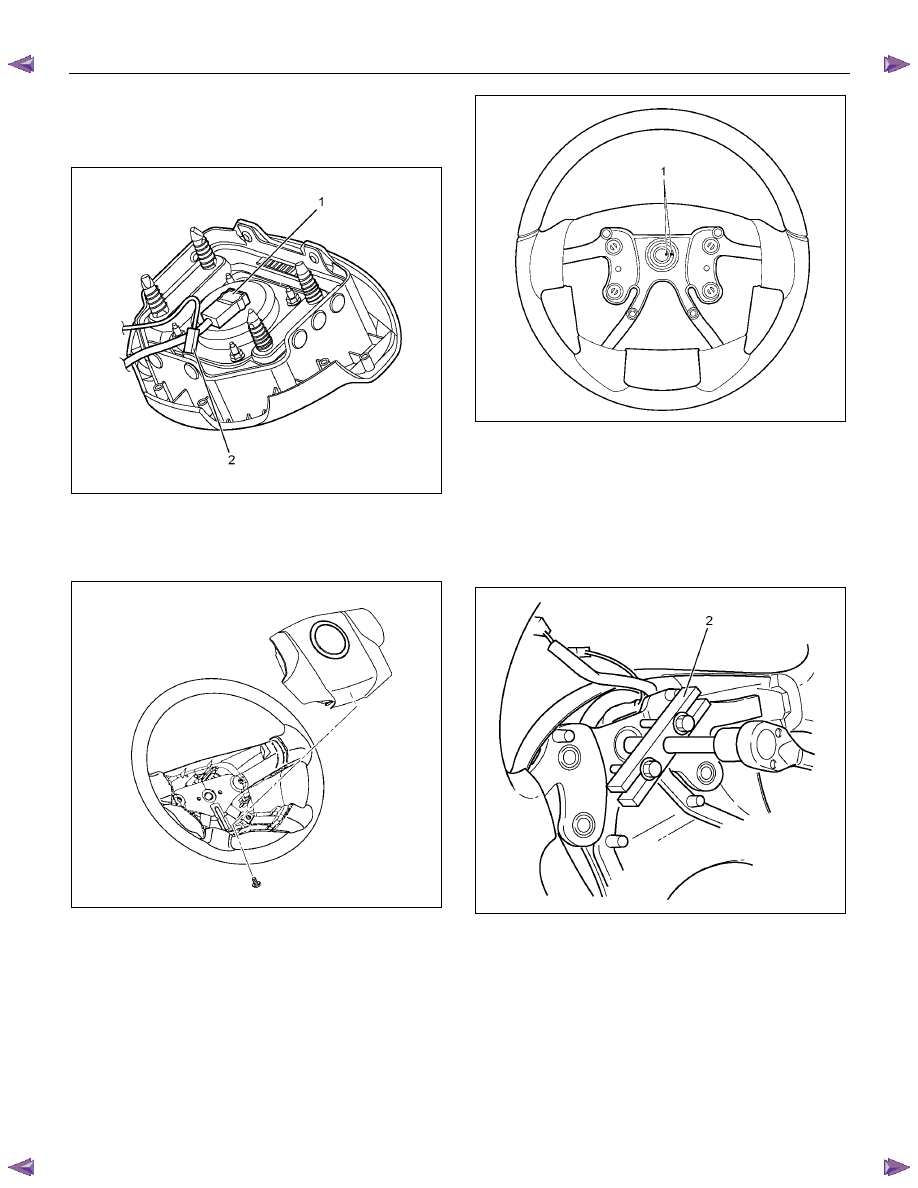

POWER-ASSISTED STEERING SYSTEM 3B-47

13. Disconnect the SRS air bag connector (1) and horn

lead connector (2) located behind the air bag
assembly and remove the air bag assembly (with
SRS air bag).



RTW73BSH001101

14. Remove the horn pad and the horn leads at the

center of the wheel (without SRS air bag).

NOTE: It should be removed first from the bottom
spokes.



RTW73BSH000601


15.  Apply a setting mark (1) across the steering wheel

and shaft so parts can be reassembled in their
original position.







RTW73BSH000501

16.  Move the front wheels to the straight ahead position,

then use steering wheel remover 5-8521-0016-0 (2)
to remove the steering wheel.

CAUTION: Never apply force to the steering wheel in
the direction of the shaft by using a hammer or
other impact tools in an attempt to remove the
steering wheel. The steering shaft is designed as an
energy absorbing unit.



RTW73BSH001301

WARNING: THE INFLATOR MODULE SHOULD
ALWAYS BE CARRIED WITH THE COVER AWAY
FROM YOUR BODY AND SHOULD ALWAYS BE
LAID ON A FLAT SURFACE WITH THE COVER SIDE
UP. THIS IS NECESSARY BECAUSE A FREE SPACE
IS PROVIDED TO ALLOW THE AIR CUSHION TO
EXPAND IN THE UNLIKELY EVENT OF
ACCIDENTAL DEPLOYMENT. OTHERWISE,
PERSONAL INJURY MAY RESULT (with SRS air
bag).

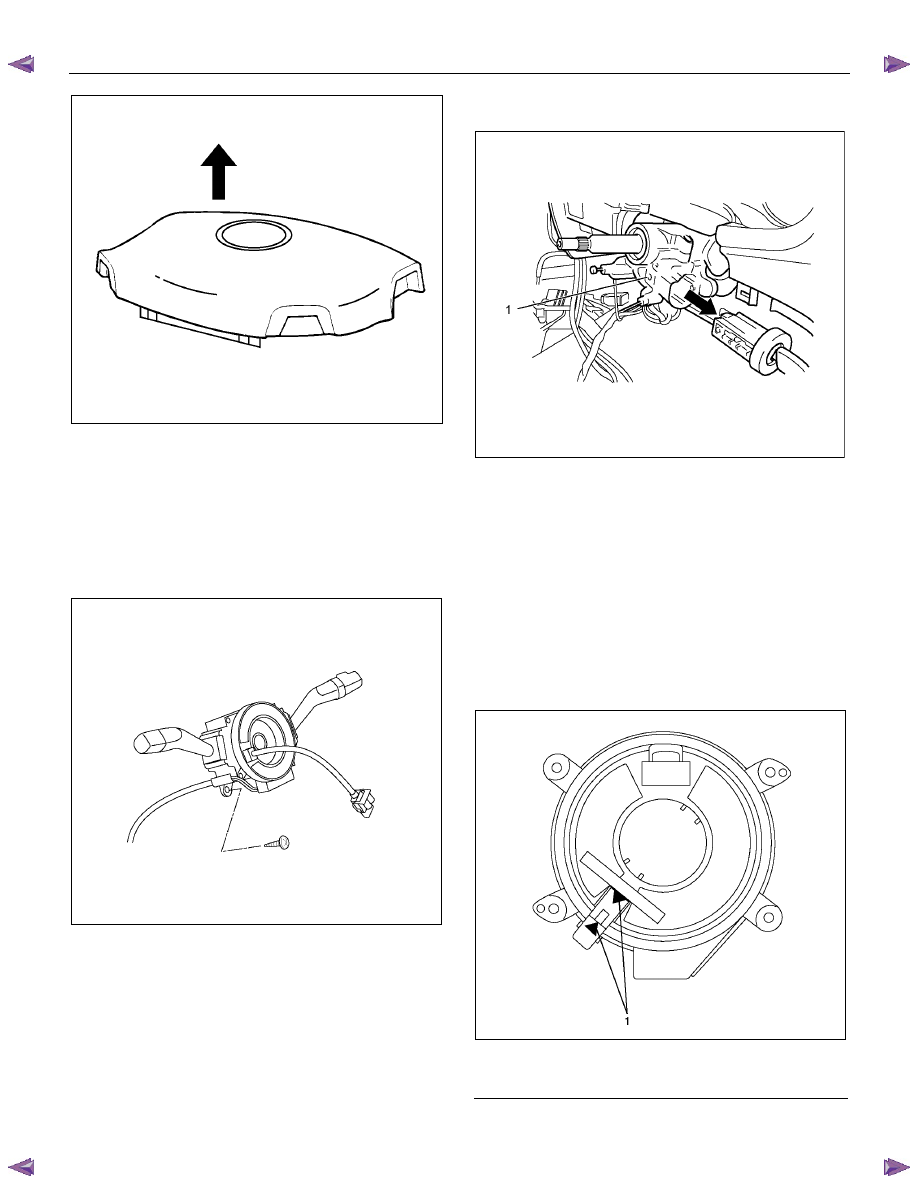

3B-48 POWER-ASSISTED STEERING SYSTEM

430R300007

17.  Remove steering column cover.
18. Disconnect the wiring harness connectors located

under the steering column.

19.  Remove the combination switch assembly with SRS

coil.

NOTE: The SRS coil is a part of the combination switch
assembly, which cannot be replaced separately.
Therefore, be sure not to remove the SRS coil from the
combination switch assembly (with SRS air bag).



RTW73BSH001001

20.  Turn the ignition switch to the ACC position.




21.  Insert a pin (1) into the hole and push on it. Pull the

key cylinder free.












RUW53BSH000101



Installation

1.  Install lock cylinder assembly.

2. Install the combination switch assembly with SRS

coil (with SRS air bag).

3. Turn the SRS coil fully counterclockwise, return

about 3 turns and align the neutral mark (with SRS

air bag).

CAUTION: When turning the SRS coil fully
counterclockwise, stop turning if resistance is felt.
Further forced turning may damage the cable in the
SRS coil (with SRS air bag).

826RW014

Legend

(1) Neutral mark

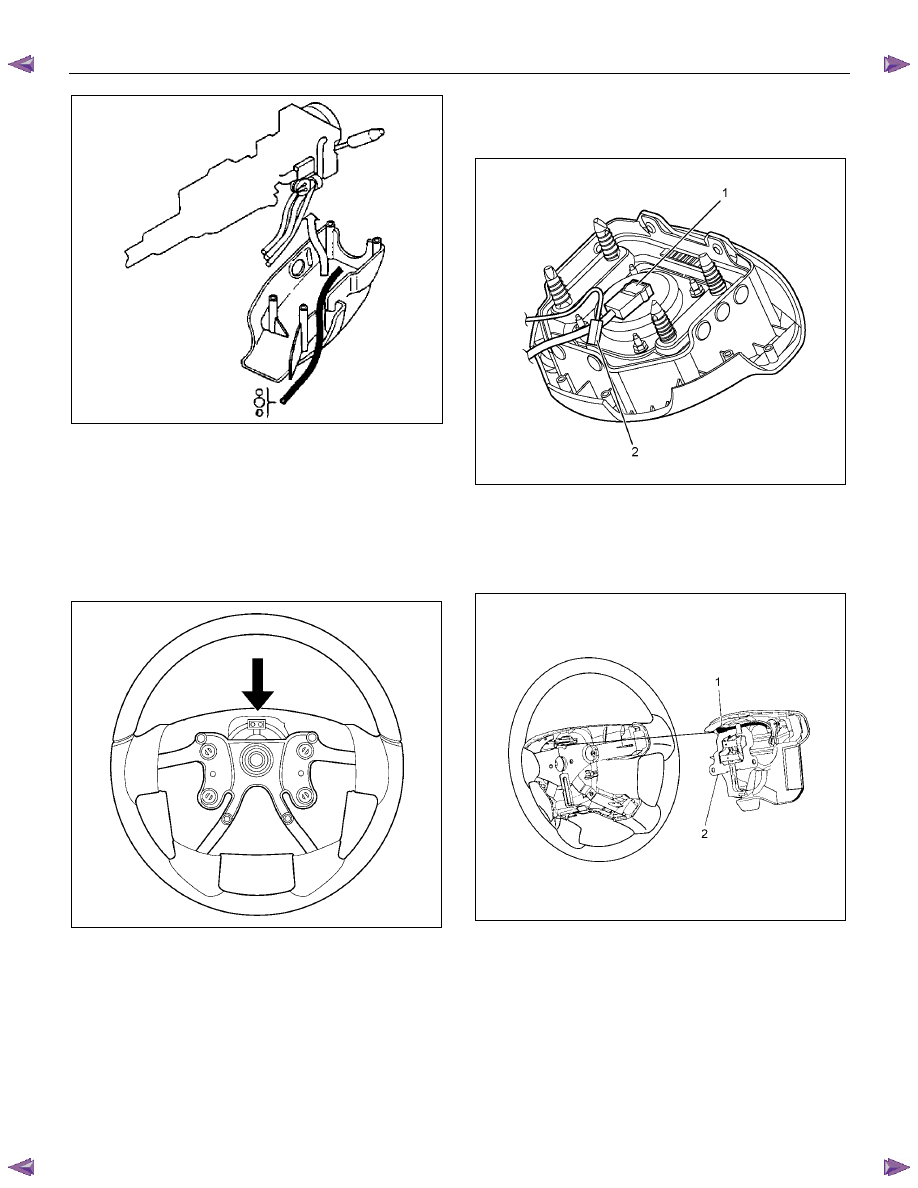

POWER-ASSISTED STEERING SYSTEM 3B-49

825RS048

4.  Install the driver knee bolster assembly.

5. Install the steering lower cover and engine hood

opening lever.

6.  Install the steering wheel and align the setting marks.



Refer to the adjustment method in case a mark has

not been applied in this section.

NOTE: Confirm SRS and horn harness connector is
fixed by the steering wheel.



RTW73BSH000701



CAUTION: Never apply force to the steering wheel in
the direction of the shaft by using a hammer or
other impact tools in an attempt to remove the
steering wheel. The steering shaft is designed as an
energy absorbing unit.

7.  Tighten the steering wheel fixing nut to the specified

torque.



Torque: 35 N

⋅⋅⋅⋅m (3.6 kgf⋅⋅⋅⋅m/26 lb⋅⋅⋅⋅ft)





8. Support inflator module and carefully connect the

SRS connector (1) and horn lead (2), then install

inflator module (with SRS air bag).



RTW73BSH001101

9.  Connect the horn leads at center of wheel (without

SRS air bag).

NOTE: The horn leads (1) are passed along the top of
the bracket (2).
(Plastic type steering wheel only)



RTW73BSH000801

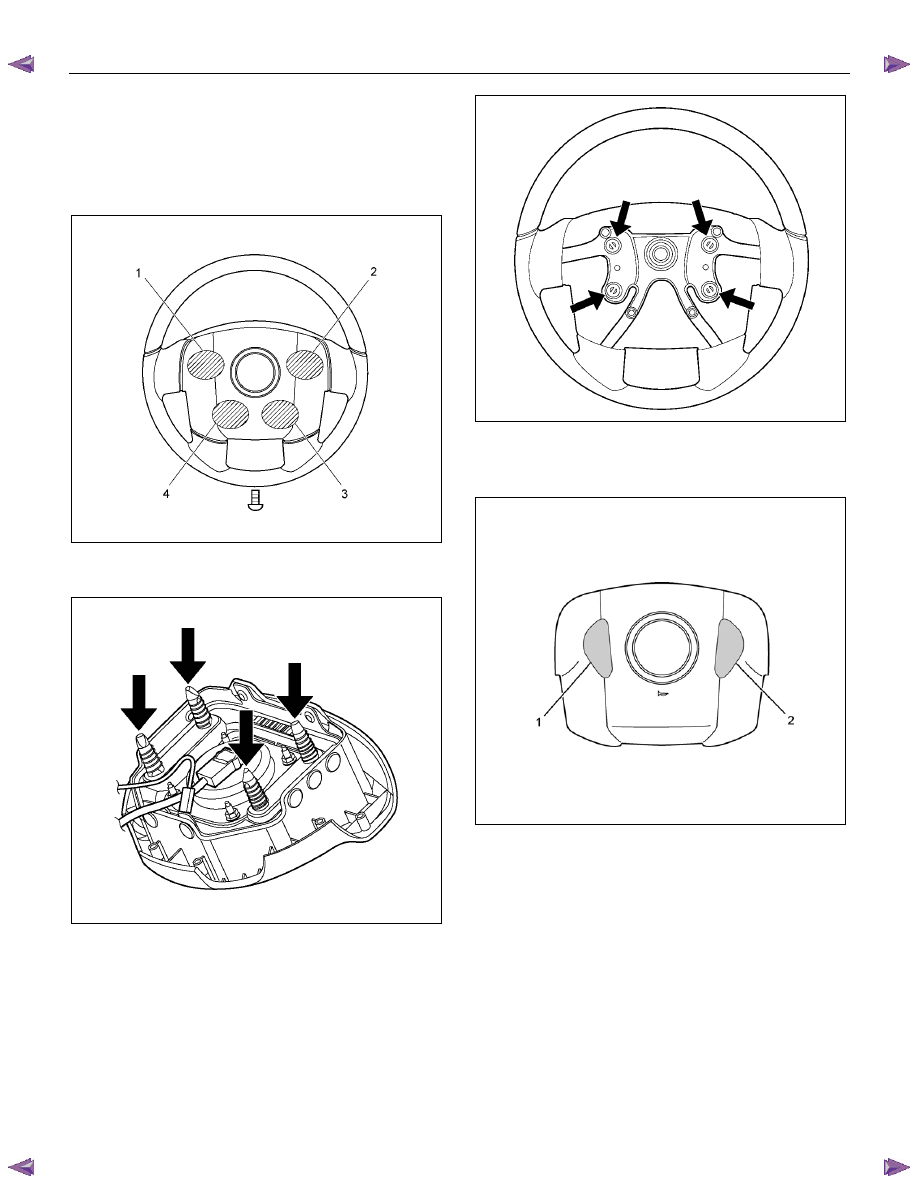

3B-50 POWER-ASSISTED STEERING SYSTEM

10. Push the horn pad at areas 1-4.

  Tighten the horn pad fixing screw to the specifed

torque (without SRS air bag).
Torque: 3 N

⋅⋅⋅⋅m (0.3 kgf⋅⋅⋅⋅m/26 lb⋅⋅⋅⋅in)

NOTE: A horn pad should not be struck during
attachment.



RTW73BSH000201

11. Align each snap stud of driver air bag to the holes on

steering wheel (with SRS air bag).



RTW73BSH001201





RTW73BSH000401

12. Push the SRS air bag at area-1 (1) and area-2 (2). At

that time confirm the audible noise of each stud.

(with SRS air bag)



RTW73BSH000301

13. Enable the SRS (Refer to "Enabling the SRS" in this

section) (with SRS air bag).

14. Install driver knee bolster (reinforcement).

15. Install instrument panel lower cover, then install the

engine hood opening lever.

16.

Connect the yellow 2-way SRS connector located

under the steering column (with SRS air bag).

17. Connect the battery "-" terminal cable (with SRS air

bag).



System Inspection (with SRS air bag)

Turn the ignition switch to "ON" while watching warning
light.
The light should flash 7 times and then go off. If lamp
does not operate correctly, refer to Restraints section.
