SECTION 3C

FRONT SUSPENSION

TABLE OF CONTENTS





FRONT SUSPENSION  3C-1

Main Data and Specifications ..........................................................................................  3C- 2

Torque Specififcations ...................................................................................................... 3C- 3

Special Parts Fixing nuts and Bolts ............................................................................ 3C- 3

Front Suspension  ............................................................................................................. 3C-   6

General Description ..................................................................................................... 3C-   6

PAGE

Front Suspension

(4x2 Except High Ride Suspension) ........................................................................... 3C-  8

Front Suspension

(4x2 High Ride Suspension 4x4) ................................................................................ 3C-  30

Troubleshooting ..........................................................................................................  3C-   54

3C-2  FRONT SUSPENSION

MAIN DATA AND SPECIFICATIONS

4

××××2 (Except High Ride Suspension) Model

Front suspension

Type

Independent wishbone arms, coil spring

with stabilizer bar.

Coil spring

Spring Rate

9.62 kg/mm (94.3 N/mm)

Type

Gas-sealed, twin tube

Stroke

116.5 mm (4.59 in)

Compressed length

284.0 mm (11.18 in)

Front shock absorber

Extended length

400.5 mm (15.77 in)

Stabilizer bar

Diameter

25.0 mm (0.98 in)



4

××××2 (High Ride Suspension) Model

Front suspension

Type

Independent wishbone arms, torsion bar spring

with stabilizer bar.

Length

1,142 mm (44.96 in)

Torsion bar spring

Diameter

29.0 mm (1.14 in)

Type

Gas-sealed, twin tube

Stroke

121.0 mm (4.76 in)

Compressed length

257.0 mm (10.12 in)

Front shock absorber

Extended length

378.0 mm (14.88 in)

Stabilizer bar

Diameter

26.0 mm (1.02 in)



4

××××4 Model

Front suspension

Type

Independent wishbone arms, torsion bar spring

with stabilizer bar.

Length

1,142 mm (44.96 in)

Torsion bar spring

Diameter

29.0 mm (1.14 in)

Type

Gas-sealed, twin tube

Stroke

121.0 mm (4.76 in)

Compressed length

257.0 mm (10.12 in)

Front shock absorber

Extended length

378.0 mm (14.88 in)

Stabilizer bar

Diameter

26.0 mm (1.02 in)



FRONT SUSPENSION  3C-3

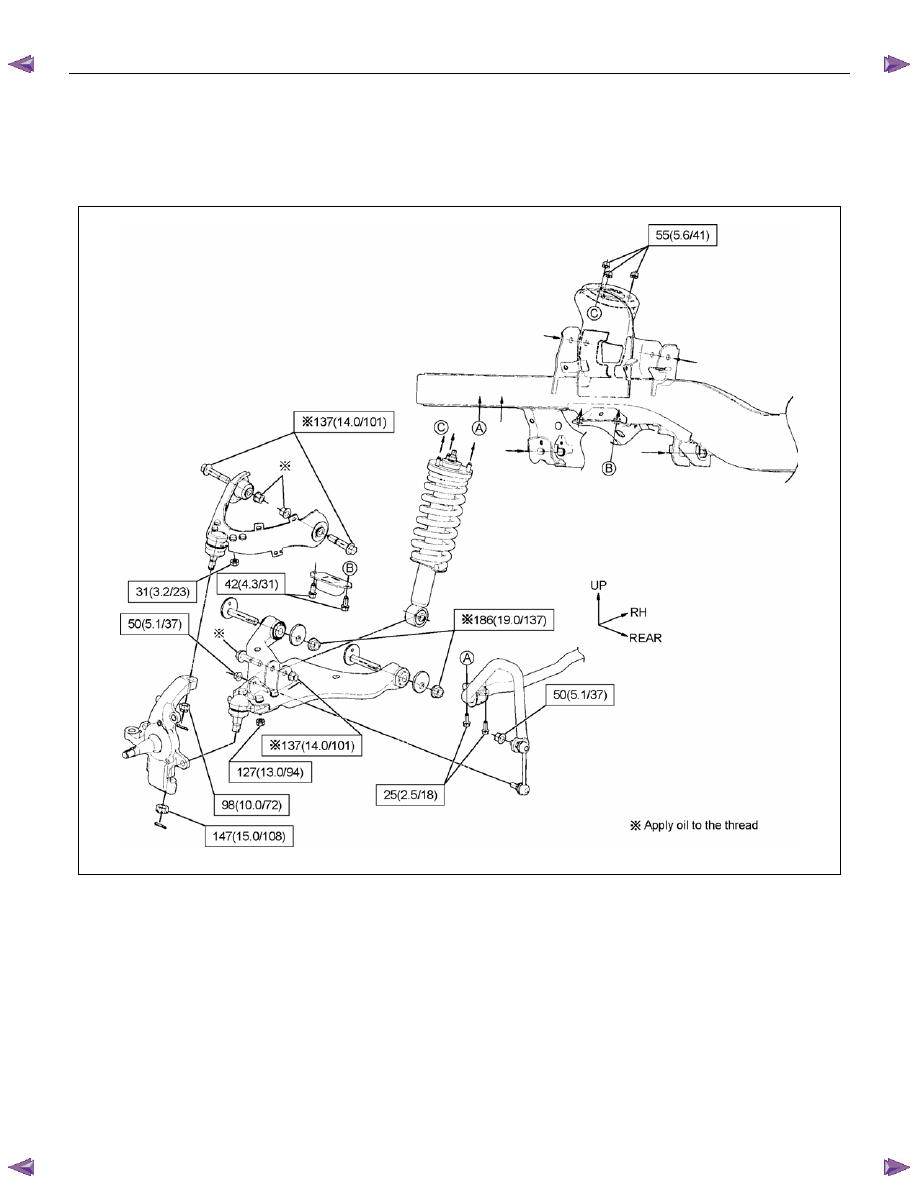

TORQUE SPECIFICATIONS

SPECIAL PARTS FIXING NUTS AND BOLTS

4

××××2 (Except High Ride Suspension) Model

N

⋅m (kgf⋅m/lb⋅ft)









RTW73CLF000101

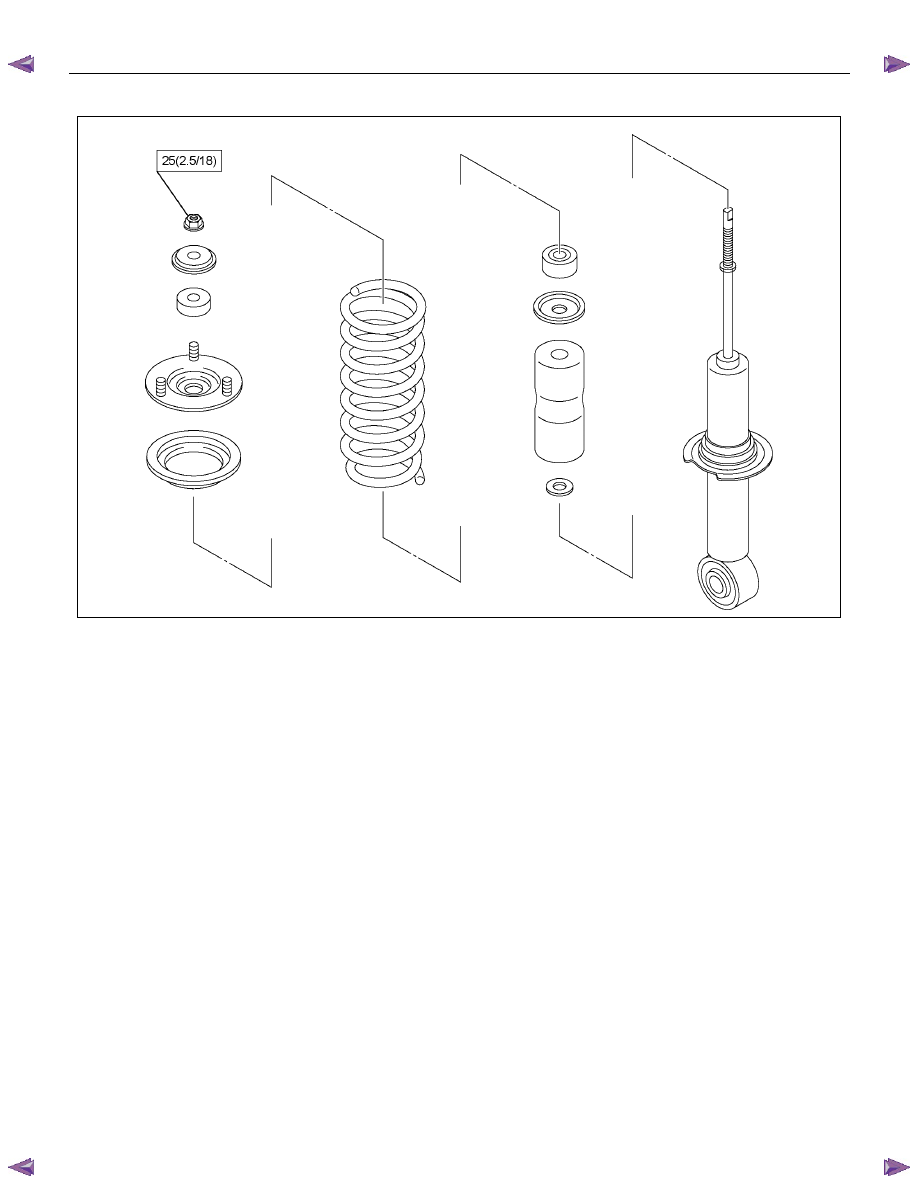

3C-4  FRONT SUSPENSION

4

××××2 (Except High Ride Suspension) Model

N

⋅m (kgf⋅m/lb⋅ft)







RTW440MF000201
