SHEET METAL  2B-11

ENGINE HOOD LOCK (A TYPE)



  REMOVAL AND INSTALLATION









RTW72BMF000201



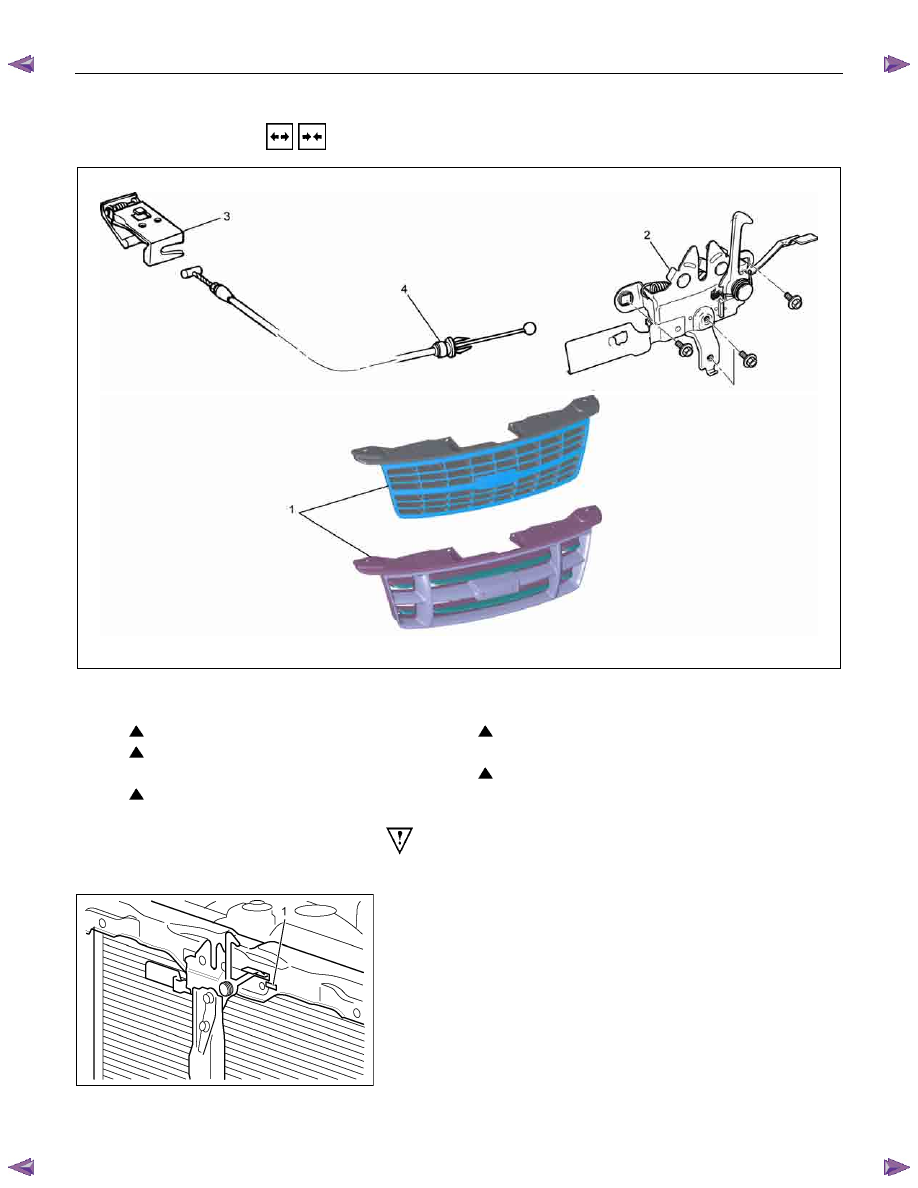

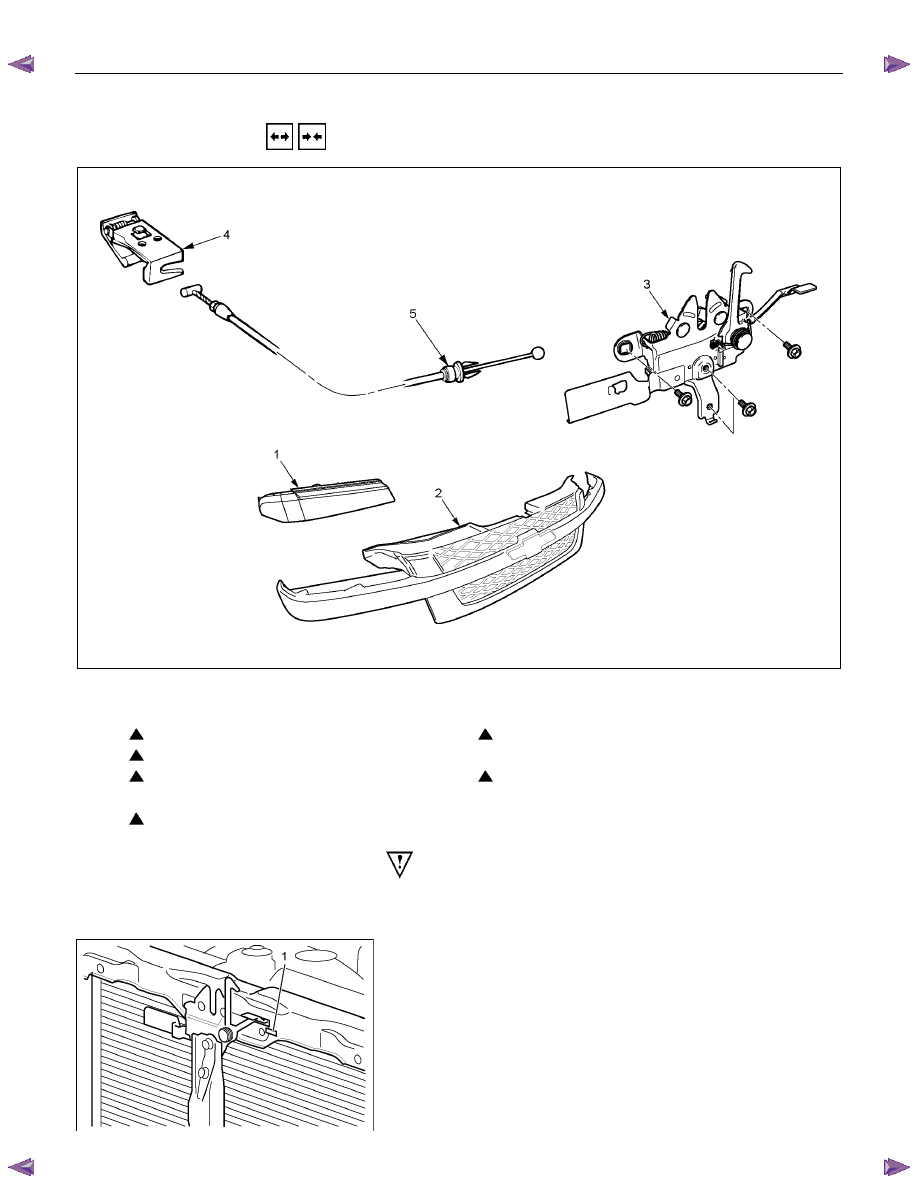

Removal Steps



Installation Steps

  1. Radiator grille



  4. Control cable

  2. Engine hood lock assembly





3. Hood lock control lever



3. Hood lock control lever



  2. Engine hood lock assembly

  4. Control cable





1. Radiator grille









Important Operations - Removal

1. Radiator Grille
Refer to the Radiator Grille in this section.












2. Engine Hood Lock Assembly
Apply setting marks (1) to the hood lock assembly and the
body prior to removal.



4. Control Cable
Pull out the control cable toward the passenger compartment.

2B-12  SHEET METAL





Important Operations - Installation

4. Control Cable
Reroute the control cable to its original position, and check to
see if the lock assembly and control lever work normally.




2. Engine Hood Lock Assembly



Adjustment

1)  Install the engine hood lock assembly (4) and temporarily

tighten the bolts securing it.

2)  Close the hood.

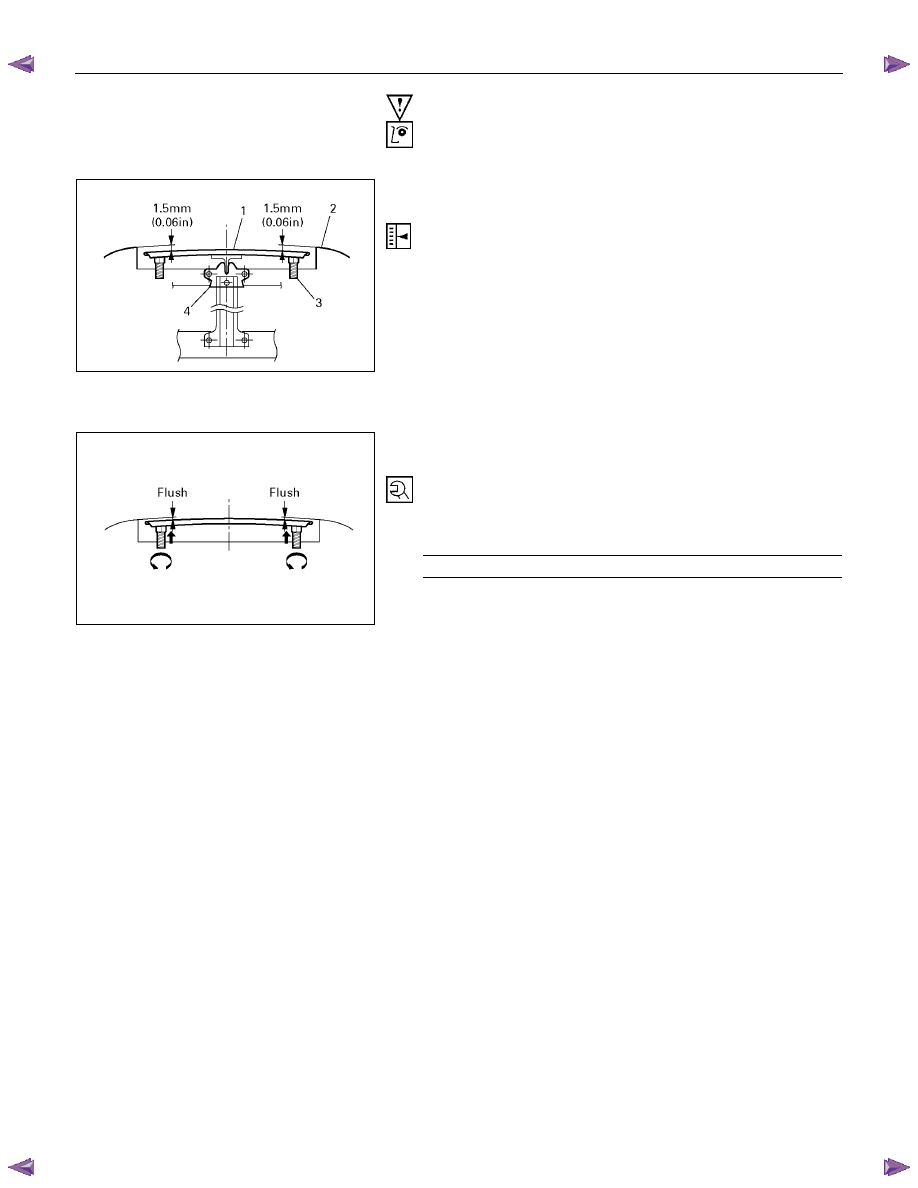

3)  Position the hood so that the stepped portion between the

hood (1) and the fender (2) is precisely 1.5 mm (0.06 in)

high.

4)  Finally tighten the bolts securing the engine hood lock

assembly.






5)  Turn the buffers (3) counterclockwise until the stepped

portion between the hood and the fender disappears.

6)  Tighten the hood lock assembly fixing bolts to the specified

torque.



Torque N

⋅m(kgf⋅m/lb⋅in)

10 (1.0 / 87)





SHEET METAL  2B-13

ENGINE HOOD LOCK (B TYPE)



  REMOVAL AND INSTALLATION











RTW52BMF000101



Removal Steps



Installation Steps

  1. Front combi lamp assembly

  2. Radiator grille

  3. Engine hood lock assembly



4. Hood lock control lever

  5. Control cable



  5. Control cable



4. Hood lock control lever

  3. Engine hood lock assembly



2. Radiator grille



1. Front combi lamp assembly









Important Operations - Removal

1.  Front combi lamp assembly

2. Radiator Grille
Refer to the Radiator Grille in this section.







RUW52BSH002801




3.  Engine Hood Lock Assembly
Apply setting marks (1) to the hood lock assembly and the
body prior to removal.



5. Control Cable
Pull out the control cable toward the passenger compartment.

2B-14  SHEET METAL





Important Operations - Installation

5. Control Cable
Reroute the control cable to its original position, and check to
see if the lock assembly and control lever work normally.




3.  Engine Hood Lock Assembly



Adjustment

6)  Install the engine hood lock assembly (4) and temporarily

tighten the bolts securing it.

7)  Close the hood.

8)  Position the hood so that the stepped portion between the

hood (1) and the fender (2) is precisely 1.5 mm (0.06 in)

high.

9)  Finally tighten the bolts securing the engine hood lock

assembly.






10) Turn the buffers (3) counterclockwise until the stepped

portion between the hood and the fender disappears.

6)  Tighten the hood lock assembly fixing bolts to the specified

torque.



Torque N

⋅m(kgf⋅m/lb⋅in)

10 (1.0 / 87)
