Isuzu KB P190. Manual - part 50

SHEET METAL 2B-3

RUW52BSH002501

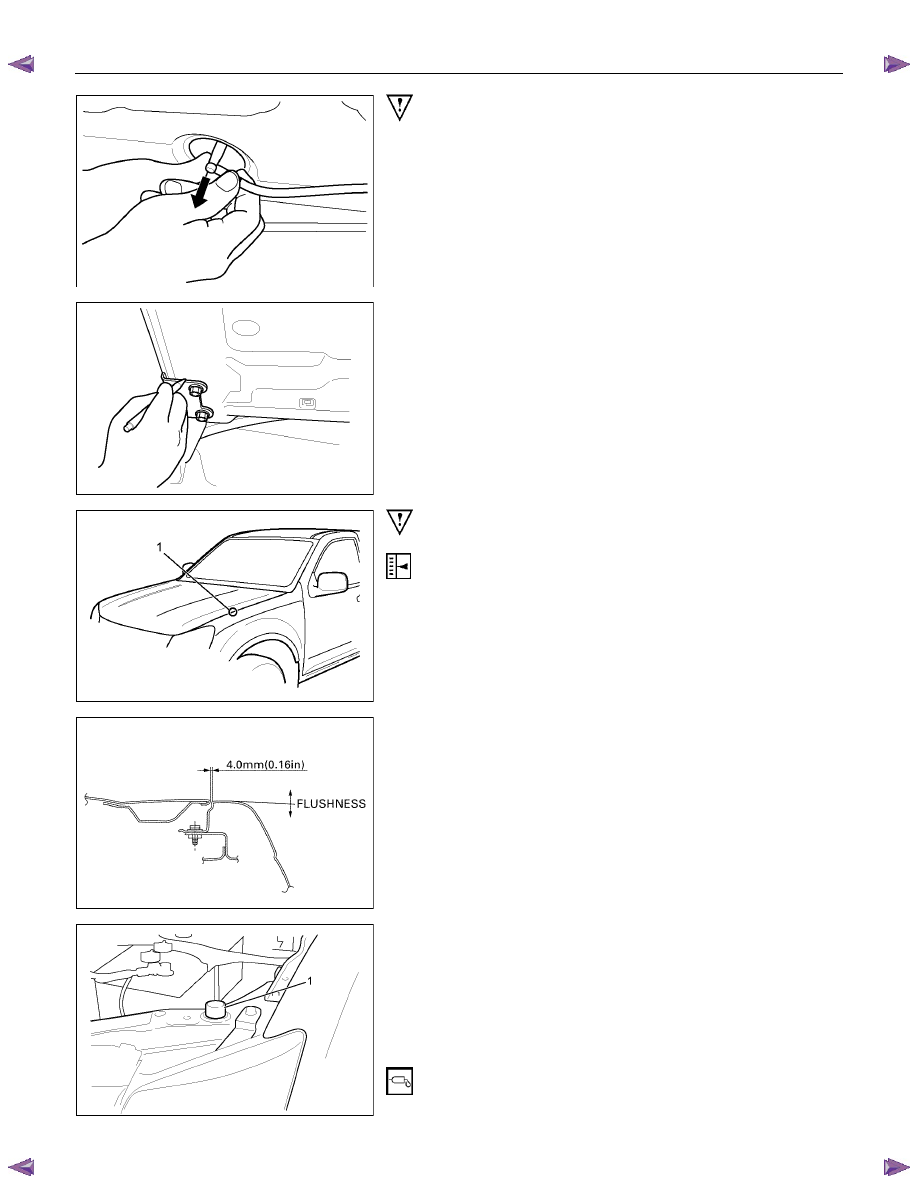

Important Operations - Removal

1. Washer Nozzle Tube

1) Open the hood.

2) Support the hood.

3) Remove the windshield washer nozzle tube.

RUW52BSH002601

2. Hood Hinge Bolt
• Before removing the hinges from the engine hood, scribe a

mark showing location of the hinges to facilitate installation in
the original position.

RTW72BSH000501

Important Operations - Installation

3. Engine Hood
• Check the engine hood and fender (1).

•  Clearance : 4.0 mm (0.16 in)
•  Height (step) : Flushness
•  Adjust clearance using the hinges on the engine hood.

RTW72BSH000701

• Adjust height (step) using the hood rests (1).

Engine Hood Striker
• Apply a light coat of grease to the striker.

2B-4 SHEET METAL

2. Hood Hinge Bolt
• Tighten the engine hood hinge fixing bolts to the specified

torque.

Torque N

⋅m(kgf⋅m/lb⋅in)

10 (1.0 / 87)

SHEET METAL 2B-5

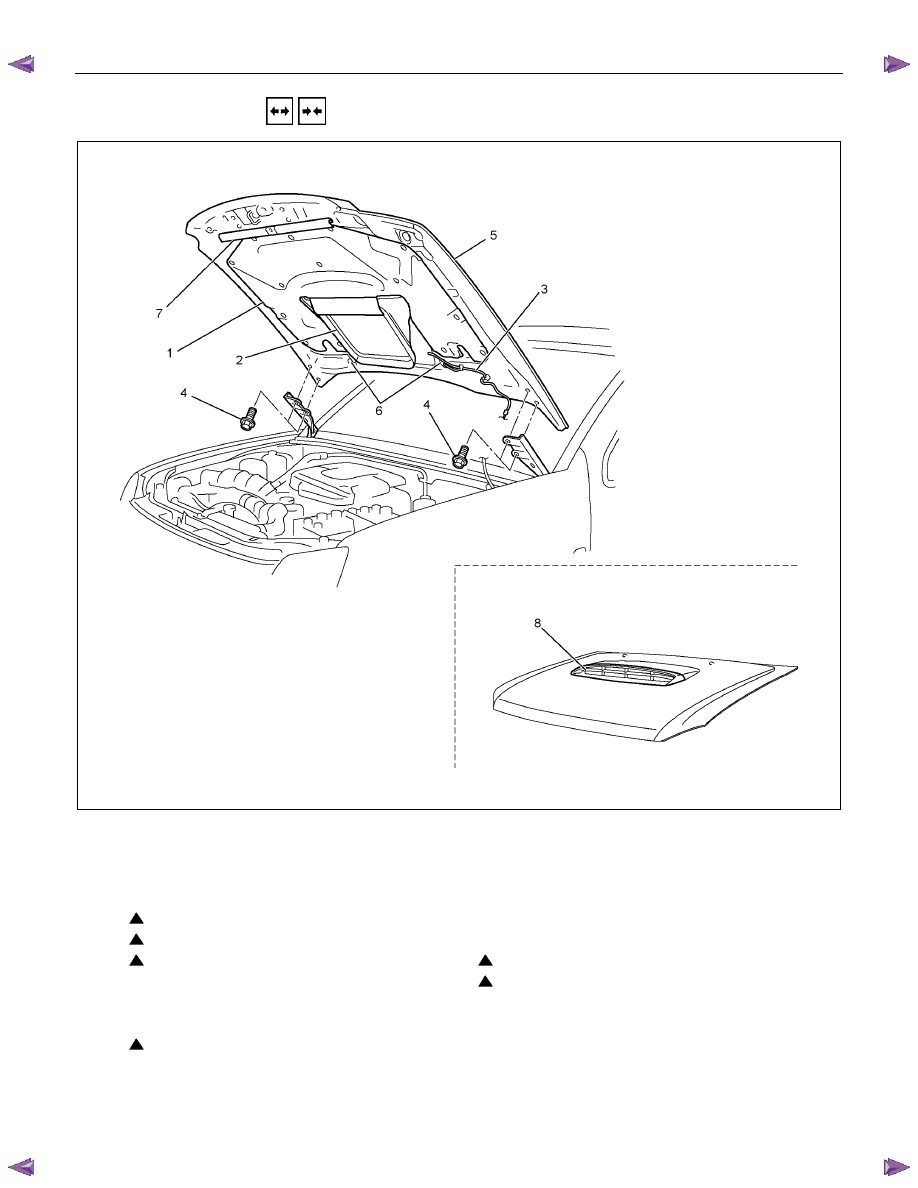

REMOVAL AND INSTALLATION

RTW72BLF000701

4JK1 (High Output) / 4JJ1 (High Output) Model
Removal Steps

Installation Steps

1. Hood insulator

8. Engine hood bulge

2. Intercooler seal

7. Hood seal

3. Washer nozzle tube

6. Washer nozzle

4. Hood hinge bolt

5. Engine hood

4. Hood hinge bolt

6. Washer nozzle

3. Washer nozzle tube

7. Hood seal

2. Intercooler seal

8. Engine hood bulge

1. Hood insulator

2B-6 SHEET METAL

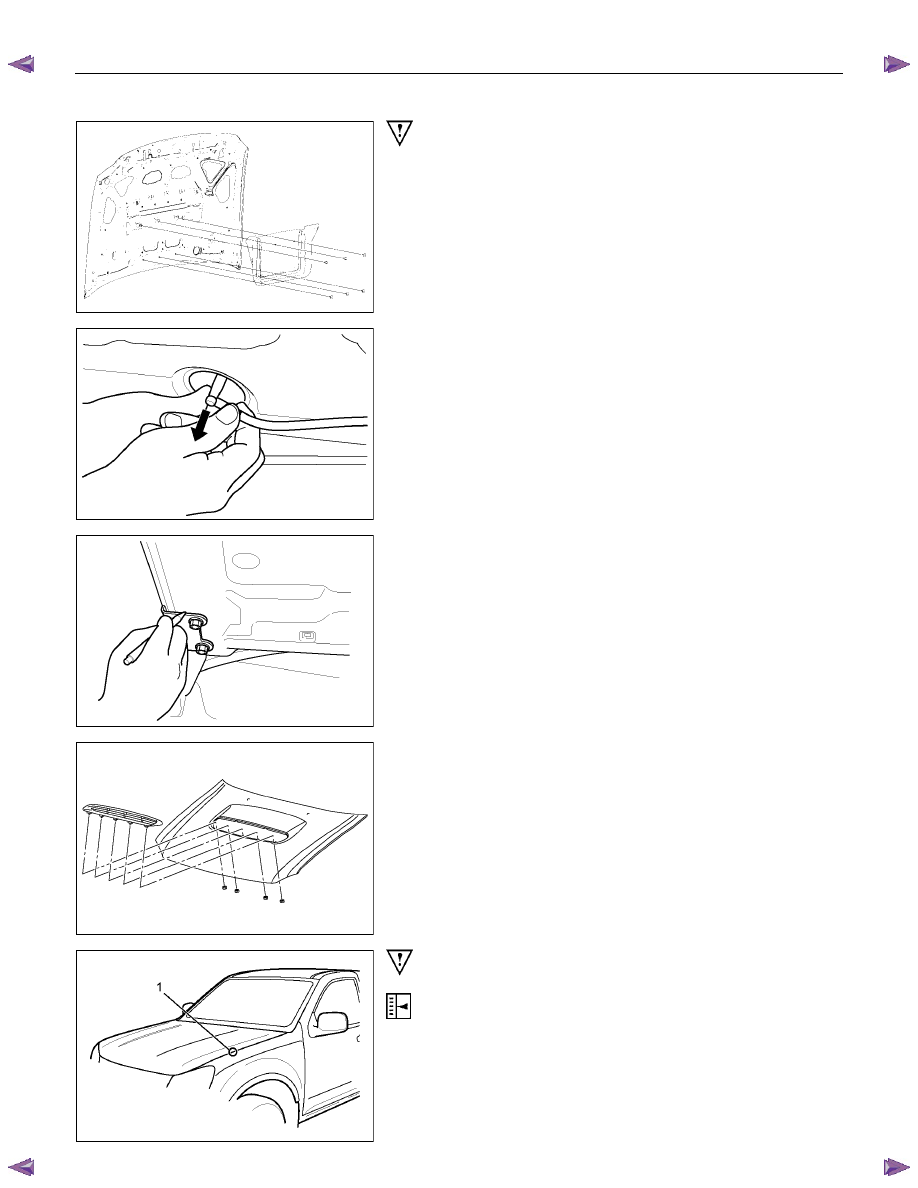

RTW72BSH000301

Important Operations - Removal

2. Intercooler Seal
• Remove the 6 clips.

RUW52BSH002501

3. Washer Nozzle Tube

1) Open the hood.

2) Support the hood.

3) Remove the windshield washer nozzle tube.

RUW52BSH002601

4. Hood Hinge Bolt
• Before removing the hinges from the engine hood, scribe a

mark showing location of the hinges to facilitate installation in
the original position.

RTW72BSH000801

8. Engine Hood Bulge
• Remove the 4 nuts.

RTW72BSH000501

Important Operations - Installation

5. Engine Hood
• Check the engine hood and fender (1).
