DAS

SYSTEM

DAS-413

< SYSTEM DESCRIPTION >

[BSW]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

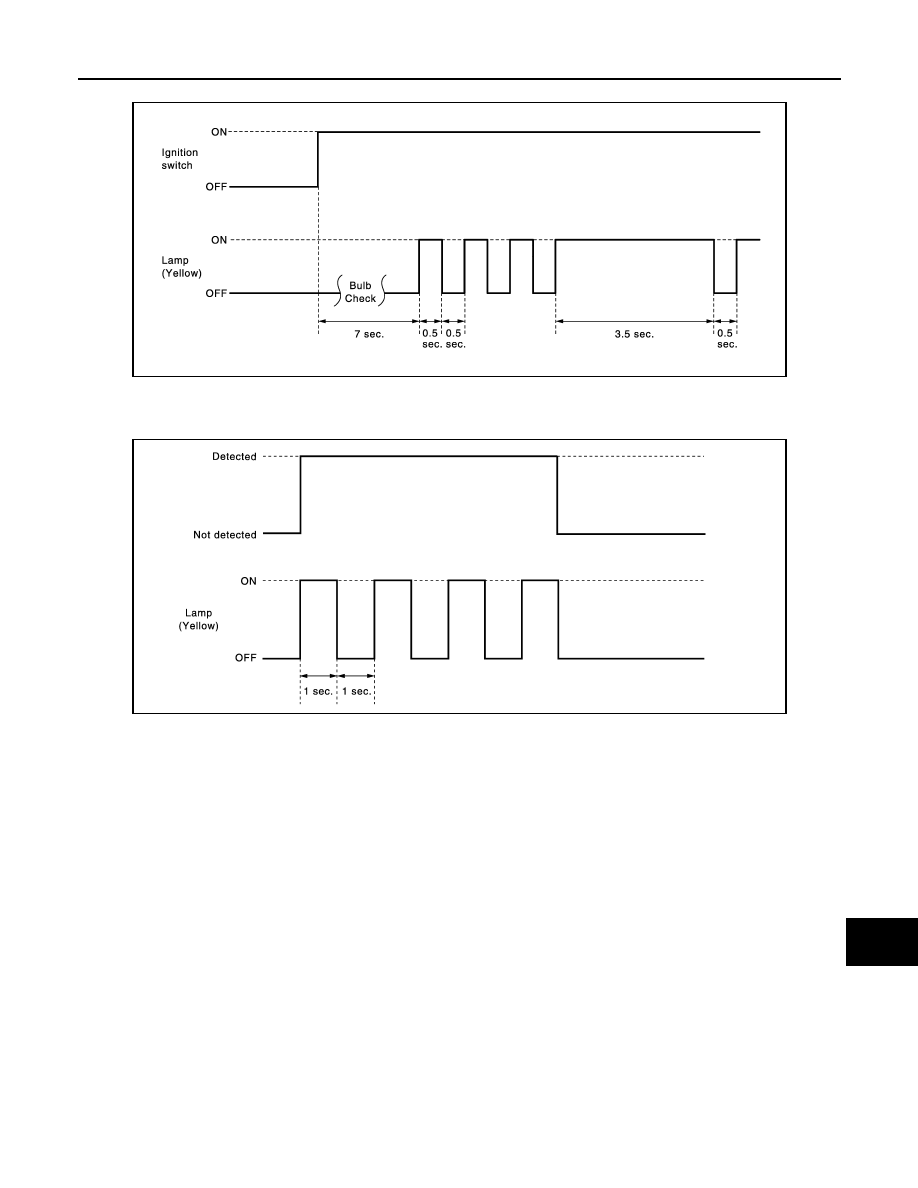

*1: Blinking cycle when the side radar is in factory-default mode condition

NOTE:
Time shown in the figure is approximate time.

*2: Blinking cycle when the side radar blockage condition

NOTE:
Time shown in the figure is approximate time.

BSW INITIAL STATE CHANGE

CAUTION:

Never change BSW initial state “ON”

⇒

 “OFF” without the consent of the customer.

BSW initial state can be changed.
• BSW initial ON* - BSW function is automatically turned ON, when the ignition switch OFF

⇒

 ON.

• BSW initial OFF - BSW function is still OFF when the ignition switch OFF

⇒

 ON.

*: Factory setting

How to change FCW/LDW/BSW initial state

1.

Turn ignition switch ON.

2.

Warning systems switch is OFF.

3.

Push and hold warning systems switch for more than 4 seconds.

4.

Buzzer sounds and blinking of the warning systems ON indicator informs that the FCW/LDW/BSW initial
state changes completed.

Fail-safe (ADAS Control Unit)

INFOID:0000000006223852

If a malfunction occurs in each system, ADAS control unit cancels each control, sounds a beep, and turns ON
the warning lamp or indicator lamp.

JSOIA0256GB

JSOIA0358GB

DAS-414

< SYSTEM DESCRIPTION >

[BSW]

SYSTEM

Fail-safe (Side Radar)

INFOID:0000000006223853

FAIL-SAFE CONTROL BY DTC

If a malfunction occurs in the side radar, ADAS control unit cancels the control. Then the BSW warning lamp in
the combination meter illuminates.

TEMPORARY DISABLED STATUS AT BLOCKAGE

When the side radar is blocked, the operation is temporarily cancelled. Then BSW warning lamp in combina-
tion meter blinks. Also, under the following conditions, the operation may be temporarily cancelled.
• The side radar may be blocked by temporary ambient conditions such as splashing water, mist or fog.
• The blocked condition may also be caused by objects such as ice, frost or dirt obstructing the side radar.

System

Buzzer

Warning lamp/Indicator lamp

Description

Vehicle-to-vehicle distance control mode

High-pitched
tone

ICC system warning lamp

Cancel

Conventional (fixed speed) cruise control mode

High-pitched
tone

ICC system warning lamp

Cancel

Intelligent Brake Assist (IBA)

High-pitched
tone

IBA OFF indicator lamp

Cancel

Forward Collision Warning (FCW)

High-pitched
tone

IBA OFF indicator lamp

Cancel

Distance Control Assist (DCA)

High-pitched
tone

ICC system warning lamp

Cancel

Lane Departure Warning (LDW)

—

Lane departure warning lamp

Cancel

Lane Departure Prevention (LDP)

Low-pitched
tone

Lane departure warning lamp

Cancel

Blind Spot Warning (BSW)

—

BSW warning lamp

Cancel

DAS

OPERATION

DAS-415

< SYSTEM DESCRIPTION >

[BSW]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

OPERATION

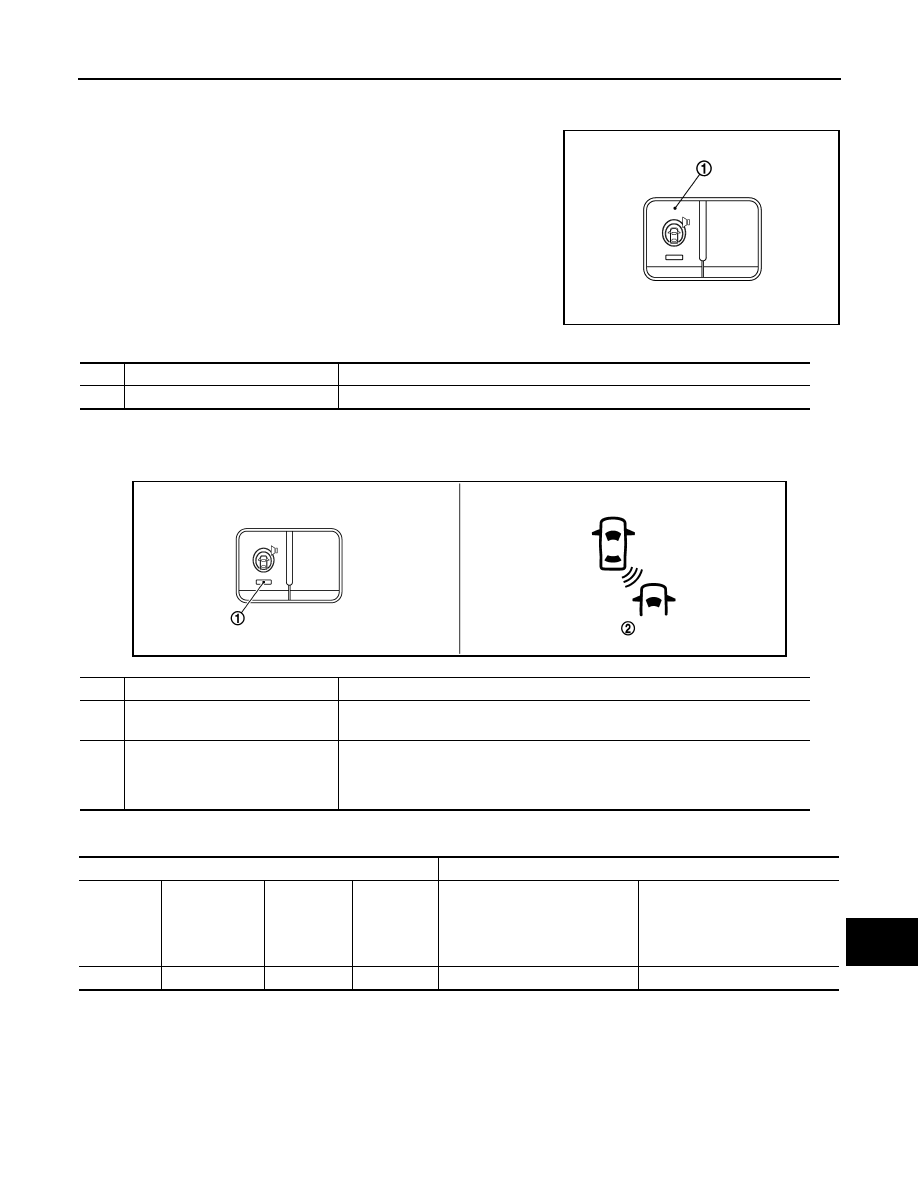

Switch Name and Function

INFOID:0000000006223854

System Display and Warning

INFOID:0000000006223855

INDICATOR AND WARNING LAMP

DISPLAY AND WARNING OPERATION

JSOIA0277ZZ

No.

Name

Function

1

Warning systems switch

Turns BSW, LDW, and FCW systems ON/OFF

JSOIA0375ZZ

No.

Name

Description

1

Warning systems ON indicator

• Turns ON while FCW/LDW/BSW system is ON
• Blinks when initial setting of FCW/LDW/BSW system changes

2

BSW warning lamp

• Turns ON when BSW system is malfunctioning
• Blinks when the following conditions:
- Side radar is factory-default mode condition
- When radar blockage is detected

Vehicle condition/ Driver's operation

Action

Warning

systems ON

indicator

Vehicle speed

(Approx.)

[km/h (MPH)]

Turn signal

condition

Status of ve-

hicle detec-

tion within

detection

area

Indication on the

BSW indicator

Buzzer

OFF

—

—

—

OFF

OFF

DAS-416

< SYSTEM DESCRIPTION >

[BSW]

OPERATION

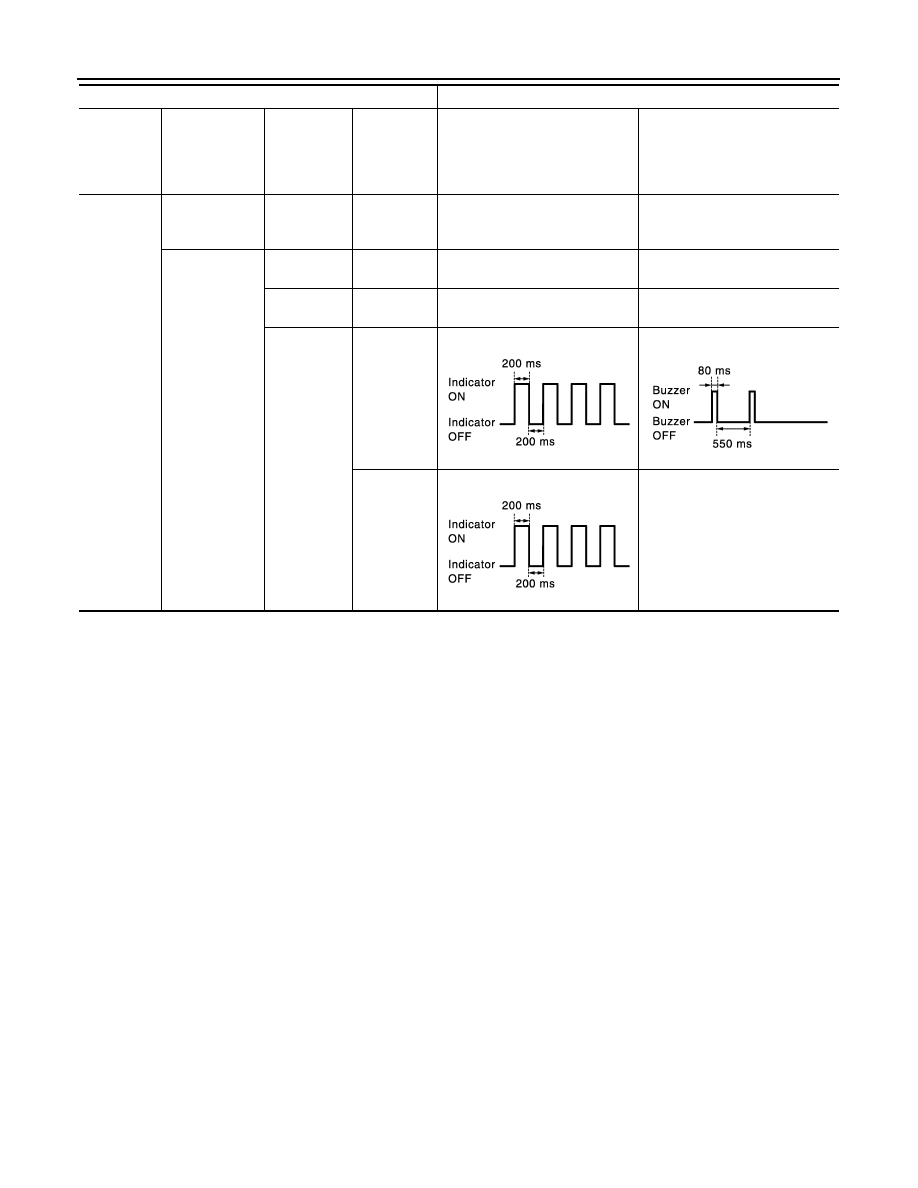

NOTE:

• If vehicle speed exceeds approximately 32 km/h (20MPH), BSW function operates until the vehicle speed becomes lower than

approximately 29km/h (18MPH).

• Time shown in the figure is approximate time.

ON

Less than ap-

prox.

29 (18)

—

—

OFF

OFF

Approx.

32 (20)

 or more

—

Vehicle is

absent

OFF

OFF

OFF

Vehicle is

detected

ON

OFF

ON

(vehicle de-

tected direc-

tion)

Before turn

signal oper-

ates

Vehicle is

detected

Blink

Short continuous beep

Vehicle is

detected af-

ter turn sig-

nal operates

Blink

OFF

Vehicle condition/ Driver's operation

Action

Warning

systems ON

indicator

Vehicle speed

(Approx.)

[km/h (MPH)]

Turn signal

condition

Status of ve-

hicle detec-

tion within

detection

area

Indication on the

BSW indicator

Buzzer

JSOIA0251GB

JSOIA0252GB

JSOIA0251GB
