DYNAMIC DRIVER ASSISTANCE SWITCH

Exploded View

INFOID:0000000006223845

Dynamic driver assistance switch is integrated in the ICC steering switch. Refer to

ST-33, "Exploded View"

.

NOTE:
Always remove ICC steering switch together with steering wheel.

DAS-406

< REMOVAL AND INSTALLATION >

[LDW & LDP]

WARNING BUZZER

WARNING BUZZER

Removal and Installation

INFOID:0000000006223846

REMOVAL

1.

Remove the instrument lower panel (LH). Refer to

IP-14, "Removal and Installation"

.

2.

Remove the screw.

3.

Remove warning buzzer.

INSTALLATION

Install in the reverse order of removal.

DAS

PRECAUTIONS

DAS-407

< PRECAUTION >

[BSW]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000006223847

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIR BAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s)
with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly
causing serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution for BSW System Service

INFOID:0000000006223848

WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION:

• Never perform the active test while driving.
• Never change BSW initial state ON

 OFF without the consent of the customer.

TO KEEP THE BSW SYSTEM OPERATING PROPERLY, BE SURE TO OBSERVE THE FOLLOW-
ING ITEMS:

System Maintenance

The two side radar for the BSW system are located near the rear bumper.
• Always keep the area near the side radar clean.
• Do not attach stickers (including transparent material), install accessories or apply additional paint near the

side radar.

• Do not strike or damage the area around the side radar.

DAS-408

< SYSTEM DESCRIPTION >

[BSW]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

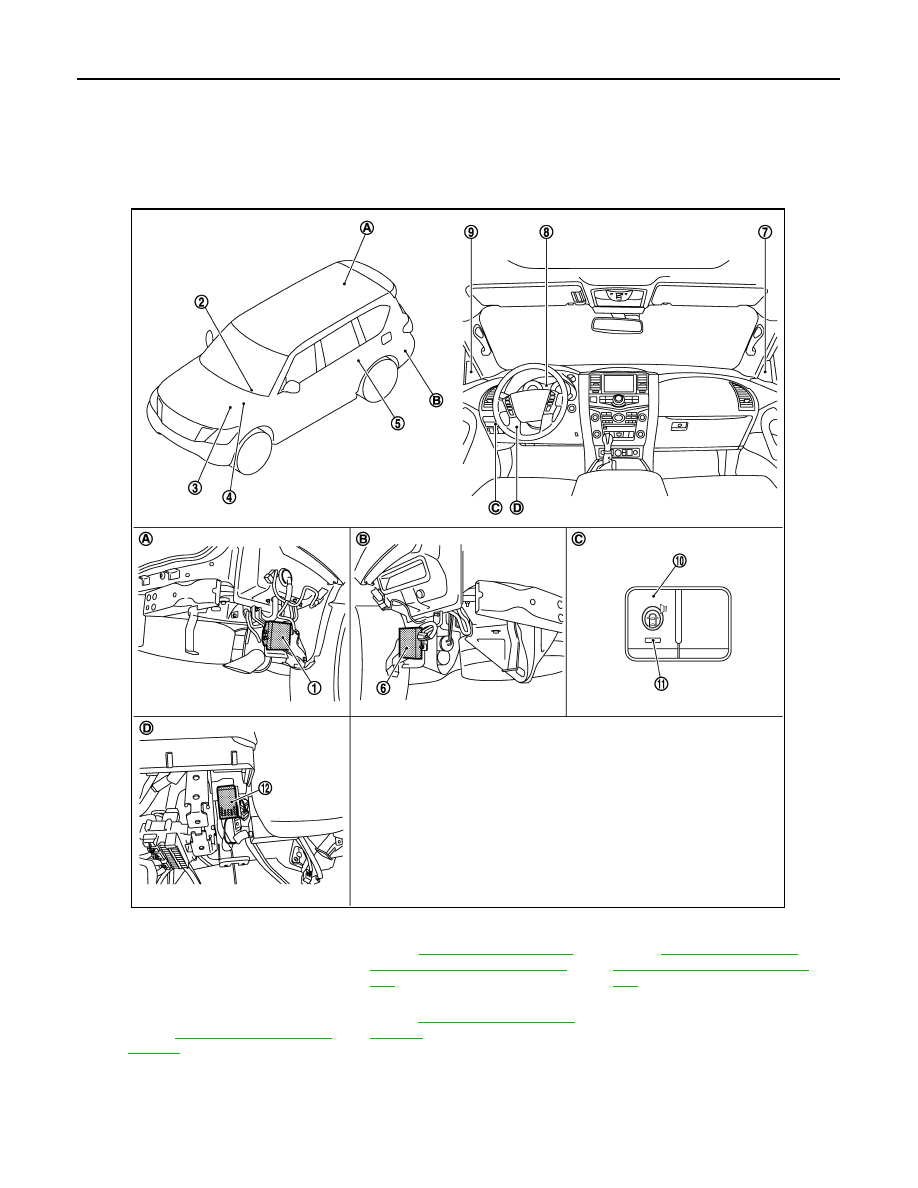

Component Parts Location

INFOID:0000000006223849

1.

Side radar RH

2.

BCM
Refer to

BCS-4, "BODY CONTROL

SYSTEM : Component Parts Loca-
tion"

3.

TCM
Refer to

TM-10, "A/T CONTROL

SYSTEM : Component Parts Loca-
tion"

4.

ABS actuator and electric unit (con-
trol unit)
Refer to

BRC-10, "Component Parts

Location"

5.

 ADAS control unit
Refer to

DAS-13, "Component Parts

Location"

6.

Side radar LH

7.

BSW indicator RH

8.

BSW warning lamp
(On the combination meter)

9.

BSW indicator LH

10. Warning systems switch

11.

Warning systems ON indicator

12. Warning buzzer

JSOIA0370ZZ
