HANDLING PRECAUTION

DAS-417

< SYSTEM DESCRIPTION >

[BSW]

HANDLING PRECAUTION

Precautions for Blind Spot Warning

INFOID:0000000006223856

SIDE RADAR HANDLING

• Side radar for BSW system is located inside the rear bumper.
• Always keep the rear bumper near the side radar clean.
• Do not attach a sticker (including transparent material), install an accessory or paintwork near the side radar.
• Do not strike or damage the areas around the side radar.
• Do not strike, damage, and scratch the side radar, especially the vent seal (gray circular) area, under repair.

PRECAUTIONS FOR BLIND SPOT WARNING

• The BSW system is not a replacement for proper driving procedure and are not designed to prevent contact

with vehicles or objects. When changing lanes, always use the side and rear mirrors and turn and look in the
direction driver will move to ensure it is safe to change lanes. Never rely solely on the BSW system.

• The BSW system may not provide a warning for vehicles that pass through the detection zone quickly.
• Do not use the BSW system when towing a trailer because the system may not function properly.
• Excessive noise (e.g. audio system volume, open vehicle window) will interfere with the chime sound, and it

may not be heard.

• The side radar may not be able to detect and activate BSW when certain objects are present such as:
- Pedestrians, bicycles, animals.
- Several types of vehicles such as motorcycles.
- Oncoming vehicles.
- Vehicles remaining in the detection zone when driver accelerate from a stop.
- A vehicle merging into an adjacent lane at a speed approximately the same as vehicle.
- A vehicle approaching rapidly from behind.
- A vehicle which vehicle overtakes rapidly.
• Severe weather or road spray conditions may reduce the ability of the side radar to detect other vehicles.
• The side radar detection zone is designed based on a standard lane width. When driving in a wider lane, the

side radar may not detect vehicles in an adjacent lane. When driving in a narrow lane, the side radar may
detect vehicles driving two lanes away.

• The side radar are designed to ignore most stationary objects, however objects such as guardrails, walls,

foliage and parked vehicles may occasionally be detected. This is a normal operating condition.

DAS-418

< SYSTEM DESCRIPTION >

[BSW]

DIAGNOSIS SYSTEM (ADAS CONTROL UNIT)

DIAGNOSIS SYSTEM (ADAS CONTROL UNIT)

On Board Diagnosis Function

INFOID:0000000006223857

DESCRIPTION

The DTC is displayed on the information display by operating the ICC steering switch.

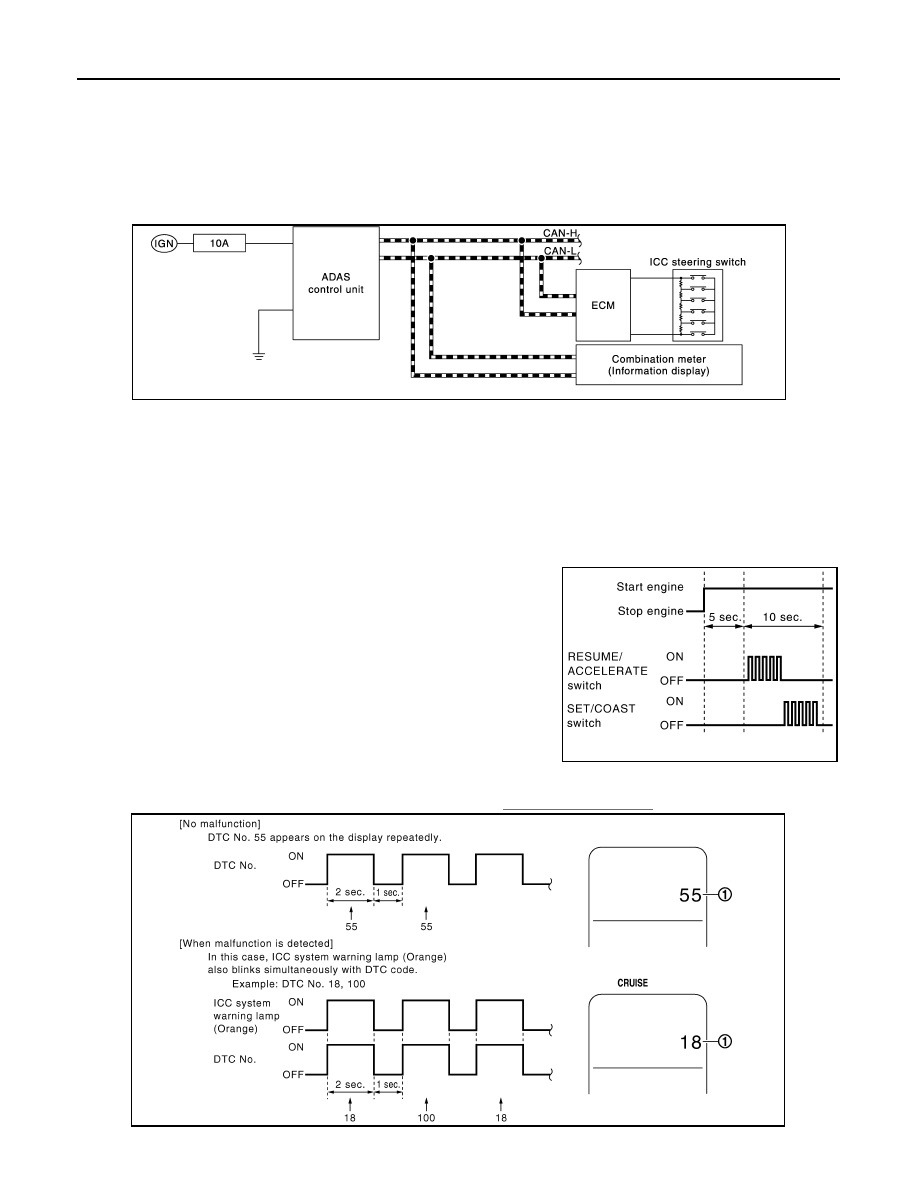

On Board Self-diagnosis System Diagram

METHOD OF STARTING

CAUTION:

Start condition of on board self-diagnosis
• ICC system OFF
• DCA system OFF
• Vehicle speed 0 km/h (0 MPH)
1.

Turn the ignition switch OFF.

Start the engine.

Wait for 5 seconds after starting the engine. Push up the
RESUME/ACCELERATE switch 5 times and push down the
SET/COAST switch 5 times within 10 seconds.
NOTE:
If the above operation cannot be performed within 10 seconds
after waiting for 5 seconds after starting the engine, repeat the
procedure from step 1.

The DTC is displayed on the set vehicle speed indicator (1) on the ICC system display on the information
display when the on board self-diagnosis starts. Refer to

DAS-38, "DTC Index"

NOTE:

JSOIA0271GB

PKIB8371E

JSOIA0008GB

DAS

DIAGNOSIS SYSTEM (ADAS CONTROL UNIT)

DAS-419

< SYSTEM DESCRIPTION >

[BSW]

• It displays for up to 5 minutes and then stops.
• If multiple malfunctions exist, up to 6 DTCs can be stored in memory at the most, and the most recent

one is displayed first.

WHEN THE ON BOARD SELF-DIAGNOSIS DOES NOT START

If the on board self-diagnosis does not start, check the following items.

HOW TO ERASE ON BOARD SELF-DIAGNOSIS

Turn the ignition switch OFF.

Start the engine, and then start the on board self-diagnosis.

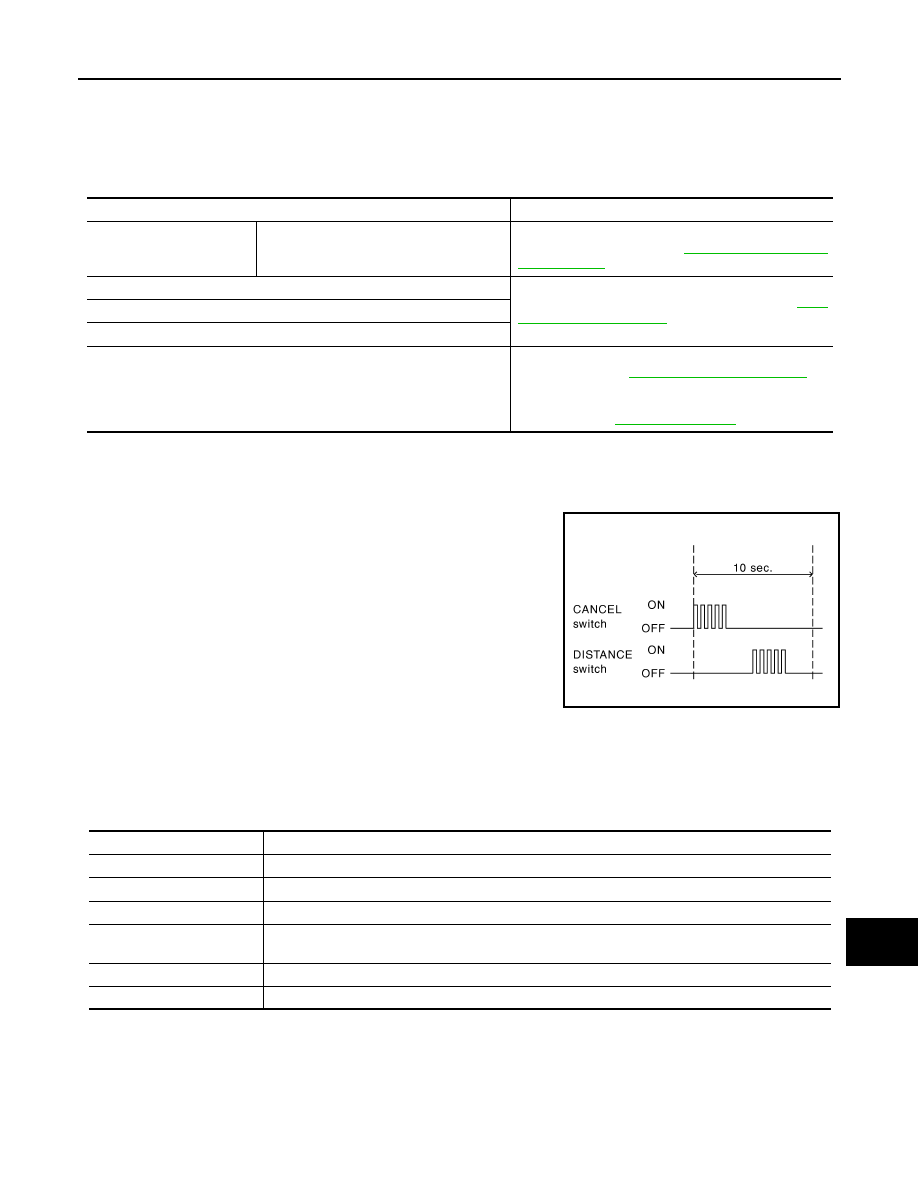

Press the CANCEL switch 5 times, and then press the DIS-
TANCE switch 5 times under the condition that the on board
self-diagnosis starts.
NOTE:
• Complete the operation within 10 seconds after pressing the

CANCEL switch first.

• If the operation is not completed within 10 seconds, repeat the

procedure from step 1.

DTC 55 is displayed after erasing.
NOTE:
DTCs for existing malfunction can not be erased.

Turn ignition switch OFF, and finish the diagnosis.

CONSULT-III Function (ICC/ADAS)

INFOID:0000000006223858

APPLICATION ITEMS

CONSULT-III performs the following functions via CAN communication using ADAS control unit.

WORK SUPPORT

Assumed abnormal part

Inspection item

Information display

Combination meter malfunction

Check that the self-diagnosis function of the combina-
tion meter operates. Refer to

MWI-29, "On Board Diag-

nosis Function"

ICC steering switch malfunction

Perform the inspection for DTC“C1A06”. Refer to

CCS-

94, "Diagnosis Procedure"

Harness malfunction between ICC steering switch and ECM

ECM malfunction

ADAS control unit malfunction

• Check power supply and ground circuit of ADAS con-

trol unit. Refer to

DAS-62, "Diagnosis Procedure"

• Perform SELF-DIAGNOSIS for “ICC/ADAS”with

CONSULT-III, and then check the malfunctioning
parts. Refer to

DAS-38, "DTC Index"

PKIB8373E

Diagnosis mode

Description

Work Support

Displays causes of automatic system cancellation occurred during system control

Self Diagnostic Result

Displays the name of a malfunctioning system stored in the ADAS control unit

Data Monitor

Displays ADAS control unit input/output data in real time

Active Test

Enables an operational check of a load by transmitting a driving signal from the ADAS control unit to
the load

Ecu Identification

Displays ADAS control unit part number

CAN Diag Support Monitor

Displays a reception/transmission state of CAN communication and ITS communication

DAS-420

< SYSTEM DESCRIPTION >

[BSW]

DIAGNOSIS SYSTEM (ADAS CONTROL UNIT)

NOTE:
• Causes of the maximum five cancellations (system cancel) are displayed.
• The displayed cancellation causes display the number of the ignition switch ON/OFF up to 254. It is fixed to

254 if it is over 254. It returns to 0 when the same cancellation cause is detected again.

Display Items for The Cause of Automatic Cancellation 1

Work support items

Description

CAUSE OF AUTO-CANCEL 1

Displays causes of automatic system cancellation occurred during control of the following sys-
tems
• Vehicle-to-vehicle distance control mode
• Conventional (fixed speed) cruise control mode
• Distance Control Assist (DCA)

CAUSE OF AUTO-CANCEL 2

Displays causes of automatic system cancellation occurred during control of the Lane Depar-
ture Prevention (LDP) system

Cause of cancellation

-t

-v

rol

tio

l (f

ixe

d) c

rui

trol

Distan

Con

tro

l As

Description

OPERATING WIPER

The wiper operates at HI (it includes when the wiper is operated at
HI with the wiper switch AUTO position)

OPERATING ABS

ABS function was operated

OPERATING TCS

TCS function was operated

OPERATING VDC

VDC function was operated

ECM CIRCUIT

ECM did not permit ICC operation

OPE SW VOLT CIRC

The ICC steering switch input voltage is not within standard range

LASER SUNBEAM

Intense light such as sunlight entered ICC sensor light sensing part

LASER TEMP

Temperature around ICC sensor became low

SNOW MODE SW

SNOW mode switch was pressed

OP SW DOUBLE
TOUCH

ICC steering switches were pressed at the same time

VHCL SPD DOWN

Vehicle speed lower than the speed as follows
• Vehicle-to-vehicle distance control mode is 24 km/h (15 MPH)
• Conventional (fixed speed) cruise control mode is 32 km/h (20

MPH)

WHL SPD ELEC NOISE

Wheel speed sensor signal caught electromagnetic noise

VDC/TCS OFF SW

VDC OFF switch was pressed

VHCL SPD UNMATCH

Wheel speed became different from A/T vehicle speed

TIRE SLIP

Wheel slipped

IGN LOW VOLT

Decrease in ADAS control unit IGN voltage

PARKING BRAKE ON

The parking brake is operating

WHEEL SPD UNMATCH

The wheel speeds of 4 wheels are out of the specified values
