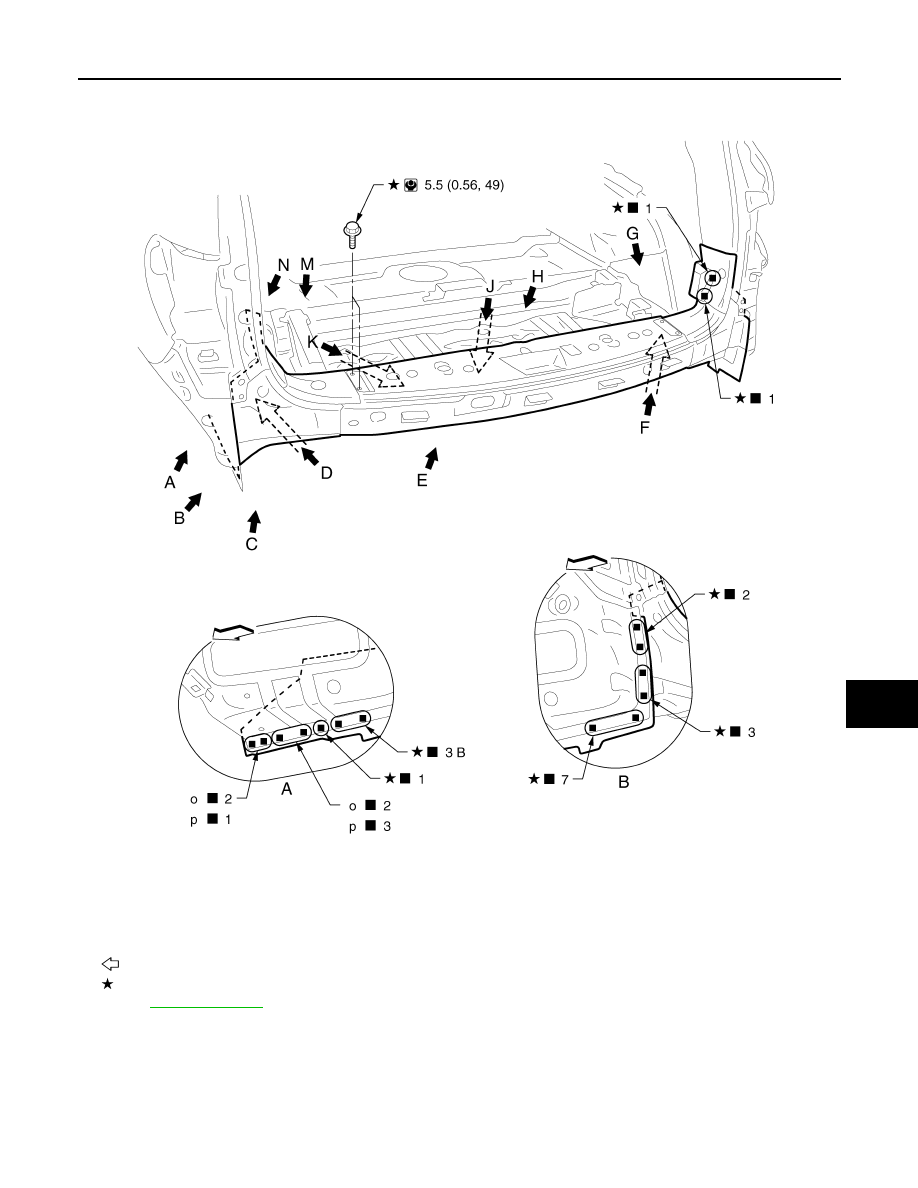

Replacement parts

z

Rear crossmember

z

Upper rear end crossmember as-
sembly

JSKIA1920GB

BRM-44

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

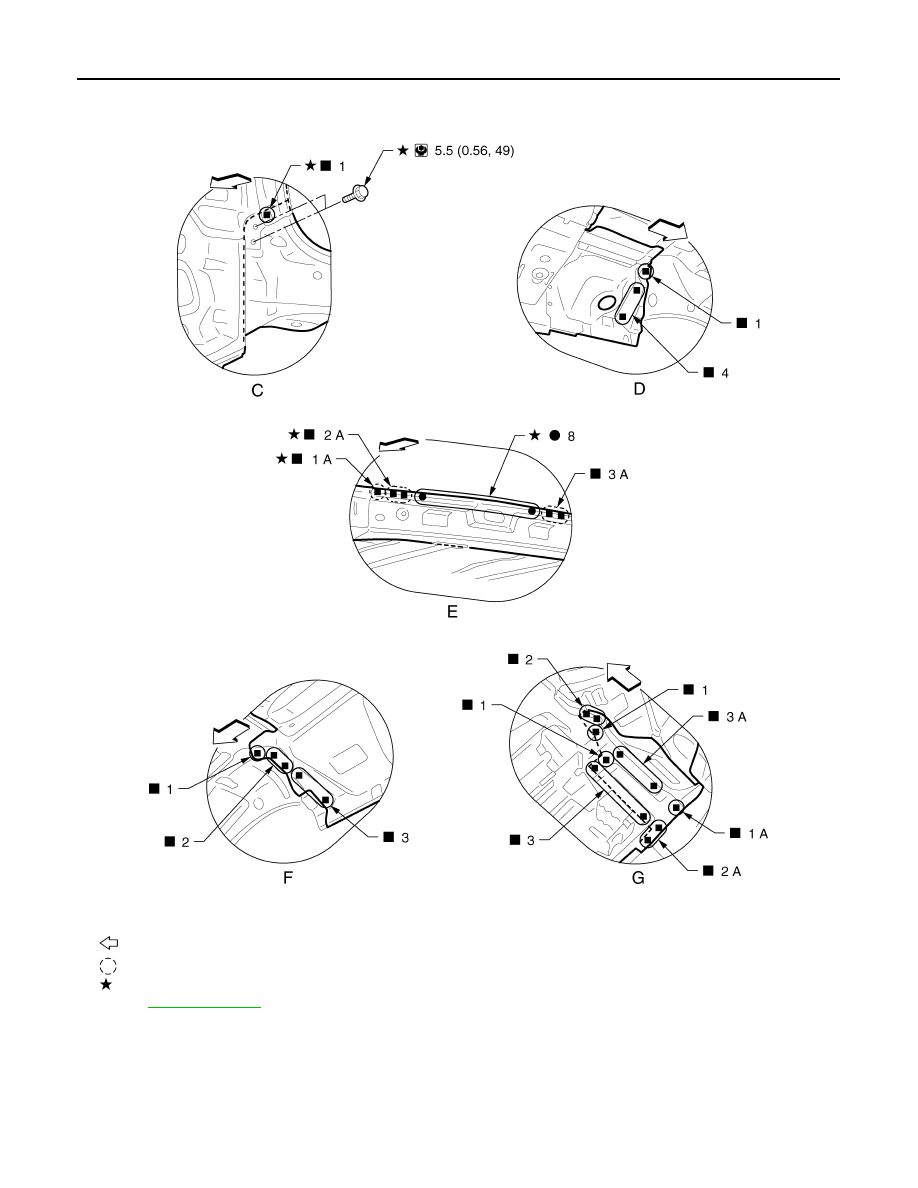

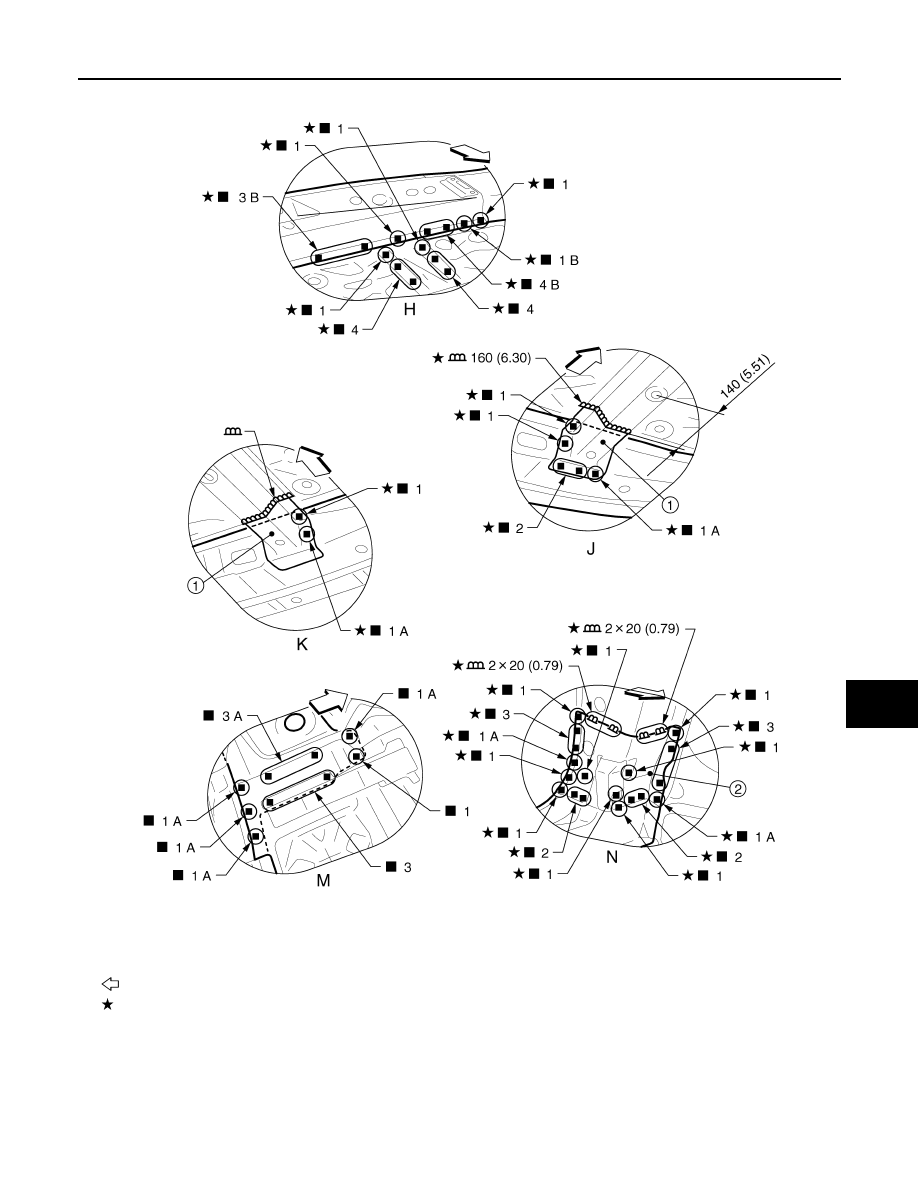

: Vehicle front.

: Weld the parts onto the back of the component part.

: Welding method, the number of welding points, and the tightening torque apply to both side of the vehicle.

Refer to

GI-4, "Components"

 for symbols in the figure.

JSKIA1840GB

REPLACEMENT OPERATIONS

BRM-45

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

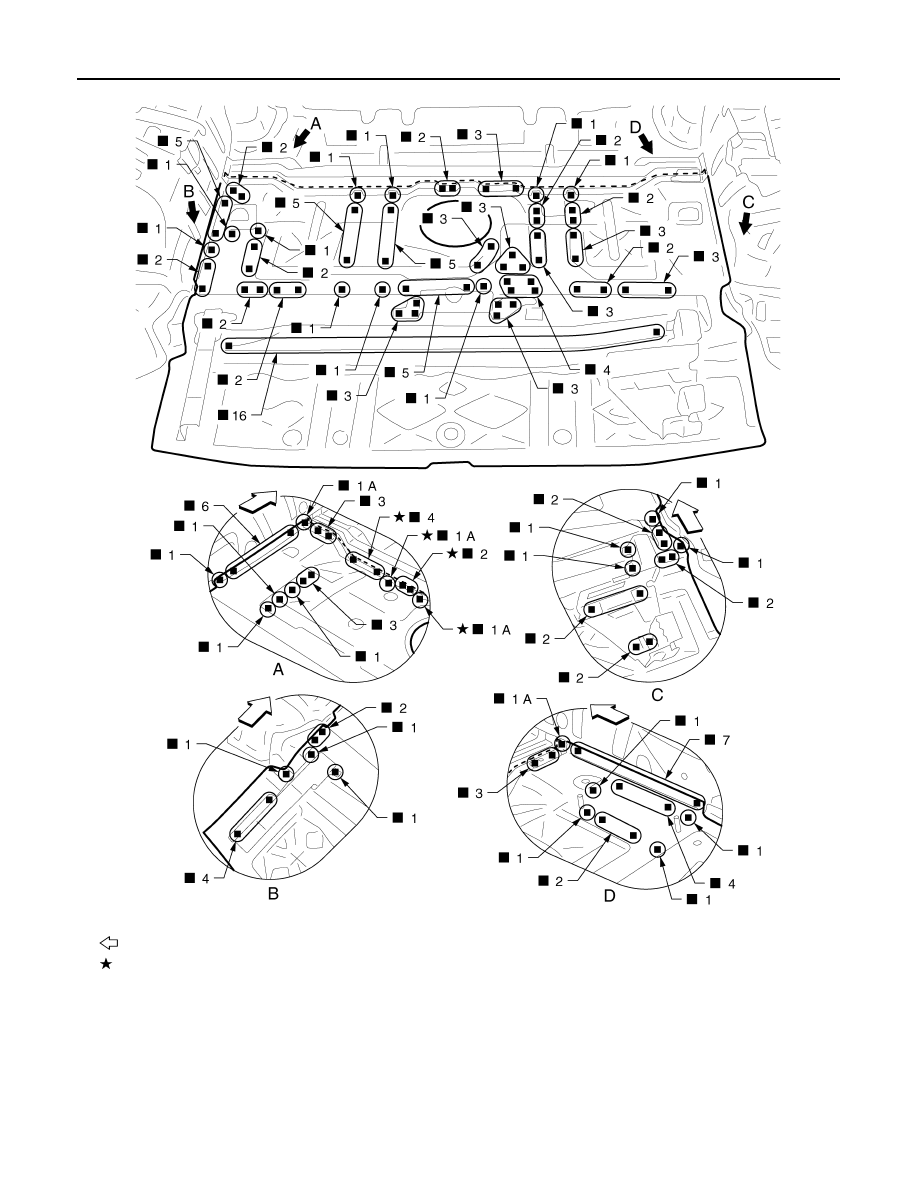

Rear Floor Rear

INFOID:0000000006248506

Work after rear panel and rear end crossmember are removed.

1.

Rear side member

2.

Rear end cross bracket

Unit: mm (in)

: Vehicle front

: Welding method, the number of welding points, and the tightening torque apply to both side of the vehicle.

JSKIA1921GB

BRM-46

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Crush Horn

INFOID:0000000006418933

Work after front bumper crossmember assembly is removed.

CAUTION:

: Vehicle front

: Welding method and the number of welding points apply to both side of the vehicle.

Replacement parts

z

Rear floor rear

z

Jack mounting bracket

z

Trim mounting bracket assembly

z

Rear floor board reinforcement as-
sembly

JSKIA1922ZZ
