REPLACEMENT OPERATIONS

BRM-35

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

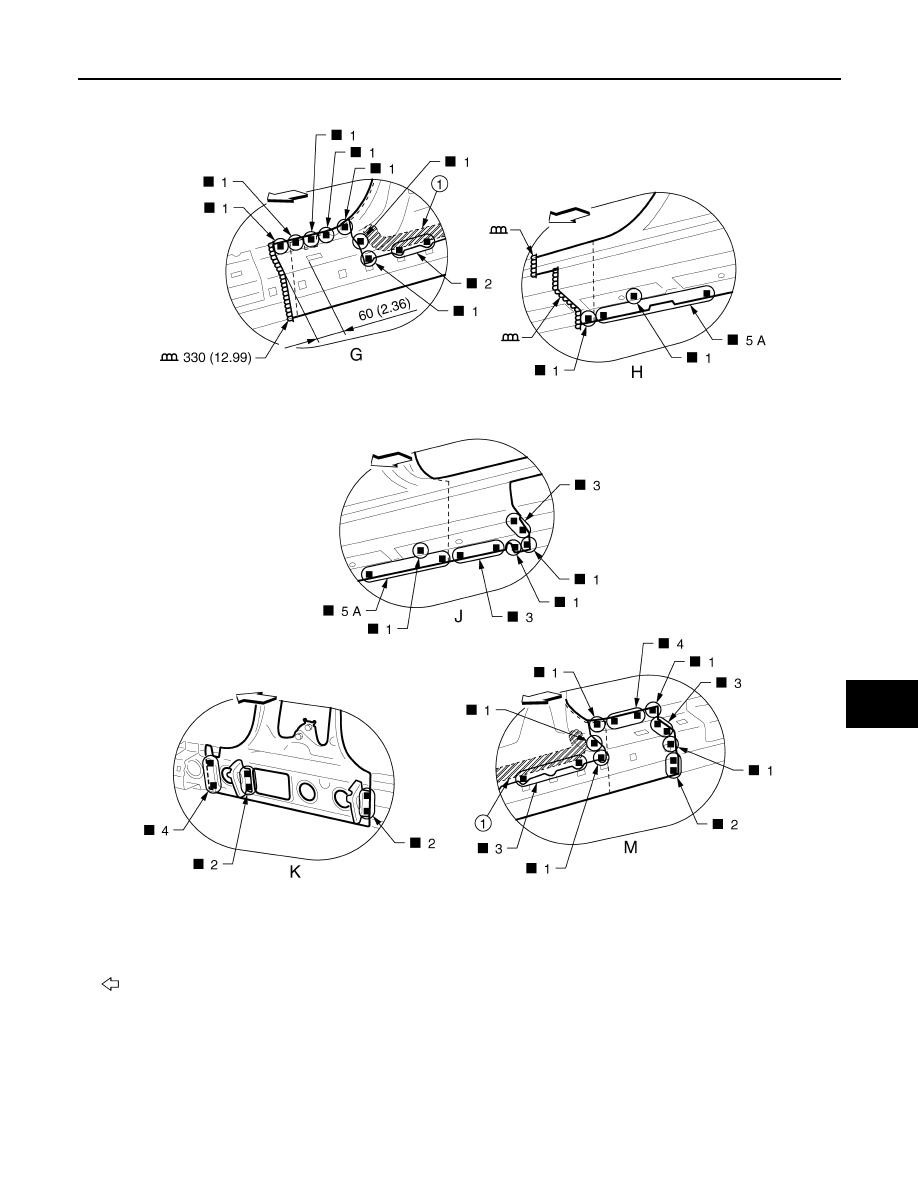

View G and M: Before installing outer front side body
View K: Before installing outer front side body, lower center pillar brace, and outer sill reinforcement

Outer Sill

INFOID:0000000006248502

Remove the front pillar brace (reusable) and lower center pillar brace (reusable) for easier installation.

1.

Urethane foam

Unit: mm (in)

: Vehicle front

JSKIA1919GB

BRM-36

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

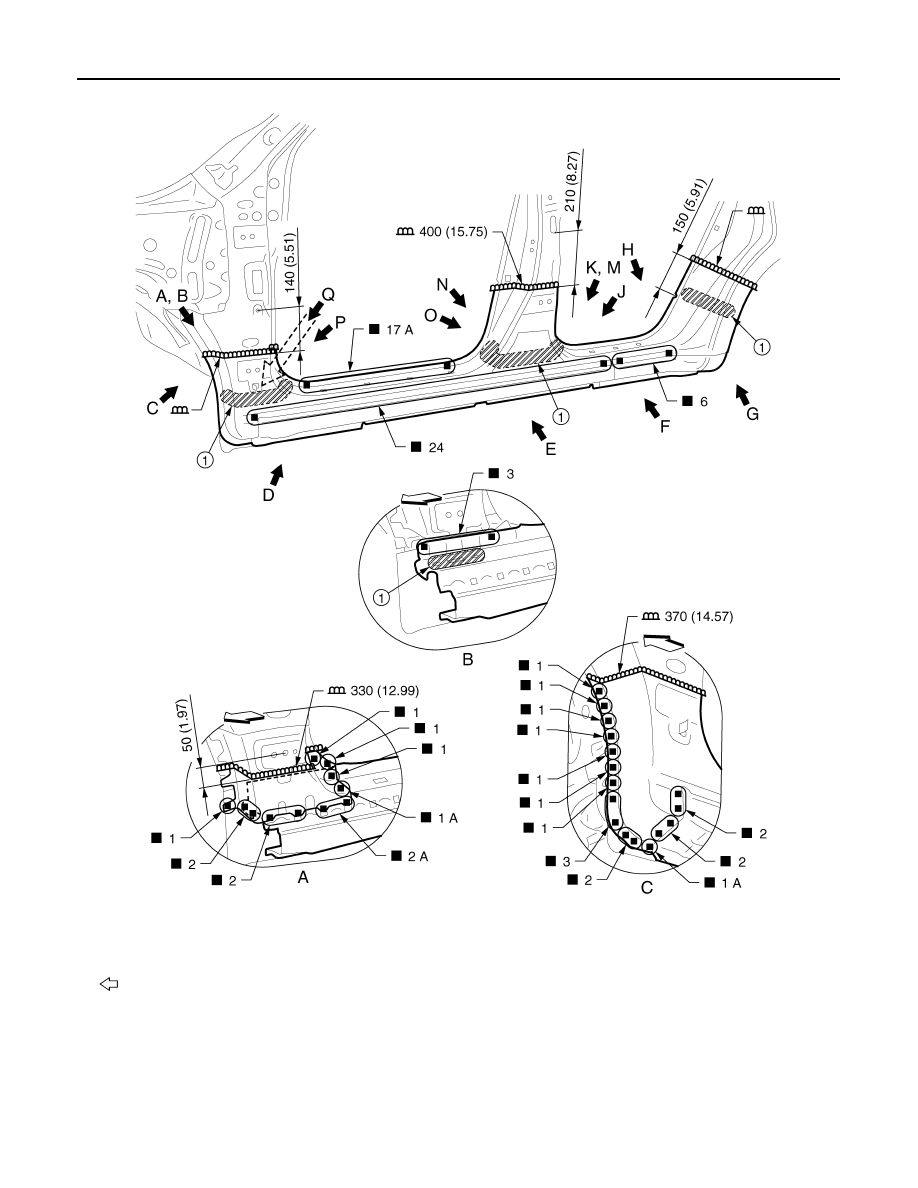

View A: Before installing outer sill
View B: Before installing outer sill and front pillar brace

1.

Urethane foam

Unit: mm (in)

: Vehicle front

Replacement parts

z

Outer sill (LH)

z

Outer sill reinforcement (LH)

z

Front fender bracket assembly (LH)

JSKIA1832GB

REPLACEMENT OPERATIONS

BRM-37

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

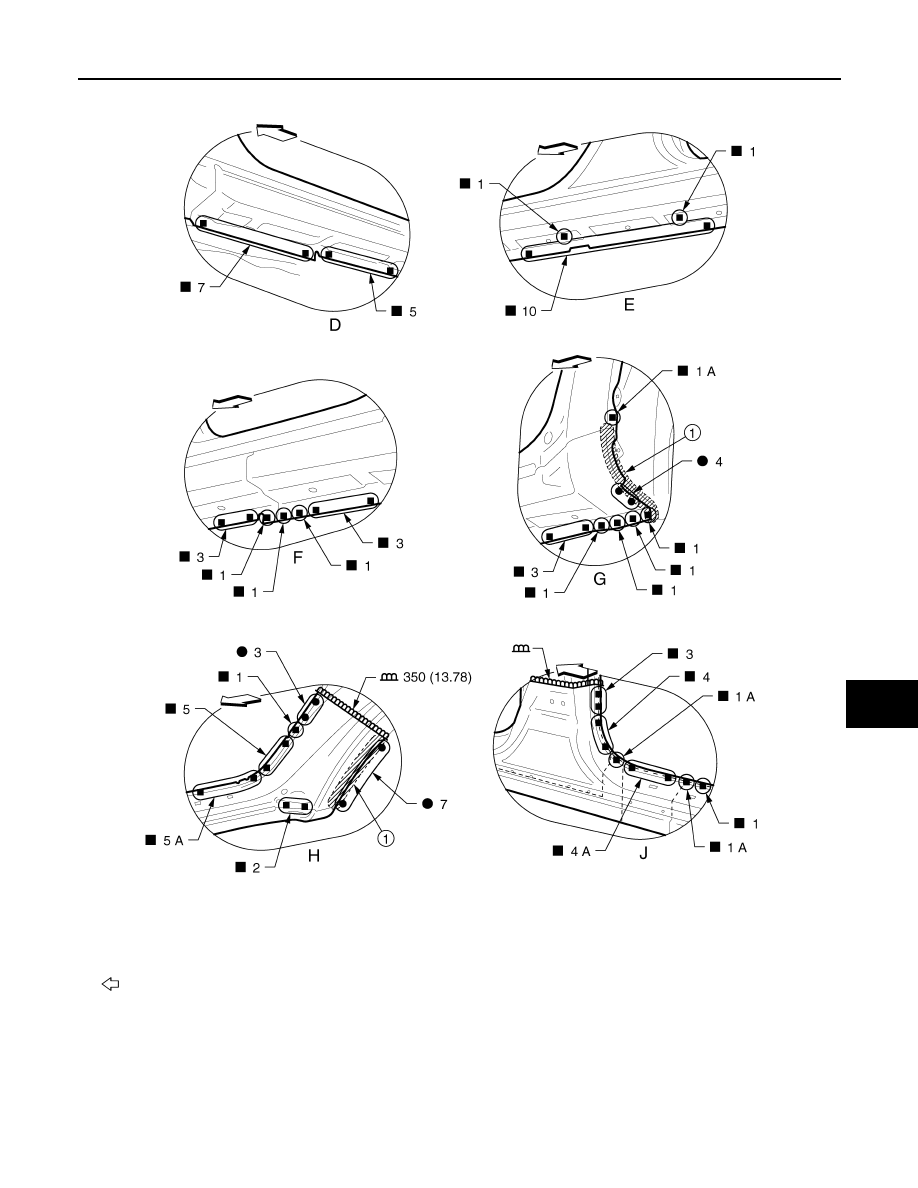

1.

Body sealing

Unit: mm (in)

: Vehicle front

JSKIA1833GB

BRM-38

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

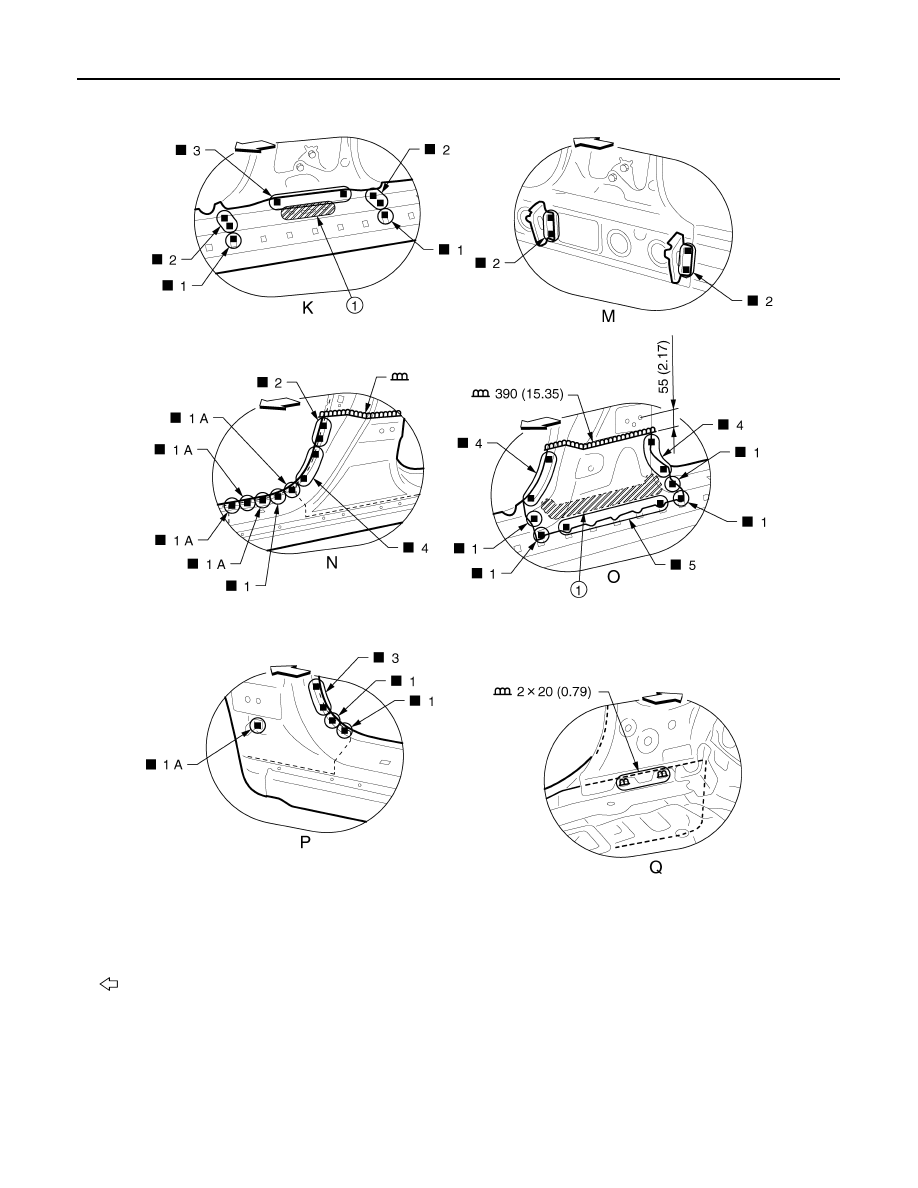

View K: Before installing outer sill and lower center pillar brace
View M: Before installing outer sill, lower center pillar brace, and outer sill reinforcement
View O: Before installing outer sill

1.

Urethane foam

2.

Body sealing

Unit: mm (in)

: Vehicle front

JSKIA1834GB
