Infiniti QX56 (Z62). Manual - part 180





REPLACEMENT OPERATIONS

BRM-47

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

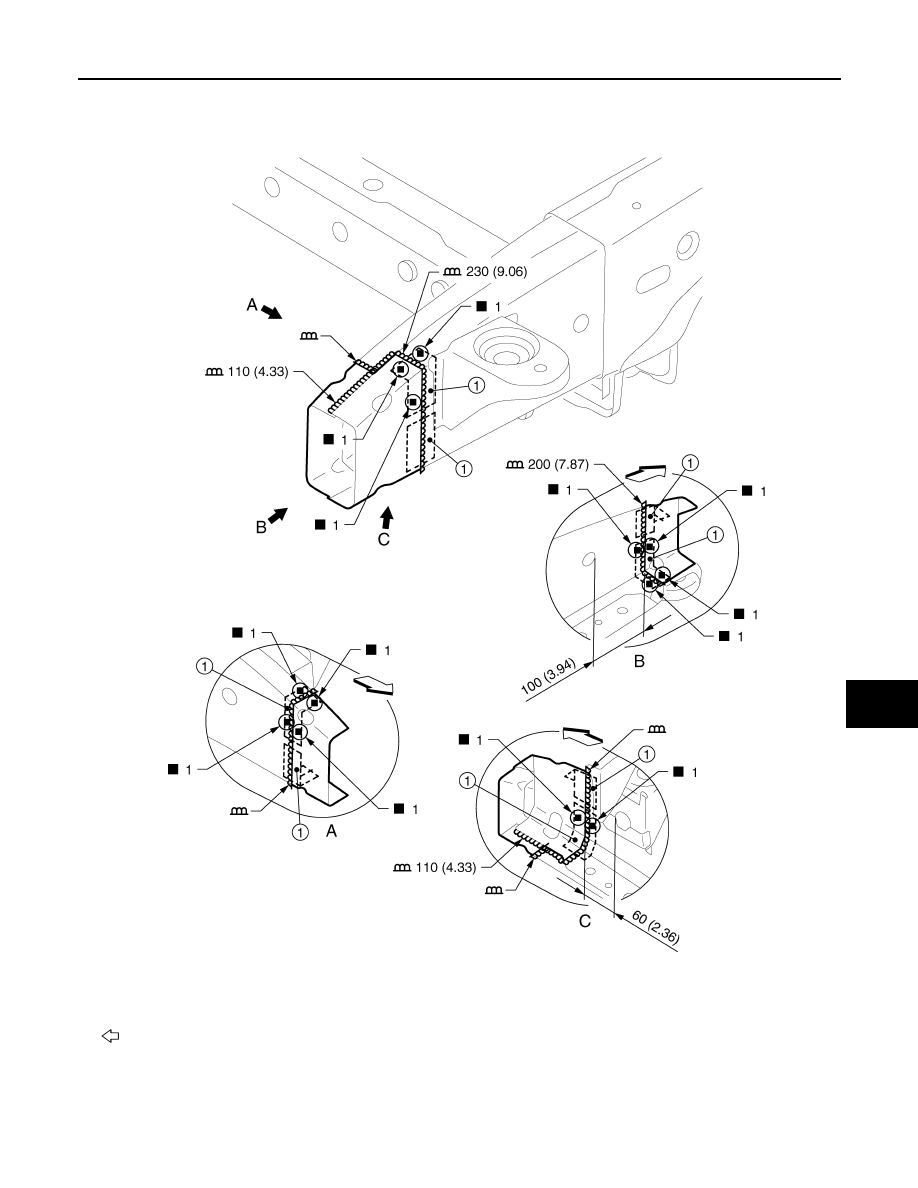

Create the reinforcing sheet from the redundant area of service parts for butt welding area. Weld the
reinforcing sheet on the back of butt welding area, and then perform butt welding.
After welding, apply anti-corrosive wax on the reinforcing sheet-welded area.

View A and B: Before installing outer front side member

1.

Reinforcing sheet

Unit: mm (in)

: Vehicle front

Replacement parts

z

Front side member assembly (LH)

JSKIA2096GB

BRM-48

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

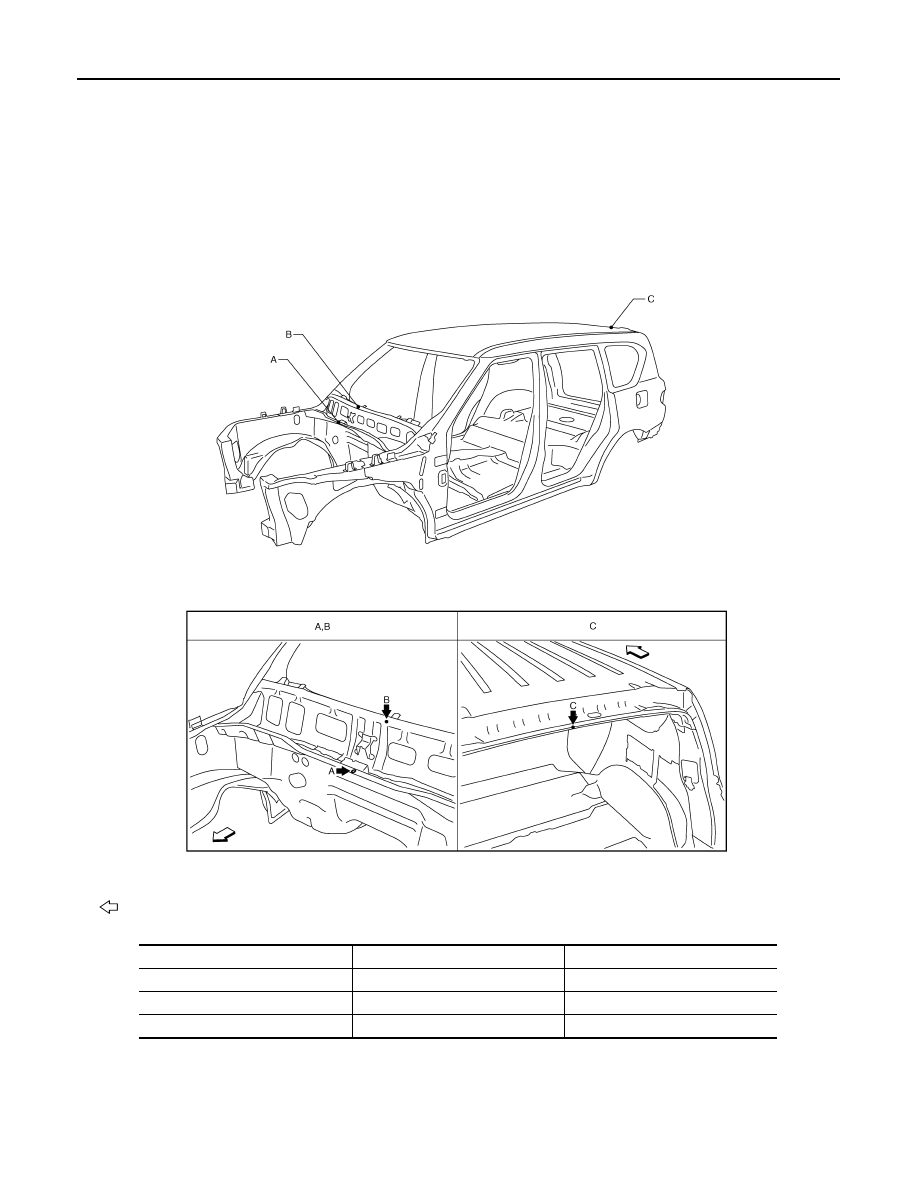

Body Center Marks

INFOID:0000000006248507

A mark is placed on each part of the body to indicate the vehicle center. When repairing the vehicle frame
(members, pillars, etc.) damaged by an accident which it enables more accurate and effective repair by using
these marks together with body alignment specifications.

Unit: mm (in)

Description

INFOID:0000000006248508

• All dimensions indicated in the figures are actual.
• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself

to make sure there is no free play.

: Vehicle front

Points

Portion

Marks

A

Upper dash

Hole 7

×

12 (0.28

×

0.47)

B

Cowl top

Embossment

C

Rear roof

Indent

JSKIA1895ZZ

BODY ALIGNMENT

BRM-49

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
• Measurements should be taken at the center of the mounting holes.
• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side

is symmetrically the same value.

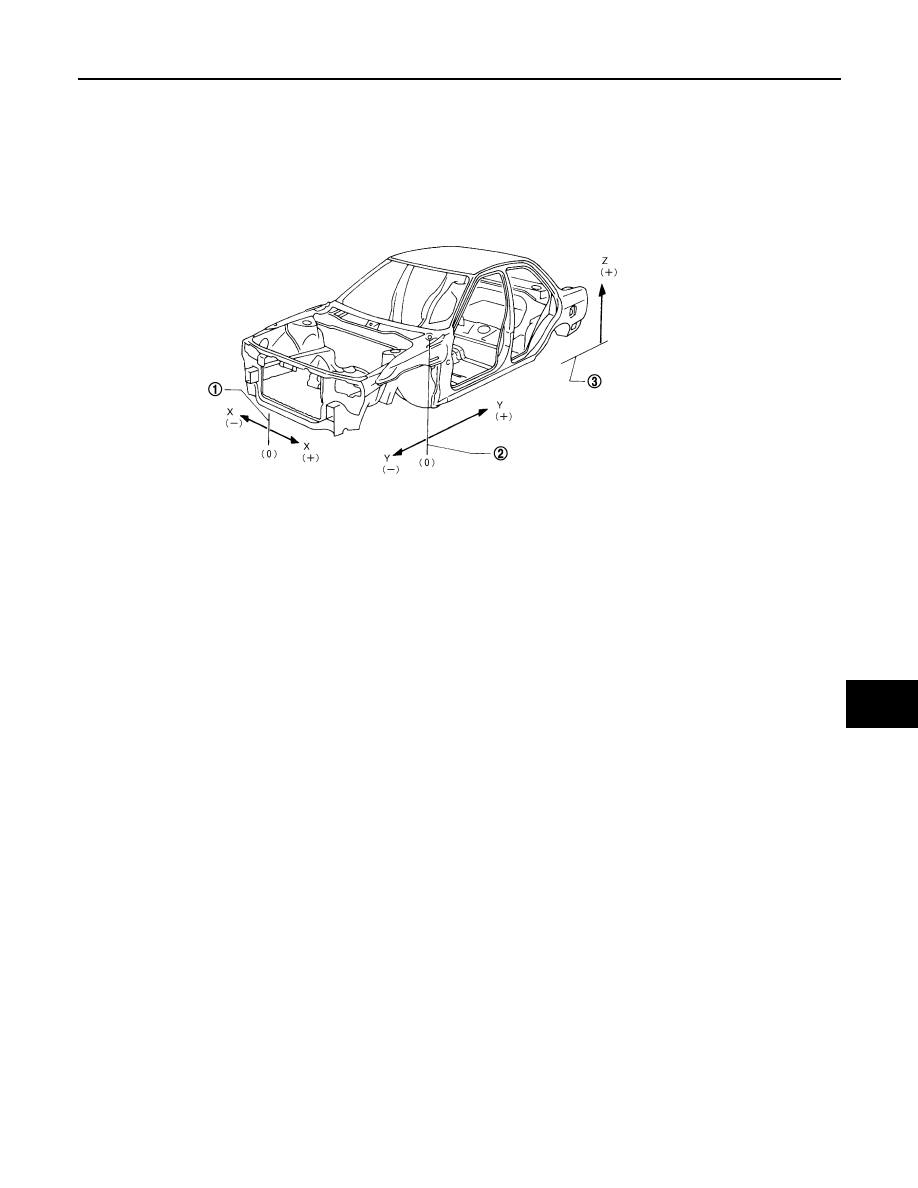

• The coordinates of the measurement points are the distances measured from the standard line of

X

Y

and

Z

.

Z

: Imaginary base line [300 mm (11.81 in) below datum line (

0Z

 at design plan)]

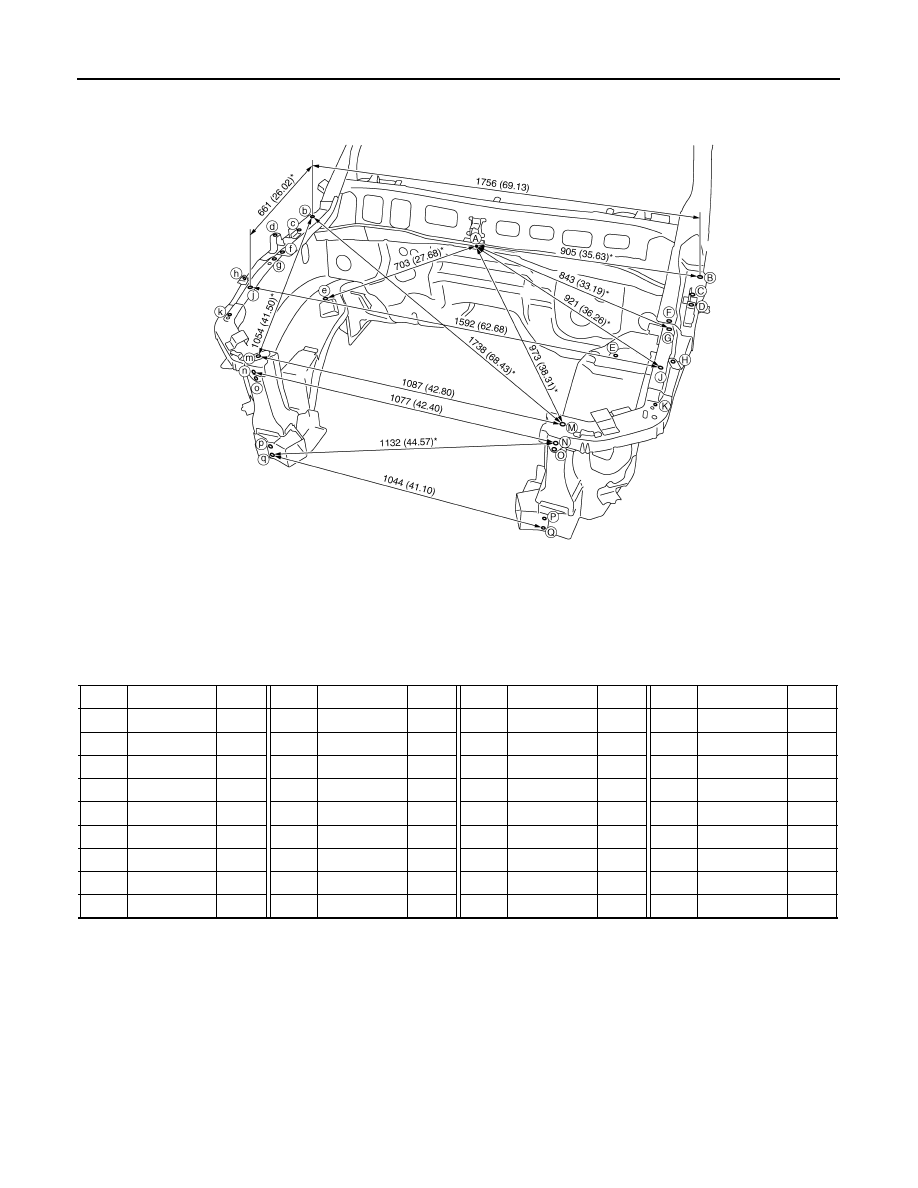

Engine Compartment

INFOID:0000000006248509

Measurement

Dimensions marked with

*

 indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

1.

Vehicle center

2.

Front axle center

3.

Imaginary base line

JSKIA0073GB

BRM-50

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

«The others»

Unit: mm (in)

Measurement Points

Unit: mm (in)

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

A - C

865 (34.06)*

C - M

897 (35.31)*

F - m

1467 (57.76)*

N - o

1078 (42.44)*

A - D

871 (34.29)*

C - m

1635 (64.37)*

G - g

1608 (63.31)

N - p

1117 (43.98)*

A - F

821 (32.32)*

D - d

1719 (67.68)

G - j

1614 (63.54)*

N - Q

397 (15.63)*

A - H

938 (36.93)*

E - M

625 (24.61)*

G - M

613 (24.13)*

O - o

1077 (42.40)

A - K

1013 (39.88)*

E - m

1320 (51.97)*

G - m

1457 (57.36)*

O - P

322 (12.68)*

B - G

453 (17.83)*

F - f

1588 (62.52)

H - h

1657 (65.24)

O - p

1108 (43.62)*

B - g

1740 (68.50)*

F - J

257 (10.12)*

J - M

427 (16.81)*

O - q

1123 (44.21)*

B - j

1798 (70.79)*

F - j

1611 (63.43)*

J - m

1383 (54.45)*

P - p

1044 (41.10)

C - c

1720 (67.72)

F - M

652 (25.67)*

K - k

1600 (62.99)

P - q

1045 (41.14)*

JSKIA1946GB
