A/T CONTROL SYSTEM

AT-17

D

E

F

G

H

I

J

K

L

M

A

B

AT

A/T CONTROL SYSTEM

PFP:31036

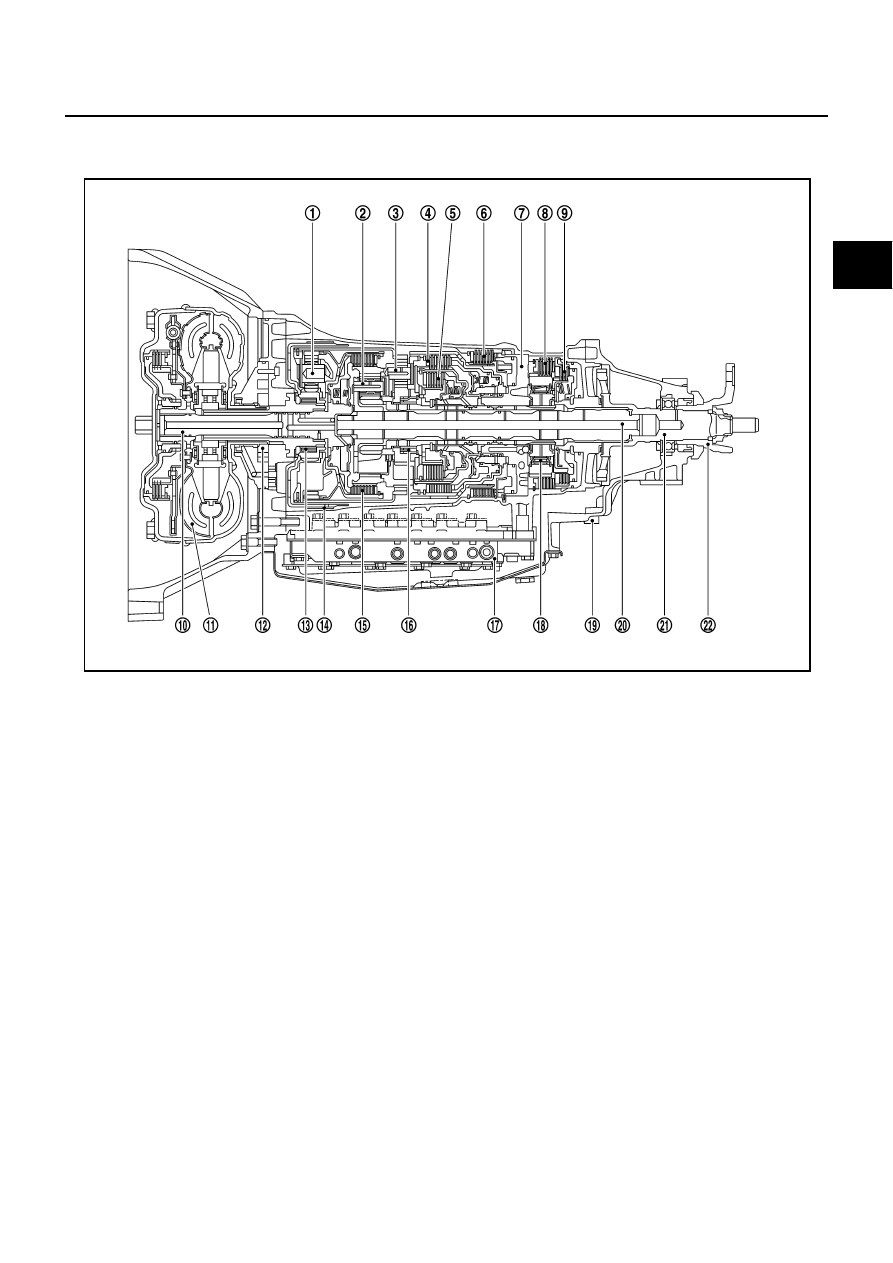

Cross-Sectional View

NCS000TR

1.

Front planetary gear

2.

Mid planetary gear

3.

Rear planetary gear

4.

Direct clutch

5.

High and low reverse clutch

6.

Reverse brake

7.

Drum support

8.

Forward brake

9.

Low coast brake

10. Input shaft

11.

Torque converter

12. Oil pump

13. 3rd one-way clutch

14. Front brake

15. Input clutch

16. 1st one-way clutch

17. Control valve with TCM

18. Forward one-way clutch

19. Rear extension

20. Intermediate shaft

21. Output shaft

22. Companion flange

SCIA6948E

AT-18

A/T CONTROL SYSTEM

Shift Mechanism

NCS000TS

The A/T uses compact triple planetary gear systems to improve power transmission efficiency, simplify con-
struction and reduce weight.
It also employs an optimum shift control and super wide gear ratios. They improve starting performance and
acceleration during medium and high-speed operation.

CONSTRUCTION

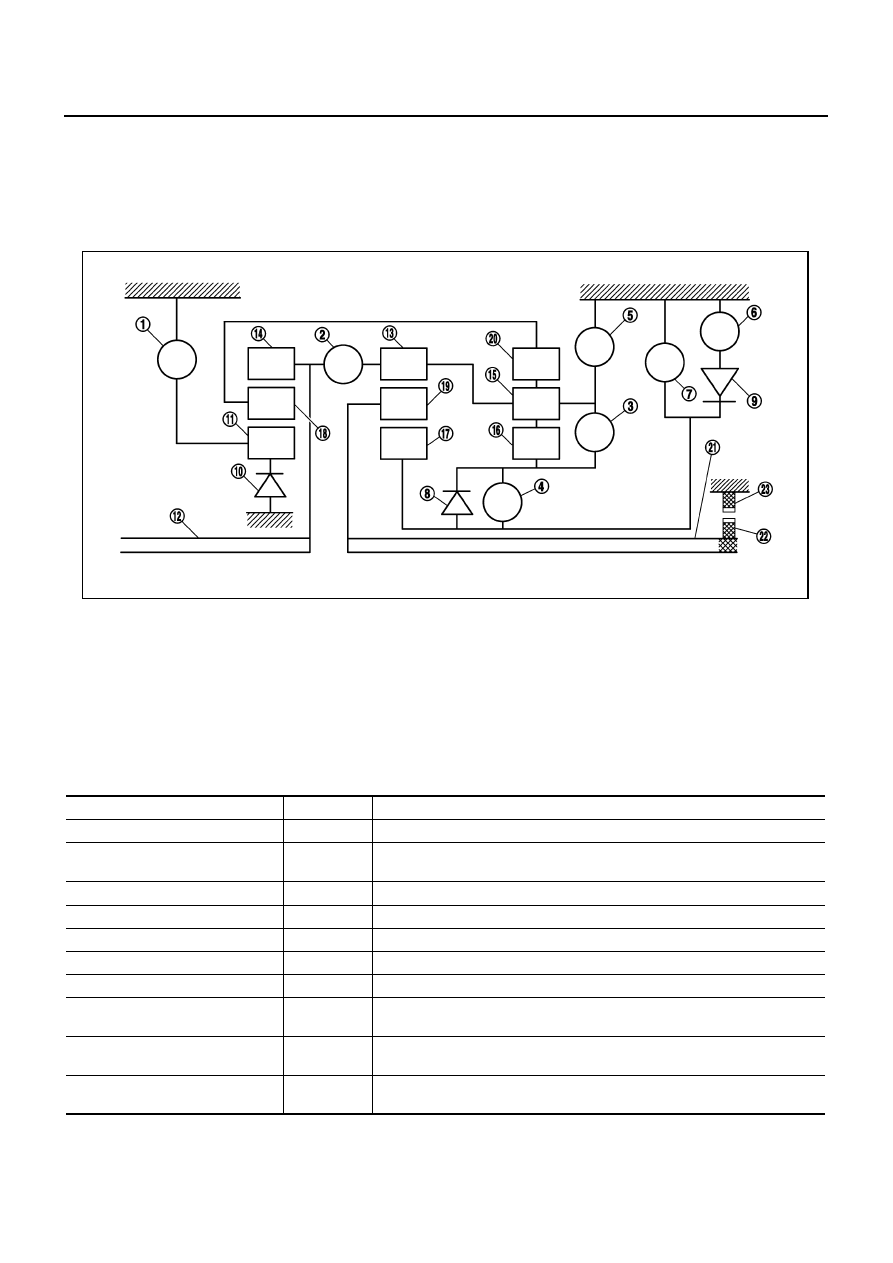

FUNCTION OF CLUTCH AND BRAKE

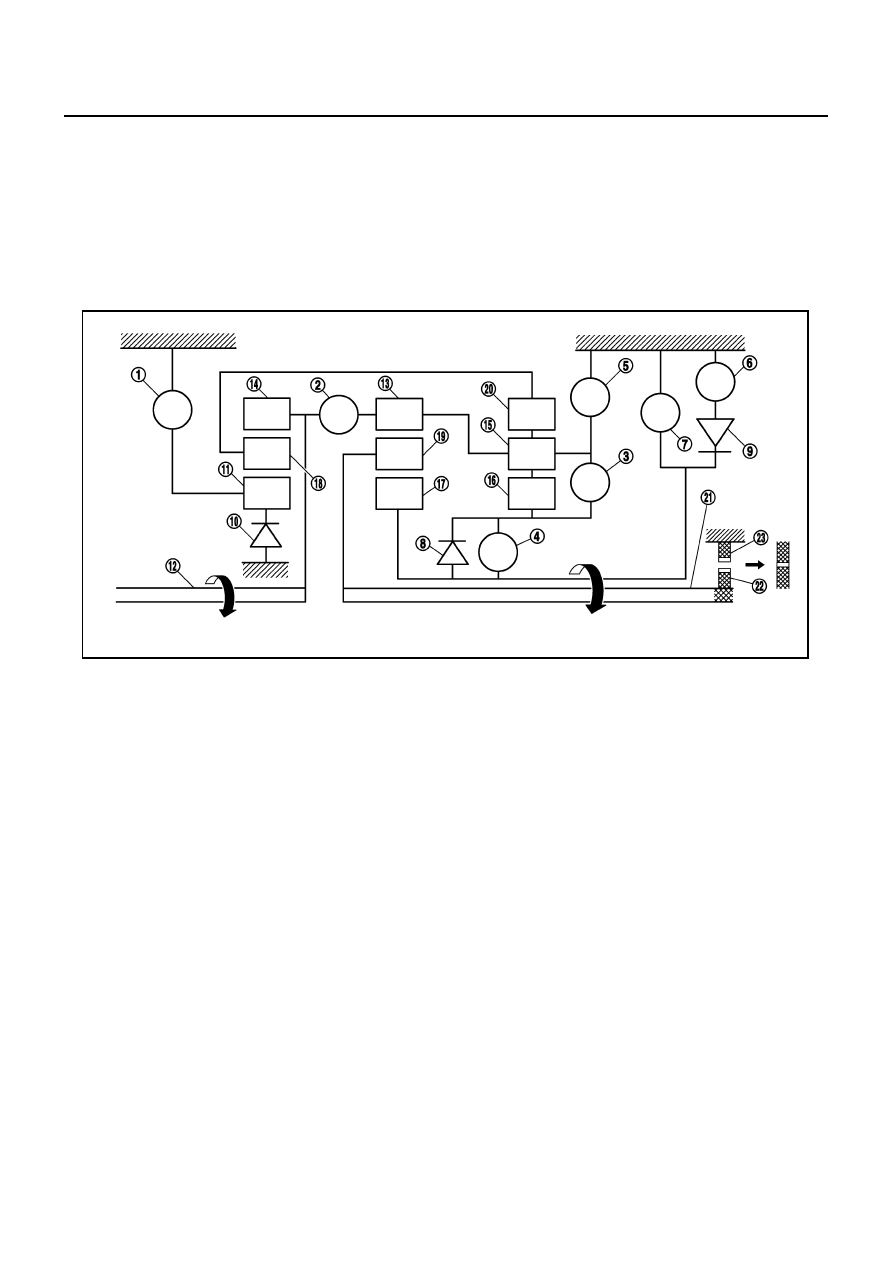

1.

Front brake

2.

Input clutch

3.

Direct clutch

4.

High and low reverse clutch

5.

Reverse brake

6.

Forward brake

7.

Low coast brake

8.

1st one-way clutch

9.

Forward one-way clutch

10. 3rd one-way clutch

11.

Front sun gear

12. Input shaft

13. Mid internal gear

14.

Front internal gear

15. Rear carrier

16. Rear sun gear

17.

Mid sun gear

18. Front carrier

19. Mid carrier

20.

Rear internal gear

21. Output shaft

22. Parking gear

23.

Parking pawl

PCIA0002J

Name of the Part

Abbreviation

Function

Front brake (1)

FR/B

Fastens the front sun gear (11).

Input clutch (2)

I/C

Connects the input shaft (12), the front internal gear (14) and the mid internal
gear (13).

Direct clutch (3)

D/C

Connects the rear carrier (15) and the rear sun gear (16).

High and low reverse clutch (4)

HLR/C

Connects the mid sun gear (17) and the rear sun gear (16).

Reverse brake (5)

R/B

Fastens the rear carrier (15).

Forward brake (6)

Fwd/B

Fastens the mid sun gear (17).

Low coast brake (7)

LC/B

Fastens the mid sun gear (17).

1st one-way clutch (8)

1st OWC

Allows the rear sun gear (16) to turn freely forward relative to the mid sun gear
(17) but fastens it for reverse rotation.

Forward one-way clutch (9)

Fwd OWC

Allows the mid sun gear (17) to turn freely in the forward direction but fastens it
for reverse rotation.

3rd one-way clutch (10)

3rd OWC

Allows the front sun gear (11) to turn freely in the forward direction but fastens
it for reverse rotation.

A/T CONTROL SYSTEM

AT-19

D

E

F

G

H

I

J

K

L

M

A

B

AT

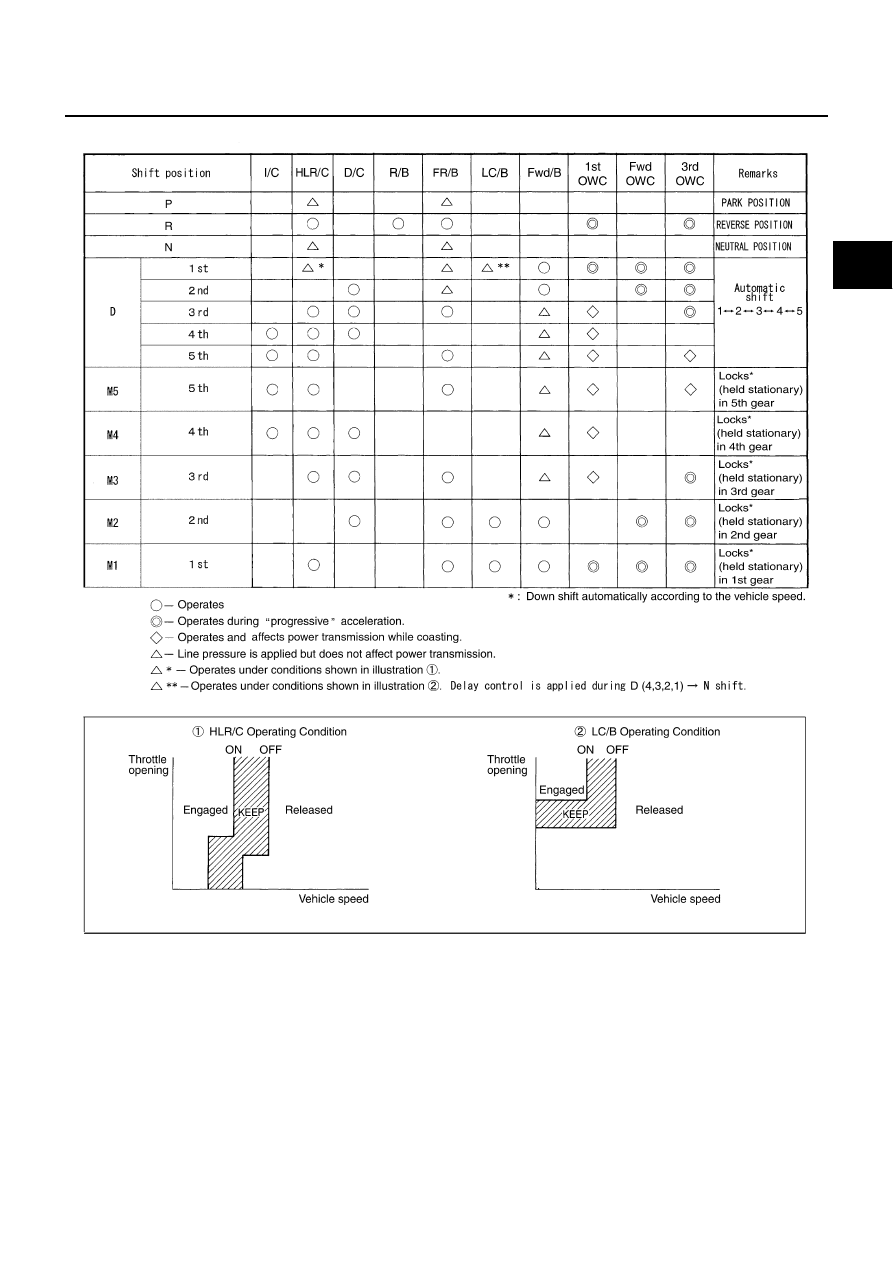

CLUTCH AND BAND CHART

SCIA6962E

AT-20

A/T CONTROL SYSTEM

POWER TRANSMISSION
“N” Position

Since both the forward brake and the reverse brake are released, torque from the input shaft drive is not trans-
mitted to the output shaft.

“P” Position

The same as for the “N” position, both the forward brake and the reverse brake are released, so torque
from the input shaft drive is not transmitted to the output shaft.

The parking pawl linked with the selector lever meshes with the parking gear and fastens the output shaft
mechanically.

1.

Front brake

2.

Input clutch

3.

Direct clutch

4.

High and low reverse clutch

5.

Reverse brake

6.

Forward brake

7.

Low coast brake

8.

1st one-way clutch

9.

Forward one-way clutch

10. 3rd one-way clutch

11.

Front sun gear

12. Input shaft

13. Mid internal gear

14. Front internal gear

15. Rear carrier

16. Rear sun gear

17. Mid sun gear

18. Front carrier

19. Mid carrier

20. Rear internal gear

21. Output shaft

22. Parking gear

23. Parking pawl

PCIA0003J
