Infiniti Q45. Manual - part 25





A/T FLUID

AT-13

D

E

F

G

H

I

J

K

L

M

A

B

AT

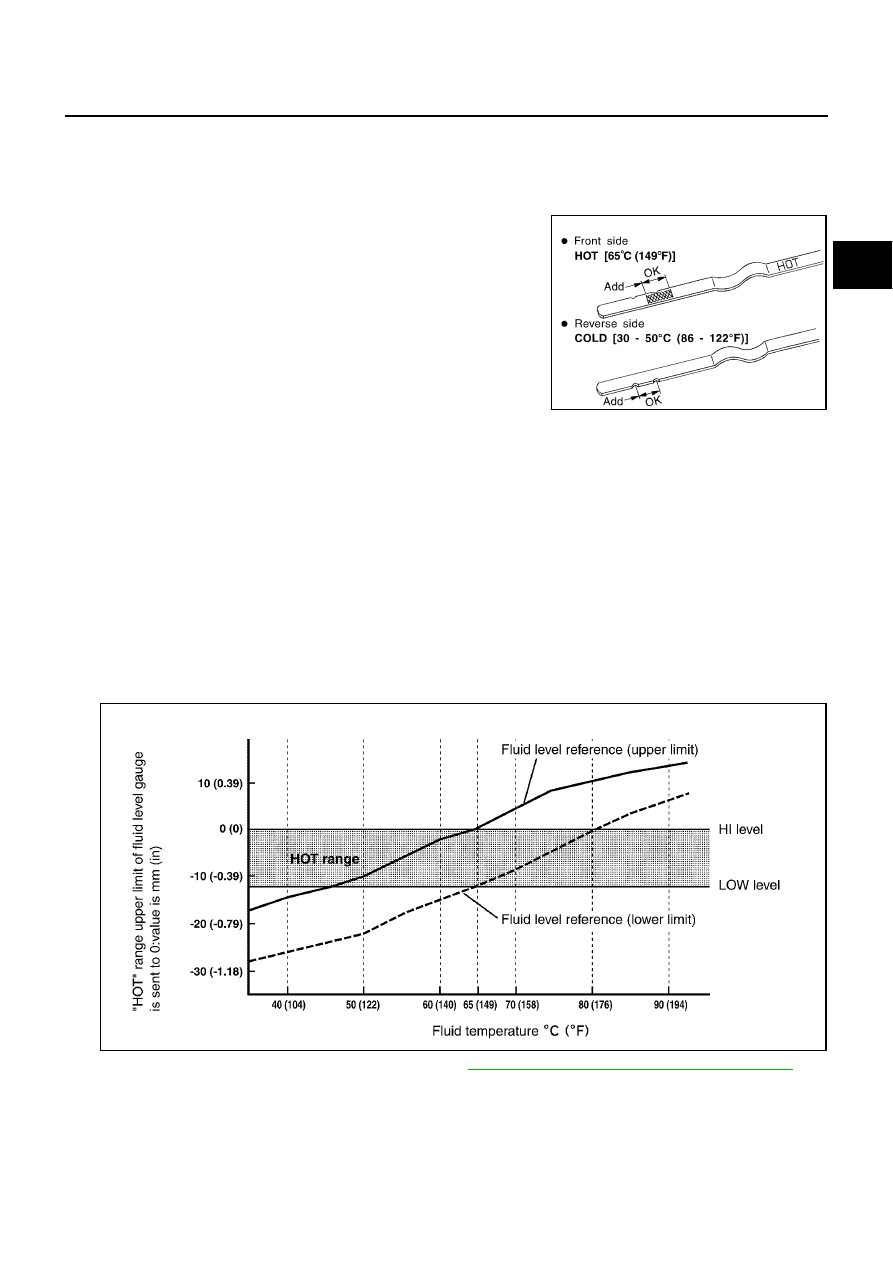

Checking A/T Fluid

NCS000TP

1.

Warm up engine.

2.

Check for A/T fluid leakage.

3.

Loosen the level gauge bolt.

4.

Before driving, A/T fluid level can be checked at A/T fluid tem-
peratures of 30 to 50

°

C (86 to 122

°

F) using “COLD” range on A/

T fluid level gauge as follows.

a.

Park vehicle on level surface and set parking brake.

b.

Start engine and move selector lever through each gear posi-
tion. Leave selector lever in “P” position.

c.

Check A/T fluid level with engine idling.

d.

Remove A/T fluid level gauge and wipe clean with lint-free
paper.

CAUTION:

When wiping away the A/T fluid level gauge, always use
lint-free paper, not a cloth one.

e.

Re-insert A/T fluid level gauge into A/T fluid charging pipe as far as it will go.

CAUTION:

To check A/T fluid level, insert the A/T fluid level gauge until the cap contacts the end of the A/T
fluid charging pipe, with the A/T fluid level gauge reversed from the normal attachment conditions.

f.

Remove A/T fluid level gauge and note reading. If reading is at low side of range, add ATF to the A/T fluid
charging pipe.

CAUTION:

Do not overfill.

5.

Drive vehicle for approximately 5 minutes in urban areas.

6.

Make the A/T fluid temperature approximately 65

°

C (149

°

F).

NOTE:
A/T fluid level will be greatly affected by temperature as shown in figure. Therefore, be certain to
perform operation while checking data with CONSULT-II.

a.

Connect CONSULT-II to data link connector. Refer to

AT-87, "CONSULT-II SETTING PROCEDURE"

 .

b.

Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.

c.

Read out the value of “ATF TEMP 1”.

7.

Recheck A/T fluid level at A/T fluid temperatures of approximately 65

°

C (149

°

F) using “HOT” range on A/

T fluid level gauge.

SCIA7120E

SLIA0016E

AT-14

A/T FLUID

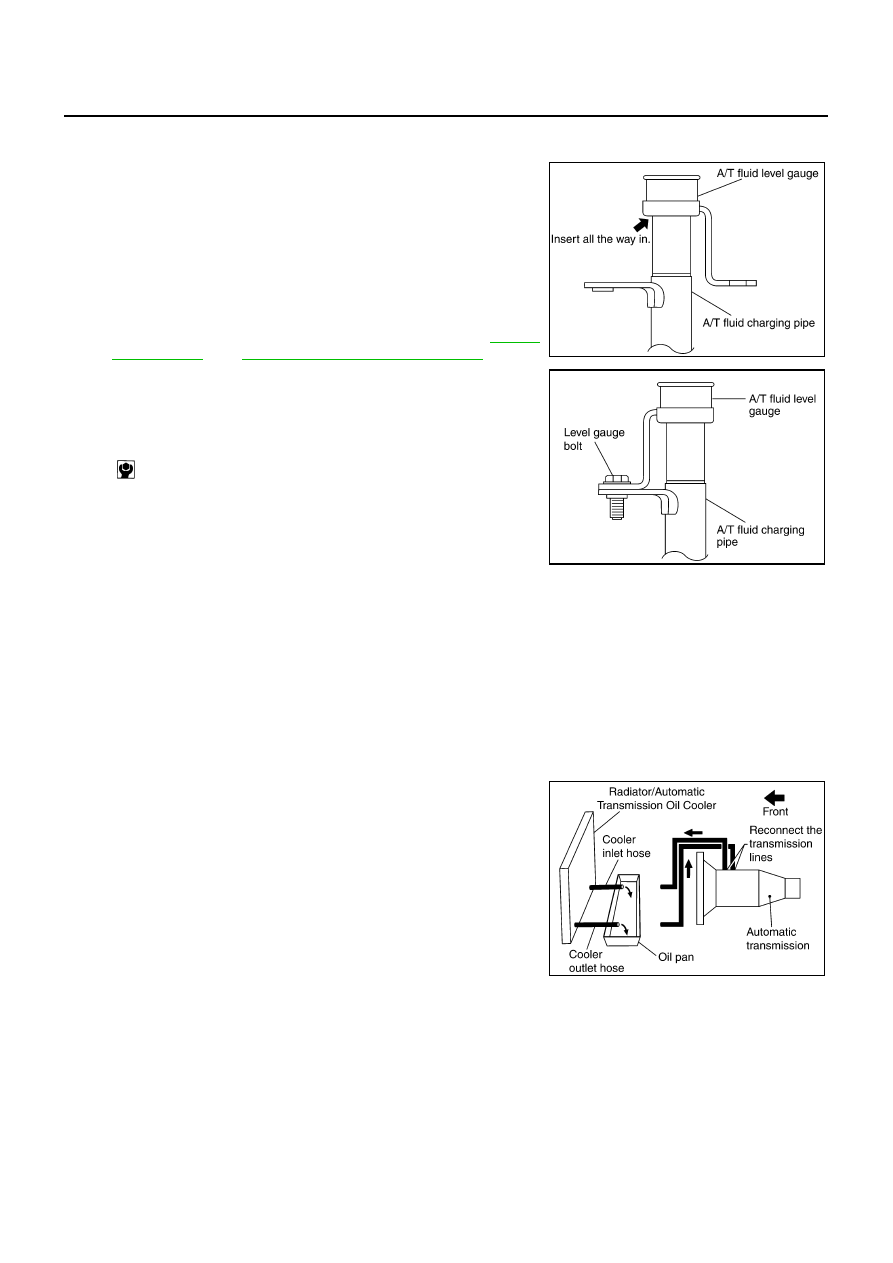

CAUTION:

When wiping away the A/T fluid level gauge, always use lint-free paper, not a cloth one.

To check A/T fluid level, insert the A/T fluid level gauge
until the cap contacts the end of the A/T fluid charging
pipe, with the A/T fluid level gauge reversed from the nor-
mal attachment conditions as shown.

8.

Check A/T fluid condition.

If ATF is very dark or smells burned, check operation of A/T.
Flush cooling system after repair of A/T.

If ATF contains frictional material (clutches, bands, etc.),
replace radiator and flush cooler line using cleaning solvent
and compressed air after repair of A/T. Refer to

CO-11,

"RADIATOR"

  and

AT-14, "A/T Fluid Cooler Cleaning"

 .

9.

Install the removed A/T fluid level gauge in the A/T fluid charging
pipe.

10. Tighten level gauge bolt.

A/T Fluid Cooler Cleaning

NCS000TQ

Whenever an A/T is replaced, the A/T fluid cooler mounted in the radiator must be inspected and cleaned.
Metal debris and friction material, if present, can become trapped in the A/T fluid cooler. This debris can con-
taminate the newly serviced A/T or, in severe cases, can block or restrict the flow of ATF. In either case, mal-
function of the newly serviced A/T may result.
Debris, if present, may build up as ATF enters the cooler inlet. It will be necessary to back flush the cooler
through the cooler outlet in order to flush out any built up debris.

A/T FLUID COOLER CLEANING PROCEDURE

1.

Position an oil pan under the A/T inlet and outlet cooler hoses.

2.

Identify the inlet and outlet A/T fluid cooler hoses.

3.

Disconnect the A/T fluid cooler inlet and outlet rubber hoses
from the steel cooler tubes or bypass valve.

NOTE:
Replace the cooler hoses if rubber material from the hose
remains on the tube fitting.

4.

Allow any ATF that remains in the cooler hoses to drain into the
oil pan.

Level gauge bolt:

: 5.1 N·m (0.52 kg-m, 45 in-lb)

SCIA2899E

SCIA4896E

SCIA3830E

A/T FLUID

AT-15

D

E

F

G

H

I

J

K

L

M

A

B

AT

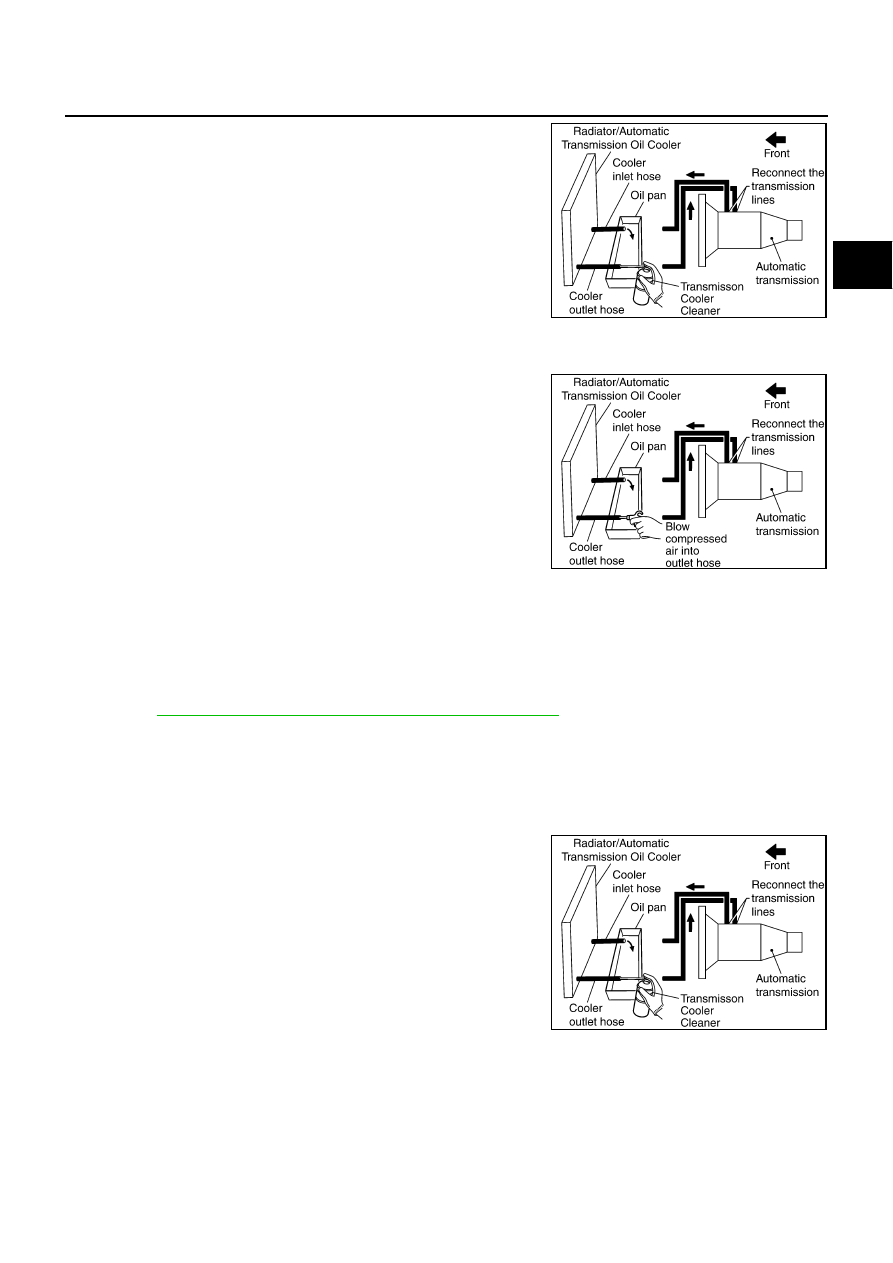

5.

Insert the extension adapter hose of a can of Transmission
Cooler Cleaner (Nissan P/N 999MP-AM006) into the cooler out-
let hose.

CAUTION:

Wear safety glasses and rubber gloves when spraying
the Transmission Cooler Cleaner.

Spray Transmission Cooler Cleaner only with adequate
ventilation.

Avoid contact with eyes and skin.

Do not breath vapors or spray mist.

6.

Hold the hose and can as high as possible and spray Transmis-
sion Cooler Cleaner in a continuous stream into the cooler outlet hose until ATF flows out of the cooler
inlet hose for 5 seconds.

7.

Insert the tip of an air gun into the end of the cooler outlet hose.

8.

Wrap a shop rag around the air gun tip and of the cooler outlet
hose.

9.

Blow compressed air regulated to 5 to 9 kg/cm

2

  (70 to 130 psi)

through the cooler outlet hose for 10 seconds to force out any
remaining ATF.

10. Repeat steps 5 through 9 three additional times.

11. Position an oil pan under the banjo bolts that connect the A/T

fluid cooler steel lines to the A/T.

12. Remove the banjo bolts.

13. Flush each steel line from the cooler side back toward the trans-

mission by spraying Transmission Cooler Cleaner in a continuous stream for 5 seconds.

14. Blow compressed air regulated to 5 to 9 kg/cm

2

  (70 to 130 psi) through each steel line from the cooler

side back toward the A/T for 10 seconds to force out any remaining ATF.

15. Ensure all debris is removed from the steel cooler lines.

16. Ensure all debris is removed from the banjo bolts and fittings.

17. Perform

AT-15, "A/T FLUID COOLER DIAGNOSIS PROCEDURE"

 .

A/T FLUID COOLER DIAGNOSIS PROCEDURE

NOTE:
Insufficient cleaning of the cooler inlet hose exterior may lead to inaccurate debris identification.

1.

Position an oil pan under the A/T inlet and outlet cooler hoses.

2.

Clean the exterior and tip of the cooler inlet hose.

3.

Insert the extension adapter hose of a can of Transmission
Cooler Cleaner (Nissan P/N 999MP-AM006) into the cooler out-
let hose.

CAUTION:

Wear safety glasses and rubber gloves when spraying
the Transmission Cooler Cleaner.

Spray Transmission Cooler Cleaner only with adequate
ventilation.

Avoid contact with eyes and skin.

Do not breath vapors or spray mist.

4.

Hold the hose and can as high as possible and spray Transmis-
sion Cooler Cleaner in a continuous stream into the cooler outlet hose until ATF flows out of the cooler
inlet hose for 5 seconds.

SCIA3831E

SCIA3832E

SCIA3831E

AT-16

A/T FLUID

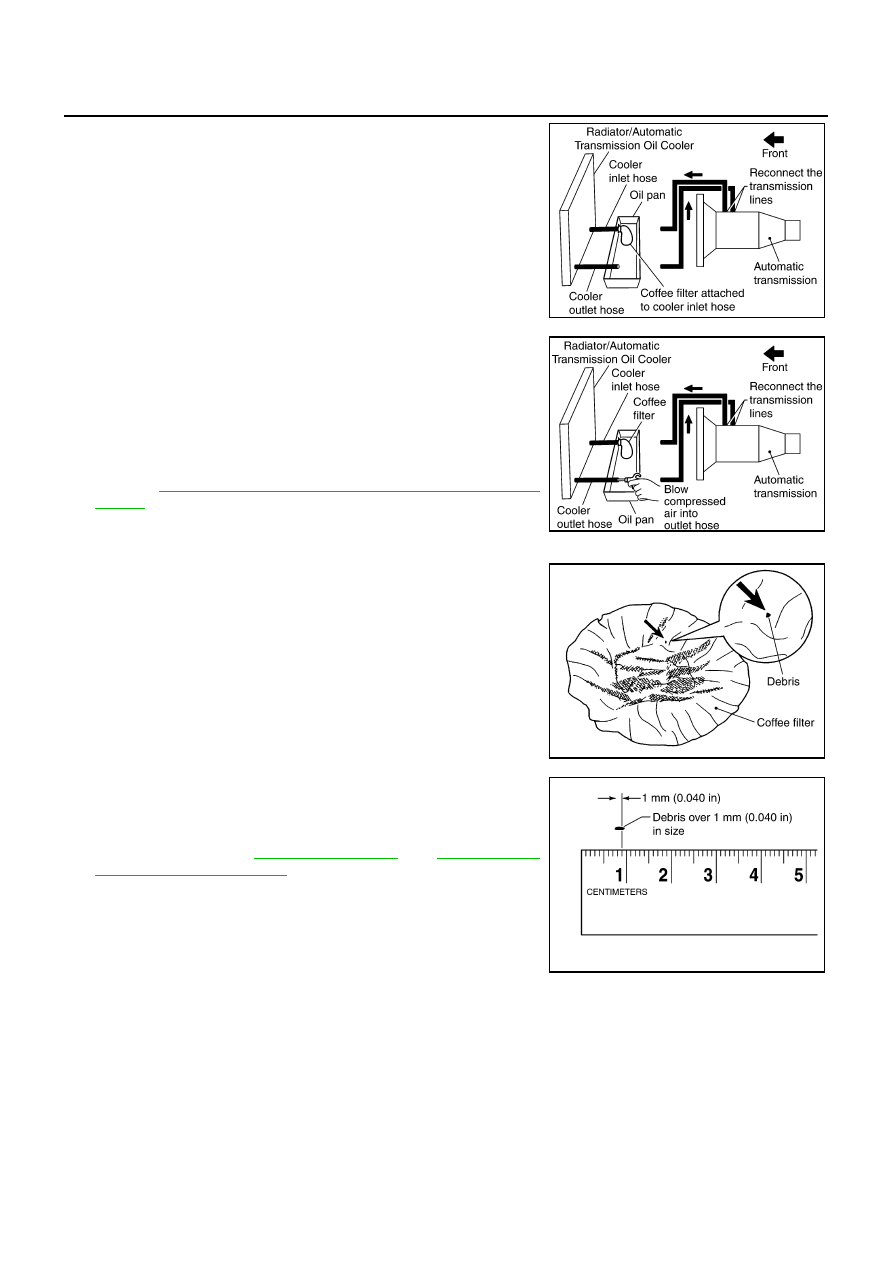

5.

Tie a common white, basket-type coffee filter to the end of the
cooler inlet hose.

6.

Insert the tip of an air gun into the end of the cooler outlet hose.

7.

Wrap a shop rag around the air gun tip and end of cooler outlet
hose.

8.

Blow compressed air regulated to 5 to 9 kg/cm

2

  (70 to 130 psi)

through the cooler outlet hose to force any remaining ATF into
the coffee filter.

9.

Remove the coffee filter from the end of the cooler inlet hose.

10. Perform

AT-16, "A/T FLUID COOLER INSPECTION PROCE-

DURE"

 .

A/T FLUID COOLER INSPECTION PROCEDURE

1.

Inspect the coffee filter for debris.

a.

If small metal debris less than 1 mm (0.040 in) in size or metal
powder is found in the coffee filter, this is normal. If normal
debris is found, the A/T fluid cooler/radiator can be re-used and
the procedure is ended.

b.

If one or more pieces of debris are found that are over 1 mm
(0.040 in) in size and/or peeled clutch facing material is found in
the coffee filter, the A/T fluid cooler is not serviceable. The A/T
fluid cooler/radiator must be replaced and the inspection proce-
dure is ended.Refer to

CO-11, "RADIATOR"

  and

CO-14, "RADI-

ATOR (ALUMINUM TYPE)"

 .

A/T FLUID COOLER FINAL INSPECTION

After performing all procedures, ensure that all remaining oil is cleaned from all components.

SCIA3833E

SCIA3834E

SCIA2967E

SCIA7031E
