Infiniti Q45. Manual - part 24





PRECAUTIONS

AT-9

D

E

F

G

H

I

J

K

L

M

A

B

AT

After overhaul, refill the A/T with new ATF.

When the drain plug is removed, only some of the ATF is drained. Old ATF will remain in torque converter
and A/T fluid cooling system.
Always follow the procedures under “Changing A/T Fluid” in the AT section when changing A/T fluid. Refer
to

AT-12, "Changing A/T Fluid"

 ,

AT-13, "Checking A/T Fluid"

 .

Service Notice or Precautions

NCS000TK

A/T FLUID COOLER SERVICE

If ATF contains frictional material (clutches, bands, etc.), or if an A/T is repaired, overhauled, or replaced,
inspect and clean the A/T fluid cooler mounted in the radiator or replace the radiator. Flush cooler lines using
cleaning solvent and compressed air after repair. For A/T fluid cooler cleaning procedure, refer to

AT-14, "A/T

Fluid Cooler Cleaning"

 . For radiator replacement, refer to

CO-11, "RADIATOR"

 .

OBD-II SELF-DIAGNOSIS

A/T self-diagnosis is performed by the TCM in combination with the ECM. The results can be read through
the blinking pattern of the A/T CHECK indicator or the malfunction indicator lamp (MIL). Refer to the table
on

AT-87, "SELF-DIAGNOSTIC RESULT MODE"

  for the indicator used to display each self-diagnostic

result.

The self-diagnostic results indicated by the MIL are automatically stored in both the ECM and TCM mem-
ories.
Always perform the procedure on

AT-39, "HOW TO ERASE DTC"

  to complete the repair and avoid

unnecessary blinking of the MIL.

 For details of OBD-II, refer to

EC-47, "ON BOARD DIAGNOSTIC (OBD) SYSTEM"

 .

Certain systems and components, especially those related to OBD, may use the new style slide-
locking type harness connector. For description and how to disconnect, refer to

PG-60, "HAR-

NESS CONNECTOR"

 .

AT-10

PREPARATION

PREPARATION

PFP:00002

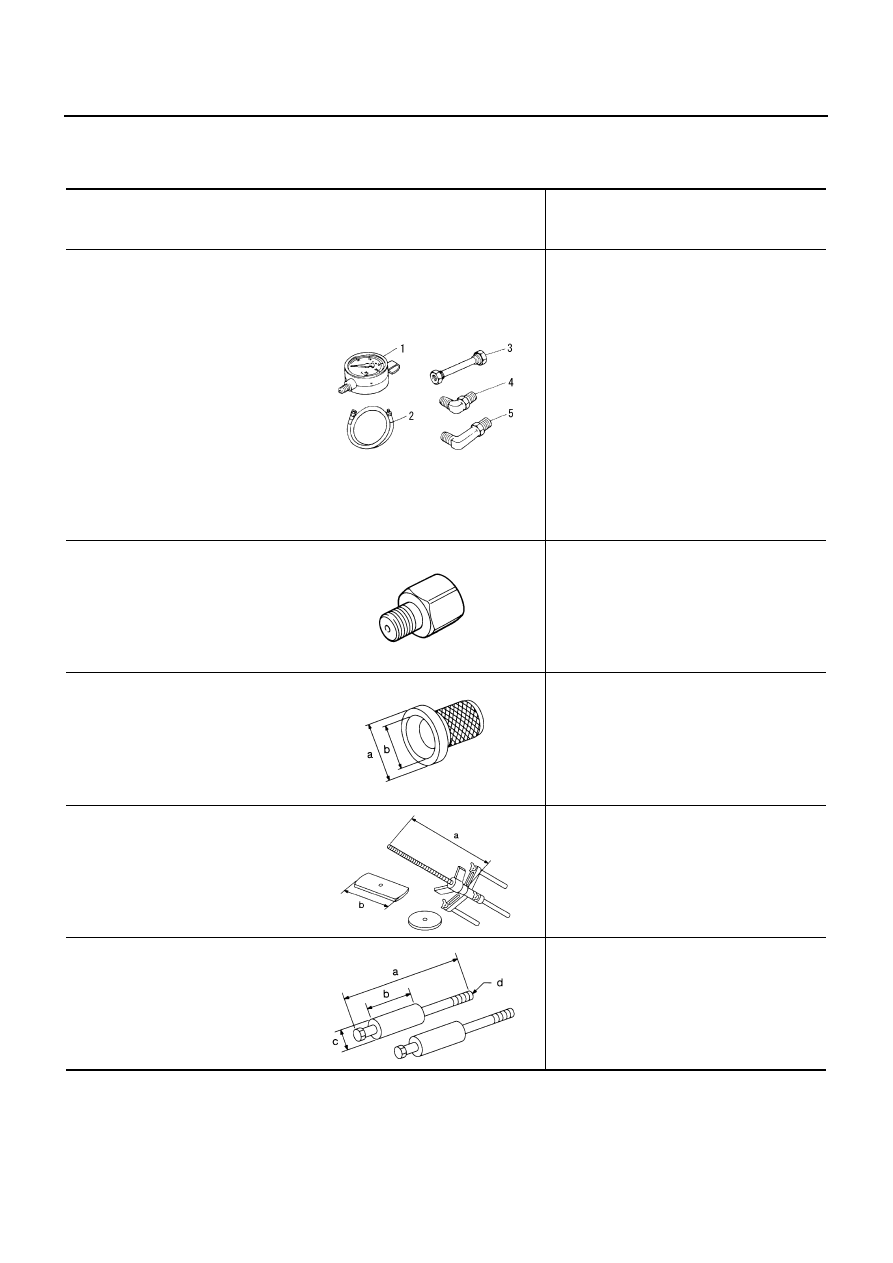

Special Service Tools

NCS000TM

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

ST2505S001
(J-34301-C)
Oil pressure gauge set
1. ST25051001
(

)

Oil pressure gauge
2. ST25052000
(

)

Hose
3. ST25053000
(

)

Joint pipe
4. ST25054000
(

)

Adapter
5. ST25055000
(

)

Adapter

Measuring line pressure

KV31103600
(J-45674)
Joint pipe adapter
(With ST25054000)

Measuring line pressure

ST33400001
(J-26082)
Drift
a: 60 mm (2.36 in) dia.
b: 47 mm (1.85 in) dia.

Installing oil pump housing oil seal

KV31102400
(J-34285 and J-34285-87)
Clutch spring compressor
a: 320 mm (12.60 in)
b: 174 mm (6.85 in)

Installing reverse brake return spring retainer

ST25850000
(J-25721-A)
Sliding hammer
a: 179 mm (7.05 in)
b: 70 mm (2.76 in)
c: 40 mm (1.57 in)
d: M12X1.75P

Remove oil pump assembly

SCIA3695J

ZZA1227D

NT086

NT423

NT422

PREPARATION

AT-11

D

E

F

G

H

I

J

K

L

M

A

B

AT

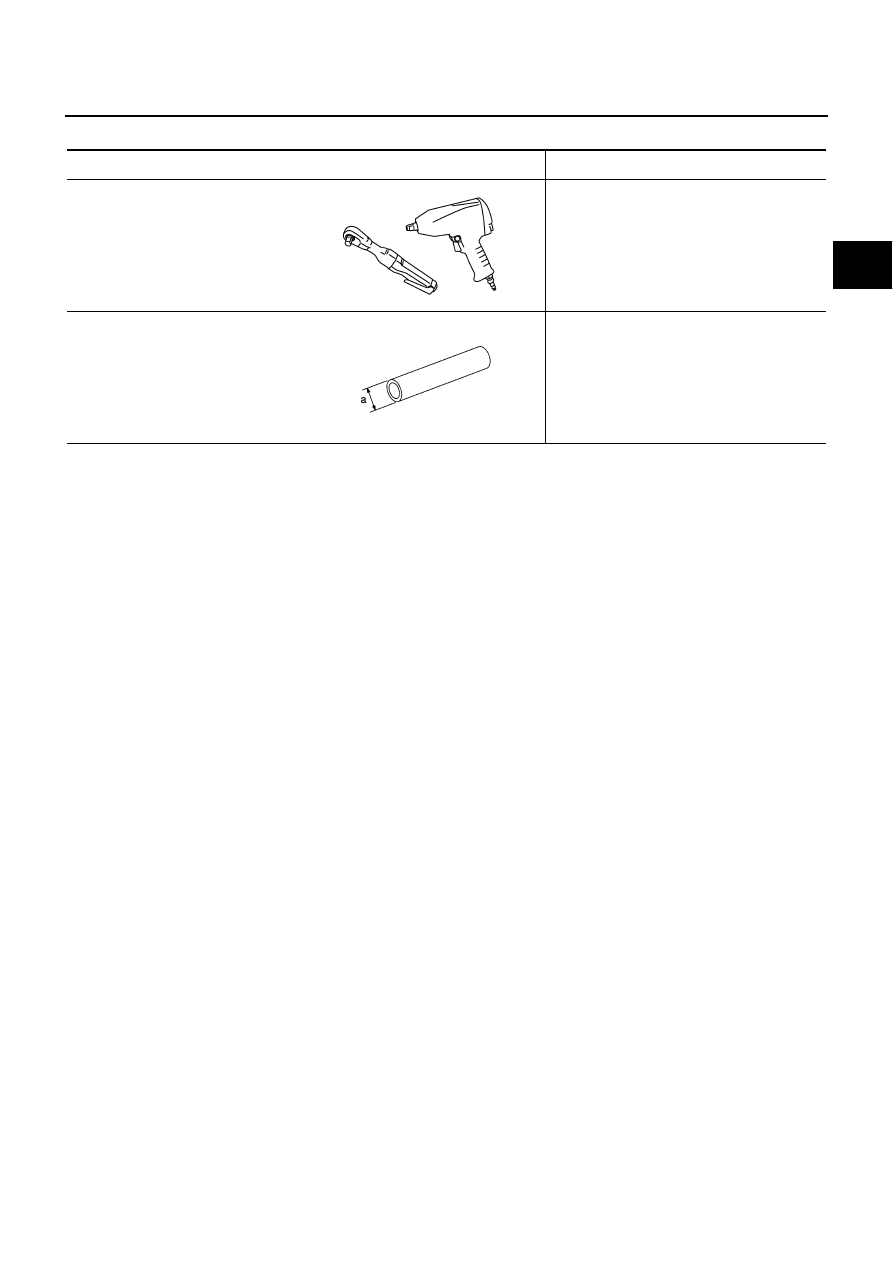

Commercial Service Tools

NCS000TN

Tool name

Description

Power tool

Loosening bolts and nuts

Drift
a: 22 mm (0.87 in) dia.

Installing manual shaft oil seals

PBIC0190E

NT083

AT-12

A/T FLUID

A/T FLUID

PFP:KLE40

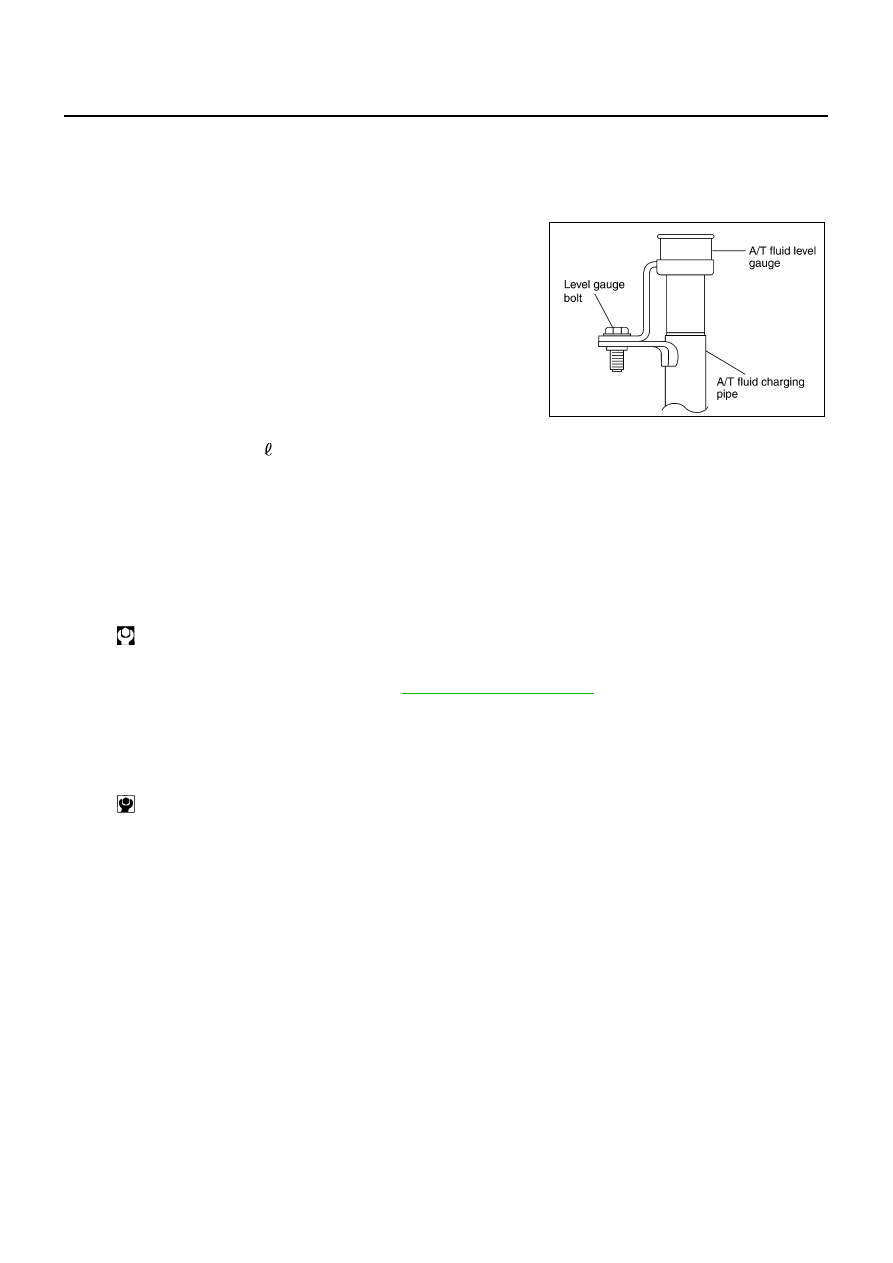

Changing A/T Fluid

NCS000TO

1.

Warm up ATF.

2.

Stop engine.

3.

Loosen the level gauge bolt.

4.

Drain ATF from drain plug and refill with new ATF. Always refill
same volume with drained ATF.

To replace the ATF, pour in new ATF at the A/T fluid charging
pipe with the engine idling and at the same time drain the old
ATF from the radiator cooler hose return side.

When the color of the ATF coming out is about the same as
the color of the new ATF, the replacement is complete. The
amount of new ATF to use should be 30 to 50% increase of
the stipulated amount.

CAUTION:

Use only Genuine NISSAN Matic J ATF. Do not mix with other ATF.

Using ATF other than Genuine NISSAN Matic J ATF will cause deterioration in driveability and A/
T durability, and may damage the A/T, which is not covered by the warranty.

When filling ATF, take care not to scatter heat generating parts such as exhaust.

Do not reuse drain plug gasket.

5.

Run engine at idle speed for 5 minutes.

6.

Check A/T fluid level and condition. Refer to

AT-13, "Checking A/T Fluid"

 . If ATF is still dirty, repeat step 2.

through 5.

7.

Install the removed A/T fluid level gauge into A/T fluid charging pipe.

8.

Tighten the level gauge bolt.

ATF: Genuine NISSAN Matic J ATF

Fluid capacity: 10.3  (10-7/8 US qt, 9-1/8 lmp qt)

Drain plug:

: 34 N·m (3.5 kg-m, 25 ft-lb)

Level gauge bolt:

: 5.1 N·m (0.52 kg-m, 45 in-lb)

SCIA4896E
