SRS245

Checking seat belt pre-tensioner operation by using “SEAT
BELT” warning lamp — User mode
1.

After turning ignition switch from “OFF” to “ON”, “SEAT BELT”
warning lamp operates.

2.

Compare “SEAT BELT” warning lamp operation to the chart
below.

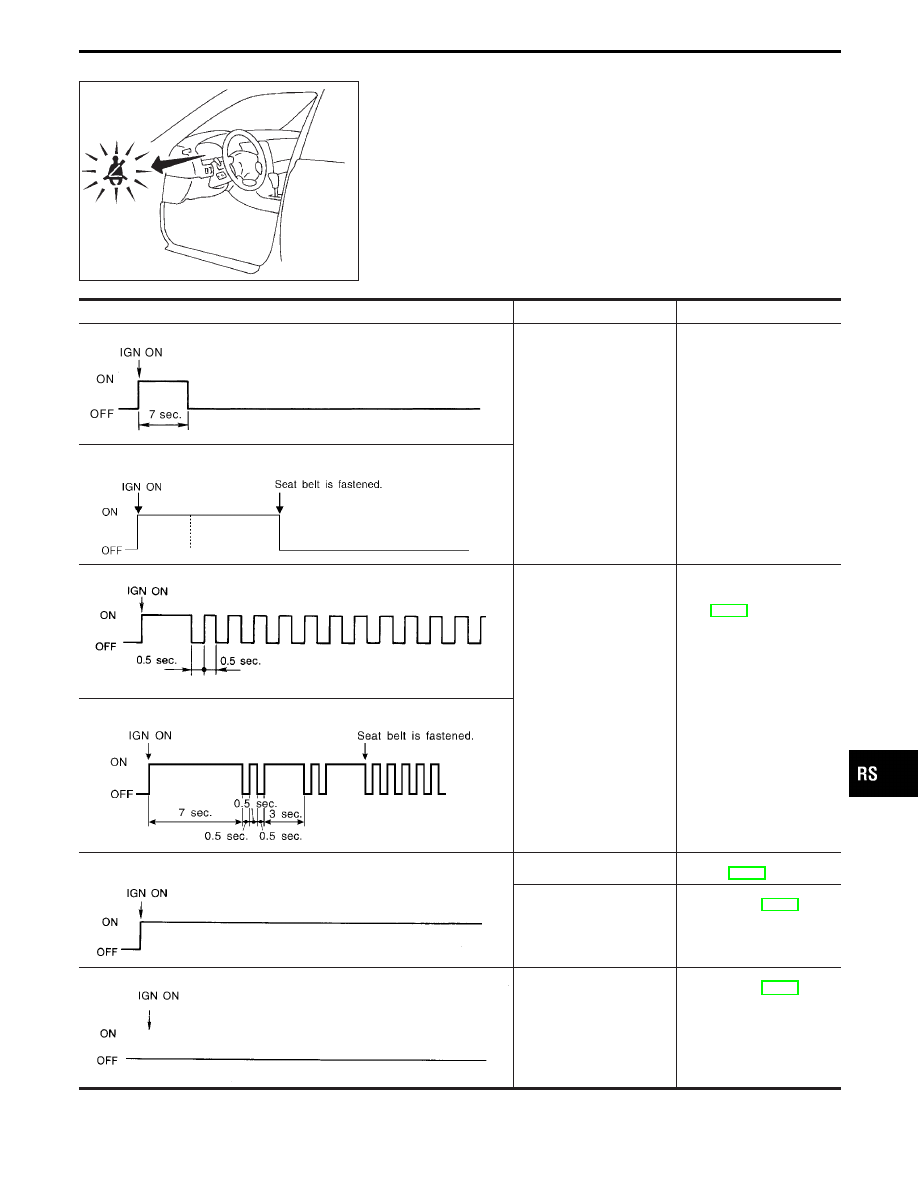

“SEAT BELT” warning lamp operation

SRS condition

Reference item

I

After driver’s seat belt has been fastened.

MRS095A

No malfunction is
detected.
No further action is neces-
sary.

I

When driver’s seat belt has not been fastened.

SRS086

I

After driver’s seat belt has been fastened.

MRS096A

I

Seat belt pre-tensioner
circuit is opened, or

I

Seat belt pre-tensioner
power supply or ground
circuit is shorted.

I

If CONSULT-II is
available, go to DIAG-
NOSTIC PROCEDURE
(RS-40).

I

If CONSULT-II is not
available, repair the sys-
tem as follows.*

1. Visually check the wir-

ing harness connec-
tions.

2. Replace the harness if

it has visible damage.

3. Replace driver’s and

front passenger seat
belt assemblies.
(Before disposing, they
must be deactivated.)

4. Replace diagnosis sen-

sor unit.

I

When driver’s seat belt has not been fastened.

SRS344

I

When driver’s seat belt is fastened.

MRS097A

Seat belt pre-tensioner
(and air bag) is deployed.

Go to COLLISION DIAG-
NOSIS (RS-60).

Seat belt buckle switch,
harness, combination
meter assembly, diagnosis
sensor unit are malfunc-
tioning and need to be
repaired.

Go to DIAGNOSTIC PRO-
CEDURE 12 (RS-58).

MRS098A

Meter fuse, diagnosis sen-
sor unit or “SEAT BELT”
warning lamp circuit is
shorted or open and needs
to be repaired.

Go to DIAGNOSTIC PRO-
CEDURE 13 (RS-59).

* Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is eliminated

using the seat belt warning lamp each time repair is finished. If malfunction is still observed, proceed to the next step. When
malfunction is eliminated, further repair work is not required.

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

BT

HA

EL

IDX

TROUBLE DIAGNOSES — Supplemental Restraint System (SRS)

Self-diagnosis (Cont’d)

RS-39

SEF046TA

DIAGNOSTIC PROCEDURE 2 (

with CONSULT-II)

Inspecting SRS malfunctioning parts by using CONSULT-II —
Diagnosis mode

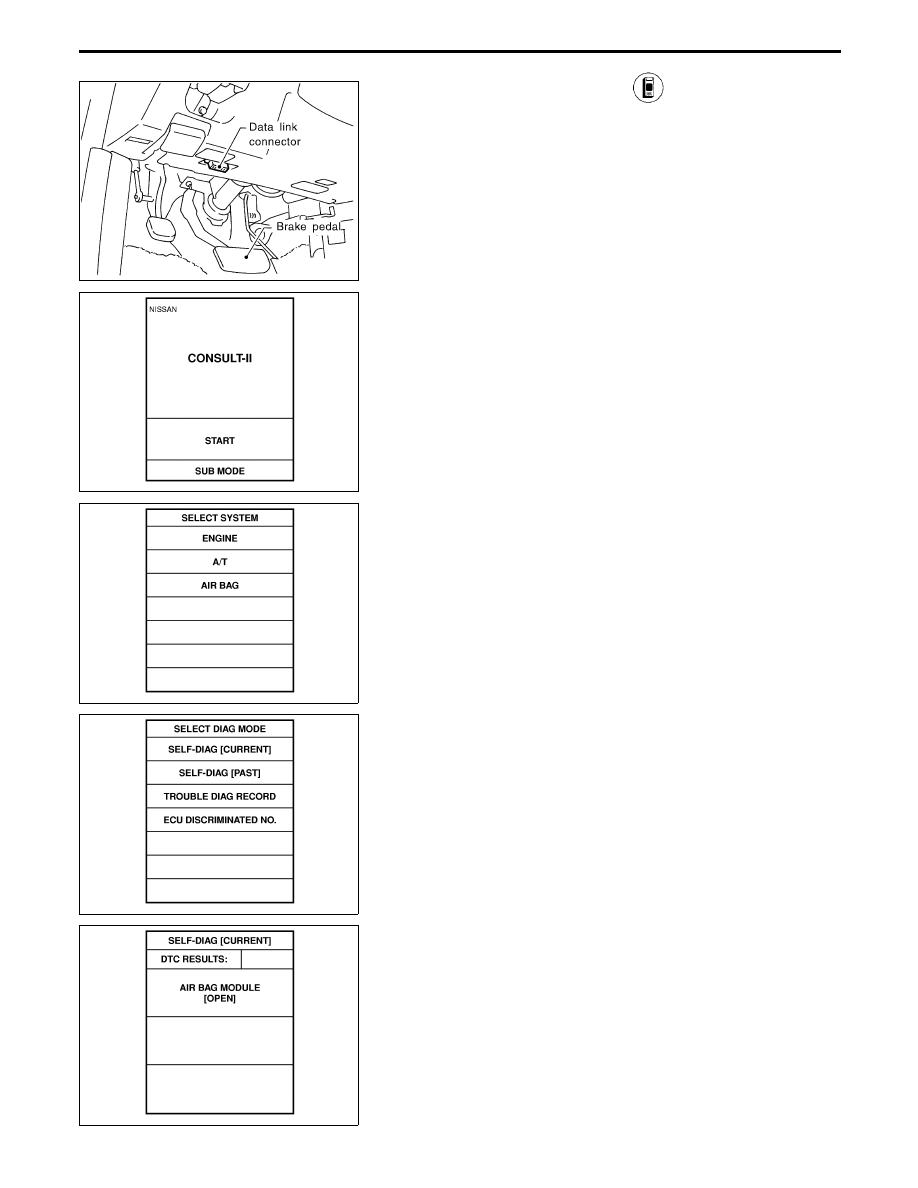

1.

Turn ignition switch “OFF”.

2.

Connect “CONSULT-II” to Data link connector.

SRS695

3.

Turn ignition switch “ON”.

4.

Touch “START”.

SRS771

5.

Touch “AIR BAG”.

SRS697

6.

Touch “SELF-DIAG [CURRENT]”.

SRS772

7.

Diagnostic codes are displayed on “SELF-DIAG [CURRENT]”.

TROUBLE DIAGNOSES — Supplemental Restraint System (SRS)

Self-diagnosis (Cont’d)

RS-40

SRS701

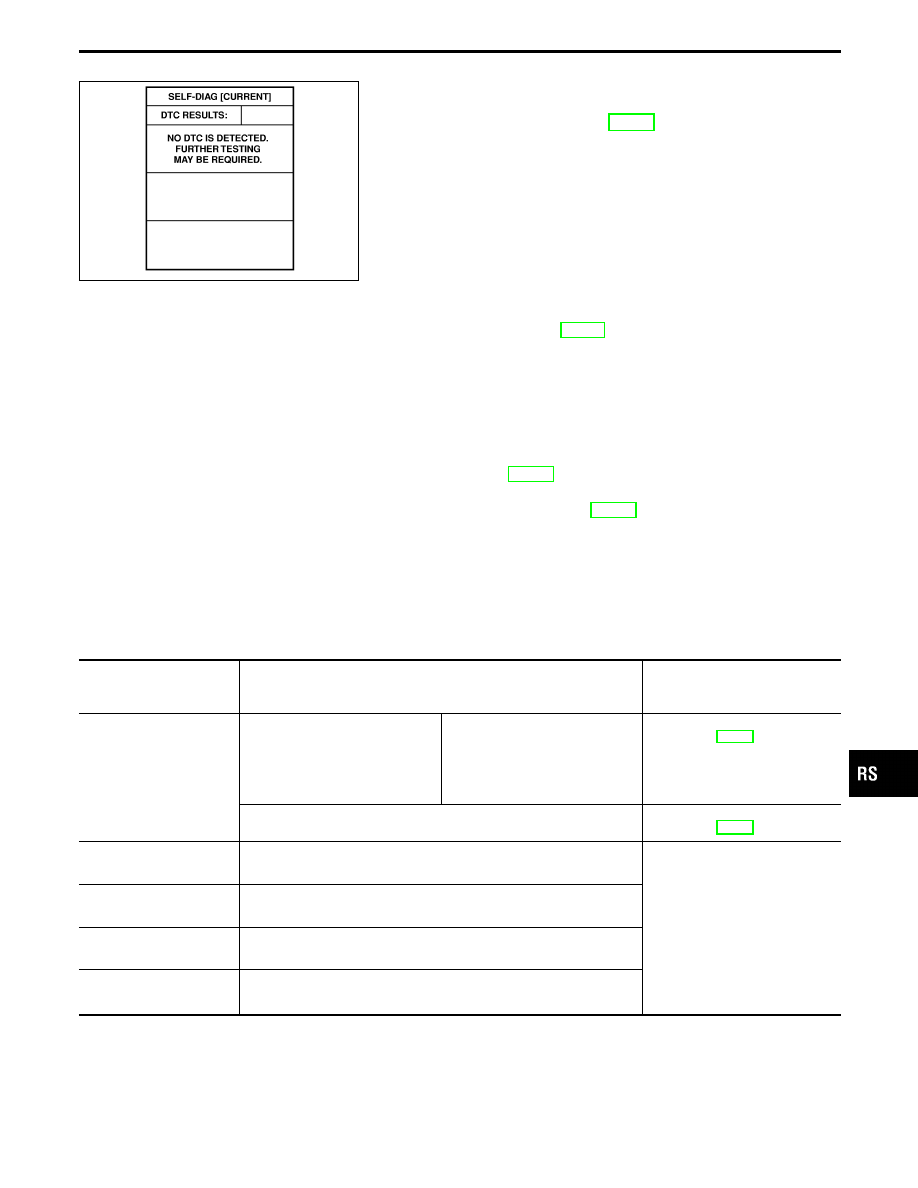

If no malfunction is detected on “SELF-DIAG [CURRENT]” but mal-
function is indicated by the “AIR BAG” warning lamp, go to DIAG-
NOSTIC PROCEDURE 6, page RS-52, to diagnose the following
situations:

I

Self-diagnostic result “SELF-DIAG [PAST]” (previously stored
in the memory) might not be erased after repair.

I

The SRS system malfunctions intermittently.

8.

Touch “PRINT”.

9.

Compare diagnostic codes to the CONSULT-II DIAGNOSTIC
CODE CHART, page RS-41.

10. Touch “BACK” key of CONSULT-II until “SELECT SYSTEM”

appears in order to return to User mode from Diagnosis mode.

11. Turn ignition switch “OFF”, then turn off and disconnect CON-

SULT-II and disconnect both battery cables.

12. Repair the system as outlined by the “Repair order” in CON-

SULT-II DIAGNOSTIC CODE CHART, that corresponds to the
self-diagnosis result. For replacement procedure of component
parts, refer to RS-16.

13. After repairing the system, go to DIAGNOSTIC PROCEDURE

4 for final checking, page RS-48.
CONSULT-II can only show one seat belt pre-tensioner mal-
function as self-diagnosis result at a time. Check self-diagno-
sis result with CONSULT-II whether other malfunctions are
detected after repairing one seat belt pre-tensioner malfunc-
tion.

CONSULT-II DIAGNOSTIC CODE CHART (“SELF-DIAG [CURRENT]”)

Diagnostic item

Explanation

Repair order

Recheck SRS at each

replacement.

NO DTC IS DETECTED

When malfunction is indicated
by the “AIR BAG” warning lamp
in User mode

I

Self-diagnostic result “SELF-
DIAG [PAST]” (previously
stored in the memory) might
not be erased after repair.

I

Intermittent malfunction has
been detected in the past.

I

Go to DIAGNOSTIC PROCE-
DURE 6 (RS-52).

I

No malfunction is detected.

I

Go to DIAGNOSTIC PROCE-
DURE 4 (RS-48).

AIRBAG MODULE
[OPEN]

I

Driver’s air bag module circuit is open. (including the spiral cable)

1. Visually check the wiring har-

ness connection.

2. Replace the harness if it has

visible damage.

3. Replace the spiral cable.
4. Replace driver’s air bag mod-

ule.
(Before disposal of it, it must
be deployed.)

5. Replace the diagnosis sensor

unit.

6. Replace the related harness.

AIRBAG MODULE
[VB-SHORT]

I

Driver’s air bag module circuit is shorted to some power supply
circuit. (including the spiral cable)

AIRBAG MODULE
[GND-SHORT]

I

Driver’s air bag module circuit is shorted to ground. (including the
spiral cable)

AIRBAG MODULE
[SHORT]

I

Driver’s air bag module circuits are shorted to each other.

GI

MA

EM

LC

EC

FE

AT

PD

FA

RA

BR

ST

BT

HA

EL

IDX

TROUBLE DIAGNOSES — Supplemental Restraint System (SRS)

Self-diagnosis (Cont’d)

RS-41

Diagnostic item

Explanation

Repair order

Recheck SRS at each

replacement.

ASSIST A/B MODULE
[VB-SHORT]

I

Front passenger air bag module circuit is shorted to some power
supply circuit.

1. Visually check the wiring har-

ness connection.

2. Replace the harness if it has

visible damage.

3. Replace front passenger air

bag module.
(Before disposal of it, it must
be deployed.)

4. Replace the diagnosis sensor

unit.

5. Replace the related harness.

ASSIST A/B MODULE
[OPEN]

I

Front passenger air bag module circuit is open.

ASSIST A/B MODULE
[GND-SHORT]

I

Front passenger air bag module circuit is shorted to ground.

ASSIST A/B MODULE
[SHORT]

I

Front passenger air bag module circuits are shorted to each
other.

SIDE MODULE LH
[OPEN]

I

Side air bag module (LH) circuit is open.

1. Visually check the wiring har-

ness connection.

2. Replace the harness if it has

visible damage.

3. Replace side air bag module

(LH).
(Before disposal, it must be
deployed.)

4. Replace the diagnosis sensor

unit.

5. Replace the related harness.

SIDE MODULE LH
[VB-SHORT]

I

Side air bag module (LH) circuit is shorted to some power supply
circuits.

SIDE MODULE LH
[GND-SHORT]

I

Side air bag module (LH) circuit is shorted to ground.

SIDE MODULE LH
[SHORT]

I

Side air bag module (LH) circuits are shorted to each other.

SIDE MODULE RH
[OPEN]

I

Side air bag module (RH) circuit is open.

1. Visually check the wiring har-

ness connection.

2. Replace the harness if it has

visible damage.

3. Replace side air bag module

(RH).
(Before disposal, it must be
deployed.)

4. Replace the diagnosis sensor

unit.

5. Replace the related harness.

SIDE MODULE RH
[VB-SHORT]

I

Side air bag module (RH) circuit is shorted to some power supply
circuits.

SIDE MODULE RH
[GND-SHORT]

I

Side air bag module (RH) circuit is shorted to ground.

SIDE MODULE RH
[SHORT]

I

Side air bag module (RH) circuits are shorted to each other.

SATELLITE SENS LH
[UNIT FAIL]
SATELLITE SENS LH
[COMM FAIL]

I

Satellite sensor (LH)

1. Visually check the wiring har-

ness connection.

2. Replace the harness if it has

visible damage.

3. Replace the satellite sensor

(LH).

4. Replace the diagnosis sensor

unit.

5. Replace the related harness.

SATELLITE SENS RH
[UNIT FAIL]
SATELLITE SENS RH
[COMM FAIL]

I

Satellite sensor (RH)

1. Visually check the wiring har-

ness connection.

2. Replace the harness if it has

visible damage.

3. Replace the satellite sensor

(RH).

4. Replace the diagnosis sensor

unit.

5. Replace the related harness.

DRIVE PRE-TENSIONER
[OPEN/VB-SHORT]

I

The circuit for the front LH pre-tensioner is open or shorted to
some power supply circuit.

1. Visually check the wiring har-

ness connections.

2. Replace the harness if it has

visible damage.

3. Replace the front LH seat

belt.
(Before disposing, it must be
deactivated.)

4. Replace the diagnosis sensor

unit.

5. Replace the related harness.

DRIVE PRE-TENSIONER
[GND-SHORT]

I

The circuit for the front LH pre-tensioner is shorted to ground.

TROUBLE DIAGNOSES — Supplemental Restraint System (SRS)

Self-diagnosis (Cont’d)

RS-42
