Infiniti Q45 (FY33). Manual - part 341
How to change hazard and horn reminder
Horn chirp mode of hazard and horn reminder can be activated or deactivated by pressing LOCK and UNLOCK
buttons of remote controller for more than 2 seconds at the same time. At this time, hazard warning lamps
and horn turn on and off as follows.
Hazard warning lamps flash three times.
Horn chirp mode
E
F
Non-horn chirp mode
Hazard warning lamps flash once and horn sounds once.

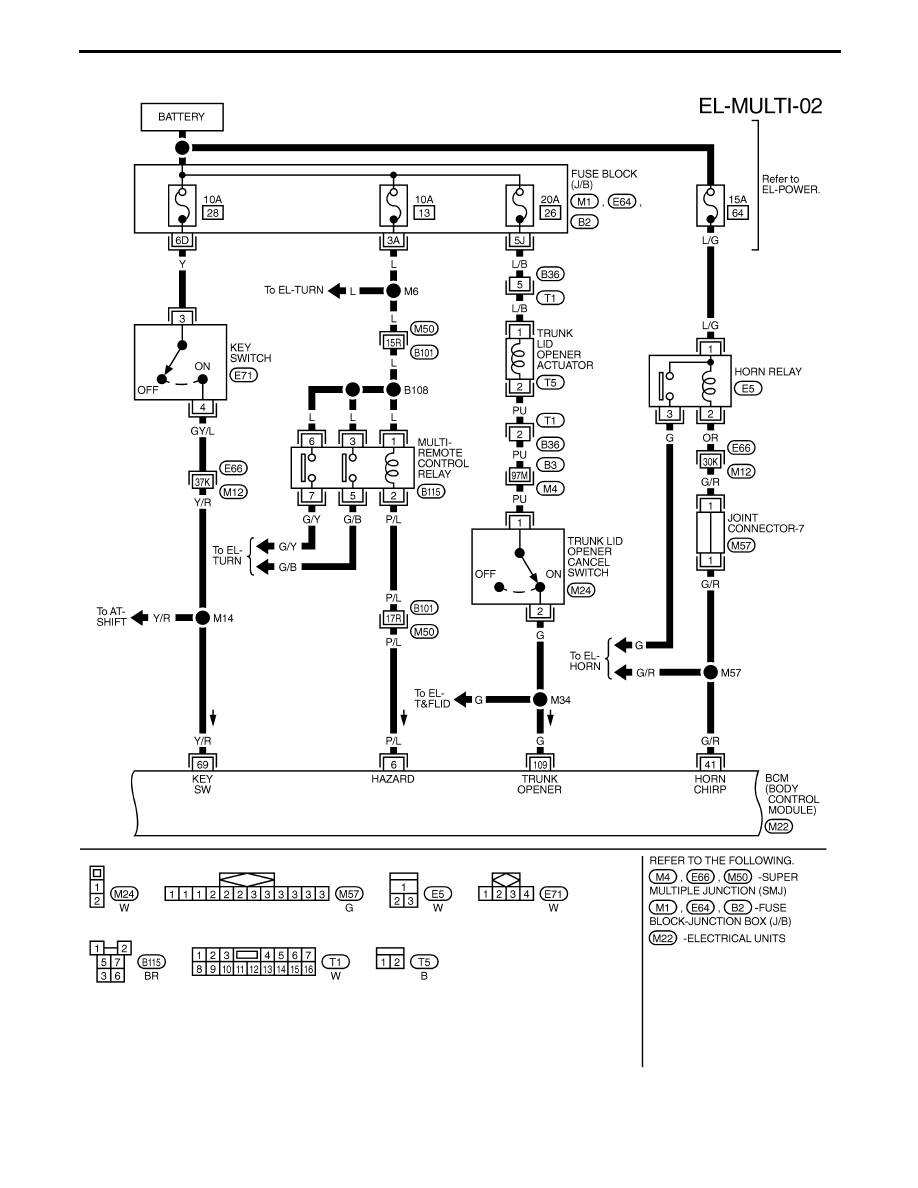

Trunk lid opener operation
Power is supplied at all times
I
through 20A fuse [No.
26
, located in the fuse block (J/B)]
I
to trunk lid opener actuator terminal
q
1
.
When a TRUNK OPEN signal is sent from remote controller without the ignition key inserted in the ignition
key cylinder, if the trunk lid opener cancel switch is in the ON position, ground is supplied
I
to trunk lid opener actuator terminal
q
2
I
through trunk lid cancel switch terminals
q
1
and
q
2
, and
I
through BCM terminal
109
.
Then power and ground are supplied, trunk lid opener actuator opens trunk lid.

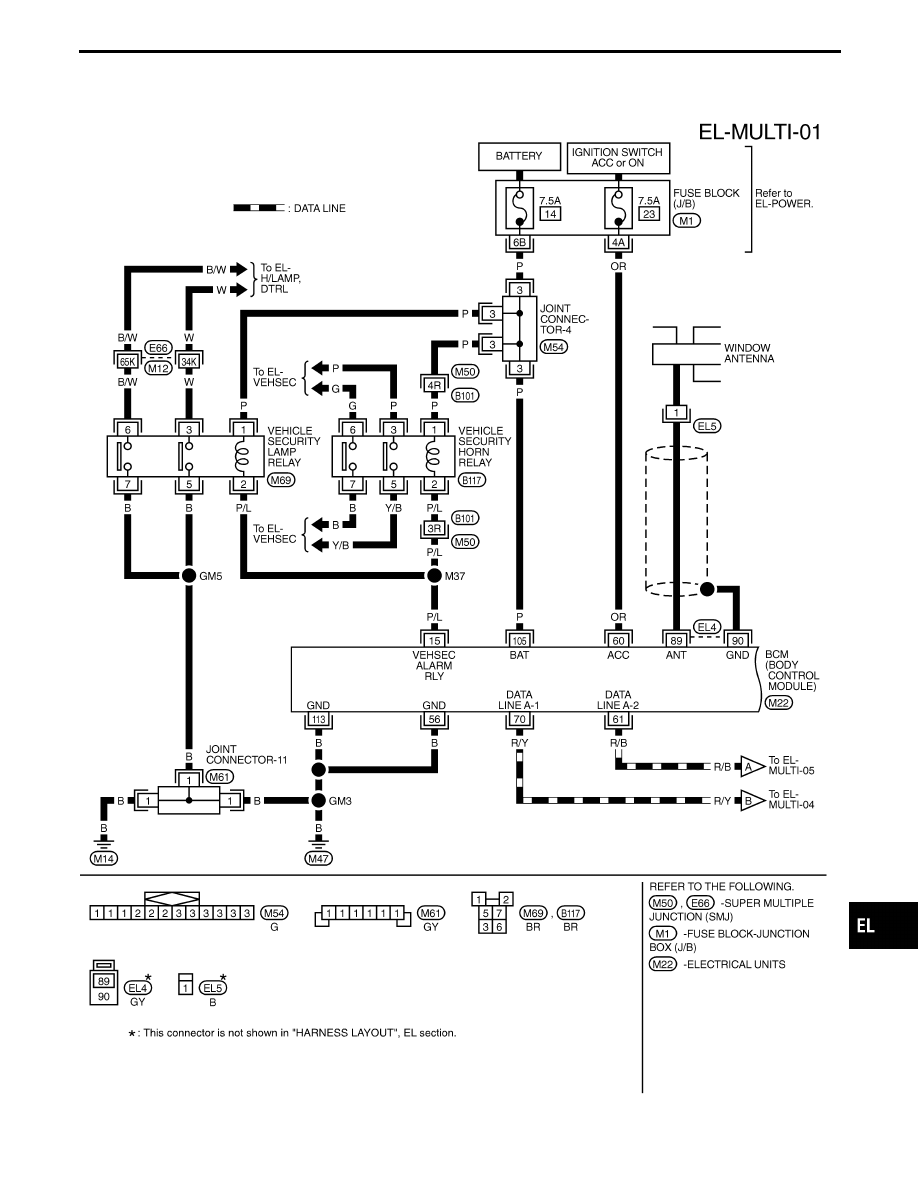

Panic alarm operation
Power is supplied at all times
I
through 7.5A fuse [No.
14
, located in the fuse block (J/B)]
I
to vehicle security horn relay terminal
q
1
and vehicle security lamp relay terminal
q
1
.
Vehicle security horn relay terminal
q
2
and vehicle security lamp relay terminal
q
2
are connected to BCM ter-
minal
q
15
.
Multi-remote control system activates horn and headlamps intermittently when an ALARM signal is sent from
remote controller to multi-remote control system without the ignition key inserted in the ignition key cylinder.
For detailed description, refer to “VEHICLE SECURITY SYSTEM — IVMS” (EL-416).
