3.

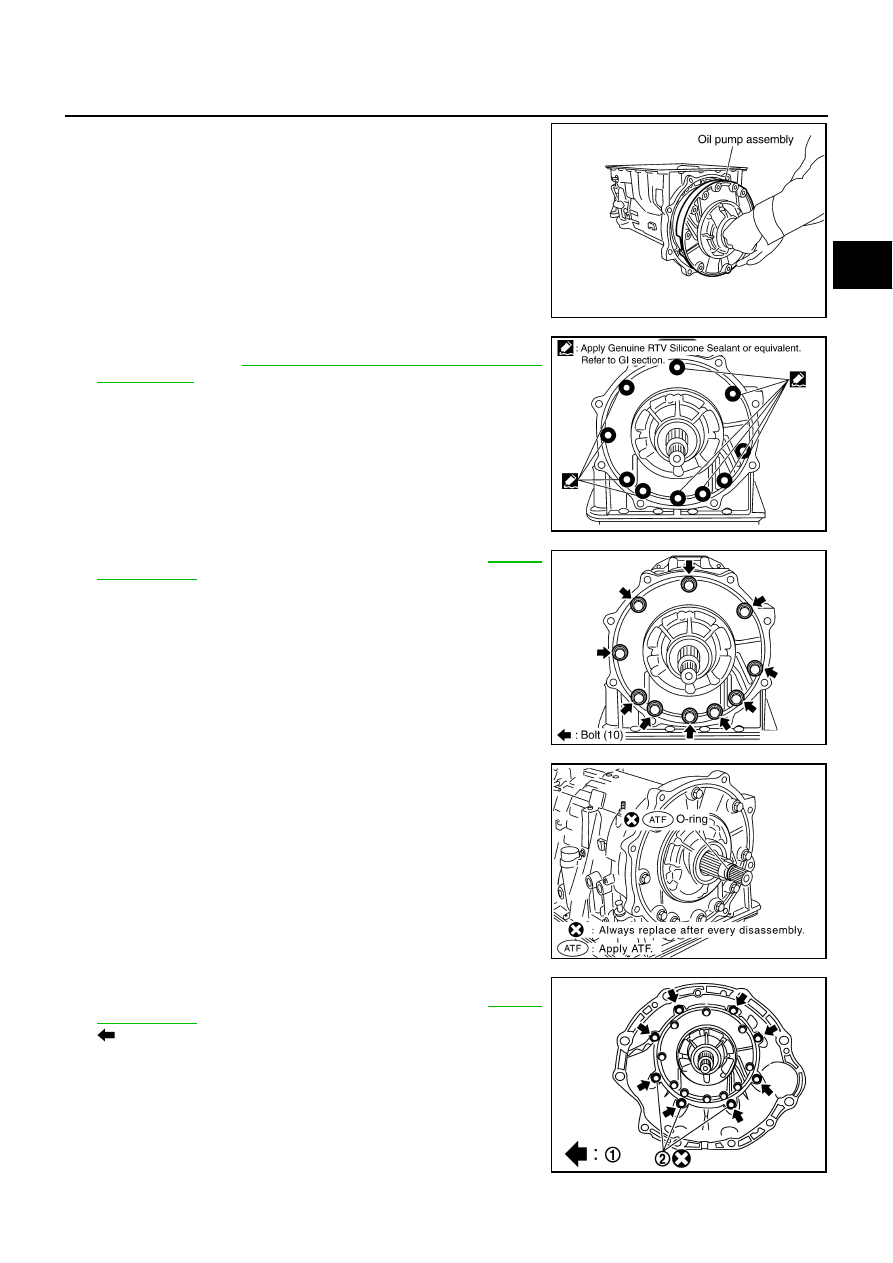

Install oil pump assembly in transmission case.

CAUTION:

Apply ATF to oil pump baring.

4.

Apply recommended sealant (Genuine RTV Silicone Sealant or
equivalent. Refer to

GI-47, "Recommended Chemical Products

and Sealants"

 .) to oil pump assembly as shown in the figure.

CAUTION:

Completely remove all moisture, oil and old sealant, etc.
from the oil pump mounting bolts and oil pump mounting
bolt mounting surfaces.

5.

Tighten oil pump bolts to the specified torque. Refer to

AT-281,

"Components"

 .

CAUTION:

Apply ATF to oil pump bushing.

6.

Install O-ring to input clutch assembly.

CAUTION:

●

Do not reuse O-ring.

●

Apply ATF to O-ring.

7.

Install converter housing to transmission case. Tighten con-
verter housing bolts (1) to the specified torque. Refer to

AT-281,

"Components"

 .

: Bolt (8)

CAUTION:

Do not reuse self-sealing bolt (2).

SCIA2811E

SCIA5321E

SCIA2300E

SCIA5011E

SCIA7985E

AT-364

ASSEMBLY

8.

Make sure that brake band does not close turbine revolution
sensor hole.

9.

Install control valve with TCM.

a.

Connect TCM connector and park/neutral position switch con-
nector.

b.

Install A/T assembly harness connector to control valve with
TCM.

c.

Connect TCM connectors.

SCIA5034E

SCIA5449E

SCIA5450E

SCIA5447E

ASSEMBLY

AT-365

D

E

F

G

H

I

J

K

L

M

A

B

AT

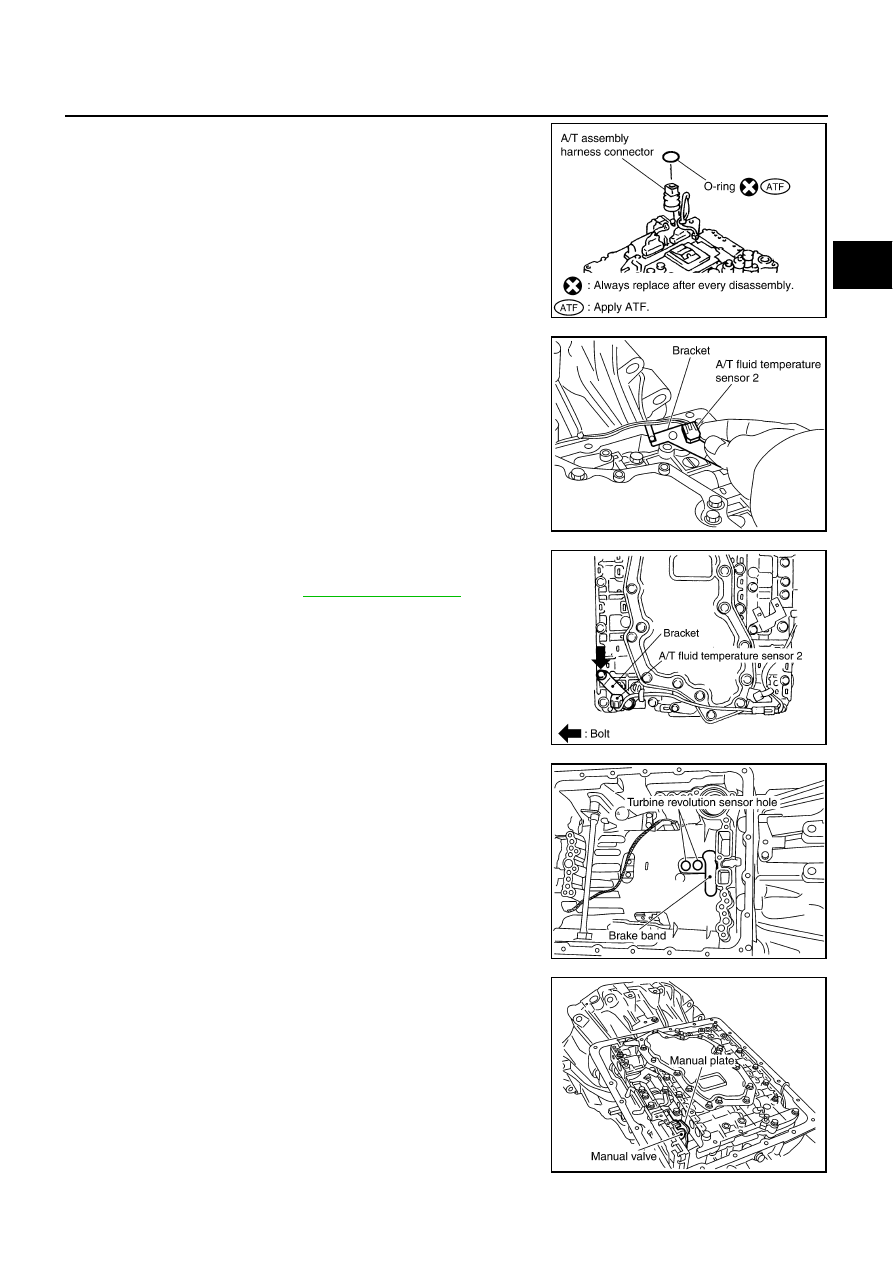

d.

Install O-ring to A/T assembly harness connector.

CAUTION:

●

Do not reuse O-ring.

●

Apply ATF to O-ring.

e.

Install A/T fluid temperature sensor 2 to bracket.

f.

Install A/T fluid temperature sensor 2 (with bracket) in control
valve with TCM. Tighten A/T fluid temperature sensor 2 bolt to
the specified torque. Refer to

AT-281, "Components"

 .

CAUTION:

Adjust bolt hole of bracket to bolt hole of control valve.

g.

Install control valve with TCM in transmission case.

CAUTION:

●

Make sure that turbine revolution sensor securely installs
turbine revolution sensor hole.

●

Hang down revolution sensor harness toward outside so
as not to disturb installation of control valve with TCM.

●

Adjust A/T assembly harness connector of control valve
with TCM to terminal hole of transmission case.

●

Assemble it so that manual valve cutout is engaged with
manual plate projection.

SCIA5155E

SCIA5264E

SCIA5301E

SCIA5034E

SCIA5035E

AT-366

ASSEMBLY

h.

Install bolts A, B and C to control valve with TCM.

i.

Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After
that tighten them in order (1

→

 2

→

 3), and then tighten other

bolts. Tighten control valve bolts to the TCM with specified
torque. Refer to

AT-281, "Components"

 .

10. Connect A/T fluid temperature sensor 2 connector.

11. Securely fasten terminal cord assembly and A/T fluid tempera-

ture sensor 2 harness with terminal clips.

12. Connect revolution sensor connector.

Bolt symbol

Length mm (in)

Number of bolts

A

42 (1.65)

5

B

55 (2.17)

6

C

40 (1.57)

1

SCIA5025E

SCIA5037E

SCIA5023E

SCIA5446E
