Infiniti M35/M45 Y50. Manual - part 111

ASSEMBLY

AT-367

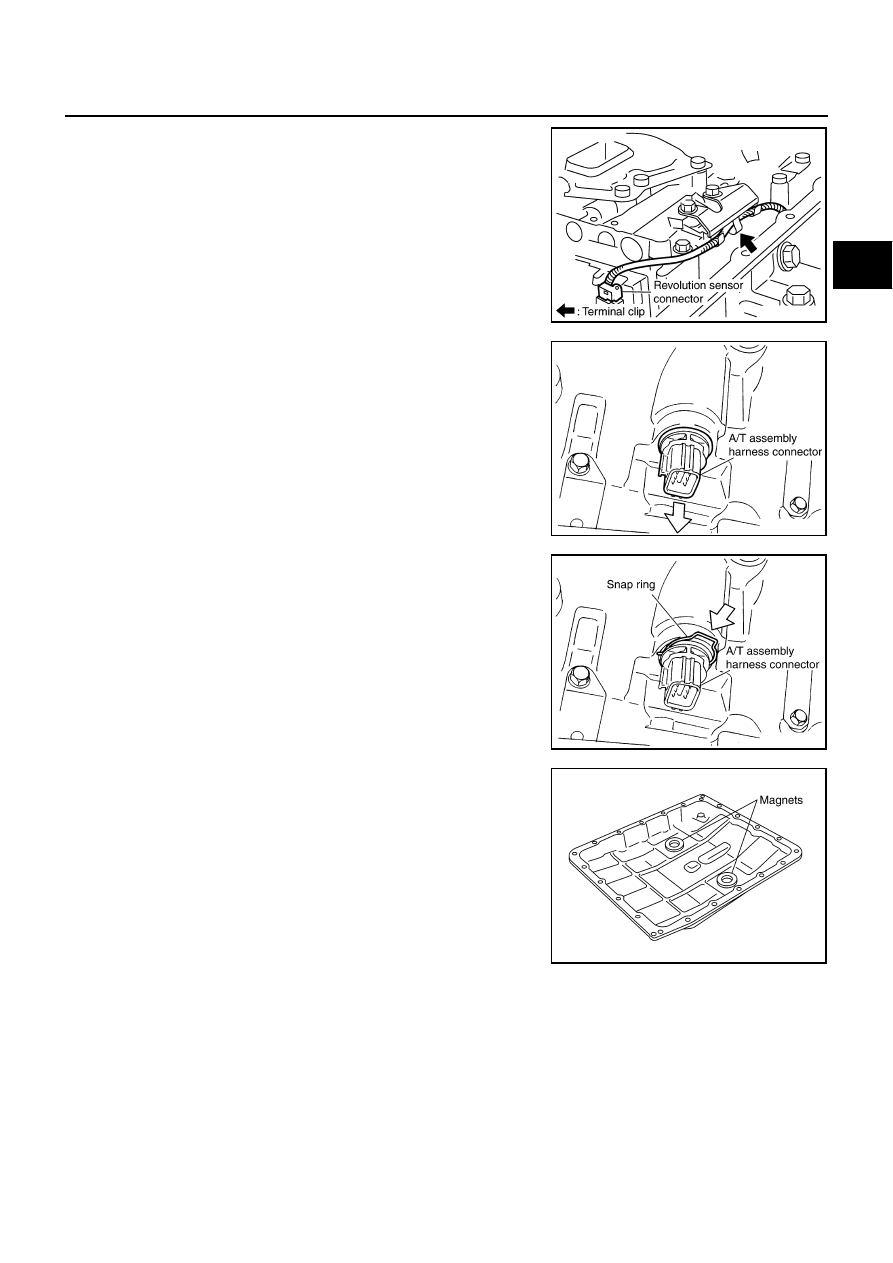

13. Securely fasten revolution sensor harness with terminal clip.

14. Pull down A/T assembly harness connector.

CAUTION:

Be careful not to damage connector.

15. Install snap ring to A/T assembly harness connector.

16. Install magnets in oil pan.

17. Install oil pan, oil pan gasket and clips (VQ35DE models) or oil pan, oil pan gasket, brackets and clips

(VK45DE models) according to the following procedures.

VQ35DE models

Install oil pan gasket to oil pan.

CAUTION:

●

Do not reuse oil pan gasket.

●

Install it in the direction to align hole positions.

●

Complete remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.

SCIA7526E

SCIA5299E

SCIA5300E

SCIA5200E

AT-368

ASSEMBLY

ii.

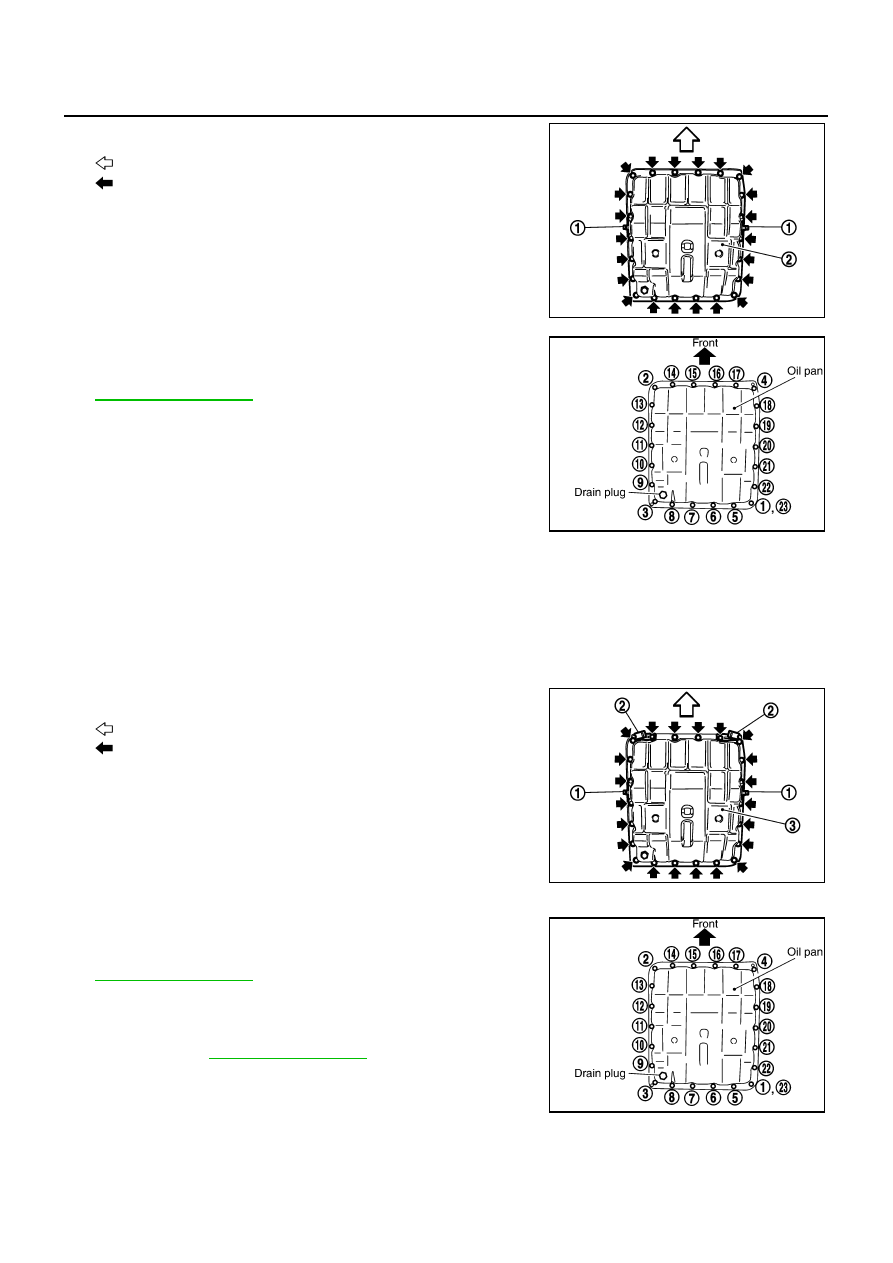

Install oil pan (2) (with oil pan gasket) and clips (1) to transmis-
sion case.

: Front
: Bolt (22)

CAUTION:

●

Install it so that drain plug comes to the position as
shown in the figure.

●

Be careful not to pinch harnesses.

●

Completely remove all moisture, oil and old gasket, etc.
from oil pan mounting surface.

iii.

Tighten oil pan mounting bolts to the specified torque in numeri-
cal order shown in the figure after temporarily tightening them.
Tighten oil pan mounting bolts to the specified torque. Refer to

AT-281, "Components"

CAUTION:

Do not reuse oil pan mounting bolts.

VK45DE models

Install oil pan gasket to oil pan.

CAUTION:

●

Do not reuse oil pan gasket.

●

Install it in the direction to align hole positions.

●

Complete remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.

ii.

Install oil pan (3) (with oil pan gasket), clips (1) and brackets (2)
to transmission case.

: Front
: Bolt (22)

CAUTION:

●

Install it so that drain plug comes to the position as
shown in the figure.

●

Be careful not to pinch harnesses.

●

Completely remove all moisture, oil and old gasket, etc.
from oil pan mounting surface.

●

Be careful with installation direction of brackets (2).

iii.

Tighten oil pan mounting bolts to the specified torque in numeri-
cal order shown in the figure after temporarily tightening them.
Tighten oil pan mounting bolts to the specified torque. Refer to

AT-281, "Components"

CAUTION:

Do not reuse oil pan mounting bolts.

18. Install drain plug to oil pan. Tighten drain plug to the specified

torque. Refer to

AT-281, "Components"

CAUTION:

Do not reuse drain plug gasket.

19. Install torque converter.

SCIA8039E

SCIA4113E

SCIA8035E

SCIA4113E

ASSEMBLY

AT-369

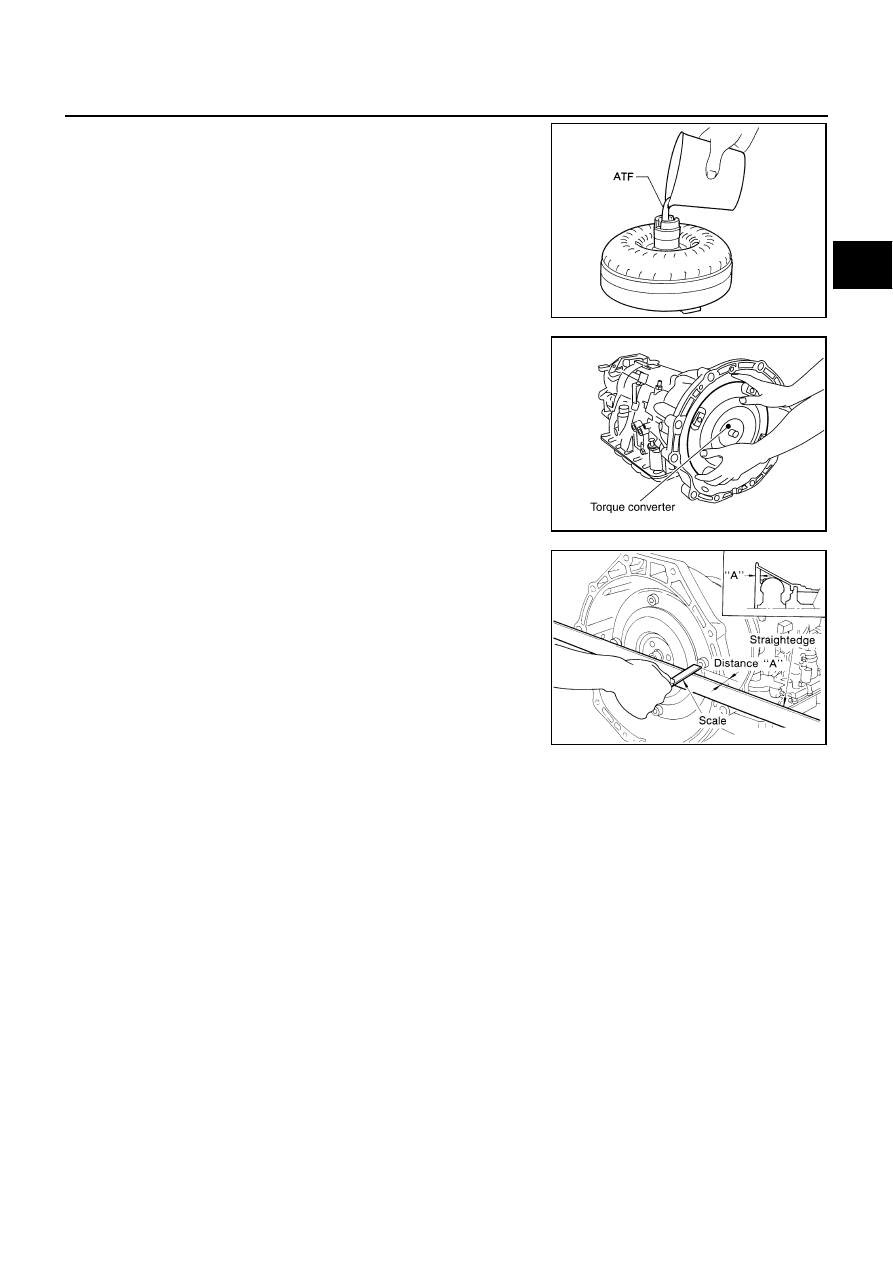

Pour ATF into torque converter.

●

Approximately 2 liter (2-1/8 US qt, 1-3/4 Imp qt) of ATF is
required for a new torque converter.

●

When reusing old torque converter, add the same amount
of ATF as was drained.

Install torque converter while aligning notches of torque con-
verter with notches of oil pump.

CAUTION:

Install torque converter while rotating it.

Measure distance “A” to make sure that torque converter is in
proper position.

SAT428DA

SCIA5010E

Distance “A”

VQ35DE models:

25.0 mm (0.98 in) or more

VK45DE models:

22.0 mm (0.87 in) or more

SCIA5694E

AT-370

SERVICE DATA AND SPECIFICATIONS (SDS)

PFP:00030

General Specifications

NCS001RD

*1: Refer to

MA-12, "Fluids and Lubricants"

Vehicle Speed at Which Gear Shifting Occurs

NCS001RE

2WD MODELS

●

At half throttle, the accelerator opening is 4/8 of the full opening.

●

At half throttle, the accelerator opening is 4/8 of the full opening.

AWD MODELS

●

At half throttle, the accelerator opening is 4/8 of the full opening.

Applied model

VQ35DE engine

VK45DE engine

2WD

AWD

2WD

Automatic transmission model

RE5R05A

Transmission model code number

98X1D, 98X6C

98X1C, 98X6D

95X7A

Stall torque ratio

1.74: 1

1.87: 1

Transmission gear ratio

1st

3.842

3.827

2nd

2.353

2.368

3rd

1.529

1.519

4th

1.000

5th

0.839

0.834

Reverse

2.765

2.613

Recommended fluid

Genuine NISSAN Matic J ATF*1

Fluid capacity

10.3 liter (10-7/8 US qt, 9-1/8 Imp qt)

CAUTION:

●

Use only Genuine NISSAN Matic J ATF. Do not mix with other fluid.

●

Using ATF other than Genuine NISSAN Matic J ATF will deteriorate in driveability and A/T durability, and may damage the
A/T, which is not covered by the warranty.

Engine model

VQ35DE

Throttle position

Vehicle speed km/h (MPH)

→

Full throttle

52 - 56

(32 - 35)

85 - 93

(53 - 58)

126 - 136

(78 - 85)

195 - 205

(121 - 127)

191 - 201

(119 - 125)

113- 123

(70 - 76)

70 - 78

(44 - 48)

28 - 32

(17 - 20)

Half throttle

42 - 46

(26 - 29)

70 - 76

(44 - 47)

107 - 115

(67 - 71)

140 - 148

(87 - 92)

111 - 119

(69 - 74)

67 - 75

(42 - 47)

35 - 41

(22 - 25)

11 - 15

(7 - 9)

Engine model

VK45DE

Throttle position

Vehicle speed km/h (MPH)

→

Full throttle

56 - 60

(35 - 37)

89 - 97

(55 - 60)

121 - 131

(75 - 81)

206 - 216

(128 - 134)

202 - 212

(126 - 132)

121 - 131

(75 - 81)

73 - 81

(45 - 50)

30 - 34

(19 - 21)

Half throttle

48 - 52

(30 - 32)

82 - 88

(51 - 55)

126 - 134

(78 - 83)

155 - 163

(96 - 101)

128 - 136

(80 - 85)

70 - 78

(43 - 48)

29 - 35

(18 - 22)

9 - 13

(6 - 8)

Engine model

VQ35DE

Throttle position

Vehicle speed km/h (MPH)

→

Full throttle

50 - 54

(31 - 34)

81 - 89

(50 - 55)

120 - 130

(75 - 81)

187 - 197

(116 - 122)

183 - 193

(114 - 120)

108 - 118

(67 - 73)

66 - 74

(41 - 46)

27 - 31

(17 - 19)

Half throttle

40 - 44

(25 - 27)

67 - 73

(42 - 45)

102 - 110

(63 - 68)

133 - 141

(83 - 88)

106 - 114

(66 - 71)

64 - 72

(40 - 45)

33 - 39

(21 - 24)

11 - 15

(7 - 9)
