REAR SEAT

SE-177

C

D

E

F

G

H

J

K

L

M

A

B

SE

Removal and Installation

NIS0028K

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

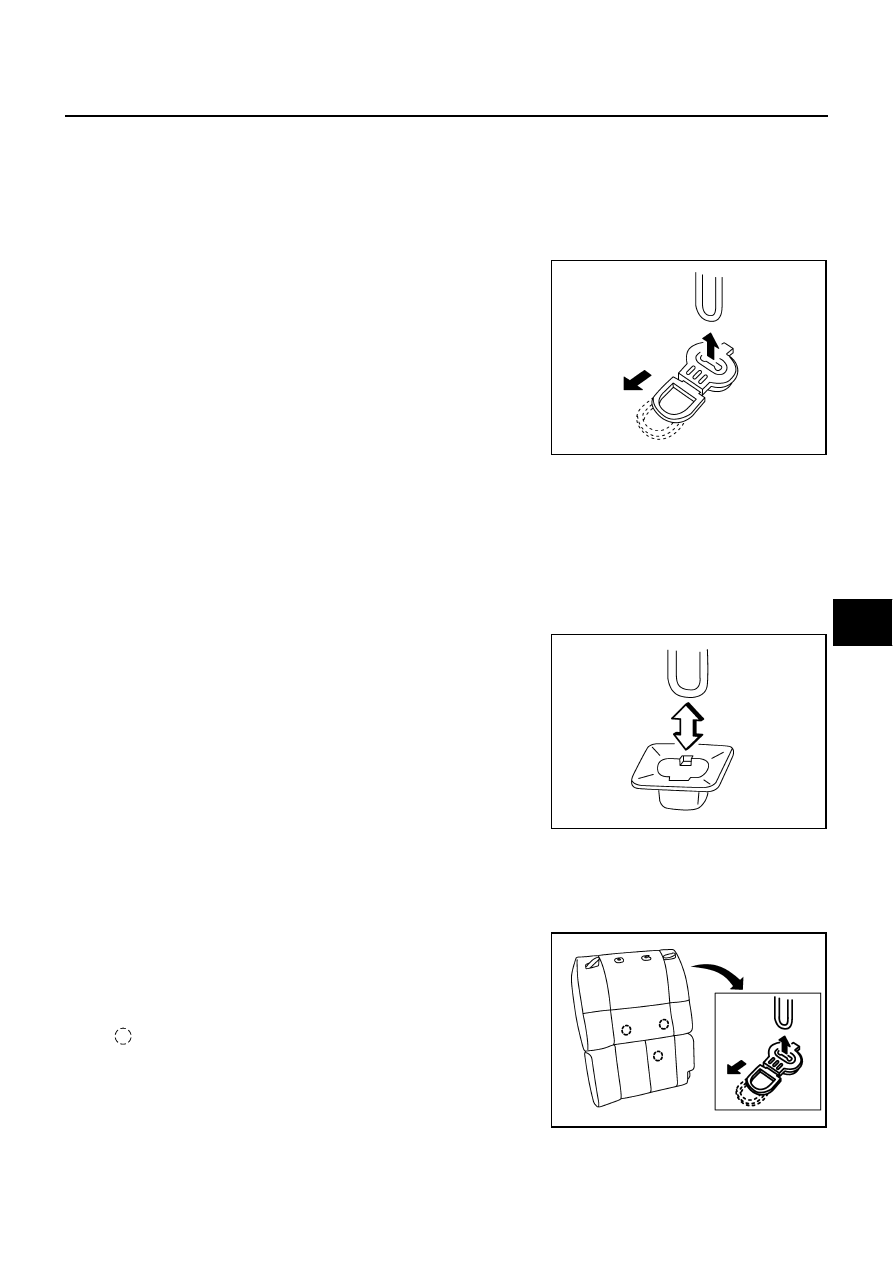

BENCH SEAT
Removal

1.

Remove seat cushion.

●

Pull the lock lever at the front bottom of the seat cushion for-
ward (1 for each side), and pull the seat cushion upward to
release the wire from the seat cushion hook, then pull the seat
cushion forward to remove.

●

Remove the seat cushion from the vehicle.

2.

Remove seat back.

●

Remove the nuts under seatback.

●

Lift up seatback assembly from underneath, and then remove
seatback assembly from seatback hook that is fixed to the
vehicle.

●

Remove the headrest.

●

Remove the seatback from the vehicle.

Installation

Install in the reverse order of removal. Be careful of the following one point.
Securely engage the upper wire on the back side of seatback with seat hook.

POWER SEAT
Removal

1.

Remove seat cushion side.

●

Lift seat cushion side up, disengage the seat cushion hook,
and then remove the seat cushion side.

●

Remove the seat cushion side from the vehicle.

2.

Remove the seat cushion center.

●

Disconnect the harness connector.

●

Remove the bolts, and then remove the seat cushion center from the vehicle.

3.

Remove seatback side.

●

Access to the back side of seatback side from the lower, and
then pull the lock lever of seatback hook downward.

●

Pull seatback side, and then remove seatback side from the
seatback hook.

: Seatback hook

●

Lift up seatback side from underneath, and then remove seatback side from seatback hook.

●

Disconnect the harness connector.

PIIB3360J

PIIB4085J

PIIB3359J

SE-178

REAR SEAT

●

Remove the headrest.

●

Remove the seatback side from the vehicle.

4.

Remove seatback center.

●

Disconnect the harness connector.

●

Remove the seatback center mounting bolts and nuts.

●

Remove the seatback center from the vehicle.

5.

Remove the rear seat frame.

●

Disconnect the harness connector.

●

Remove the bolts and nuts, and then remove the rear seat frame.

Installation

Install in the reverse order of removal.

Disassembly and Assembly

NIS0028L

BENCH SEAT
Disassembly of Seat Cushion

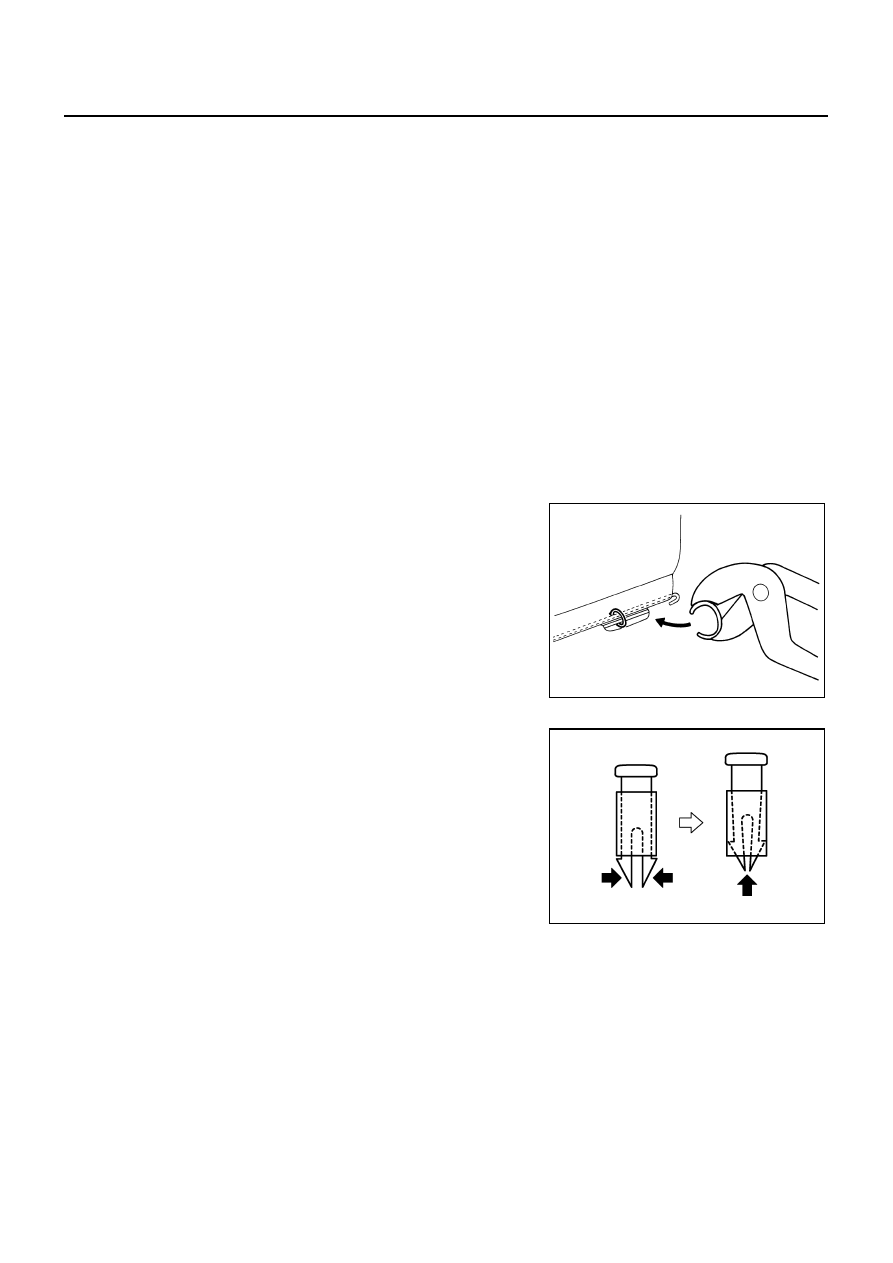

Remove the hog rings to separate the trim and pad.

Assembly of Seat Cushion

Assemble in the reverse order of disassembly. Be careful of the following one point.
Install hog rings of seat cushion trim in position, and then securely
connect the trim or trim code with the pad side wire.

Disassembly of Seatback

1.

Remove the headrest holder.

2.

Remove the seat belt guide.

3.

Remove the hog rings to separate the trim and pad.

Assembly of Seatback

Assemble in the reverse order of disassembly. Be careful of the following one point.

PIIB3356J

PIIB4084J

REAR SEAT

SE-179

C

D

E

F

G

H

J

K

L

M

A

B

SE

Install hog rings of seat cushion trim in position, and then securely
connect the trim or trim code with the pad side wire.

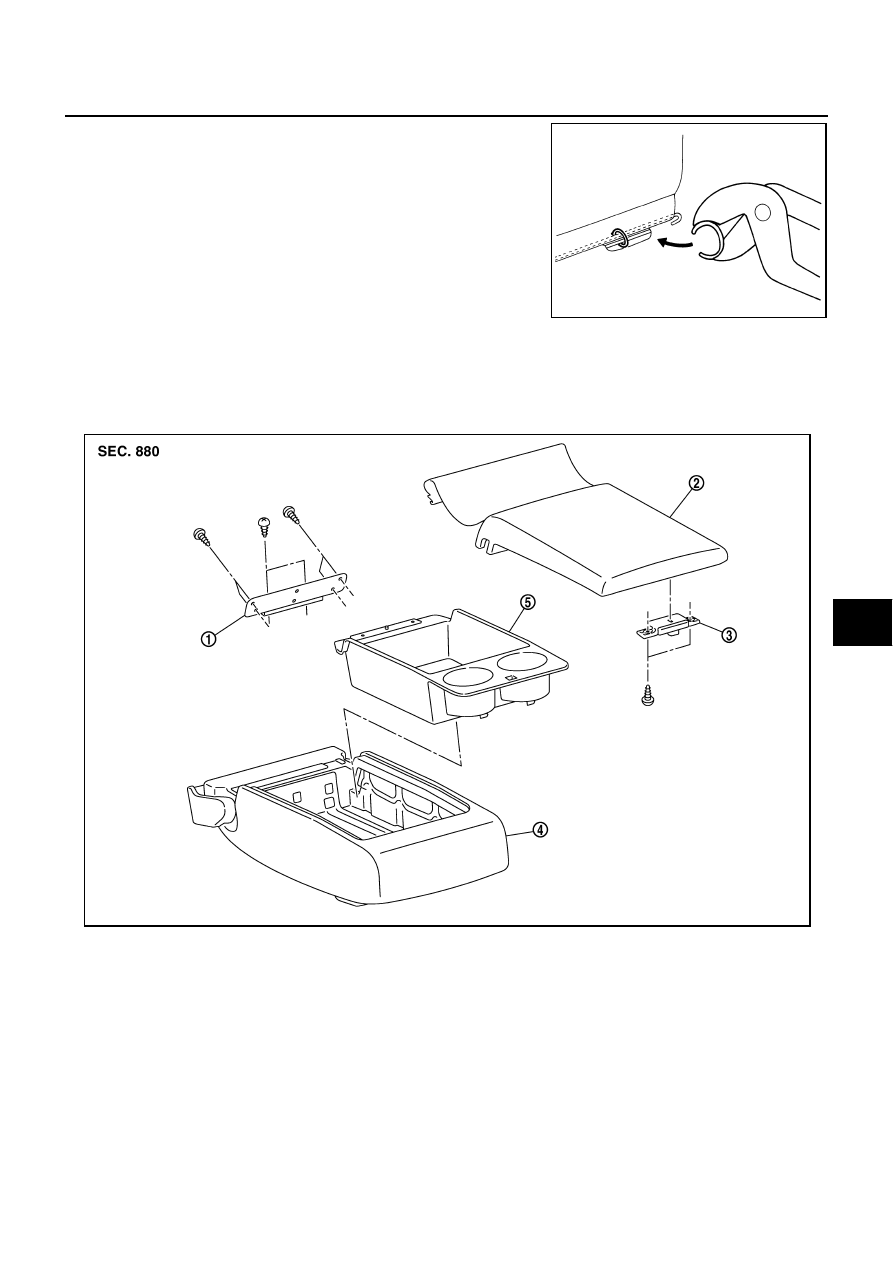

Disassembly of Armrest

1.

Remove the armrest from seatback.

●

Remove the retainer from the side of armrest lid in the back.

●

Remove the armrest mounting nuts on the back of seatback.

2.

Disassemble the armrest.

●

Remove the screws, and then remove armrest lid hinge.

●

Remove the armrest lid.

●

Remove screws, and then remove the armrest lock assembly from the armrest lid.

PIIB3356J

1.

Armrest lid hinge

2.

Armrest lid

3.

Armrest lock assembly

4.

Armrest assembly

5.

Rear seat box

PIIB4685J

SE-180

REAR SEAT

●

Pull the rear seat box rearward and lift up, and then remove
rear seat box from the armrest assembly.

CAUTION:

●

When removing, check that front tab is not damaged.

●

If the tab is damaged when removing the rear seat box,
replace rear seat box with a new one.

Assembly of Armrest

Assemble in the reverse order of disassembly.

POWER SEAT
Disassembly of Seat Cushion

Remove the hog rings to separate the trim and pad.

Assembly of Seat Cushion

Assemble in the reverse order of disassembly.

Disassembly of Seatback

1.

Remove the headrest holder.

2.

Remove the seat belt guide.

3.

Remove the hog rings to separate the trim and pad.

Assembly of Seatback

Assemble in the reverse order of disassembly. Be careful of the following one point.
Install hog rings of seat cushion trim in position, and then securely
connect the trim or trim code with the pad side wire.

Disassembly of Seat Frame

1.

Disconnect the harness connectors, remove the screws,and then remove the rear seat control unit.

2.

Remove the seatback hook and seat cushion hook.

Assembly of Seat Frame

Assemble in the reverse order of removal.

Disassembly of Armrest

1.

Remove the armrest from seatback center.

●

Remove the retainer from the side of armrest lid in the back.

●

Remove the armrest mounting nuts on the back of seatback.

PIIB4686J

PIIB4084J

PIIB3356J
