Infiniti M35/M45 Y50. Manual - part 1093





FRONT SEAT

SE-169

C

D

E

F

G

H

J

K

L

M

A

B

SE

Disassembly and Assembly

NIS0028H

SEATBACK
Disassembly

1.

Remove seatback trim and seatback pad.

NOTE:
Seatback trim and seatback pad can be removed without removing seatback assembly from seat body.

Remove the retainer from the lower side of seatback board.

Disconnect the clips and pawls, and then remove the seatback
board.

 : Pawl
 : Clip

Remove the seatback hinge mounting bolts.

Remove the retainer on the back side of the seatback.

Remove the seat speaker grills. (Applied 5.1 ch BOSE studio surround® system models.) Refer to

AV-

279, "Seat Speaker"

 .

Remove the headrest holder.

CAUTION:

Before installing headrest holder, check its orientation
(front/rear and right/left).

Disconnect the clip, and then remove the reclining device cover.

Remove the screws, and then remove the seatback upper fin-
isher.

PIIB3344J

PIIB3353J

PIIB4084J

PIIB3355J

SE-170

FRONT SEAT

Remove the bracket mounting nuts.

Remove seatback trim and pad from seatback frame.

Remove the hog rings to separate the trim and pad.

2.

Remove seatback frame.

Remove seat speaker. (Applied 5.1 ch BOSE studio surround® system models) Refer to

AV-279, "Seat

Speaker"

 .

Remove the bands, and then remove seatback thermal electrical device (TED) assembly.

Remove the seat harness assembly from seatback assembly.

Remove the bolts, and then remove seatback frame from seat cushion frame.

Assembly

Assemble in the reverse order of disassembly. Be careful of the following one point.
Install the hog rings of seat cushion trim in position, and then
securely connect the trim or trim code with the pad side wire.

SEAT CUSHION
Disassembly

1.

Remove the seatback trim and seatback pad.

Remove the retainer from the lower side of seatback board.

Disconnect the clip and pawl, and then remove seatback
board.

 : Pawl
 : Clip

Remove the screws and disconnect the clips, and then
remove the seat cushion rear finisher. (Climate controlled
seat model)

PIIB3356J

PIIB3344J

PIIB3345J

FRONT SEAT

SE-171

C

D

E

F

G

H

J

K

L

M

A

B

SE

Remove the seat cushion front finisher.

 : Pawl
 : Clip

Remove the seat reclining switch knob and seat slide switch
knob.

Pull seat cushion outer finisher forward, and then disconnect
the pawls and clips.

 : Pawl
 : Clip

Lift the rear part of the seat cushion outer finisher backward,
and then remove the seat cushion outer finisher.

Remove the harness connector clamp of lumber support switch.

Removal the lumber support switch.

Remove the seat cushion inner finisher.

 : Pawl

Remove the retainers from the lower side of front seat. (Driver's seat only)

Remove the hog rings to separate the trim and pad. (Driver's seat only)

2.

Remove the nuts, and then remove the seat cushion frame. (Driver's seat only)

3.

Remove each unit which is attached to seat cushion frame and seat adjuster assembly.

Remove the screws, and then remove the climate controlled seat control unit.

Remove the screws, and then remove the blower motor.

Remove the bands, and then remove the seat cushion thermal electrical device (TED) assembly.

PIIB3346J

PIIB3348J

PIIB3350J

PIIB3351J

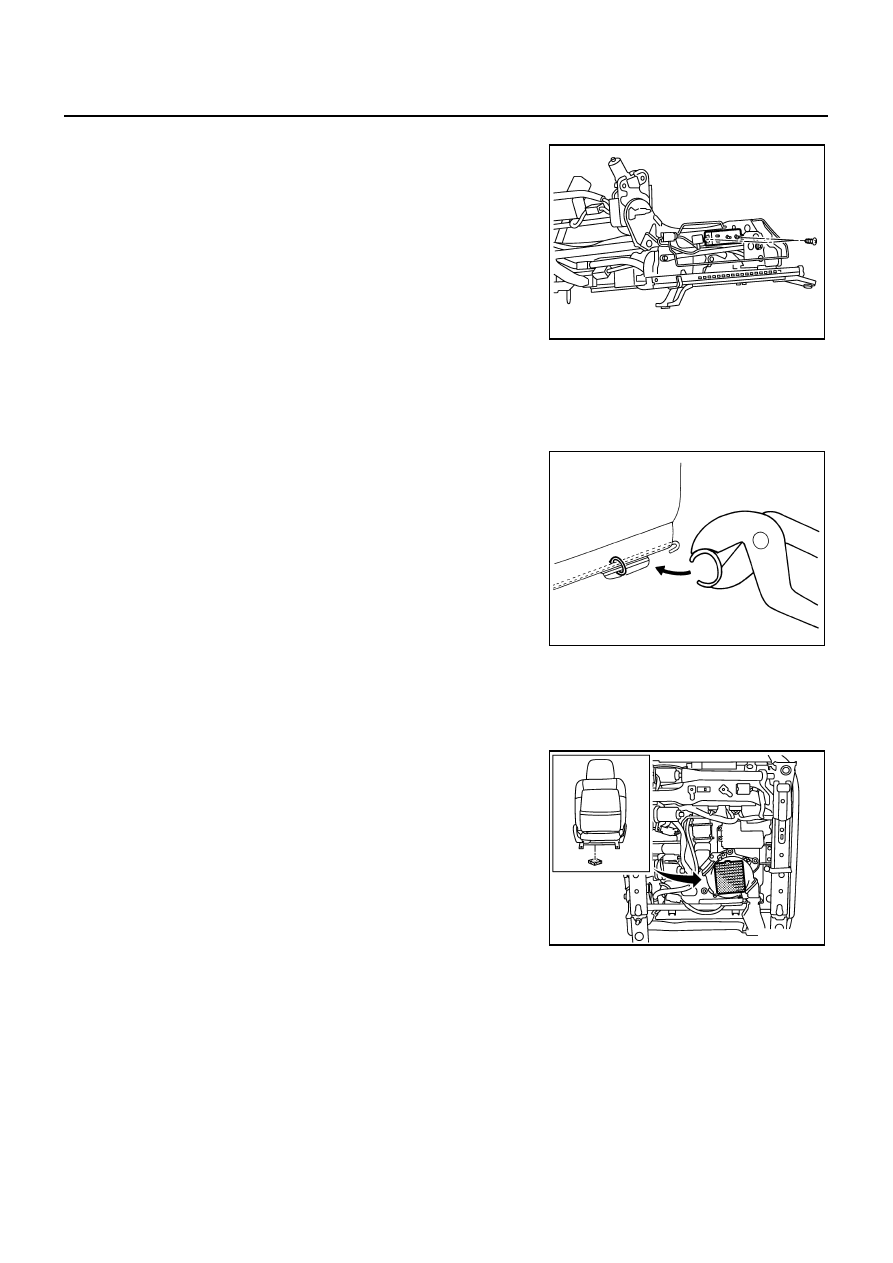

SE-172

FRONT SEAT

Remove driver's seat control unit. (Driver's seat only)

Remove the driver seat control switch.

Remove seat cushion finisher B and seat cushion finisher C.

Remove seat harnesses.

Assembly

Assemble in the reverse order of disassembly. Be careful of the following two points.

Install the hog rings of seat cushion trim in position, and then
securely connect the trim or trim code with the pad side wire.

Clamp the harness in position.

CLIMATE CONTROLLED SEAT
Blower Filter Replacement

Put your hand behind front seat cushion, pull filter downward and
remove it. Replace filter with a new one.

NOTE:

When replacing, be sure to set the front seat lifter to the top
position.

When installing, do not confuse up-down direction of the filter.

PIIB3357J

PIIB3356J

PIIB6502E
