REAR SEAT
SE-181
C
D
E
F
G
H
J
K
L
M
A
B
SE
2.
Disassemble the armrest.
●
Remove the screws, and then remove the armrest hinge cover.
●
Remove the screws, and then remove the armrest lid hinge.
●
Remove the armrest lid.
●
Remove the screws, and then remove the armrest lid lock assembly from the armrest lid.
●
Remove the rear seat box.
●
Remove all switches from the rear seat box.
●
Remove the screws, and then remove the A/C box assembly.
●
Remove the screws, and then remove the cup holder.
●
Remove the hog rings, and then remove the seat back center side trim.
●
Remove the headrest holder, and then remove the seatback center trim.

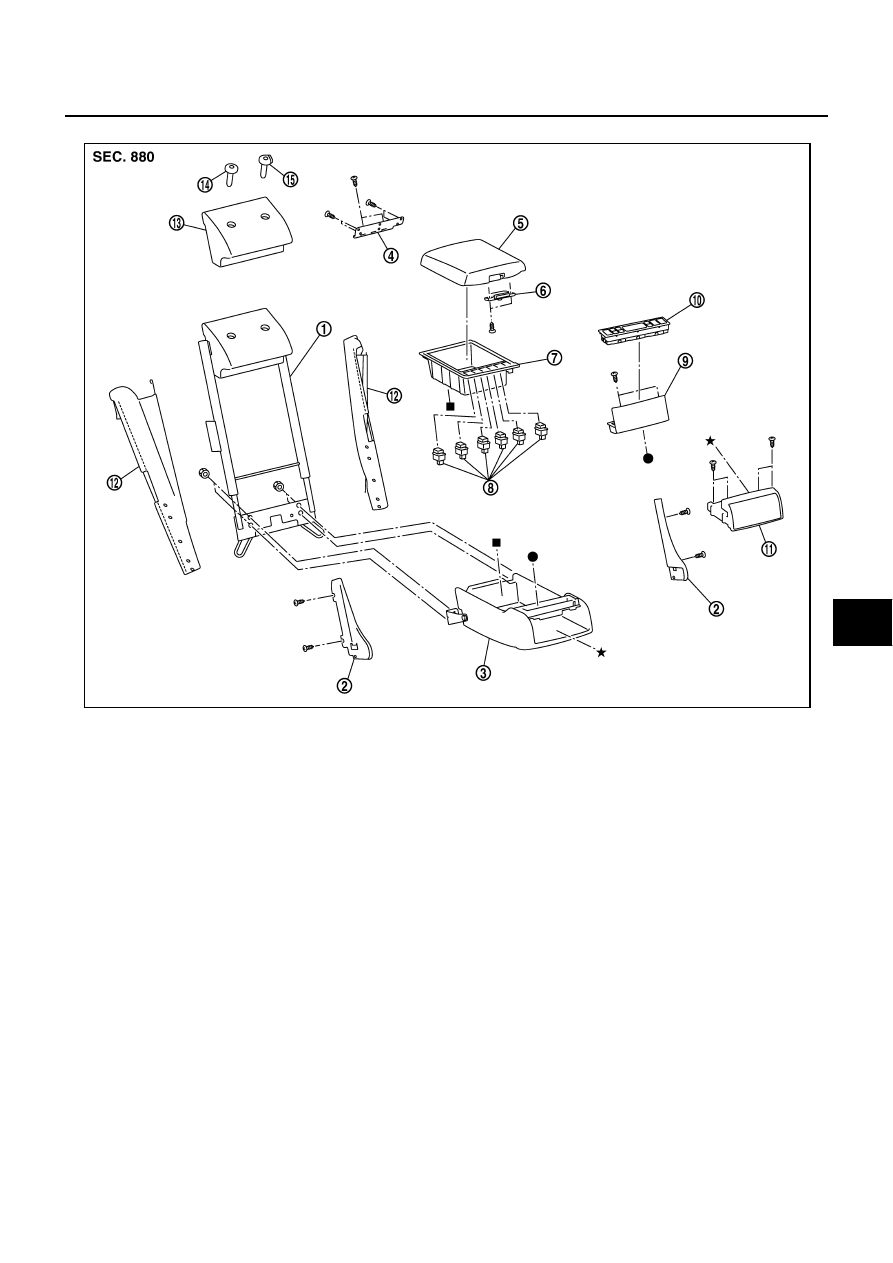

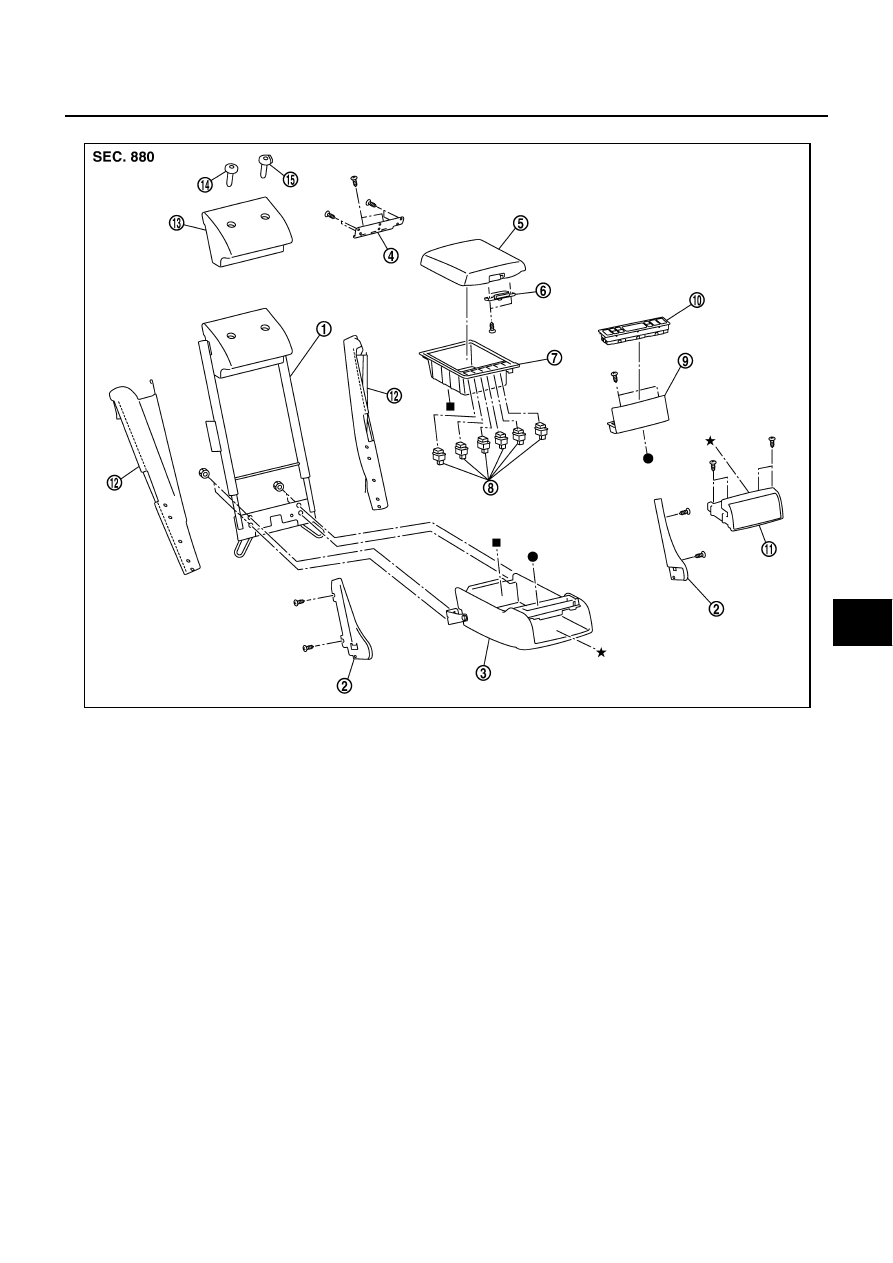

Assembly of Armrest
Assemble in the reverse order of removal.
1.
Seatback center
2.
Armrest hinge cover
3.
Armrest assembly
4.
Armrest lid hinge
5.
Armrest lid
6.
Armrest lid lock assembly
7.
Rear seat box
8.
Switch
9.
A/C box assembly
10. Rear seat control
11.
Cup holder
12. Seatback center side trim
13. Seatback center trim
14. Headrest holder (free)
15. Headrest holder (locked)
PIIB3364J
