LATCH (LOWER ANCHORS AND TETHER FOR CHILDREN) SYSTEM

SB-35

C

D

E

F

G

I

J

K

L

M

A

B

SB

LATCH (LOWER ANCHORS AND TETHER FOR CHILDREN) SYSTEM

PFP:75466

Removal and Installation

NHS0008M

CAUTION:

Replace anchor bolts if they are deformed or worn out.

REMOVAL

1.

Remove the rear seat. Refer to

SE-177, "Removal and Installa-

tion"

 .

2.

Remove rear seat frame (Models with rear power seat).

3.

Remove LATCH (Lower Anchor and Tether for Children) system.

INSTALLATION

●

Install in the reverse order of removal.

●

Tighten by specified torque.

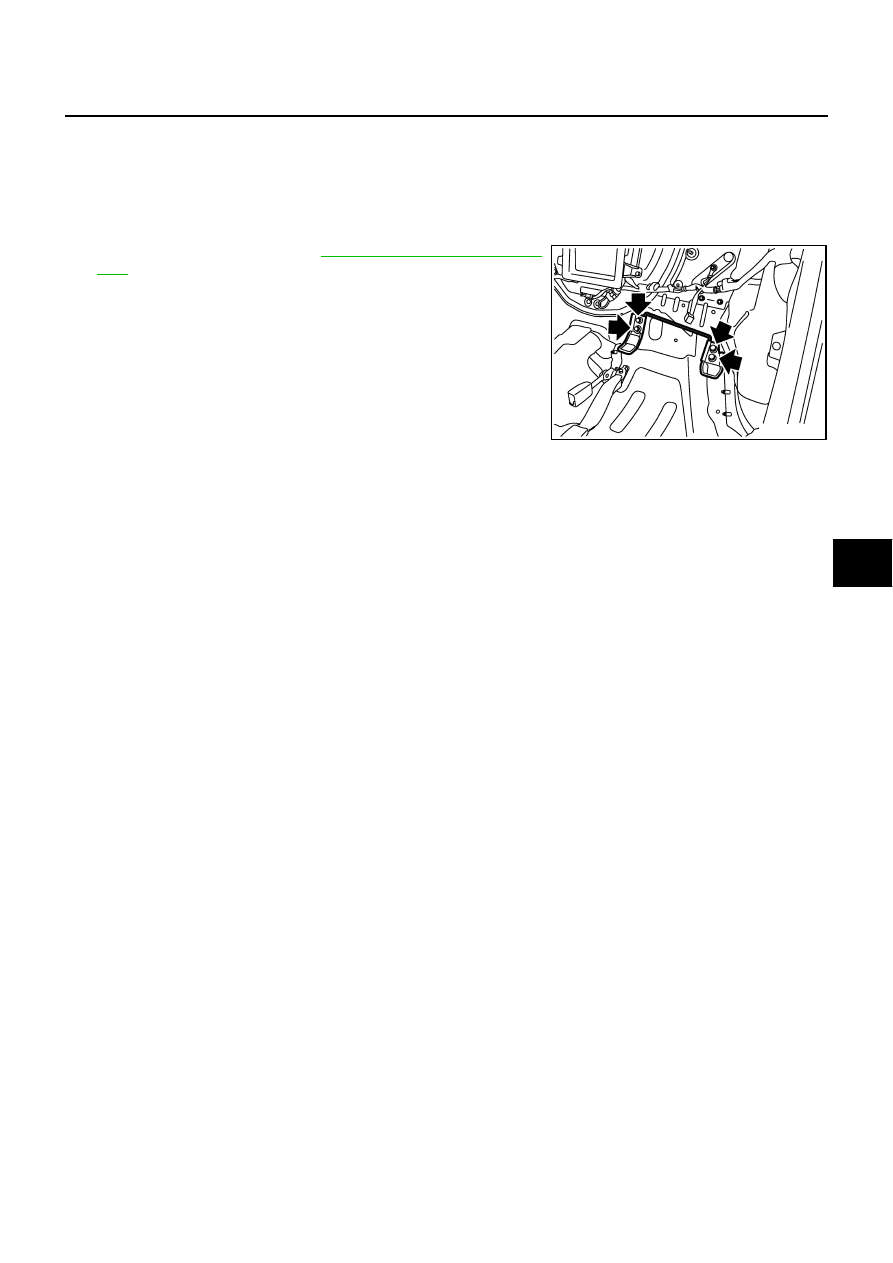

PHIA1108E

Tightening torque

: 28.0 N·m (2.9 kg-m, 21 ft-lb)

SB-36

TOP TETHER STRAP CHILD RESTRAINT

TOP TETHER STRAP CHILD RESTRAINT

PFP:88000

Removal and Installation

NHS0008N

CAUTION:

Replace anchor bolts if they are deformed or worn out.

REMOVAL

1.

Remove the top tether strap child restraint cover. Refer to

EI-42,

"Removal and Installation"

 .

2.

Remove the top tether strap child restraint.

INSTALLATION

●

Install in the reverse order of removal.

●

Tighten by specified torque.

PHIA1109E

Tightening torque

: 30.0 N·m (3.1 kg-m, 22 ft-lb)
