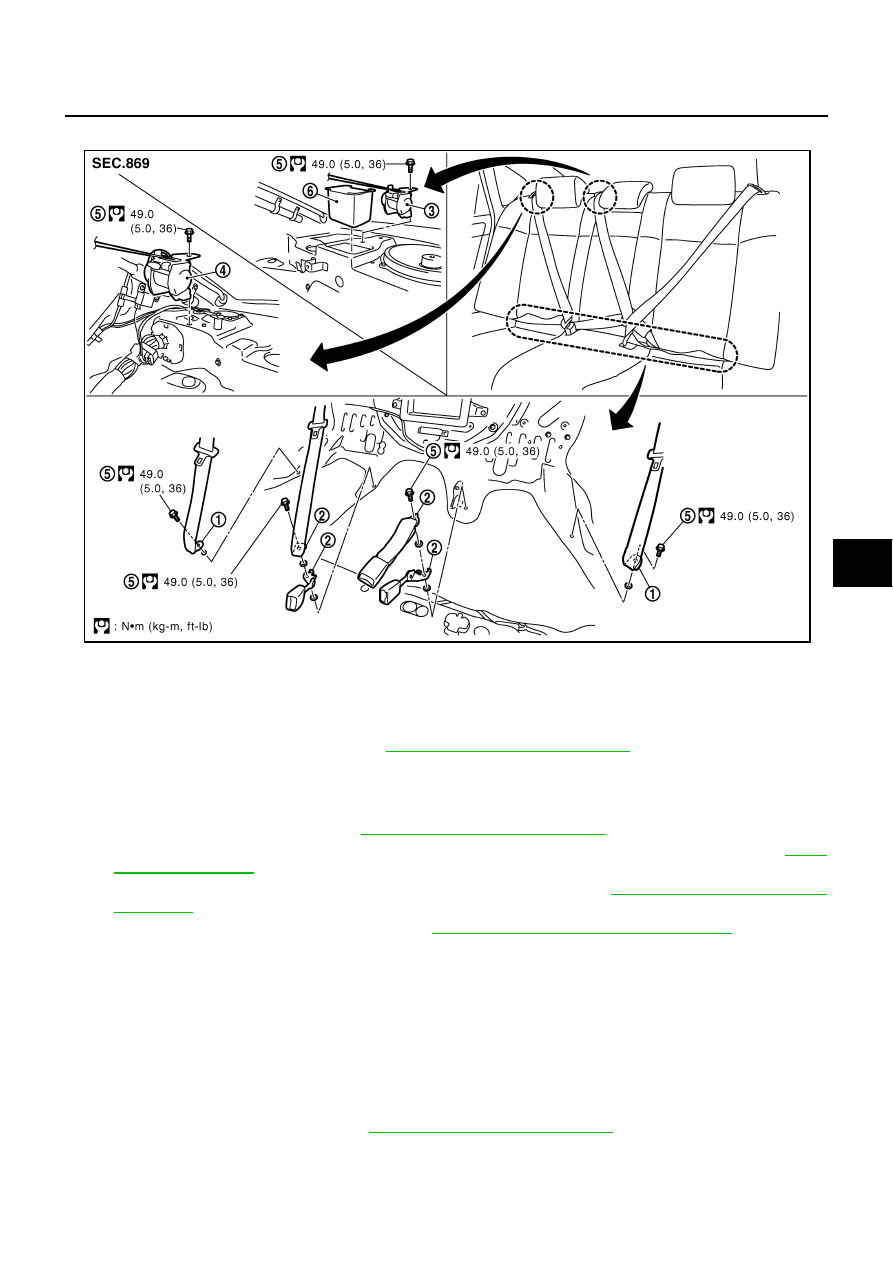

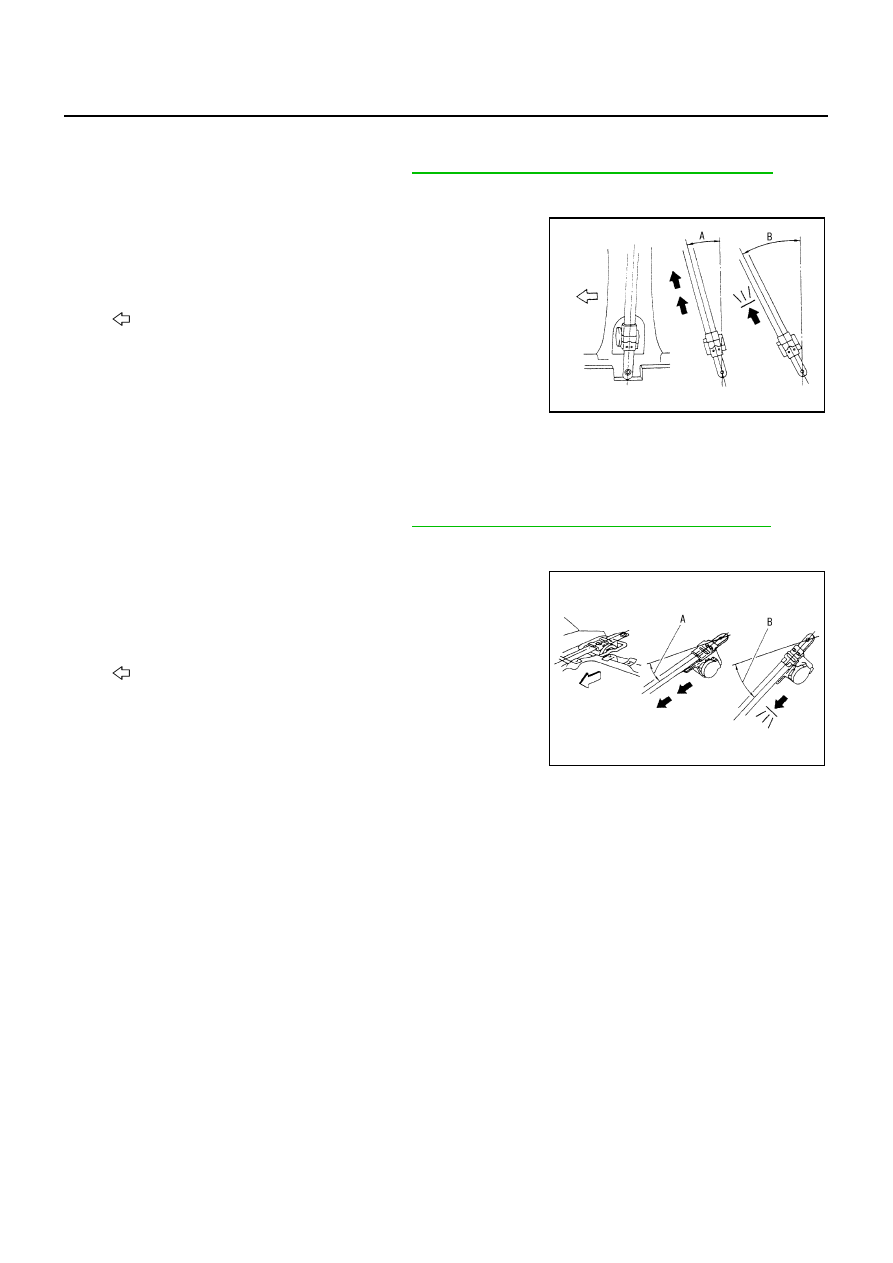

SEAT BELTS SB-31 C D E F G I J K L M A B SB Removal and Installation of Rear Seat Belt NHS0008K REMOVAL OF SEAT BELT RETRACTOR 1. Remove the outer and inner anchors. ● Remove the rear seat cushion, refer to SE-177, "Removal and Installation" . ● Remove the outer anchor fixing anchor bolt and the anchor bolt tightening the inner anchor together 2. Remove the seat belt assembly. ● Remove the rear seatback, refer to SE-177, "Removal and Installation" ● Remove the rear kicking plate, the rear wheelhouse garnish and the rear pillar finisher, refer to ● Remove the seat belt finisher from the rear parcel shelf finisher, refer to ● Remove the rear parcel shelf finisher, refer to EI-42, "REAR PARCEL SHELF FINISHER" . ● Remove the fixing anchor bolt of the seat belt retractor. INSTALLATION OF SEAT BELT RETRACTOR ● Install in the reverse order of removal. ● Tighten by specified torque. REMOVAL OF SEAT BELT BUCKLE Remove the seat belt buckle. ● Remove the rear seat cushion, refer to SE-177, "Removal and Installation" ● Remove the fixing anchor bolt of the inner anchor. 1. Outer anchor 2. Inner anchor 3. Center seat belt retractor 4. Outer seat belt retractor 5. Anchor bolt 6. Retractor cover PHIA1107E Tightening torque : 49.0 N·m (5.0 kg-m, 36 ft-lb) |
