PRE-CRASH SEAT BELT

SB-27

C

D

E

F

G

I

J

K

L

M

A

B

SB

3.

CHECK SEAT BELT MOTOR RH

 Check continuity between pre-crash seat belt motor RH.

OK or NG

OK

>> Replace pre-crash seat belt control unit.

NG

>> Replace pre-crash seat belt motor RH.

Check Brake Pedal Stroke Sensor Shield Wire Circuit

NHS0008G

1.

CHECK PRE-CRASH SEAT BELT INPUT SIGNAL

 With CONSULT-II

Select “B PEDAL SIG1 and 2” on DATA MONITOR screen, and then
make sure that the voltage does not change if brake pedal is not
operated.

NOTE:
Diagnosis should be performed with engine running, audio and air
conditioner operating.

 Without CONSULT-II

1.

Start engine.

2.

Check voltage between pre-crash seat belt harness connector.

OK or NG

OK

>> Brake pedal stroke sensor shield wire circuit is OK.

NG

>> Check shield wire for damage. Repair or replace if necessary.

Pre-crash seat belt

motor RH connector

Terminal Continuity

B422

1

2

Yes

PHIA1139E

B PEDAL SIG1

Brake released

:There is no change in the voltage
value, and it is almost constant

B PEDAL SIG2

Brake released

:There is no change in the voltage
value, and it is almost constant.

Terminal

Condition

Voltage (V)

(Approx.)

(+)

(–)

Pre-crash seat

belt control unit

connector

Terminal

B142

16

Ground

Performed with
engine running, audio
and air conditioner
operating and brake
pedal released.

There is no
change in the
voltage value,
and it is almost
constant

20

PHIA0766E

PHIA1141E

SB-28

PRE-CRASH SEAT BELT

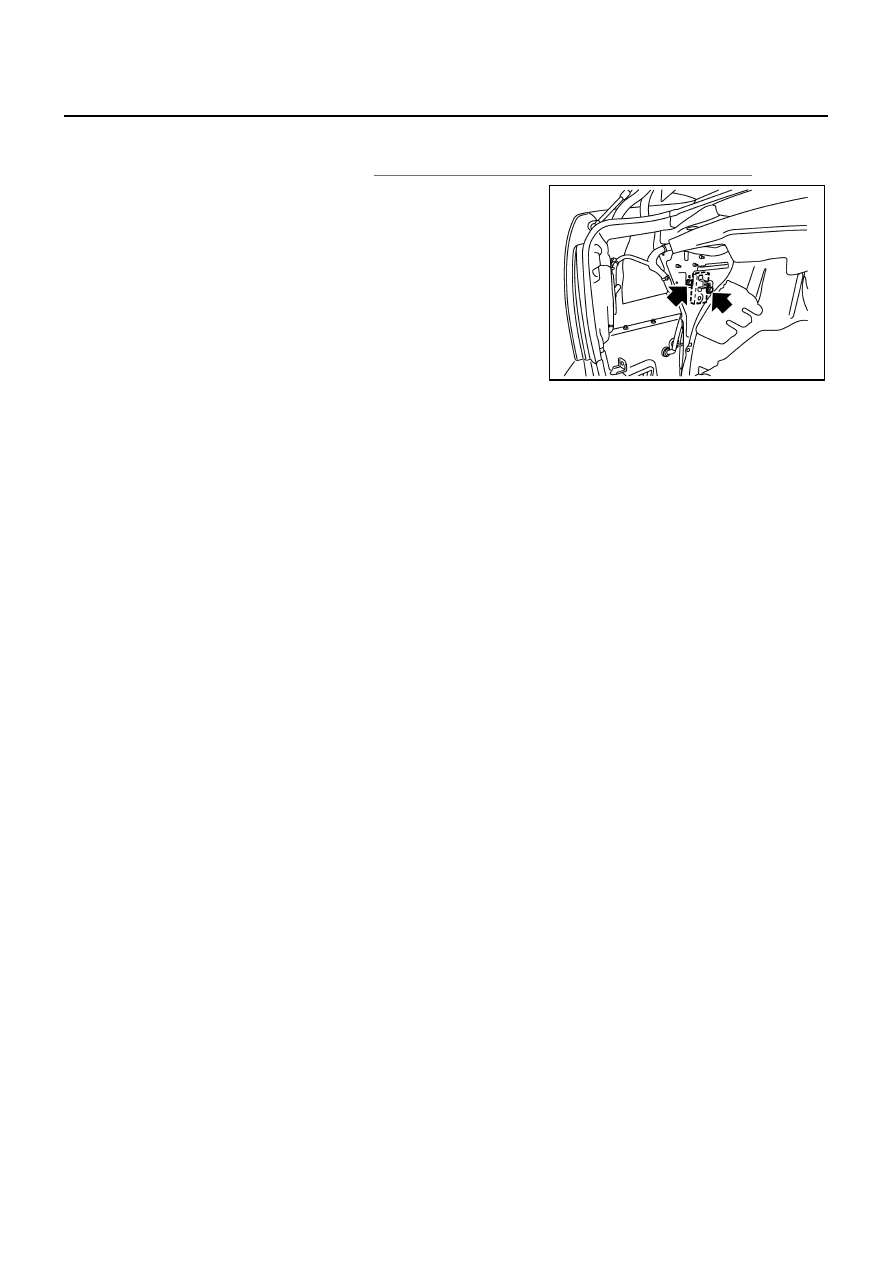

Removal and Installation of Pre-Crash Seat Belt Control Unit

NHS0008H

REMOVAL

1.

Remove trunk side finisher LH. Refer to

EI-56, "Removal and Installation for Trunk Room Trim"

 .

2.

Remove pre-crash seat belt control unit mounting bolts.

3.

Remove pre-crash seat belt control unit connector, and the pre-
crash seat belt control unit.

INSTALLATION

Install in the reverse order of removal.

PHIA1125E

SEAT BELTS

SB-29

C

D

E

F

G

I

J

K

L

M

A

B

SB

SEAT BELTS

PFP:86884

System Description

NHS0008I

SEAT BELT WARNING CHIME

●

With ignition switch turned ON and seat belt unfastened (seat belt switch ON), warning chime will sound
for approximately 6 seconds.

●

If warning chime does not sound, refer to

DI-73, "Seat Belt Buckle Switch Signal Inspection"

 .

SEAT BELT WARNING LAMP

●

Fasten driver's seat belt.

●

The seat belt warning lamp should go out.

●

If the seat belt warning lamp does not go out, refer to

DI-42, "Wiring Diagram — WARN —"

 .

Removal and Installation of Front Seat Belt

NHS0008J

CAUTION:

Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3
minutes.

REMOVAL OF SEAT BELT RETRACTOR

1.

Remove the outer anchor.

●

Remove the belt tension sensor cover and cover protector (passenger side only).

●

Disconnect the belt tension sensor connector (passenger side only).

●

Remove the fixing bolt of the outer anchor.

1.

Outer anchor

2.

Shoulder anchor

3.

Pre-tensioner seat belt retractor

4.

Belt tension sensor cover (passen-
ger side only)

5.

Cover protector (passenger side
only)

6.

Belt tension sensor connector (pas-
senger side only)

7.

Anchor bolt

8.

Anchor nut

9.

Seat belt pre-tensioner connector

10. Pre-crash seat belt connector

11.

Bolt

12. Seat belt adjuster

PHIA1106E

SB-30

SEAT BELTS

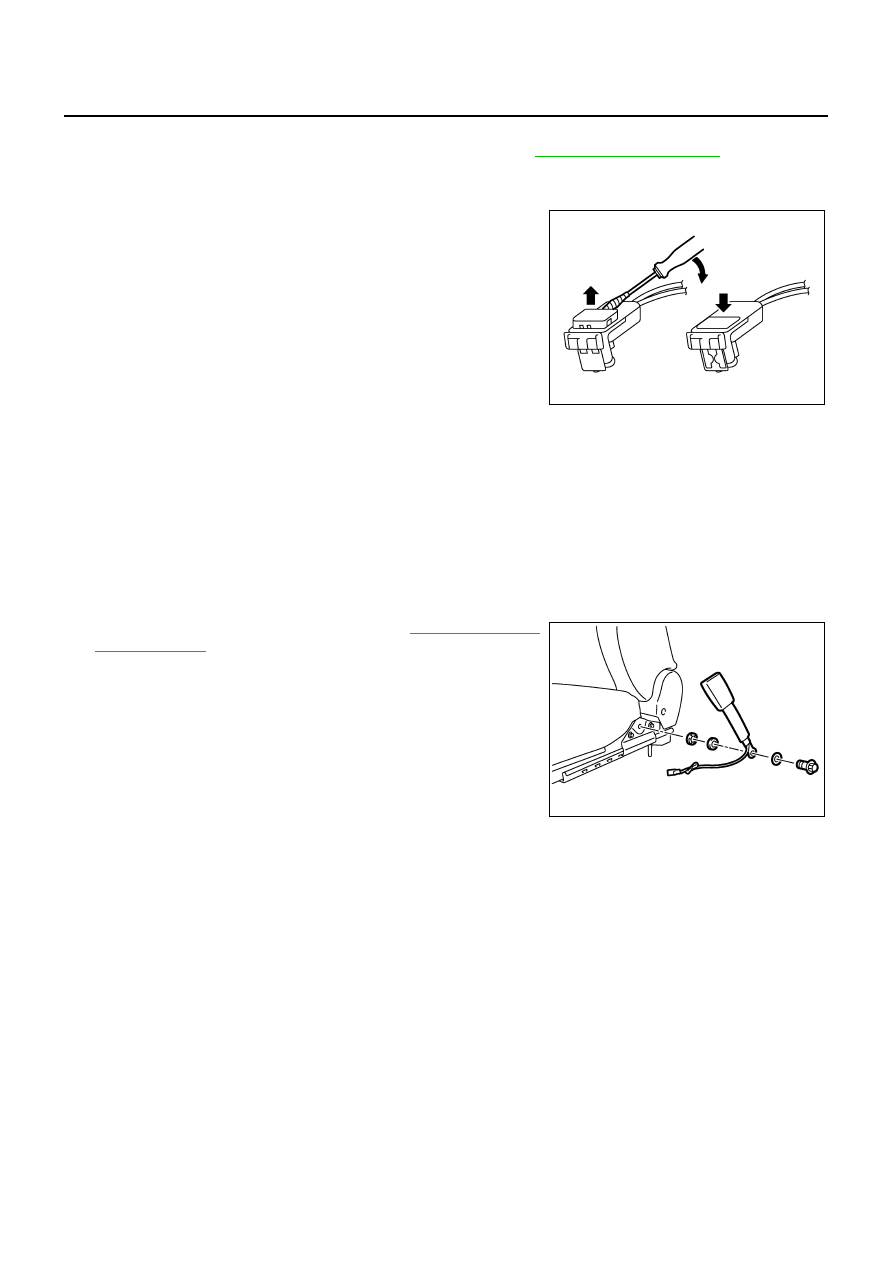

2.

Remove the shoulder anchor.

●

Remove the center pillar lower and upper garnishes, refer to

EI-37, "BODY SIDE TRIM"

 .

●

Remove the fixing anchor nut of the shoulder anchor.

3.

Remove the seat bert assembly.

●

Disconnect the seat belt pre-tensioner connector.

CAUTION:

●

For installing/removing seat belt pre-tensioner connec-
tor, insert thin screwdriver wrapped in tape into notch,
lift lock and remove connector.

●

Install connector with lock raised, and push lock into
connector.

●

Disconnect the pre-crush seat belt connector (for only the vehicle with pre-clash seat belt).

●

Remove the fixing screw and anchor bolt of the pre-tensioner seat belt retractor.

INSTALLATION OF SEAT BELT RETRACTOR

●

Install in the reverse order of removal.

●

Tighten by specified torque.

REMOVAL OF SEAT BELT BUCKLE

Remove the seat belt buckle.

●

Remove the front seat from vehicle, refer to

SE-168, "Removal

and Installation"

  (For ease of tool operation in narrow space).

●

Disconnect the seat belt buckle harness connector.

●

Remove the fixing anchor bolt of the seat belt buckle.

INSTALLATION OF SEAT BELT BUCKLE

●

Install in the reverse order of removal.

●

Tighten by specified torque.

PHIA0953J

Tightening torque

: 49.0 N·m (5.0 kg-m, 36 ft-lb)

PHIA0926J

Tightening torque

: 49.0 N·m (5.0 kg-m, 36 ft-lb)
