Infiniti M35/M45 Y50. Manual - part 104





REPAIR FOR COMPONENT PARTS

AT-339

D

E

F

G

H

I

J

K

L

M

A

B

AT

High and Low Reverse Clutch

NCS001R8

COMPONENTS

DISASSEMBLY

1.

Remove bearing race from high and low reverse clutch drum.

2.

Using a flat-bladed screwdriver, remove snap ring from high and
low reverse clutch drum.

3.

Remove drive plates, driven plates and retaining plate from high
and low reverse clutch drum.

INSPECTION

Check the following, and replace high and low reverse clutch assembly if necessary.

High and Low Reverse Clutch Snap Ring

Check for deformation, fatigue or damage.

High and Low Reverse Clutch Drive Plates

Check facing for burns, cracks or damage.

1.

High and low reverse clutch drum

2.

Driven plate

3.

Retaining plate

4.

Snap ring

5.

Drive plate

6.

Bearing race

SCIA5239E

SCIA5215E

SCIA2868E

AT-340

REPAIR FOR COMPONENT PARTS

High and Low Reverse Clutch Retaining Plate and Driven Plates

Check facing for burns, cracks or damage.

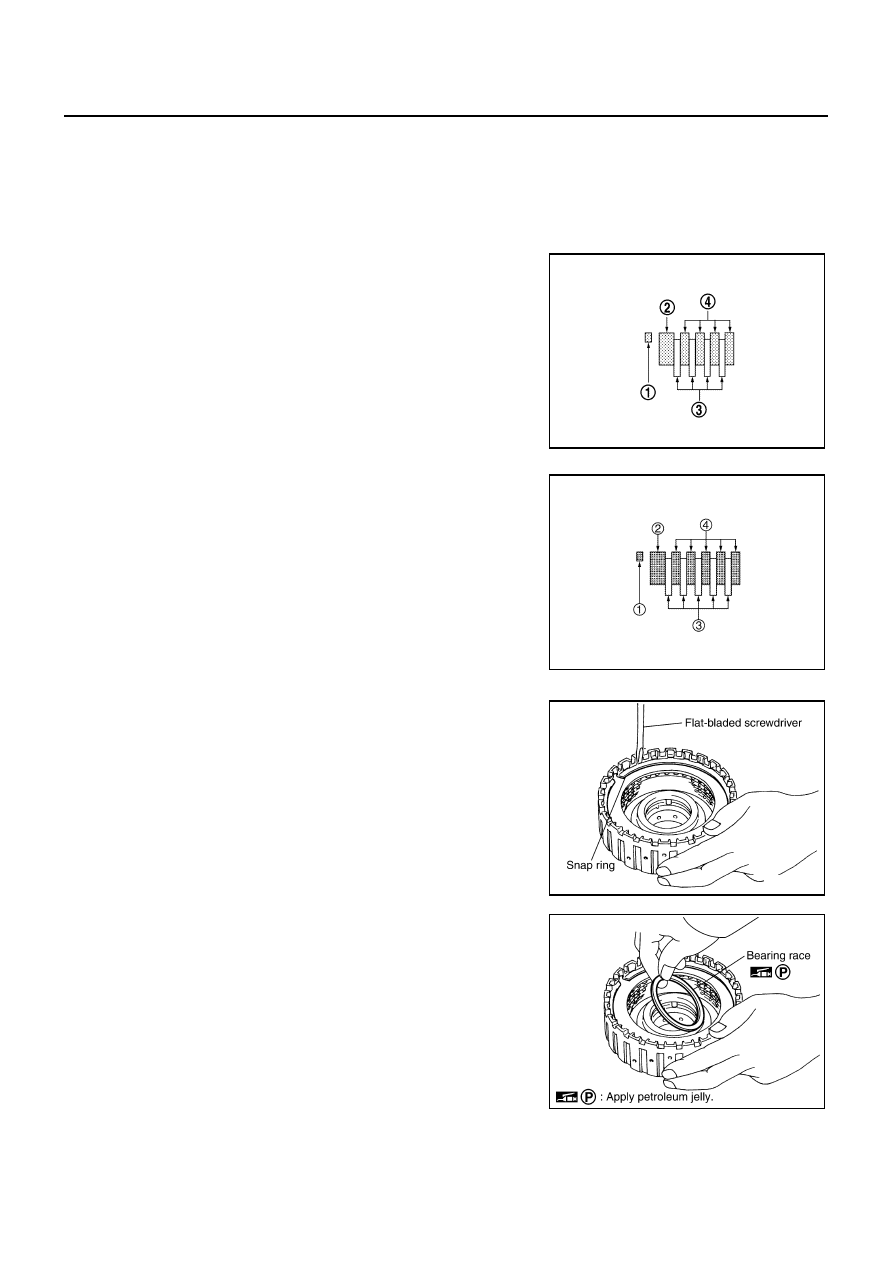

ASSEMBLY

1.

Install drive plates, driven plates and retaining plate in high and low reverse clutch drum.

CAUTION:

Take care with the order of plates.

VQ35DE models

Snap ring (1)

Retaining plate (2)

Drive plate (3)

Driven plate (4)

Drive plate/Driven plate: 4/4

VK45DE models

Snap ring (1)

Retaining plate (2)

Drive plate (3)

Driven plate (4)

Drive plate/Driven plate: 5/5

2.

Using a flat-bladed screwdriver, install snap ring in high and low
reverse clutch drum.

3.

Install bearing race to high and low reverse clutch drum.

CAUTION:

Apply petroleum jelly to bearing race.

SCIA6735E

SCIA7134E

SCIA2868E

SCIA5215E

REPAIR FOR COMPONENT PARTS

AT-341

D

E

F

G

H

I

J

K

L

M

A

B

AT

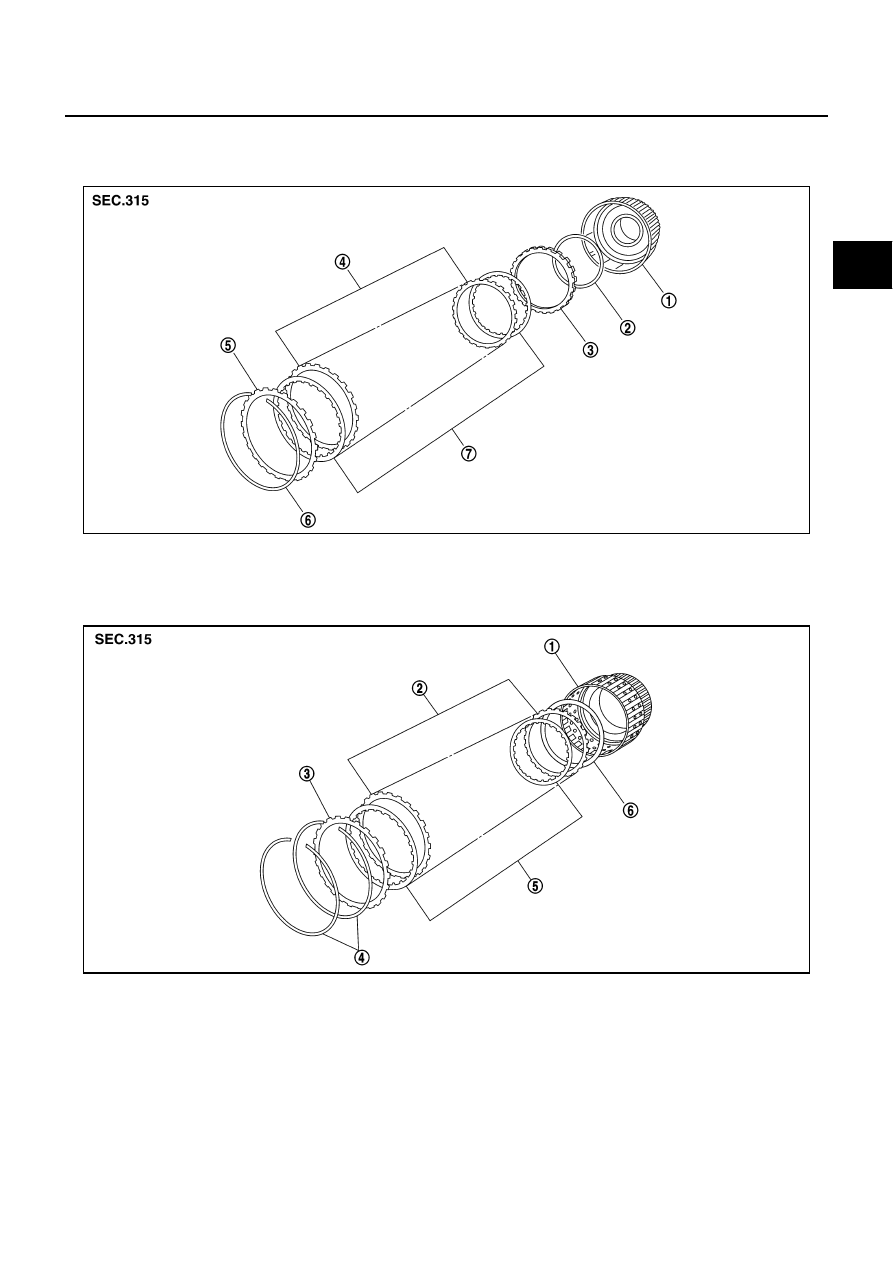

Direct Clutch

NCS001R9

COMPONENTS

VQ35DE models

VK45DE models

SCIA7015E

1.

Direct clutch drum

2.

Dish plate

3.

Retaining plate

4.

Driven plate

5.

Retaining plate

6.

Snap ring

7.

Drive plate

SCIA6983E

1.

Direct clutch drum

2.

Driven plate

3.

Retaining plate

4.

Snap ring

5.

Drive plate

6.

Dish plate

AT-342

REPAIR FOR COMPONENT PARTS

DISASSEMBLY

1.

Using a flat-bladed screwdriver, remove snap ring from direct
clutch drum.

2.

Remove drive plates, driven plates, dish plate and retaining
plates from direct clutch drum.

INSPECTION

Check the following, and replace direct clutch assembly if necessary.

Direct Clutch Snap Ring

Check for deformation, fatigue or damage.

Direct Clutch Drive Plates and Driven Plates

Check facing for burns, cracks or damage.

Direct Clutch Dish Plate and Retaining Plates

Check facing for burns, cracks or damage.

ASSEMBLY

1.

Install drive plates, driven plates, dish plate and retaining plates in direct clutch drum.

CAUTION:

Take care with the order of plates.

VQ35DE models

Snap ring (1)

Retaining plate (2)

Drive plate (3)

Driven plate (4)

Dish plate (5)

Drive plate/Driven plate: 5/4

VK45DE models

Snap ring (1)

Retaining plate (2)

Drive plate (3)

Driven plate (4)

Dish plate (5)

Drive plate/Driven plate: 6/6

SCIA2868E

SCIA6952E

SCIA6951E
