REPAIR FOR COMPONENT PARTS

AT-343

D

E

F

G

H

I

J

K

L

M

A

B

AT

2.

Using a flat-bladed screwdriver, install snap ring in direct clutch
drum.

SCIA2868E

AT-344

ASSEMBLY

ASSEMBLY

PFP:00000

Assembly (1)

NCS001RA

1.

As shown in the figure, use a drift [22 mm (0.87 in) dia. commer-
cial service tool] to drive manual shaft oil seals into the transmis-
sion case until it is flush.

CAUTION:

Do not reuse manual shaft oil seals.

Apply ATF to manual shaft oil seals.

2.

Install detent spring and spacer in transmission case. Tighten
detent spring and spacer bolts to the specified torque. Refer to

AT-281, "Components"

 .

3.

Install manual shaft to transmission case.

4.

Install parking rod to manual plate.

SCIA5259E

SCIA5248E

SCIA5716E

SCIA5220E

ASSEMBLY

AT-345

D

E

F

G

H

I

J

K

L

M

A

B

AT

5.

Install manual plate (with parking rod) to manual shaft.

6.

Install retaining pin into the manual plate and manual shaft.

a.

Fit pinhole of the manual plate to pinhole of the manual shaft
with a pin punch.

b.

Use a hammer to tap the retaining pin into the manual plate.

CAUTION:

Do not reuse retaining pin.

Drive retaining pin to 2

±

0.5 mm (0.08

±

0.020 in) over the

manual plate.

7.

Install retaining pin into the transmission case and manual shaft.

a.

Fit pinhole of the transmission case to pinhole of the manual
shaft with a pin punch.

b.

Use a hammer to tap the retaining pin into the transmission
case.

CAUTION:

Do not reuse retaining pin.

Drive retaining pin to 5

±

1 mm (0.20

±

0.04 in) over the

transmission case.

8.

Install O-rings to servo assembly.

CAUTION:

Do not reuse O-rings.

Apply petroleum jelly to O-rings.

9.

Install return spring to servo assembly.

SCIA5715E

SCIA5297E

SCIA2427E

SCIA5719E

SCIA5717E

AT-346

ASSEMBLY

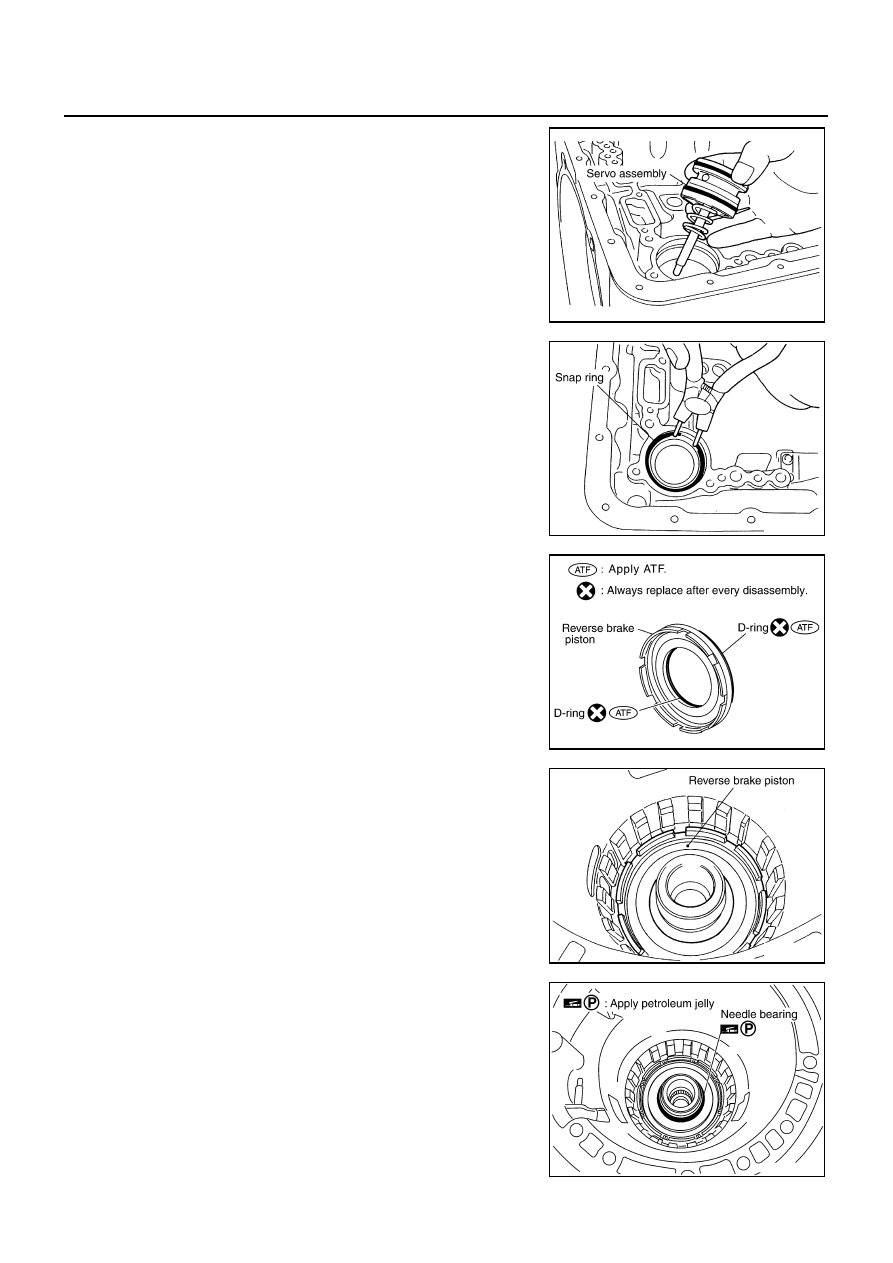

10. Install servo assembly in transmission case.

11. Using a pair of snap ring pliers, install snap ring to transmission

case.

12. Install D-rings in reverse brake piston.

CAUTION:

Do not reuse D-rings.

Apply ATF to D-rings.

13. Install reverse brake piston in transmission case.

14. Install needle bearing to drum support edge surface.

CAUTION:

Apply petroleum jelly to needle bearing.

SCIA5679E

SCIA2333E

SCIA6330E

SCIA2325E

SCIA2796E
