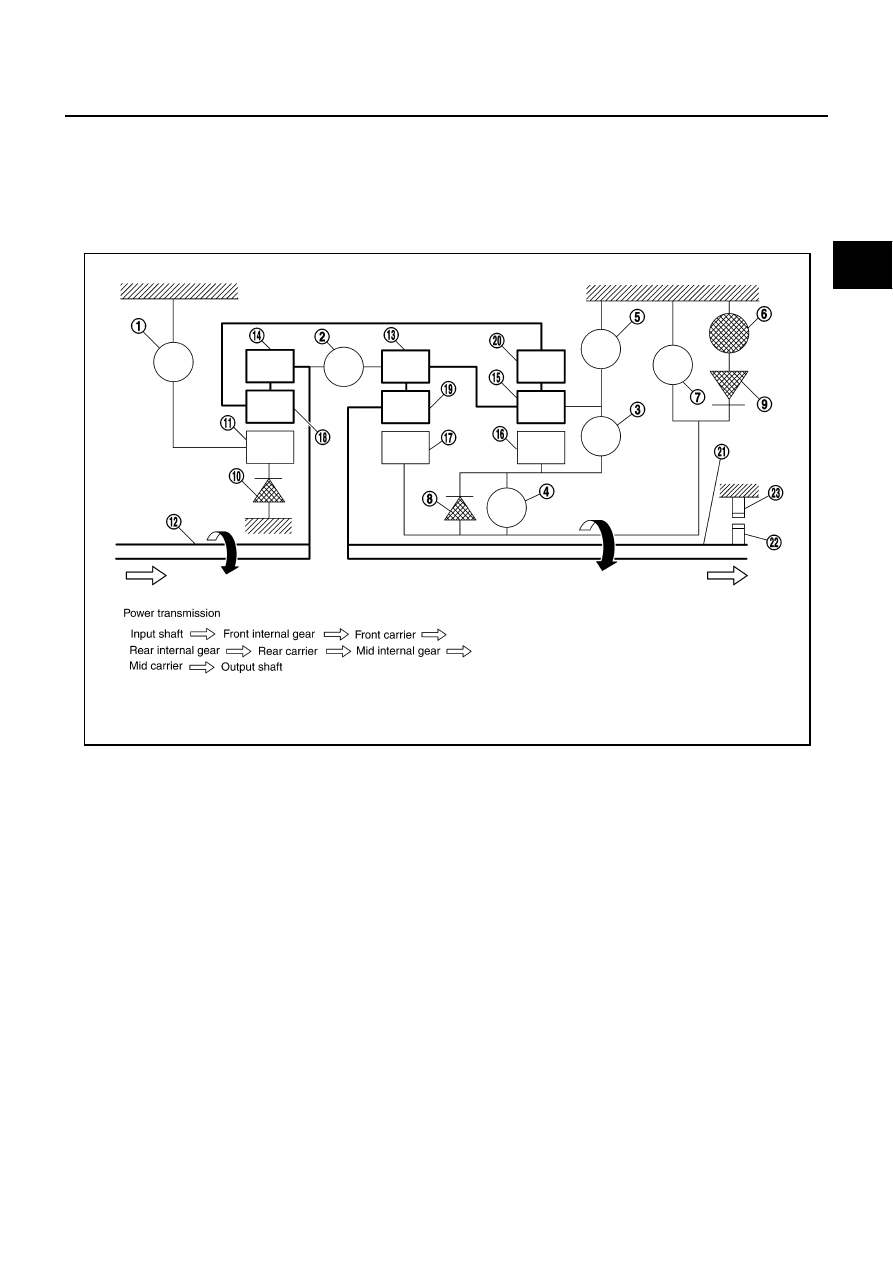

A/T CONTROL SYSTEM AT-23 D E F G H I J K L M A B AT “D 1 ” Position ● The forward brake and the forward one-way clutch regulate reverse rotation of the mid sun gear. ● The 1st one-way clutch regulates reverse rotation of the rear sun gear. ● The 3rd one-way clutch regulates reverse rotation of the front sun gear. ● During deceleration, the mid sun gear turns forward, so the forward one-way clutch idles and the engine 1. Front brake 2. Input clutch 3. Direct clutch 4. High and low reverse clutch 5. Reverse brake 6. Forward brake 7. Low coast brake 8. 1st one-way clutch 9. Forward one-way clutch 10. 3rd one-way clutch 11. Front sun gear 12. Input shaft 13. Mid internal gear 14. Front internal gear 15. Rear carrier 16. Rear sun gear 17. Mid sun gear 18. Front carrier 19. Mid carrier 20. Rear internal gear 21. Output shaft 22. Parking gear 23. Parking pawl SCIA1512E |
