Infiniti I35 (A33). Manual - part 580





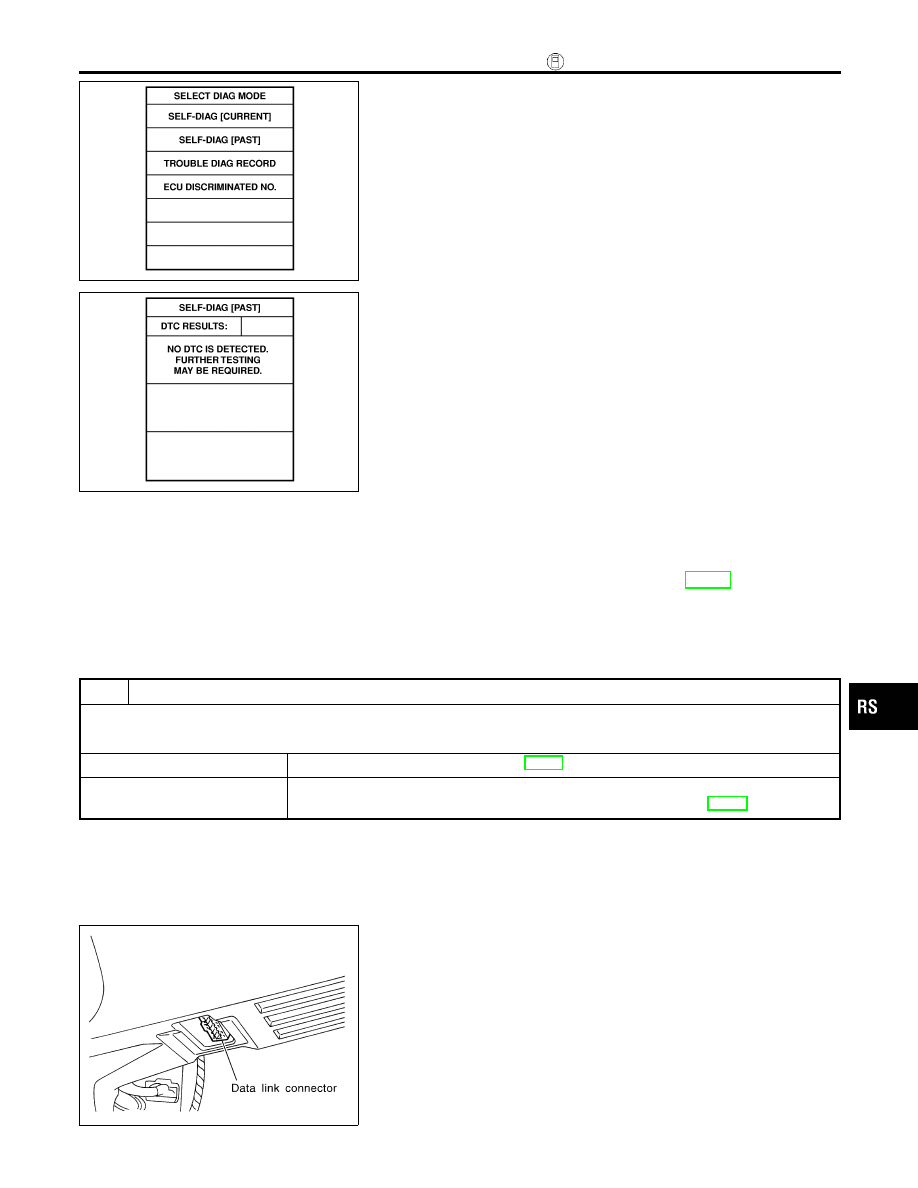

SRS697

9.

Touch “BACK” key of CONSULT-II to “SELECT SYSTEM”
screen. Touch “SELF-DIAG [PAST]”.

SRS702

10. Check that no malfunction is detected on “SELF-DIAG

[PAST]”.

11. Touch “BACK” key of CONSULT-II until “SELECT SYSTEM”

appears in order to return to User mode from Diagnosis mode.

12. Turn ignition switch “OFF”, then turn off and disconnect CON-

SULT-II.

13. Go to “SRS Operation Check”, page RS-41 to check SRS

operation by using “AIR BAG” warning lamp with User mode.

DIAGNOSTIC PROCEDURE 4 (CONTINUED FROM
DIAGNOSTIC PROCEDURE 2)

NHRS0048S03

Inspecting SRS malfunctioning record

1

CONSIDER POSSIBILITY OF NOT ERASING SELF-DIAGNOSTIC RESULTS AFTER REPAIRING

Is it the first time for maintenance of SRS?

Yes or No

Yes

©

Go to DIAGNOSTIC PROCEDURE 5 (RS-47).

No

©

Self-diagnostic results “SELF-DIAG [PAST]” (previously stored in the memory) might not
be erased after repair. Go to DIAGNOSTIC PROCEDURE 3, step 8 (RS-45).

SRS694

DIAGNOSTIC PROCEDURE 5

NHRS0048S04

Inspecting SRS intermittent malfunction by using CONSULT-II
— Diagnosis mode
1.

Turn ignition switch “OFF”.

2.

Connect “CONSULT-II” to data link connector.

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

BT

HA

SC

EL

IDX

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses with CONSULT-II (Cont’d)

RS-47

PHIA0157E

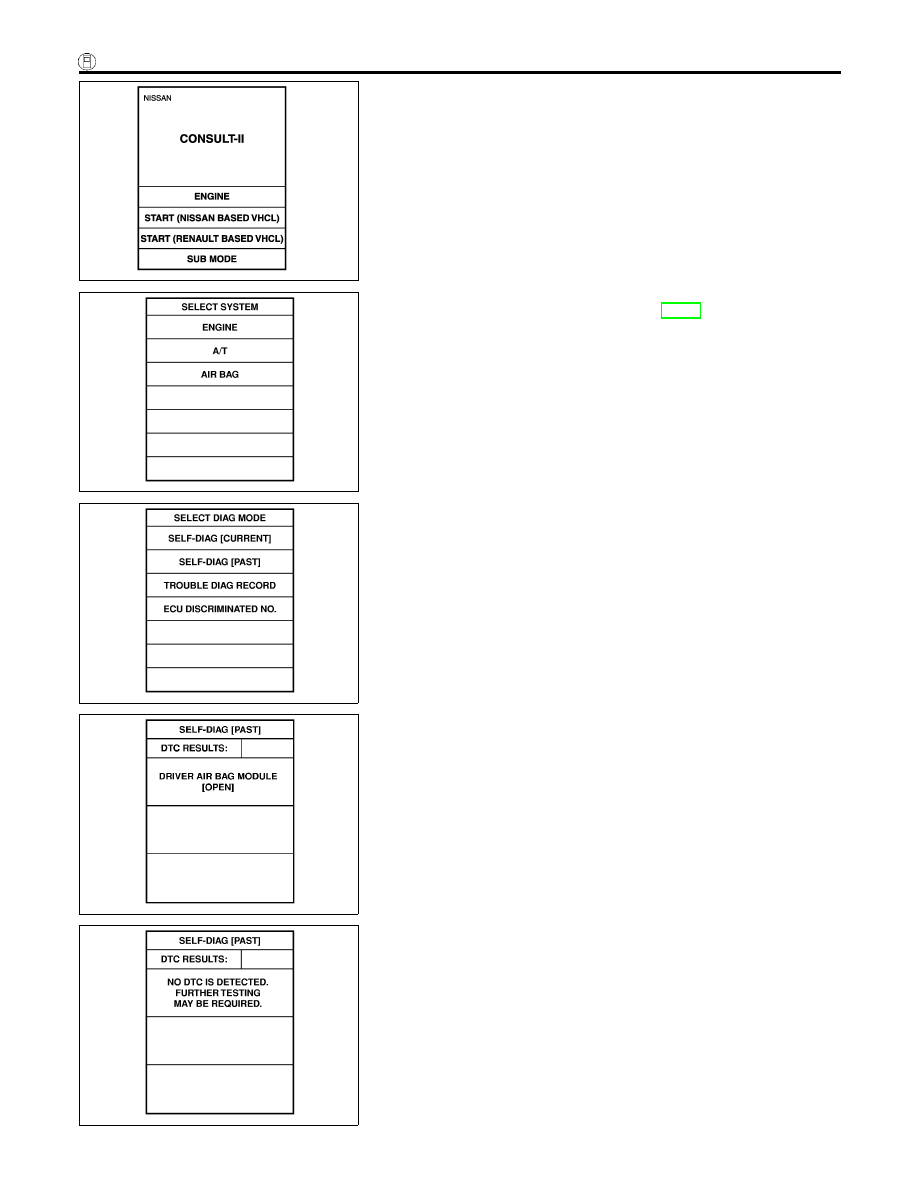

3.

Turn ignition switch “ON”.

4.

Touch “START (NISSAN BASED VHCL)”.

SRS771

5.

Touch “AIR BAG”.
If “AIR BAG” is not indicated, go to GI-42, “CONSULT-II Data
Link Connector (DLC) Circuit”.

SRS697

6.

Touch “SELF-DIAG [PAST]”.

SHIA0181E

7.

If diagnostic codes are displayed on “SELF-DIAG [PAST]”, go
to step 10.

SRS702

If no malfunction is detected on “SELF-DIAG [PAST]”, touch
“BACK” and go back to “SELECT DIAG MODE”.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses with CONSULT-II (Cont’d)

RS-48

SRS697

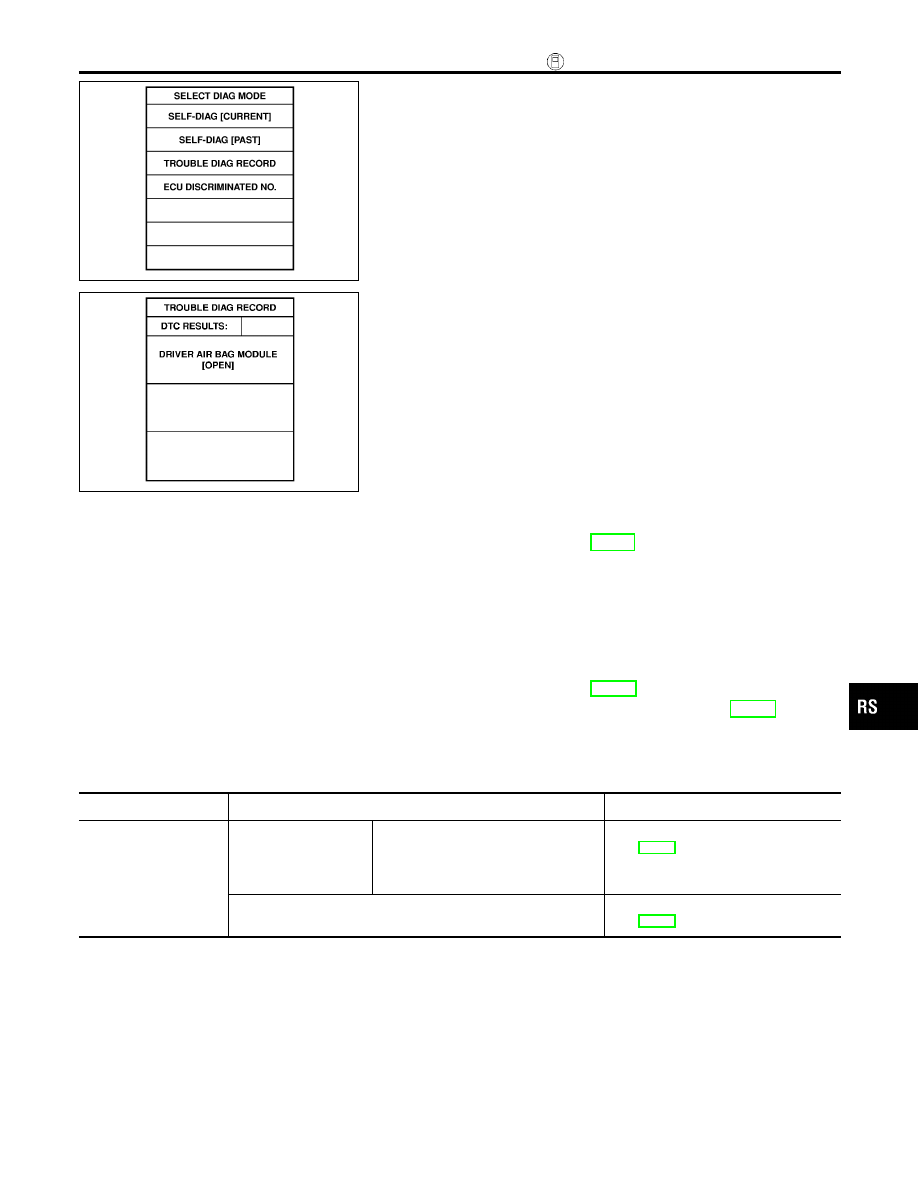

8.

Touch “TROUBLE DIAG RECORD”.

NOTE:
With “TROUBLE DIAG RECORD”, diagnosis results previ-
ously erased by a reset operation can be displayed.

SHIA0182E

9.

Diagnostic code is displayed on “TROUBLE DIAG RECORD”.

10. Touch “PRINT”.
11. Compare diagnostic codes to “Intermittent Malfunction Diag-

nostic Code Chart”, page RS-49.

12. Touch “BACK” key of CONSULT-II until “SELECT SYSTEM”

appears.

13. Turn ignition switch “OFF”, then turn off and disconnect

CONSULT-II, and disconnect both battery cables.

14. Repair the system as outlined by the “Repair order” in “Inter-

mittent Malfunction Diagnostic Code Chart”, that corresponds
to the self-diagnostic result. For replacement procedure of
component parts, refer to RS-17.

15. Go to DIAGNOSTIC PROCEDURE 3, page RS-45, for final

checking.

Intermittent Malfunction Diagnostic Code Chart (“SELF-
DIAG [PAST]” or “TROUBLE DIAG RECORD”)

NHRS0048S0401

Diagnostic item

Explanation

Repair order

NO DTC IS
DETECTED.

When malfunction is
indicated by the “AIR
BAG” warning lamp in
User mode

I

Low battery voltage (Less than 9V)

I

Go to DIAGNOSTIC PROCEDURE
(RS-45) after charging battery.

I

No malfunction is detected.

I

Go to DIAGNOSTIC PROCEDURE
(RS-45).

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

BT

HA

SC

EL

IDX

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses with CONSULT-II (Cont’d)

RS-49

Diagnostic item

Explanation

Repair order

DRIVER AIRBAG
MODULE
[OPEN]

I

Driver air bag module circuit is open. (including the spiral
cable)

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. If the harness check result is OK,

replace driver air bag module
(Before disposal, it must be
deployed.), diagnosis sensor unit
and spiral cable.

DRIVER AIRBAG
MODULE
[VB-SHORT]

I

Driver air bag module circuit is shorted to a power supply cir-
cuit. (including the spiral cable)

DRIVER AIRBAG
MODULE
[GND-SHORT]

I

Driver air bag module circuit is shorted to ground. (including
the spiral cable)

DRIVER AIRBAG
MODULE
[SHORT]

I

Driver air bag module circuit is shorted between lines.

ASSIST A/B MODULE
[OPEN]

I

Front passenger air bag module circuit is open.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. If the harness check result is OK,

replace front air bag module
(Before disposal, it must be
deployed.), and diagnosis sensor
unit.

ASSIST A/B MODULE
[VB-SHORT]

I

Front passenger air bag module circuit is shorted to a power
supply circuit.

ASSIST A/B MODULE
[GND-SHORT]

I

Front passenger air bag module circuit is shorted to ground.

ASSIST A/B MODULE
[SHORT]

I

Front passenger air bag module circuit is shorted between
lines.

CRASH ZONE SEN
[UNIT FAIL]
CRASH ZONE SEN
[COMM FAIL]

I

Crash zone sensor

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. If the harness check is OK, replace

the diagnosis sensor unit and crash
zone sensor.

SIDE MODULE LH
[OPEN]

I

LH side air bag module circuit is open.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. If the harness check is OK, replace

the diagnosis sensor unit and side
air bag module. (Before disposal,
LH side air bag module, it must be
deployed.)

SIDE MODULE LH
[VB-SHORT]

I

LH side air bag module circuit is shorted to a power supply
circuit.

SIDE MODULE LH
[GND-SHORT]

I

LH side air bag module circuit is shorted to ground.

SIDE MODULE LH
[SHORT]

I

LH side air bag module circuit is shorted between lines.

SIDE MODULE RH
[OPEN]

I

RH side air bag module circuit is open.

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. If the harness check is OK, replace

the diagnosis sensor unit and RH
side air bag module. (Before
disposal, RH side air bag module, it
must be deployed.)

SIDE MODULE RH
[VB-SHORT]

I

RH side air bag module circuit is shorted to a power supply
circuit.

SIDE MODULE RH
[GND-SHORT]

I

RH side air bag module circuit is shorted to ground.

SIDE MODULE RH
[SHORT]

I

RH side air bag module circuit is shorted between lines.

SATELLITE SENS LH
[UNIT FAIL]
SATELLITE SENS LH
[COMM FAIL]

I

LH side air bag (Satellite) sensor

1. Visually check the wiring harness

connection.

2. Replace the harness if it has visible

damage.

3. If the harness check is OK, replace

the diagnosis sensor unit and LH
side air bag (Satellite) sensor.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses with CONSULT-II (Cont’d)

RS-50
