Infiniti I35 (A33). Manual - part 578





MRS384A

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

BT

HA

SC

EL

IDX

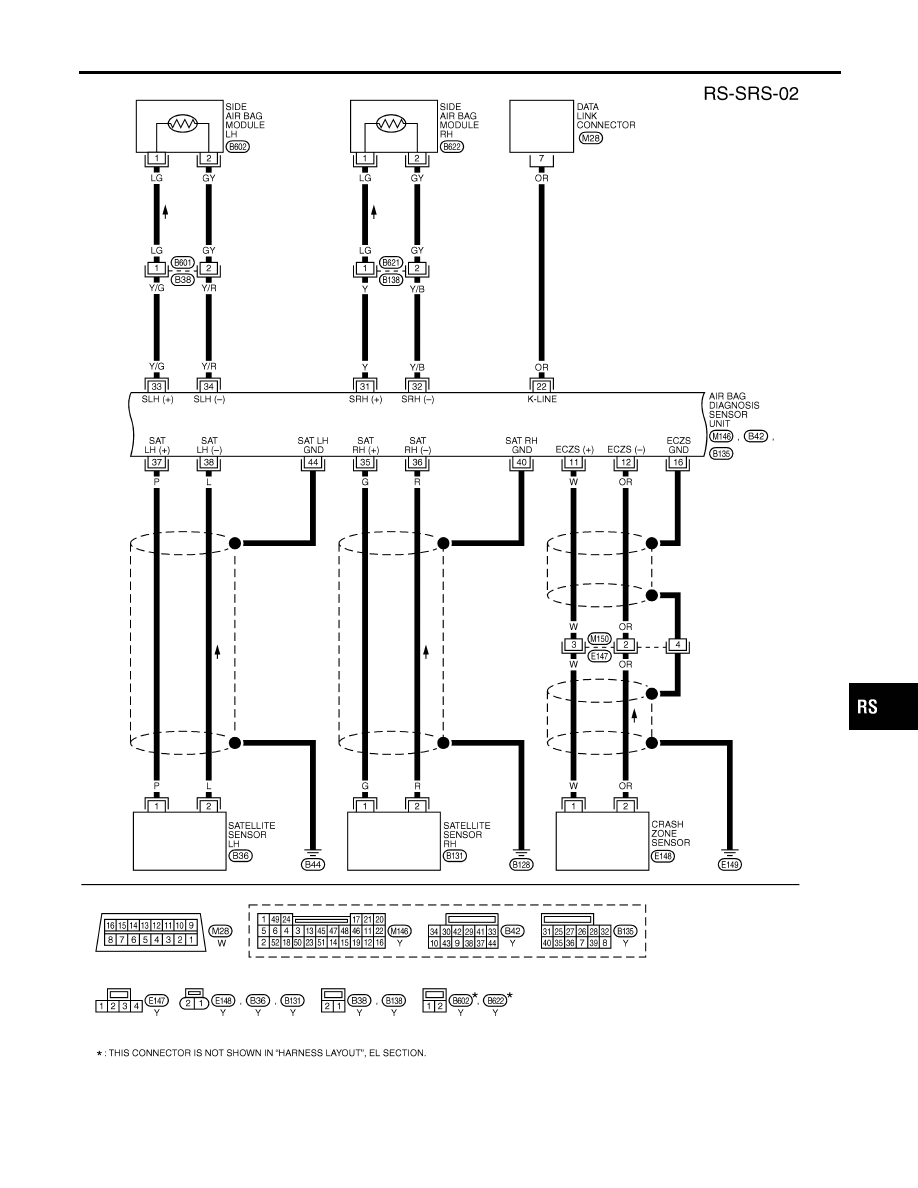

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Wiring Diagram — SRS — (Cont’d)

RS-39

MRS497A

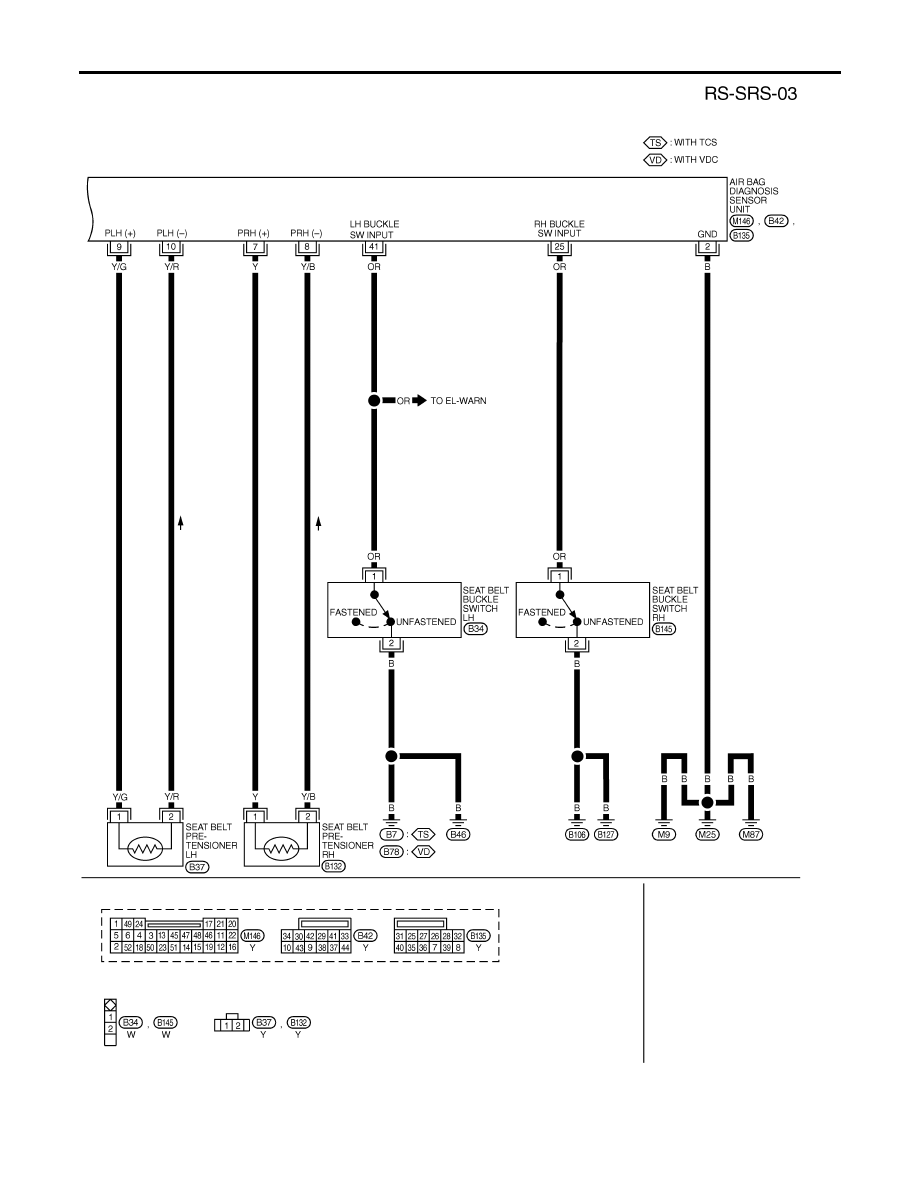

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Wiring Diagram — SRS — (Cont’d)

RS-40

SRS800

SRS Operation Check

NHRS0047

DIAGNOSTIC PROCEDURE 1

NHRS0047S01

Checking Air Bag Operation by Using “AIR BAG”
Warning Lamp — User Mode

NHRS0047S0101

1.

After turning ignition switch from “OFF” to “ON”, “AIR BAG”
warning lamp operates.

2.

Compare “AIR BAG” warning lamp operation to the chart
below.

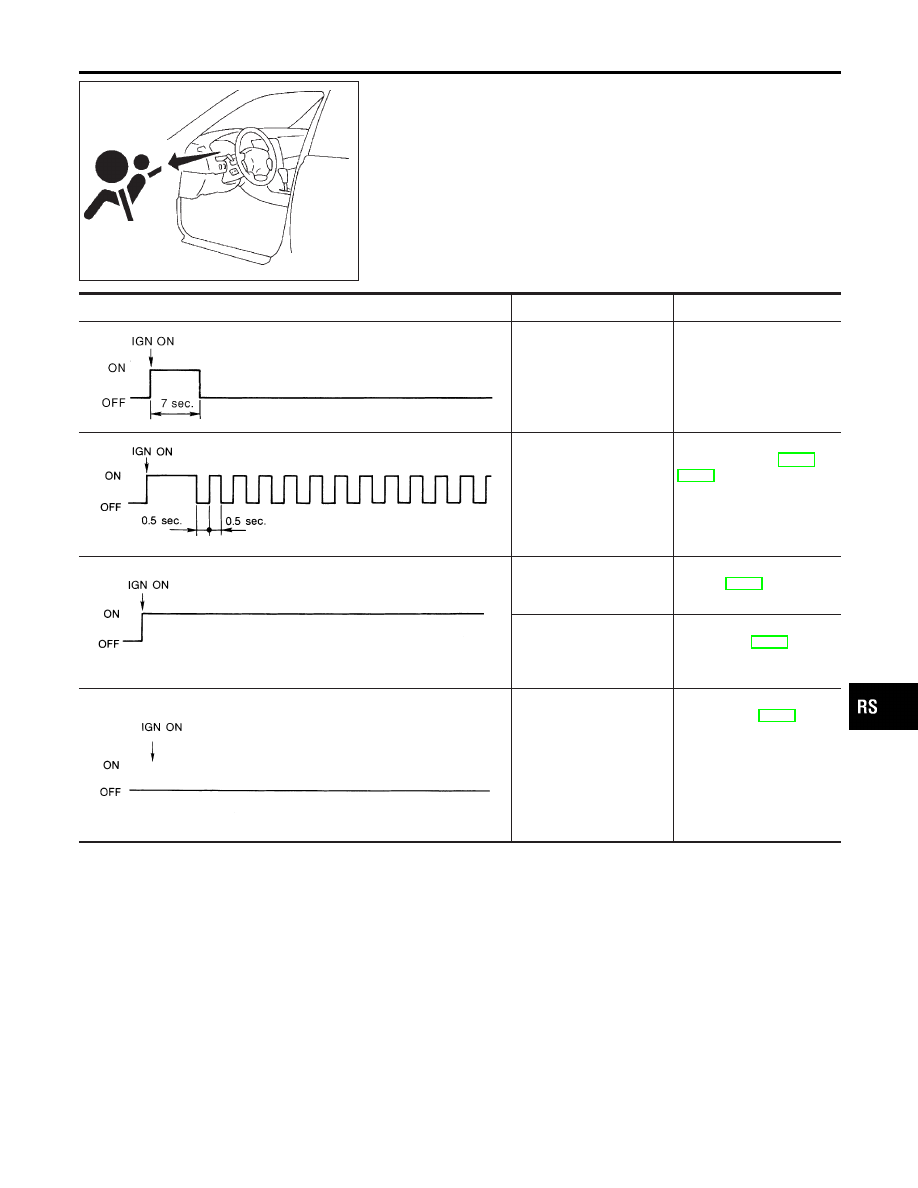

“AIR BAG” warning lamp operation — User mode —

SRS condition

Reference item

MRS095A

No malfunction is
detected. No further action
is necessary.

MRS096A

The system is malfunction-
ing and needs to be
repaired as indicated.

Go to DIAGNOSTIC PRO-
CEDURE 2 or 6 (RS-42 or
RS-51).

MRS097A

Air bag is deployed.
Seat belt pre-tensioner is
activated.

Go to COLLISION DIAG-
NOSIS (RS-62).

Air bag fuse, diagnosis
sensor unit or harness is
malfunctioning and needs
to be repaired.

Go to DIAGNOSTIC PRO-
CEDURE 9 (RS-59).

MRS098A

One of the following has
occurred and needs to be
repaired.

I

Meter fuse is blown.

I

“AIR BAG” warning
lamp circuit has open or
short.

I

Diagnosis sensor unit is
malfunctioning.

Go to DIAGNOSTIC PRO-
CEDURE 10 (RS-61).

GI

MA

EM

LC

EC

FE

AT

AX

SU

BR

ST

BT

HA

SC

EL

IDX

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

SRS Operation Check

RS-41

SRS694

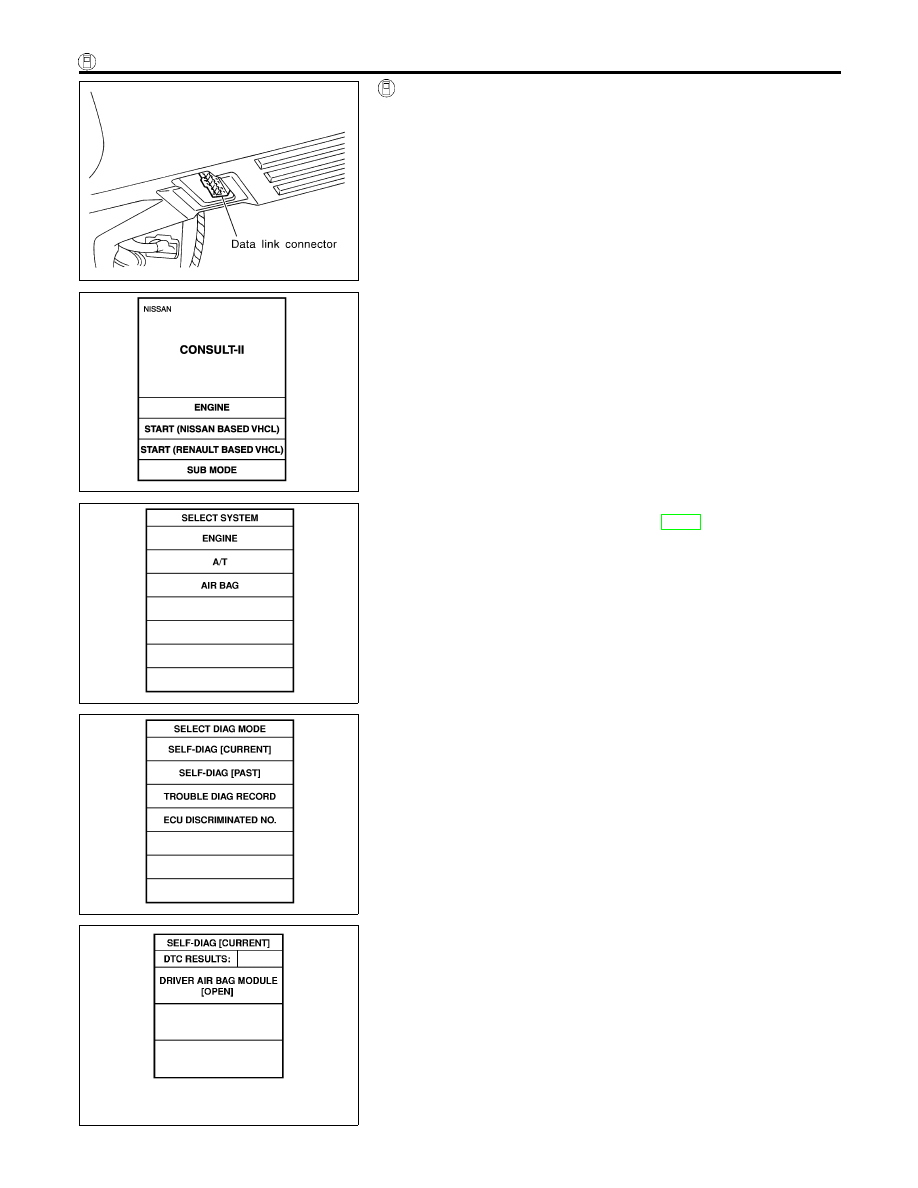

Trouble Diagnoses with CONSULT-II

=NHRS0048

DIAGNOSTIC PROCEDURE 2

NHRS0048S01

Inspecting SRS malfunctioning parts by using CONSULT-II —
Diagnosis mode
1.

Turn ignition switch “OFF”.

2.

Connect “CONSULT-II” to data link connector.

PHIA0157E

3.

Turn ignition switch “ON”.

4.

Touch “START (NISSAN BASED VHCL)”.

SRS771

5.

Touch “AIR BAG”.
If “AIR BAG” is not indicated, go to GI-42, “CONSULT-II Data
Link Connector (DLC) Circuit”.

SRS697

6.

Touch “SELF-DIAG [CURRENT]”.

SHIA0203E

7.

Diagnostic codes are displayed on “SELF-DIAG [CURRENT]”.

SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

Trouble Diagnoses with CONSULT-II

RS-42
