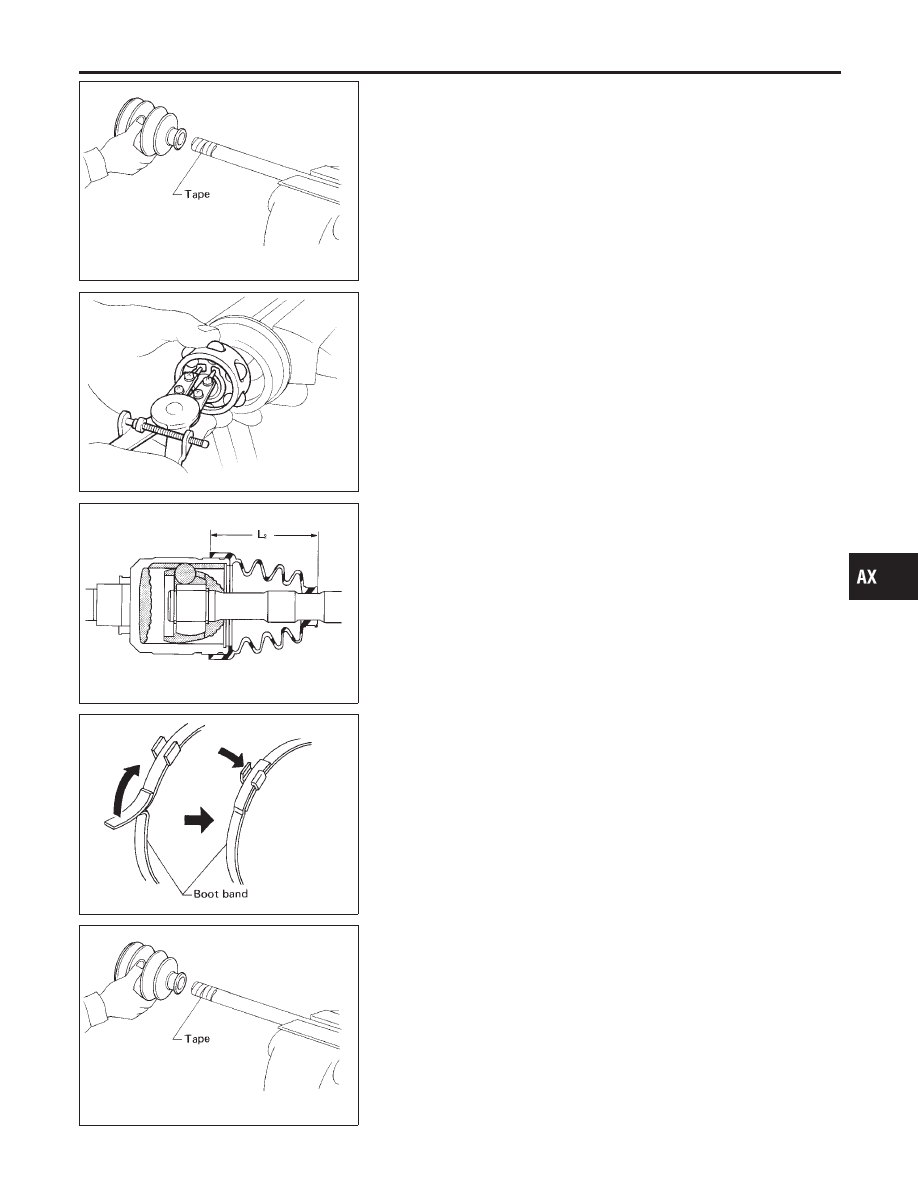

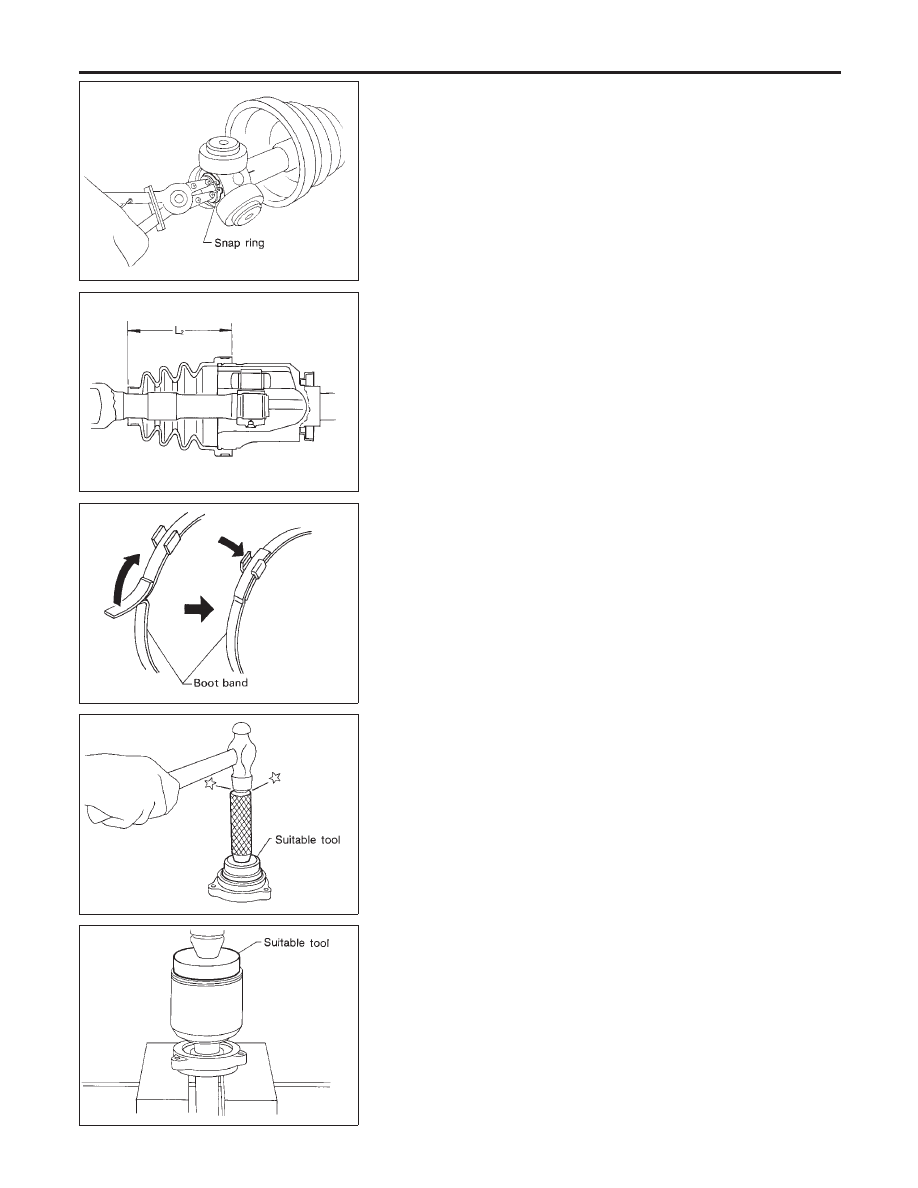

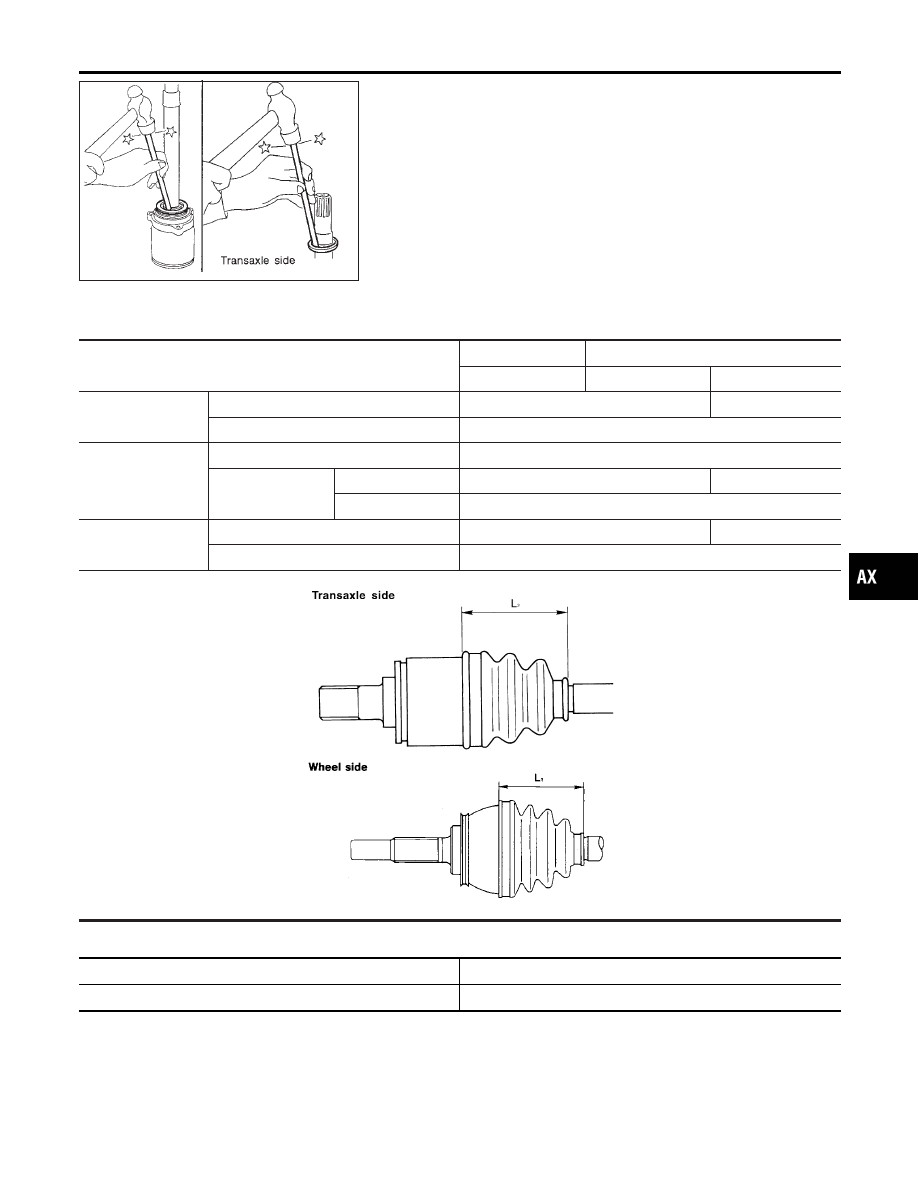

SFA800 Transaxle Side NCAX0019S03 (DS83 type) NCAX0019S0301 1. Install boot and new small boot band on drive shaft. Cover drive shaft serration with tape so as not to damage boot SFA514A 2. Install ball cage, inner race and balls as a unit, making sure the 3. Install new snap ring. SFA149A 4. Pack drive shaft with specified amount of grease. Specified amount of grease: 115 - 135 g (4.06 - 4.76 oz) 5. Install slide joint housing, then install new snap ring. 6. Make sure that boot is properly installed on the drive shaft 2 ”. Length “L 2 ”: 98 mm (3.86 in) SFA395 7. Lock new larger and smaller boot bands securely with a suit- SFA800 (TS83 type) NCAX0019S0302 1. Install boot and new small boot band on drive shaft. Cover drive shaft serration with tape to prevent damage to GI MA EM LC EC FE CL MT AT SU BR ST RS BT HA SC EL IDX FRONT AXLE Drive Shaft (Cont’d) AX-17 |
