Wheel Side

NCAX0015S02

I

Install drive shaft into knuckle.

I

Tighten upper knuckle nut and wheel bearing lock nut. Refer
to section Installation in “Wheel Hub and Knuckle”, “FRONT
AXLE”, AX-5.

SFA476

DISASSEMBLY

NCAX0017

Transaxle Side

NCAX0017S01

(DS83 type)

NCAX0017S0101

1.

Remove boot bands.

2.

Put matching marks on slide joint housing and inner race,
before separating joint assembly.

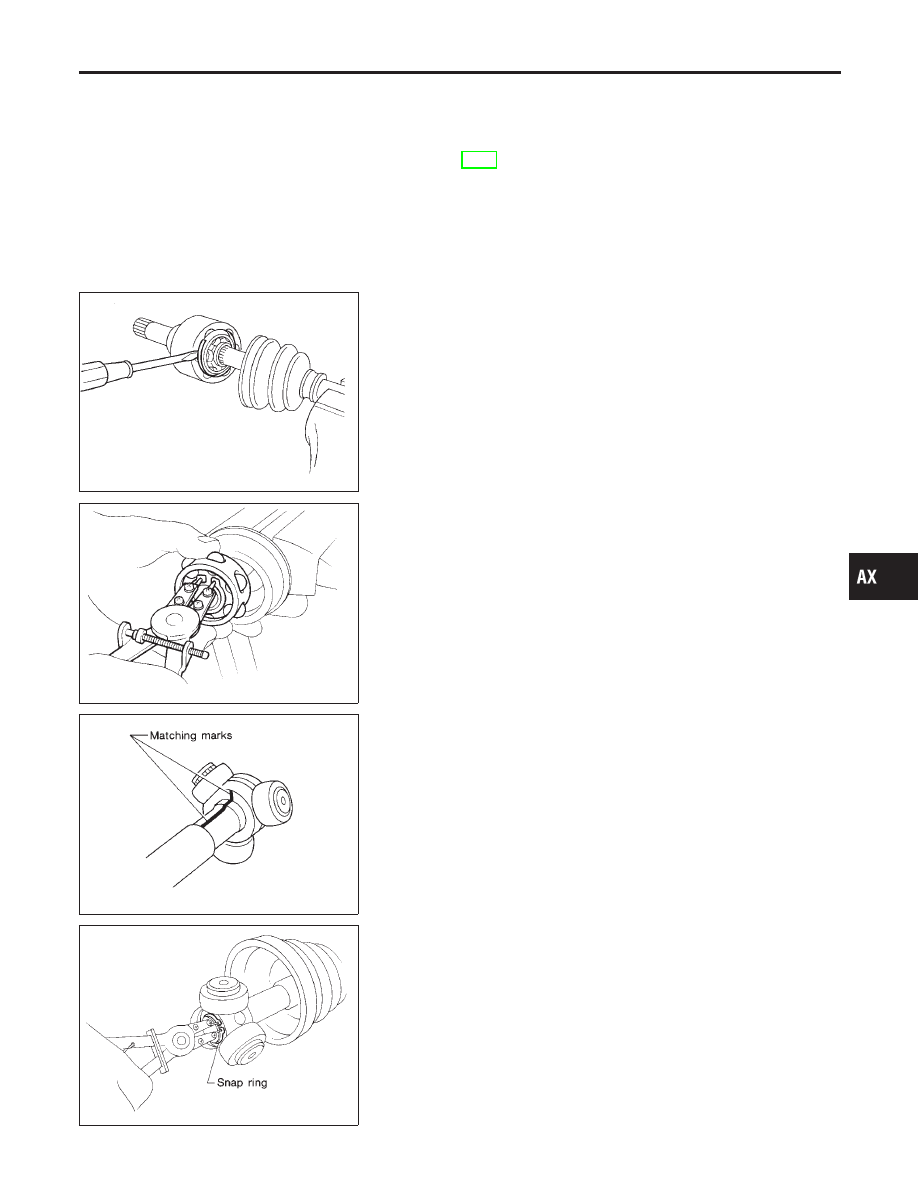

3.

Remove stopper ring with a screwdriver, and pull out slide joint
housing.

SFA514A

4.

Put matching marks on inner race and drive shaft.

5.

Remove snap ring, then remove ball cage, inner race and balls
as a unit.

6.

Draw out boot.

Cover drive shaft serrations with tape so as not to damage the
boot.

SFA963

(TS83 type)

NCAX0017S0102

1.

Remove boot bands.

2.

Put matching marks on slide joint housing and drive shaft
before separating joint assembly.

3.

Put matching marks on spider assembly and drive shaft.

SFA612

4.

Remove snap ring, then remove spider assembly.

CAUTION:

Do not disassemble spider assembly.
5.

Draw out boot.

Cover drive shaft serration with tape to prevent damage to the
boot.

GI

MA

EM

LC

EC

FE

CL

MT

AT

SU

BR

ST

RS

BT

HA

SC

EL

IDX

FRONT AXLE

Drive Shaft (Cont’d)

AX-13

SFA092A

Wheel Side (BF86 type)

NCAX0017S02

CAUTION:

The joint on the wheel side cannot be disassembled.
1.

Before separating joint assembly, put matching marks on drive
shaft and joint assembly.

2.

Separate joint assembly with a suitable tool.

Be careful not to damage threads on drive shaft.
3.

Remove boot bands.

4.

Draw out boot.

SFA442B

Support Bearing

NCAX0017S03

1.

Remove dust shield.

SFA692

2.

Remove snap ring.

SFA693

3.

Press support bearing assembly off of drive shaft.

SFA617

4.

Separate support bearing from retainer.

FRONT AXLE

Drive Shaft (Cont’d)

AX-14

INSPECTION

NCAX0018

Thoroughly clean all parts in cleaning solvent, and dry with
compressed air. Check parts for evidence of deformation or
other damage.

Drive Shaft

NCAX0018S01

Replace drive shaft if it is twisted or cracked.

Boot

NCAX0018S02

Check boot for fatigue, cracks or wear. Replace boot with new boot
bands.

Joint Assembly (Transaxle side)

NCAX0018S03

I

Check spider assembly for needle bearing and washer dam-
age. Replace if necessary. (TS83 type)

I

Check roller surfaces for scratches, wear or other damage.
Replace if necessary. (TS83 type)

I

Replace any parts of double offset joint which show signs of
scorching, rust, wear or excessive play. (DS83 type)

I

Check serration for deformation. Replace if necessary.

I

Check slide joint housing for any damage. Replace if neces-
sary.

Joint Assembly (Wheel side)

NCAX0018S04

Replace joint assembly if it is deformed or damaged.

Support Bearing

NCAX0018S05

Make sure wheel bearing rolls freely and is free from noise, cracks,
pitting or wear.

Support Bearing Bracket

NCAX0018S06

Check support bearing bracket for cracks with a magnetic explora-
tion or dyeing test.

ASSEMBLY

NCAX0019

I

After drive shaft has been assembled, ensure that it
moves smoothly over its entire range without binding.

I

Use NISSAN GENUINE GREASE or equivalent after every
overhaul.

SFA800

Wheel Side (BF86 type)

NCAX0019S01

1.

Install boot and new small boot band on drive shaft.

Cover drive shaft serration with tape so as not to damage boot
during installation.

GI

MA

EM

LC

EC

FE

CL

MT

AT

SU

BR

ST

RS

BT

HA

SC

EL

IDX

FRONT AXLE

Drive Shaft (Cont’d)

AX-15

SFA942A

2.

Set joint assembly onto drive shaft by lightly tapping it.
Install joint assembly securely, ensuring marks which were
made during disassembly are properly aligned.

SFA592B

3.

Pack drive shaft with specified amount of grease.

Specified amount of grease:

95 - 115 g (3.35 - 4.06 oz)

4.

Make sure that boot is properly installed on the drive shaft
groove.
Set boot so that it does not swell and deform when its length
is “L

1

”.

Length “L

1

”:

100.5 mm (3.96 in)

SFA443B

5.

Lock new larger and smaller boot bands securely with a suit-
able tool.

SFA313B

Dynamic Damper

NCAX0019S02

1.

Use new damper bands when installing.

2.

Install dynamic damper from stationary-joint side while holding
it securely.

Length:

Unit: mm (in)

Applied

model

RH

LH

BF86/DS83 + B

BF86/DS83

BF86/TS83

Transaxle

Without
viscous

type

With vis-

cous type

With viscous type

Without vis-

cous type

M/T

A/T

“A”

205.1

(8.07)

186.0

(7.32)

163.5

(6.44)

157.8

(6.21)

181.0 (7.13)

“B”

70 (2.76)

FRONT AXLE

Drive Shaft (Cont’d)

AX-16
